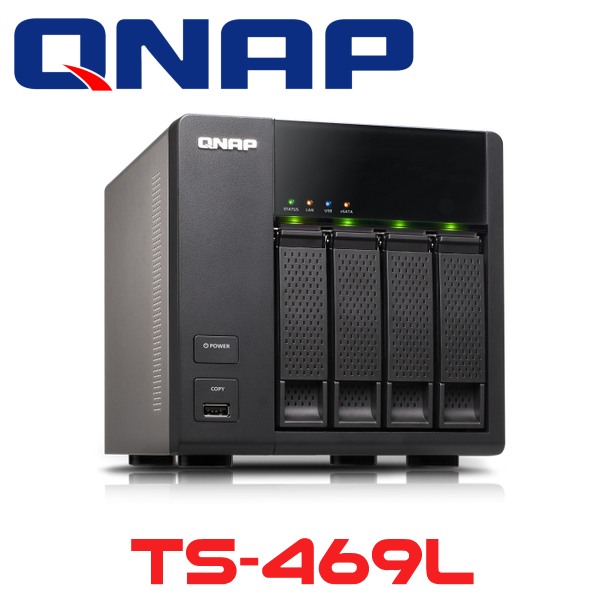

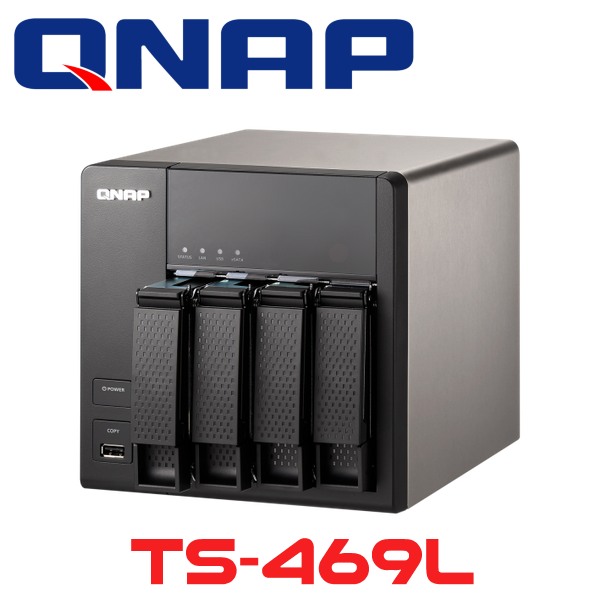

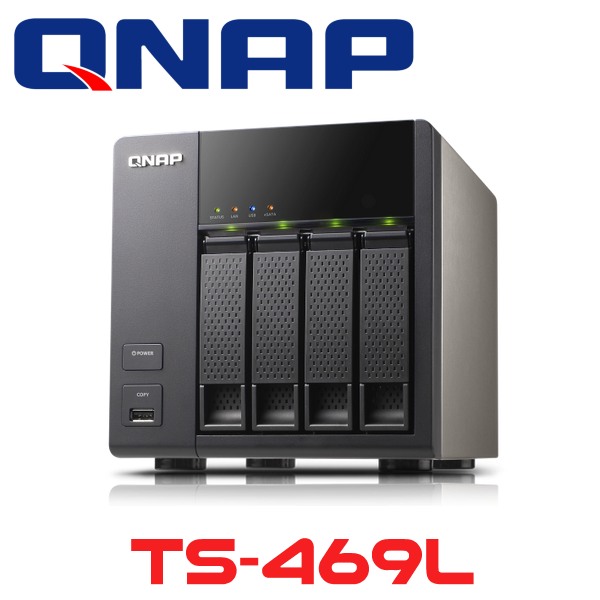

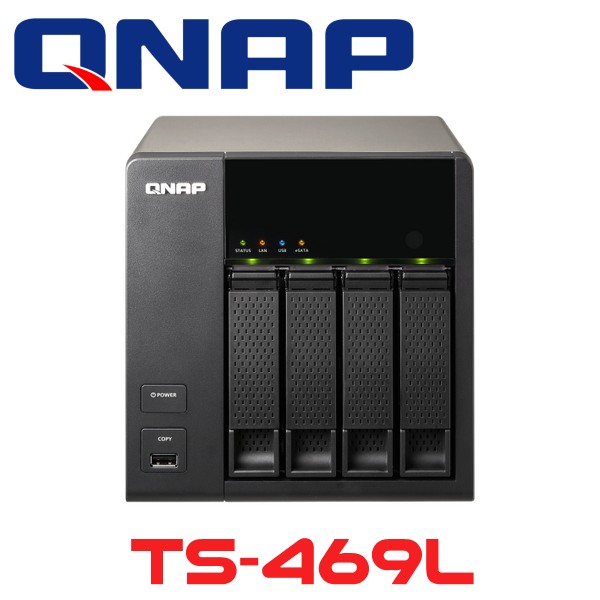

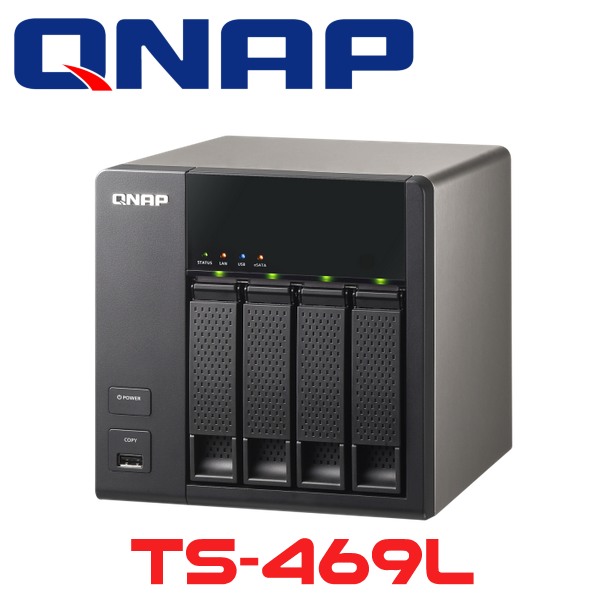

Qnap TS-469L Dubai
The Qnap TS-469L Dubai Turbo NAS Server for SMBs is a 4-bay, all-in-one NAS server with exceptional performance that meets the storage requirements of modern SMB IT environments. It includes secure cross-platform file sharing for Windows, Mac and Linux/UNIX users, an iSCSI / IP-SAN storage combo solution and a number of value-added business applications. Critical business information can be safely protected against unexpected data loss with a set of integrated backup solutions. It is also an ideal shared storage solution for virtualized and clustered environments, with VMware Ready and Citrix Ready certification and has proven compatibility with Microsoft Hyper-V environments.
The intuitive MyCloudNAS service simplifies the process of publishing content present in the Turbo NAS over the Internet and helps you create a private cloud in just a few simple steps. The mobile apps Qfile, Qmanager and Qmobile provide iOS or Android users a convenient way to access and monitor the Turbo NAS live and on the go.
You can use the Surveillance Station Pro on the Turbo NAS to manage the connected IP cameras and set up a video surveillance system with comprehensive monitoring, recording and playback features through mobile access.
Features
- Cross-platform Sharing with Antivirus
- The Turbo NAS supports SMB/CIFS, NFS and AFP protocols for file sharing across Windows, Mac, Linux/UNIX networks. Your accounts and shared folders can be created via a user-friendly web based interface without IT expertise. The integrated antivirus solution for the Turbo NAS ensures business stability. It offers detection against the latest viruses, malware, worms and Trojan horses.
- Windows Active Directory (AD) and LDAP Directory Service
- The Windows AD and Lightweight Directory Access Protocol (LDAP) is a directory service feature that enables you to retrieve user accounts from Windows AD or LDAP based directory server to the Turbo NAS. This reduces time and effort in setting up a new account. You can use the same login name and password to access the Turbo NAS.
- Shared Folder Aggregation
- As an added convenience, you can connect to the shared folders of other servers on Microsoft Networking via the portal folder on the NAS. This minimizes the hassle of logging in to various servers one by one.
- ISO File Archiving and Sharing
- The Qnap TS-469L Dubai supports the mounting of ISO images of CD or DVD discs for network sharing folders for data archiving, storage and sharing. This feature conserves much more space than storing the physical discs. It lowers the risk of data loss due to long-term use of the discs and improves the performance of data sharing on a business network.
- Windows ACL (Access Control List)
- This feature offers sophisticated shared folder permission settings and thus simplifies IT management for businesses with a large number of users. By enabling the Windows ACL, basic permissions and 13 advanced permissions can be set up from the Windows Explorer and synchronized with the permission settings of the Turbo NAS. In addition, the same permissions apply to AFP, FTP, Web File Manager and Samba when “Advanced Folder Permissions” are enabled at the same time.
- Advanced Folder Permissions
- You can configure folder/subfolder access to the Qnap TS-469L Dubai with advanced folder permissions. With this feature enabled, you can manage the folder permissions from Microsoft Windows or the web-based management interface of the Turbo NAS easily.
- Policy-Based Unauthorized IP Blocking
- You can allow, deny or auto block specified IP addresses or network domains, which attempt to connect to the Turbo NAS, via SSH, Telnet, HTTP(S), FTP, Samba or AFP.
- Remote Login
- The Qnap TS-469L Dubai supports remote login via SSH (secure shell) or Telnet connection.
- SSL Security (HTTPS)
- Qnap TS-469L Dubai supports HTTPS connection. You can upload a secure certificate and RSA private key in X.509PEM format issued by a trusted provider to allow access to the NAS server via secure SSL login.
TS-469L 4 Bay Turbo NAS Server For SMBs Specs
| Hardware | |
| CPU | Intel Atom 2.13 GHz Dual-core processor |
| DRAM | 1 GB RAM |
| Flash Memory | 512 MB DOM |
| Hard Disk Drive | 4 x 3.5″ (88.9 mm) or 2.5″ (63.5 mm) SATA 3 Gb/s hard drive or SSD hard drive |
| Hard Disk Tray | 4x Hot-swappable |
| LAN Port | 2x Gigabit RJ-45 Ethernet ports |
| LED Indicators | Status, LAN, USB, eSATA, Power, HDD 1, HDD 2, HDD 3, HDD 4 |
| USB | 2x USB 3.0 port (Back: 2) 5x USB 2.0 port (Front: 1; Back: 4) Support USB printer, pen drive, USB hub, and USB UPS and more |
| eSATA | 2x eSATA ports (back) |
| Buttons | Power, USB One-Touch-Backup, Reset |
| Alarm Buzzer | System warning |
| Form Factor | Tower |
| Sound Level | Without HDD installed: 34.7 dB Stand by: 34.1 dB In operation: 36.8 dB (with 4x 500 GB HDD installed) |
| Power Consumption | Sleep mode: 25 W In Operation: 43 W Power-off (in WOL mode): 1 W (with 4x 500 GB HDD installed) |
| Power Supply | Input: 100-240 VAC, 50/60 Hz, Output: 250 W |
| Secure Design | K-lock security slot for theft prevention |
| VGA | Reserved VGA interface for maintenance |
| Fan | 1x quiet cooling fan 3.54″ (9 cm), 12 VDC |
| Software | |
| Operating System | QNAP Turbo System (QTS) 3.7, Embedded Linux |
| Supported Operating System | Windows XP, Vista, Windows 7 (32/64-bit), Windows Server 2003/2008 R2 Apple Mac OS X Linux & UNIX |
| Supported Web Browsers | Microsoft Internet Explorer 8, 9 Mozilla Firefox 8+ Apple Safari 4+ Google Chrome |
| Language Support | Chinese (Traditional and Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish |
| File System | Internal Hard Drive: EXT3, EXT4 External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+ |
| Networking | TCP/IP (IPv4 and IPv6: Dual stack) Dual Gigabit NICs with jumbo frame -Failover -Multi-IP settings -Port trunking/NIC teaming (Modes: Balance-rr, Active Backup, Balance XOR, Broadcast, IEEE 802.3ad/Link Aggregation, Balance-tlb and Balance-alb) Service binding based on network interfaces Virtual LAN (VLAN) DHCP client, DHCP server Protocols: CIFS/SMB, AFP (v3.3), NFS (v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP and SMSC UPnP and Bonjour discovery USB Wi-Fi adapter support |
| Backup Solution | Real-time Remote Replication (RTRR) -Works as both RTRR Server & Client with bandwidth control -Real-time & Scheduled backup -Encryption, Compression, File filter, and Transfer rate limitation Block-level Remote Replication -Works as both Rsync Server & Client with bandwidth control -Encrypted replication between QNAP NAS servers USB one touch backup (Import/Export) Desktop backup by QNAP NetBak Replicator for Windows Apple Time Machine support with backup management Data backup to multiple external storage devices Data backup to cloud storage (Amazon S3, ElephantDrive, and Symform) |
| Security | IP Filter and Policy-based automatic IP blocking Network Access Protection with Auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP Encrypted Access: HTTPS, FTP with SSL/TLS (Explicit), SSH/SFTP (admin only), Encrypted remote replication between QNAP NAS servers (Rsync over SSH) CIFS Host Access Control for shared folders Antivirus protection FIPS 140-2 validated AES 256-bit volume-based data encryption AES 256-bit external drive encryption Importable SSL certificate Instant alert via E-mail, SMS, Instant messaging (Windows Live), and beep |
| Disk Management | Single Disk, JBOD, RAID 0, 1, 5, 6, 10, 5+hot spare Online RAID capacity expansion and online RAID level migration Bad block scan and hard drive S.M.A.R.T. RAID recovery Bitmap support |
| iSCSI (IP SAN) | iSCSI target Multi-LUNs per target Up to 256 targets/LUNs combined Supports LUN mapping & masking Online LUN capacity expansion Supports SPC-3 persistent reservation Supports MPIO & MC/S iSCSI LUN backup, one-time snapshot, and restore iSCSI connection and management by QNAP Finder (Windows) Virtual disk drive (via iSCSI Initiator) Stack chaining master Max no. of virtual disk drives: 8 |
| Server Virtualization and Clustering | Supports VMware vSphere Supports Citrix XenServer Supports Windows server 2008 R2 Hyper-V & Failover clustering |
| Power Management | Wake on LAN Internal hard drive standby mode Scheduled Power on/off (Max 15 settings) Automatic power on after power recovery USB and network UPS support with SNMP management |
| Access Rights Management | Max no. of users: 4,096 Max no. of user groups: 512 Max no. of network shares: 512 Batch Users creation Import/Export users User Quota management Subfolder permissions support for CIFS/SMB, AFP, FTP and Web File manager |
| Domain Authentication Integration | Microsoft Active Directory (AD) LDAP Server LDAP Client Domain users login via CIFS/SMB, AFP, FTP, and Web File Manager |
| MyCloudNAS Service | Private Cloud Storage and Sharing Free Host Name registration (DDNS) Auto Router configuration (via UPnP) MyCloudNAS Connect for easy VPN connection (Windows utility) |
| Storage Plug & Play | Windows Software: QNAP Finder Create and map shared folders Create and connect to iSCSI target/LUN |
| Web Administration | AJAX-based UI Smart fan control Dynamic DNS (DDNS) SNMP (v2 & v3) Resource monitor Network recycle bin for file deletion via CIFS/SMB and AFP-Automatic cleanup -File Type filter Comprehensive logs (events & connection) Syslog client Firmware Live update System settings backup and restore Restore to factory default Mobile App Qmanager for remote monitoring |
| Powerful All-in-one server | |
| File Server | File sharing across Windows, Mac, and Linux/UNIX Windows ACL Advanced folder permission for SMB, AFP, FTP, Web File manager Shared Folder aggregation (CIFS/SMB) Web File manager -Supports ISO mounting -Direct file viewing via Google Doc -Create and send download links for public file sharing with expiration time and password protection Mobile App: Qfile for file browsing and management |
| FTP Server | FTP over SSL/TLS (Explicit) Max no. of concurrent connections: 256 FXP supported Passive FTP port range control FTP bandwidth & connection control Unicode support |
| Backup Server | Remote Replication Server (over Rsync) Real-time Remote Replication to another QNAP NAS or FTP Server Apple Time Machine support Windows Client backup application: QNAP NetBak Replicator Third Party Backup Software Support: Acronis True Image, CA BrightStor, ARCserve Backup, EMC Retrospect, Symantec Backup Exec, LaCie SilverKeeper and more |
| Web Server | HTTP/HTTPS connections Supports WebDAV connection Support Virtual Host (Max: 32) Importable SSL certificate |
| Database Server | Built-in MySQL Server Web-based Management via phpMyAdmin (QPKG) |
| Print Server | Max no. of printers: 3 Supports Internet printing protocol -Print job display and management -IP- and Domain Name-based privilege control Supports Apple Bonjour printing |
| Syslog Server | Centralized Log monitoring and archiving Immediate E-mail alerts Supports Log filtering |
| RADIUS Server | Centralized account management and authentication for network access Supports PAP, EAP-TLS/PAP, and EAPTTLS/PAP authentication |
| VPN Server | Secure Remote Access: PPTP & OpenVPN VPN services Remote access to other resources on local network Max no. of clients: 30 |
| Surveillance Station Pro | Max. IP Cameras: 12 Mobile app: VMobile (iOS & Android) |
| iTunes Server | Audio and Video Sharing (AIF, M4A, M4B, M4V, MOV, MP1, MP2, MP3, MP4, MPEG, MPG, WAV)) Smart playlist for iTunes client (Windows & Mac OS) |
| DLNA/UPnP Media Server | Built-in Twonky Media Server Supports UPnP media player such as Playstation 3 and Xbox 360 Supported format (actual playback capabilities may vary depending on the DLNA client) -Audio: MP3, MP4, M4A, M4A (ALAC), M4B, 3GP, APL, AC3, M1V, M4V, MOV, AAC, AMR, AWB, WAV, PCM, LPCM, MP1, MP2, AIF, AIFF, AIFC, SND, WMA, OGG, FLAC -Photo: JPG, JPE, JPEG, TIFF, TIF, GIF, PNG, BMP -Video: WMV, ASF, VDR, AVI, XVID, DIVX, FLV, MPG, MPE, MTS, M2TS, M2T, MPEG, SPTS, M2P, M2V, MP2T, MP2P, MPG2, DVR-MS, VOB -Playlist: M3U, M3U8, WPL, PLS |
| Multimedia Station | Supports Photo, Audio and Video Image slideshow and rotation Automatic & Schedule thumbnail generation for easy browsing Display photo details from EXIF: Date, Exposure Time, Aperture Display audio details from ID3 Tag: Album Cover, Title, Artist, Album Access Authority management Multimedia (Video & Audio) streaming Supports Cooliris Supports Web Publishing (Facebook, MySpace, MSN Live, Twitter, Plurk, Blogger) Share photos by Email Supported formats: Photo – JPG/JPEG, GIF, PNG Audio – MP3 Video -Playback: FLV, MPEG-4 Video (H.264 + AAC) -Transcode: AVI, M4V, MPG/MPEG, RM/RMVB, WMV QNAP Exclusive iPhone & Android App – Qmobile |
| Photo Station | Supported File Formats: -Photo: JPG/JPEG, GIF, PNG, BMP, RAW (RAW: .arw, .srf, .sr2, .dcr, .kdc, .cr2, .crw, .nef, mrw, .pef, .paf, .3fr, .erf, .mef, .mos, .orf, .rw2, .dng, .x3f, .tif, .nrw, .raf) -Video: FLV, MPEG-4 Video (H.264 + AAC) Image slideshow with background music, thumbnails, and different playback modes Online photo editing by Pixlr editor Geotagging photos with Google Maps Slideshow sharing (from private albums) with password protection Photo publishing to social websites (Facebook, MySpace, Twitter, Plurk, and Blogger) Photo sharing by email |
| Music Station | Supported Audio Formats: -MP3, MP4, OGG, WAV, AIFF, AU, FLAC, M4A, APE, AAC Local playback with USB speaker/sound card Browse other UPnP Media Servers on local network Internet Radio (MP3) Music alarm (up to 8 alarms) Playback control by QNAP Mobile App: QMobile music remote |
| Download Station | PC-less BT, FTP, HTTP download (up to 500 tasks) BT download -Supports magnet links -Supports TCP/UDP Tracker protocol -Scheduled download -Configurable port range -Bandwidth control -RSS subscription and download (Broadcatching) -Selectable download files HTTP/ FTP download -Configurable saving directory -Bulk download with wildcard settings -RapidShare download support QNAP Download Management Software: QGet -For both Windows & Mac OS -Manage the download tasks of multiple QNAP NAS remotely over LAN or WAN |
| Antivirus | Protection against the latest known viruses, trojans and other threats Free virus databases update on manual or scheduled basis Multiple scan tasks (max: 64, concurrent: 5) with custom folder selection and scheduled Scanning Email notification upon task completion or virus detection Quarantines or deletes infected files |
| QPKG Center | Expands application services by easy online installation A wide variety of official and community QPKG Add-ons Business -eyeOS -GLPI -Squid Proxy Server -Vtiger CRM CMS -Gallery -Joomla -WordPress -Xoops Communications -Asterisk -XMail Mail Server -Xeams Mail Server Download-MLDonkey -NZBGet -pyLoad -SABnzbdplus -Transmission Entertainment -QiTunesAir -IceStation -Plex Media Server -PS3 Media Server -Squeezebox Server Utilities -iStat -Optware IPKG -phpMyAdmin -Piwik Miscellaneous -Java Runtime Environment Mono -Python -QUSBCam -Tomcat |
| General | |
| Temperature | 32 – 104°F (0 – 40°C) |
| Humidity | 0 to 95% R.H. |
| Dimensions | 6.97 x 7.09 x 9.25″ (177 x 180 x 235 mm) |
| Weight | 8.04 lb (3.65 kg) |
