Description

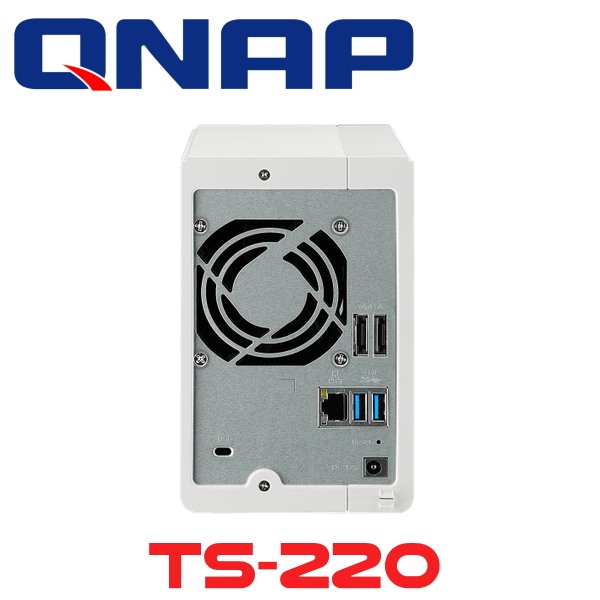

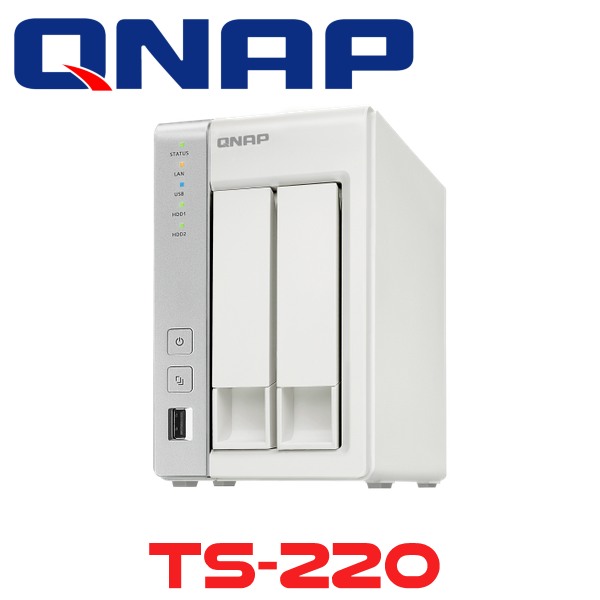

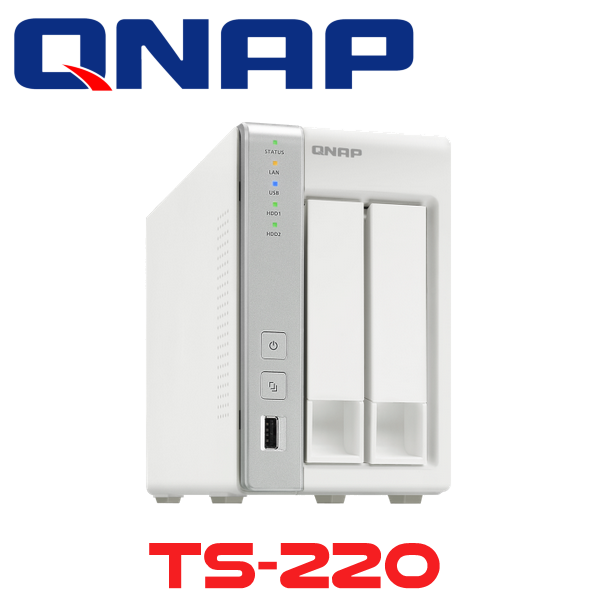

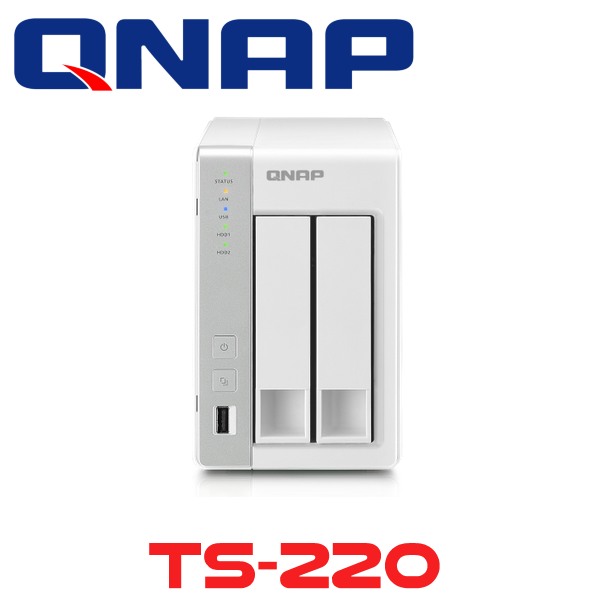

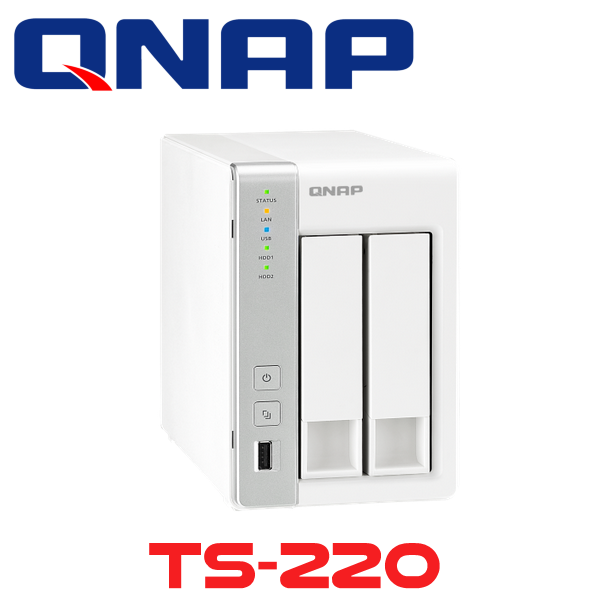

Qnap TS-220 Dubai
The TS-220 Dubai 2-Bay Home and SOHO NAS Server from QNAP is designed for personal cloud and social sharing. The NAS server features QTS 4.0 operating system, which makes your digital life easier, simpler and more convenient. The QTS 4.0 desktop includes quick main menu, graphic dashboard, drag-and-drop icons, multiple desktops, personalized wallpapers and a smart toolbar, making system operations much easier.
The NAS server also features multi-window, multitasking GUI, data storage, backup, sharing and disaster recovery and many more. Furthermore, it consists of rich multimedia applications for entertainment and Dropbox-like file synchronization.
Features
- Simple yet Powerful Storage
- The Qnap TS-220 Dubai is an easy-to-use network storage center for data storage, backup, synchronization, remote access and home entertainment. With your personal cloud, you will always be connected to your files and your files are always under your control
-
-
- You can organize your data/content and backups in one centralized location
- Synchronize files across computers, tablets and mobile devices and share files across different groups and communities
- Collect, enjoy and share your large photo, music and video collection
- Enjoy HD movies or family videos on TV when streamed through various network players
- Access, manage and enjoy all your files with your tablets and smartphones
- Extend your diverse applications on the TS-220 by installing more than 80 apps on demand in the App Center
-
- Easier Operations on QTS 4.0 Desktop
- The QTS 4.0 operating system makes your digital life easier, simpler and more convenient. The QTS 4.0 desktop includes quick main menu, graphic dashboard, drag-and-drop icons, multiple desktops, personalized wallpapers and the smart toolbar, making system operations much easier. In addition, multitasking support allows multiple windows to be open to access multiple applications concurrently
- Centralize and Protect Your Data
- The Qnap TS-220 Dubai is a high-performance cross-platform storage solution with many user-friendly storage and backup options that allow you to centralize and protect all your important files on one single device
- Apple Time Machine Backup
- Time Machine is fully supported to help Mac OS X users create a more efficient and convenient backup solution. The Qnap TS-220 Dubai works with Time Machine wirelessly over the same network, so you no longer need an external drive
- More Backup Options
- The Netbak Replicator is a license-free backup software which allows you to back up your files in multiple Window client PCs in schedule or real-time. You can also gain a disaster recovery solution with our RTRR (Real Time Remote Replication) feature by replicating data in multiple shared folders from one NAS to another over the network to ensure the safety of your important data. Besides, data can also be backed up to another FTP server, external disk or online cloud storage services
- User Access Controls
- All your digital files stored can be managed to share with your family and friends. You can easily and flexibly set up user accounts, user groups, shared folder access right and user quota
- Unauthorized IP-Based Blocking
- A comprehensive list granting proper access from different users based on IP address can be established to authorize or deny access to the Qnap TS-220 Dubai.
- Built-In Anti-Virus
- The Qnap TS-220 Dubai has a built-in anti-virus feature to detect and protect against viruses, malware, worms, and Trojan horses
- Encrypted Login, Access and Network Transfer
- Supports SSH remote login, SSL security (HTTPS), Secure FTP and encrypted remote replication
- Detailed Logs
- Detailed logs of file-level access to the Qnap TS-220 Dubai via different file transfer protocols and services accessed by online users can all be recorded
- Freely Access Your Cloud Anywhere
- Through any web browser or the free app for tablets and smartphones, the Qnap TS-220 Dubai becomes your personal cloud so you are always connected to your data. Take advantage of the myQNAPcloud service, which allows you to remotely access your TS-220 wherever you are. Instantly stream or share your multimedia contents and share them with your friends
- Access from Anywhere
- Qsync is a new feature that allows you to sync all your devices on the go. It can be synced anywhere on the web, at your home, in the office and on the go
- Community Share
- Qsync makes your Qnap TS-220 Dubai a team-sharing device, allowing you to share and edit files among your teammates with automatic updates on the files your team is working on. Qsync provides the function of file synchronization like Dropbox service and offers a cost-effective way to share files across groups and communities
- Photo Albums on the Cloud
- The TS-220 acts as a photo vault for you to back up your favorite photos. The Photo Station makes photo sharing simple and you can designate your own access right controls. Simply upload your photos to the TS-220 to create and organize your photo albums through a web browser to share with your family and friends. Your mobile devices are useful too; with the Qfile mobile app in your iOS or Android device, you can instantly upload photos to the TS-220.
QNAP TS-220Â Specs
Hardware
| CPU | Marvell 1.6 GHz |
| DRAM | 512 MB DDR3 RAM |
| Flash Memory | 16 MB |
| Hard Disk Drive | 2 x 3.5″ or 2.5″ SATA II HDD/SSD* |
| Hard Disk Tray | 2 x hot-swappable |
| LAN Port | 1 x Gigabit RJ-45 Ethernet port |
| LED Indicators | STATUS, LAN, USB, HDD 1, HDD 2 |
| USB | 1 x USB 2.0 port (front) 2 x USB 3.0 port (back) Supports USB printer, disk, pen drive, USB hub and USB UPS, etc |
| eSATA | 2 x eSATA port (back) |
| Buttons | Power button, USB one-touch-backup button, reset button |
| Alarm Buzzer | System warning |
| Form Factor | Tower |
| Secure Design | K-lock security slot for theft prevention |
| Fan | 1 x 2.7″ (7 cm) quiet cooling fan, 12 V DC |
Software
| Operating System | QTS 4.0 |
| Supported Operating Systems | Windows 8 (32/64-bit), Vista, Windows 7 (32/64-bit), Windows XP, Windows Server 2003/2008 R2/2012 Apple Mac OS X Linux & UNIX |
| Supported Web Browsers | Microsoft Internet Explorer 8, 9, 10 Mozilla Firefox 8+ Apple Safari 4+ Google Chrome |
| File System | Internal Hard Drive: EXT3, EXT4 External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+ |
| Networking | TCP/IP (IPv4 & IPv6: dual stack) Proxy client, proxy server DHCP client, DHCP server Protocols: CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP and SMSC TFTP Server with PXE booting UPnP & Bonjour Discovery USB Wi-Fi adapter support |
| Backup Solution | Real-Time Remote Replication (RTRR): -Works as both RTRR server & client with bandwidth control -Real-time & scheduled backup -Encryption, compression, file filter and transfer rate limitation Block-Level Remote Replication: -Works as both Rsync Server & client with bandwidth control -Encrypted replication between QNAP NAS Servers Desktop backup by QNAP NetBak Replicator for Windows Apple Time Machine support with backup management Data backup to multiple external storage devices Data backup to Cloud storage (Amazon S3, ElephantDrive, Symform and Google Drive) |
| Security | IP filter & policy-based automatic IP blocking Network Access Protection with Auto-Blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP Encrypted Access: HTTPS, FTP with SSL/TLS (explicit), SSH/SFTP (admin only), encrypted remote replication between QNAP NAS servers (Rsync over SSH) CIFS host access control for shared folders Antivirus protection Importable SSL certificate Instant alert via E-mail, SMS, instant messaging (Windows Live) and beep |
| Disk Management | Single disk, JBOD, RAID 0, 1 Online RAID capacity expansion & online RAID Level migration Bad block scan & hard drive S.M.A.R.T. RAID recovery Bitmap support |
| iSCSI (IP SAN) | iSCSI target with multiple LUNS per target (Up to 256 targets/LUNs combined) LUN mapping & masking Online LUN capacity expansion Supports SPC-3 persistent reservation Supports MPIO & MC/S iSCSI LUN backup, one-time snapshot and restore iSCSI connection and management by QNAP Finder (Windows) Stack Chaining Master: Up to 8 virtual disk drives (via iSCSI initiator) |
| Server Virtualization and Clustering | Supports VMware vSphere (ESX/ESXi 4.x, ESXi 5.x) Supports Citrix XenServer 5.x, 6.x Supports Windows Server 2008 R2 and Windows Server 2012 Hyper-V Supports Windows Server 2008 R2 and Windows Server 2012 failover cluster |
| Power Management | Wake-on-LAN Internal hard drive Standby mode Scheduled power on/off (max 15 settings) Automatic power on after power recovery USB and network UPS support with SNMP management |
| Access Rights Management | Maximum No. of Users: 2048 Maximum No. of User Groups: 256 Maximum No. of Network Shares: 256 Batch users creation Import/Export users User quota management Local user access control for CIFS, AFP, FTP and WebDAV Application access control for Photo Station, Music Station and Video Station Subfolder permissions support for CIFS/SMB, AFP, FTP and File Station |
| Domain Authentication Integration | Microsoft Active Directory (AD) LDAP Server LDAP client Domain users login via CIFS/SMB, AFP, FTP and Web File Manager |
| myQNAPcloud Service | Private cloud storage and sharing Free host name registration (DDNS) Auto router configuration (via UPnP) CloudLink for easy VPN connection (Windows VPN utility) |
| Storage Plug and Play | Windows Software: QNAP Finder Create and map shared folders Create and connect to iSCSI Target/LUN |
| Web Administration | Smart fan control Dynamic DNS (DDNS) SNMP (v2 & v3) Resource monitor Network Recycle Bin for file deletion via CIFS/SMB and AFP Automatic cleanup File type filter Comprehensive logs (events & connection) Syslog client Firmware live update System settings backup and restore Restore to factory default Mobile App Qmanager for remote monitoring |
| Multilingual Support | Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish |
Powerful All-in-one server
| Photo Station | Supported File Formats: Photo: JPG/JPEG, GIF, PNG, BMP, RAW (.arw, .srf, .sr2, .dcr, .kdc, .cr2, .crw, .nef, mrw, .pef, .paf, .3fr, .erf, .mef, .mos, .orf, .rw2, .dng, .x3f, .tif, .nrw, .raf) Video: FLV, MPEG-4 video (H.264 + AAC) Image slideshow with background music, thumbnails and different transition effects Online photo editing by Pixlr editor Geotagging photos with Google Maps Slideshow sharing (from private albums) with password protection Photo publishing to social websites (Facebook, MySpace, Twitter, Plurk and Blogger) Photo sharing by E-mail |
| Music Station | Supported Audio Formats: MP3, OGG, WAV, AIFF, AU, FLAC, M4A, APE, AAC Local playback with USB speakers/sound card Music streaming from DLNA/UPnP media servers Internet Radio (MP3) Music alarm (up to 8 alarms) Remote Playback Control by QNAP Mobile App: QMobile |
| iTunes Server | Audio and video sharing for Windows & Mac iTunes (MP3, AIFF, WAV, MPEG-4, AAC and M4A) Smart playlist |
| Video Station | Web video sharing Video Categorization and Transcoding Supported Format: mv, avi, divx, 3gp, mov, mpeg, mpg, xvid, flv, asf, rm, dat, mp4 Video Upload: -Up to 2048 MB in size -Up to 320 minutes in length -Batch upload (max 50 files) Publish videos to Facebook, Twitter and Google+ |
| TV Station | DVB-T* digital TV live view, recording and playback Supports up to 2 USB TV tuners Electronic Programming Guide (EPG) with scheduled recording |
| DJ Station | Live web broadcasting of music playlists Music Sharing on Facebook |
| Download Station | PC-less BT, FTP, HTTP download (up to 500 tasks) BT Download with Magnet Link and PT Support: -Supports TCP/UDP tracker protocol -Scheduled download -Configurable port range -Bandwidth control -RSS subscription and download (broadcatching) -Selectable download files -Configurable saving directory HTTP/FTP Download: -Bulk download with wildcard settings RapidShare download support Website Subscription Service: YouTube QNAP Download Management Software: QGet -For both Windows & Mac OS -Manage the download tasks of multiple QNAP NAS remotely over LAN or WAN |
| Surveillance Station Pro | Supports over 1,400 IP cameras Includes 1 free camera license Up to 8 camera channels via additional license purchase Intelligent Video Analytics (IVA) for advanced video search Visual aids by E-map Surveillance client for Mac Mobile App: VMobile (iOS & Android) |
| File Station | File sharing across Windows, Mac and Linux/UNIX Windows ACL Advanced folder permission for SMB, AFP, FTP and file station Shared folder aggregation (CIFS/SMB) File Manager -Supports ISO mounting (Up to 256 ISO files) -File viewing via Google Doc -Create and send download links for public file sharing with expiration time and password protection -File drag-n-drop via Chrome and Firefox browsers -Photo, music and video preview and playback with transcoding -File compression (ZIP or 7z) -Advanced search Mobile App: Qfile for file browsing and management |
| FTP Server | FTP over SSL/TLS (explicit) Max No. of Concurrent Connections: 256 FXP supported Passive FTP port range control FTP bandwidth & connection control Unicode support |
| Backup Station | Remote replication server (over Rsync) Real-time remote replication to another QNAP NAS or FTP server Apple Time Machine support Windows Client Backup Application: QNAP NetBak Replicator Third Party Backup Software Support: Veeam Backup & replication, Acronis True Image, ARCserve Backup, EMC Retrospect, Symantec Backup Exec, LaCie SilverKeeper, etc. |
| App Center | Add new features by online installation of official and community apps* |
| Print Server | Max No. of Printers: 3 Supports Internet Printing Protocol Print job display and management IP- and domain name-based privilege control Supports Apple Bonjour printing |
| VPN Server | Secure Remote Access: PPTP & OpenVPN VPN services Remote access to other resources on local network Max No. of Clients: 30 |
| Web Server | HTTP/HTTPS connections Supports WebDAV connections Support virtual host (Max: 32) Importable SSL certificate |
| Database Server | Built-in MySQL server Web-based management via phpMyAdmin (App Center) |
| Syslog Server | Centralized log monitoring and archiving Immediate E-mail alerts Supports log filtering |
| RADIUS Server | Centralized account management and authentication for network access Supports PAP, EAP-TLS/PAP and EAPTTLS/PAP authentication |
| Antivirus | Protection against viruses, Trojans and other threats Free Virus databases update on manual or scheduled basis Multiple scan tasks (max: 64, concurrent: 5) with custom folder selection and scheduled scanning E-mail notification upon task completion or virus detection Quarantines or deletes infected files |
Power
| Type | External power adapter |
| Power Supply | 60 W, Input: 100-240 V |
| Power Consumption | Sleep Mode: 7 W In Operation: 19 W (with 2 x 500 GB HDD installed) |
Environmental
| Temperature | 32 to 104°F (0 to 40˚C) |
| Relative Humidity | 0 to 95% |
General
| Dimensions (WxHxD) | 4.0 x 6.6 x 8.8″ (102 x 168.5 x 225 mm) |
| Weight | 5.1 lb (2.3 kg) |
Packaging Info
| Box Dimensions (LxWxH) | 10.7 x 9.3 x 8.2″ |
