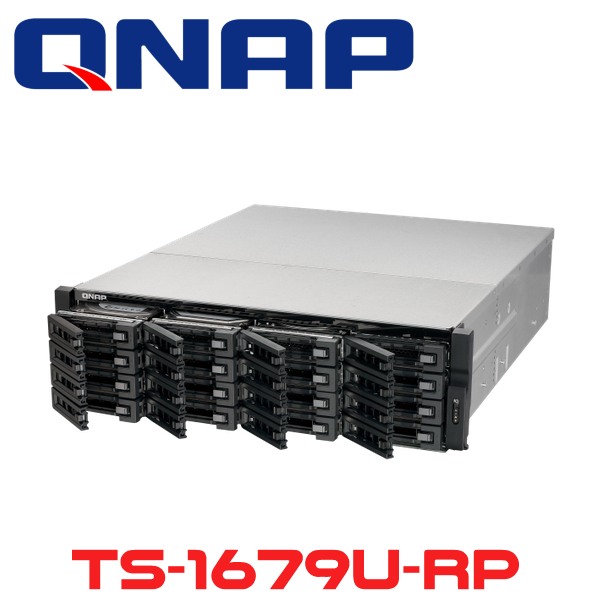

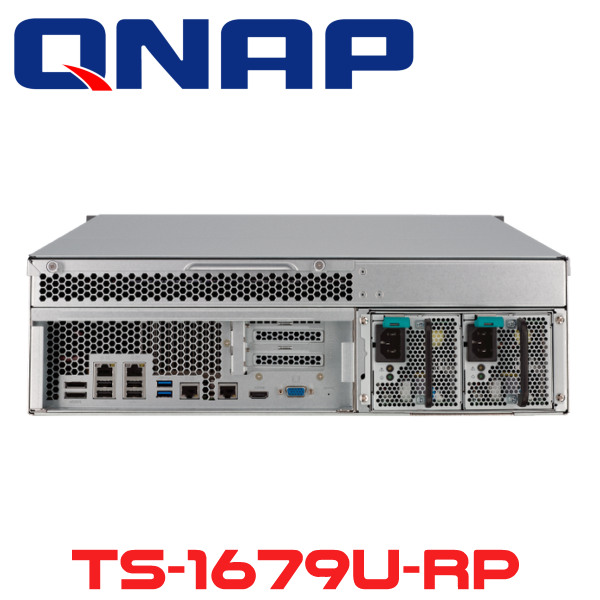

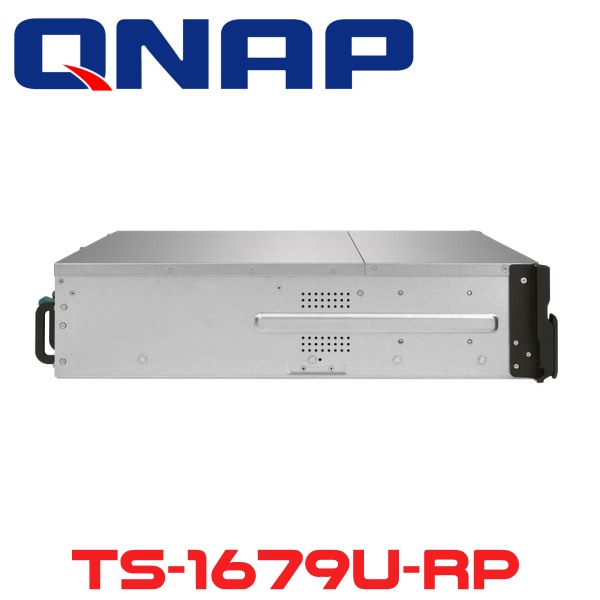

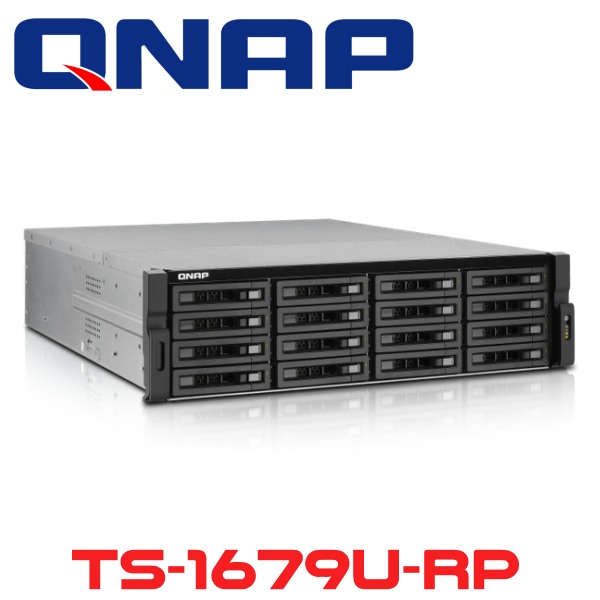

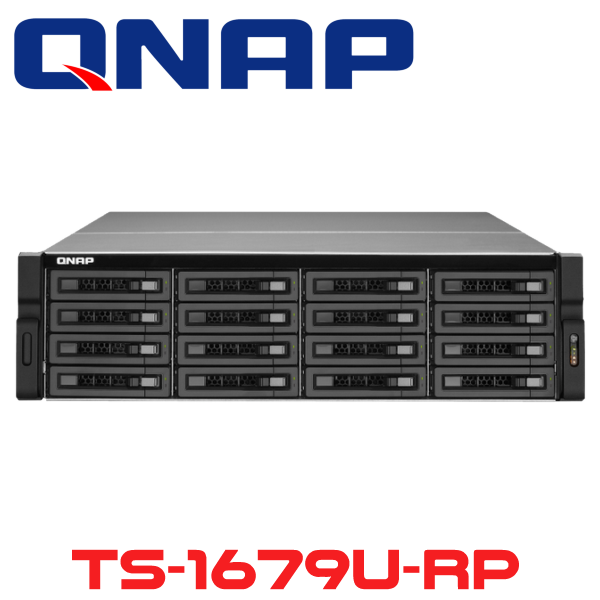

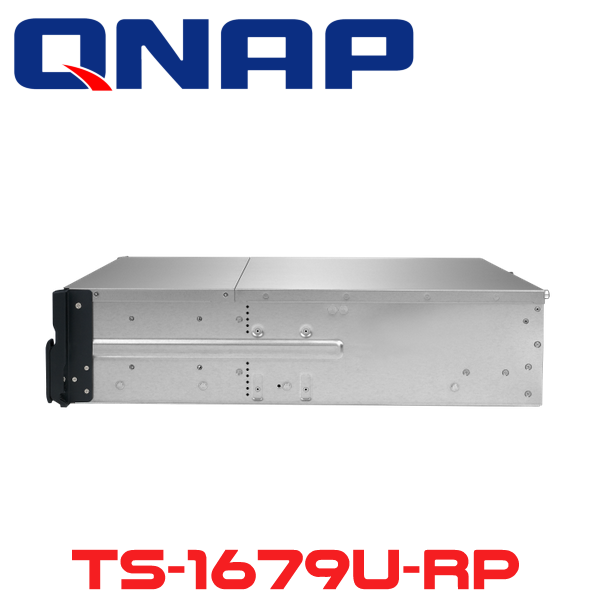

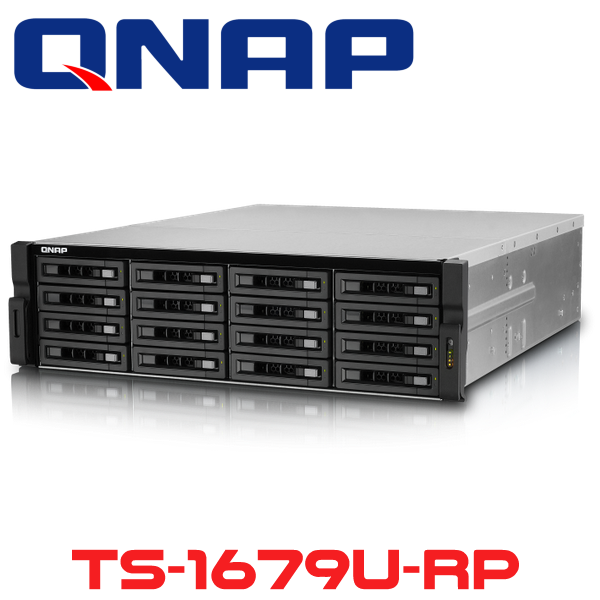

Qnap TS-1679U-RP Dubai
The Qnap TS-1679U-RP Dubai 16-Bay NAS Server for SMBs is an ultra-high performance 16-bay NAS server for high-end small to medium businesses. The TS-1679U-RP Server serves as both IP-SAN (iSCSI) and NAS that can be easily utilized in different business and enterprise applications such as backup center, disaster recovery, file sharing, virtualization and video editing storage. The server is VMware, Citrix and Hyper-V ready compliant.
Features
Secure
Reliable
Simple
High Performance
NAS + iSCSI/IP-SAN Solution for Server Virtualization
High Network Bandwidth
Blazing Fast Data Backup via USB 3.0
Cross-Platform Sharing with Antivirus
Windows Active Directory (AD) and LDAP Directory Service
Shared Folder Aggregation
ISO File Archiving and Sharing
Centralized Log Monitoring
TS-1679U-RP 16-Bay NAS Server For SMBs Specs
CPU | Dual Core Intel Core i3-2120 processor, 3.3 GHz |
DRAM | 4 GB DDR3 RAM |
Flash Memory | 512 MB DOM |
Hard Drive | 16 x 3.5″ or 2.5″ SATA 6 Gb/s, SATA 3 Gb/s hard drive or SSD |
Hard Disk Tray | 16 x hot-swappable and lockable trays |
LAN Ports | 4 x Gigabit RJ-45 Ethernet ports (expandable up to 8 x 1 Gb LAN or 4 x 10 Gb + 4 x 1 Gb LAN by installing optional dual-port 10 Gb and 1 Gb network card) |
LED Indicators | Status, 10 GbE, LAN, eSATA, hard drives |
USB | 2 x USB 3.0 ports (rear) 4 x USB 2.0 ports (rear) Supports USB printer, disk, pen drive, USB hub, USB UPS and more |
eSATA | 2 x ports (rear) |
Buttons | System: Power button and reset button |
Alarm Buzzer | System warning |
Form Factor | 3U, rack mount |
Sound Level | Standby: 54.73 dB In Operation: 55.13 dB (with 16 x 1 TB HDD installed) |
Expansion Slots | 2 (for network and storage expansion) |
VGA | Reserved for maintenance |
HDMI | Reserved for maintenance |
Fan | 3 x 2.4″ (6 cm) smart cooling fans |
Operating System | Embedded Linux |
Supported Operating Systems | Windows XP, Vista, Windows 7 (32/64-bit), Windows 8 (32/64-bit), Windows Server 2003/2008 R2 Apple Mac OS X Linux and UNIX |
Supported Web Browsers | Microsoft Internet Explorer 8, 9 Mozilla Firefox 8, 9, 10 Apple Safari 4, 5 Google Chrome |
Multilingual Support | Chinese (Traditional and Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish |
File System | Internal Hard Drive: EXT3, EXT4 External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+ |
Networking | TCP/IP (IPv4 and IPv6: dual stack) Multiple Gigabit NICs with Jumbo Frame: -Failover -Multi-IP settings -Port trunking/NIC teaming (Modes: Balance-rr, Active Backup, Balance XOR, Broadcast, IEEE 802.3ad/Link Aggregation, Balance-tlb and Balance-alb) Service binding based on network interfaces Virtual LAN (VLAN) DHCP client, DHCP server Protocols: CIFS/SMB, AFP (v3.3), NFS (v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP and SMSC UPnP and Bonjour Discovery USB Wi-Fi adapter support |
Backup Solution | Real-Time Remote Replication (RTRR): -Works as both RTRR server and client with bandwidth control -Real-time and scheduled backup -Encryption, compression, file filter and transfer rate limitation Block-Level Remote Replication: -Works as both Rsync Server and client with bandwidth control -Encrypted replication between QNAP NAS servers USB one touch backup (import/export) Desktop backup by QNAP NetBak Replicator for Windows Apple Time Machine support with backup management Data backup to multiple external storage devices Data backup to Cloud storage (Amazon S3, ElephantDrive and Symform) |
Security | IP filter and policy-based automatic IP blocking Network Access Protection with Auto-Blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP Encrypted Access: HTTPS, FTP with SSL/TLS (explicit), SSH/SFTP (admin only), encrypted remote replication between QNAP NAS servers (Rsync over SSH) CIFS host access control for shared folders Antivirus protection FIPS 140-2 validated AES 256-bit volume-based data encryption AES 256-bit External Drive Encryption Importable SSL certificate Instant alert via E-mail, SMS, instant messaging (Windows Live Messenger) and buzzer |
Disk Management | Single disk, JBOD, RAID 0, 1, 5, 5+Hot Spare, 6, 6+Hot Spare, 10, 10+HotSpare Online RAID capacity expansion and online RAID level migration Bad block scan and hard drive S.M.A.R.T. Global hot spare drive RAID recovery Bitmap support |
iSCSI (IP SAN) | iSCSI Target: – Multiple LUNs per target -Up to 256 targets/LUNs combined Supports LUN mapping and masking -Online LUN capacity expansion -Supports SPC-3 persistent reservation -Supports MPIO and MC/S iSCSI LUN backup, one-time snapshot and restore iSCSI connection and management by QNAP Finder (Windows) Virtual Disk Drives (via iSCSI Initiator): -Stack chaining master -Maximum No. of Virtual Disk Drives: 8 |
Server Virtualization and Clustering | Supports VMware vSphere Supports Citrix XenServer Supports Windows Server 2008 R2 Hyper-V and failover clustering |
Power Management | Wake on LAN Internal hard drive standby mode Scheduled power on/off (max 15 settings) Automatic power on after power recovery USB and network UPS support with SNMP management |
Access Rights Management | Maximum No. of Users: 4096 Maximum No. of User Groups: 512 Maximum No. of Network Shares: 512 Batch users creation Import/export users User quota management Subfolder permissions support for CIFS/SMB, AFP, FTP and Web File Manager |
Domain Authentication Integration | Microsoft Active Directory (AD) LDAP server LDAP client Domain users login via CIFS/SMB, AFP, FTP and Web File Manager |
MyCloudNAS Service | Private cloud storage and sharing Free host name registration (DDNS) Auto router configuration (via UPnP) MyCloud NAS Connect for easy connection (Windows utility) |
Storage Plug and Play | Windows Software: QNAP Finder Create and map shared folders Create and connect to iSCSI Target/LUN |
Web Administration | AJAX-based user interface Smart fan control Dynamic DNS (DDNS) SNMP (v2 and v3) Resource monitor Network Recycle Bin for file deletion via CIFS/SMB and AFP Comprehensive logs (events and connection) Syslog client Firmware live update System settings backup and restore Restore to factory default |
File Server | File sharing across Windows, Mac and Linux/UNIX Shared folder aggregation (CIFS/SMB) Web File Manager: -Supports ISO mounting -Direct file viewing via Google Doc -Create and send download links for public file sharing with expiration time and password protection |
FTP Server | FTP over SSL/TLS (explicit) Max No. of Concurrent Connections: 256 FXP supported Passive FTP port range control FTP bandwidth and connection control Unicode support |
Backup Server | Remote replication server (over Rsync) Real-time remote replication to another QNAP NAS or FTP server Apple Time Machine support Windows Client Backup Application: QNAP NetBak Replicator Third Party Backup Software Support: Acronis True Image, CA BrightStor, ARCserve Backup, EMC Retrospect, Symantec Backup Exec, LaCie SilverKeeper and more |
Web Server | HTTP/HTTPS connections Supports WebDAV connection Support virtual host (Max: 32) Importable SSL certificate |
Database Server | Built-in MySQL server (v5.1.3.6) Web-based management via phpMyAdmin (QPKG) |
Print Server | Max No. of Printers: 3 Supports Internet Printing Protocol: -Print job display and management -IP- and domain name-based privilege control Supports Apple Bonjour printing |
Syslog Server | Centralized log monitoring and archiving Immediate E-mail alerts Supports log filtering |
RADIUS Server | Centralized account management and authentication for network access Supports 802.1x security authentication |
TFTP Server with PXE Booting VPN Server | Secure Remote Access: PPTP and OpenVPN VPN services Remote access to other resources on local network Max No. of Clients: 30 |
iTunes Server | Audio and video sharing ((AIF, M4A, M4B, M4V, MOV, MP1, MP2, MP3, MP4, MPEG, MPG, WAV) Smart playlist for iTunes client (Windows and Mac OS) |
UPnP Media Server | Built-in TwonkyMedia server Real-time and background photo transcoding Supports UPnP media player such as PlayStation 3 and Xbox 360 Supported Format: -Audio: MP3, MP4, M4A, M4A (ALAC), M4B, 3GP, APL, AC3, M1V, M4V, MOV, AAC, AMR, AWB, WAV, PCM, LPCM, MP1, MP2, AIF, AIFF, AIFC, SND, WMA, OGG, FLAC -Photo: JPG, JPE, JPEG, TIFF, TIF, GIF, PNG, BMP -Video: WMV, ASF, VDR, AVI, XVID, DIVX, FLV, MPG, MPE, MTS, M2TS, M2T, MPEG, SPTS, M2P, M2V, MP2T, MP2P, MPG2, DVR-MS, VOB -Playlist: M3U, M3U8, WPL, PLS |
Multimedia Station | Supports photo, audio and video Image slideshow and rotation Automatic and scheduled thumbnail generation for easy browsing Display Photo Details from EXIF: Date, exposure time, aperture and more Display Audio Details from ID3 Tag: Album cover, title, artist, album and more Access authority management Multimedia (video and audio) streaming Supports Cooliris Supports web publishing (Facebook, MySpace, MSN Live, Twitter, Plurk, Blogger) Share photos by E-mail Supported Formats: -Photo: JPG/JPEG, GIF, PNG -Audio: MP3 -Video: Playback: FLV, MPEG-4 Video (H.264 + AAC) Transcode: AVI, M4V, MPG/MPEG, RM/RMVB, WMV QNAP exclusive iPhone and Android App: QMobile |
Photo Station | Supported File Formats: -Photo: JPG/JPEG, GIF, PNG, BMP, RAW (.arw, .srf, .sr2, .dcr, .kdc, .cr2, .crw, .nef, mrw, .pef, .paf, .3fr, .erf, .mef, .mos, .orf, .rw2, .dng, .x3f, .tif, .nrw, .raf) -Video: FLV, MPEG-4 video (H.264 + AAC) Image slideshow with background music, thumbnails and different playback modes Online photo editing by Pixlr editor Geotagging photos with Google Maps Slideshow sharing (from private albums) with password protection Photo publishing to social websites (Facebook, MySpace, Twitter, Plurk and Blogger) Photo sharing by E-mail |
Music Station | Supported Audio Formats: MP3, MP4, OGG, WAV, AIFF, AU, FLAC, M4A, APE, AAC Local playback with USB speaker/sound card Browse other UPnP media servers on local network Internet radio (MP3) Music alarm (up to 8 alarms) Playback Control by QNAP Mobile App: QMobile Music Remote |
Download Station | PC-less BT, FTP, HTTP download (up to 500 tasks) BT Download: -Supports TCP/UDP tracker protocol -Scheduled download -Configurable port range -Bandwidth control -UPnP NAT port forwarding -RSS subscription and download (broadcatching) -Selectable download files HTTP/FTP Download: -Configurable saving directory -Bulk download with wildcard settings -RapidShare download support QNAP Download Management Software: QGet -For both Windows and Mac OS -Manage the download tasks of multiple QNAP NAS remotely over LAN or WAN |
Surveillance Station | Supports four IP Cameras for network Surveillance Supports one Webcam via QPKG Add-on: QUSBCam |
Antivirus | Protection against the latest known viruses, Trojans and other threats Free virus databases update on manual or scheduled basis Multiple scan tasks (max: 64, concurrent: 5) with custom folder selection and scheduled Scanning E-mail notification upon task completion or virus detection Quarantines or deletes infected files |
QPKG Center | Expands application services by easy online installation A wide variety of official and community QPKG Add-ons Business: -eyeOS -GLPI -Squid Proxy Server -Vtiger CRM CMS: -Gallery -Joomla -WordPress -Xoops Communications: -Asterisk -XMail -Xeams Download: -MLDonkey -NZBGet -pyLoad -SABnzbdplus -Transmission Entertainment: -IceStation -Plex Media Server -PS3 Media Server -Squeezebox Server Utilities: -iStat -Optware IPKG -phpMyAdmin -Piwik Miscellaneous: -Java Runtime Environment -Mono -Python -QUSBCam -Tomcat |
Power Supply | Input: 100 – 240 VAC, 50 – 60 Hz Output: 600 W |
Power Consumption | Sleep Mode: 89.1 W In Operation: 229 W (with 16 x 1 TB hard drive installed) |
Temperature | 32 to 104°F (0 to 40˚C) |
Relative Humidity | 0 to 90% |
Dimensions (WxHxD) | 17.42 x 5.12 x 20.8″ (442.4 x 130 x 528.3 mm) |
Weight | 44.6 lb (20.2 kg) |
