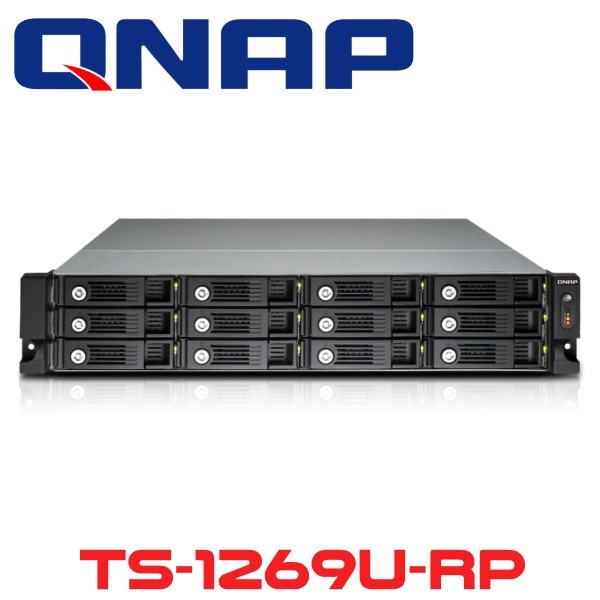

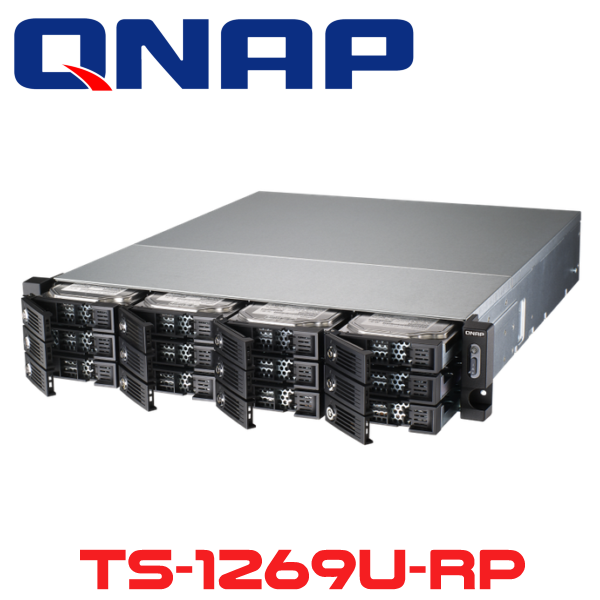

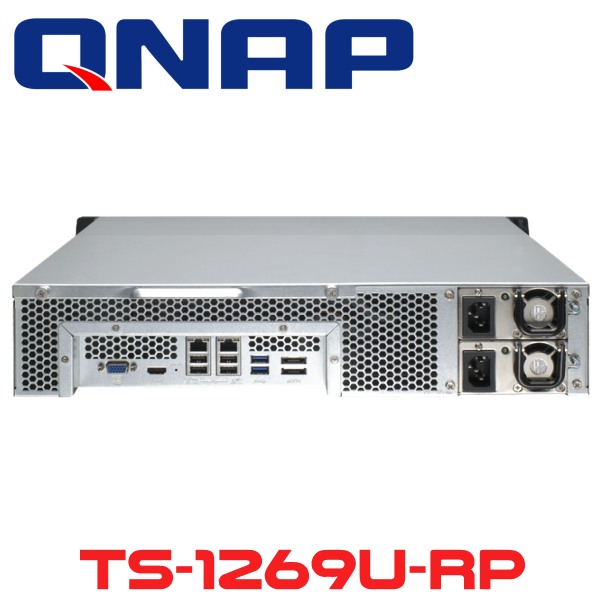

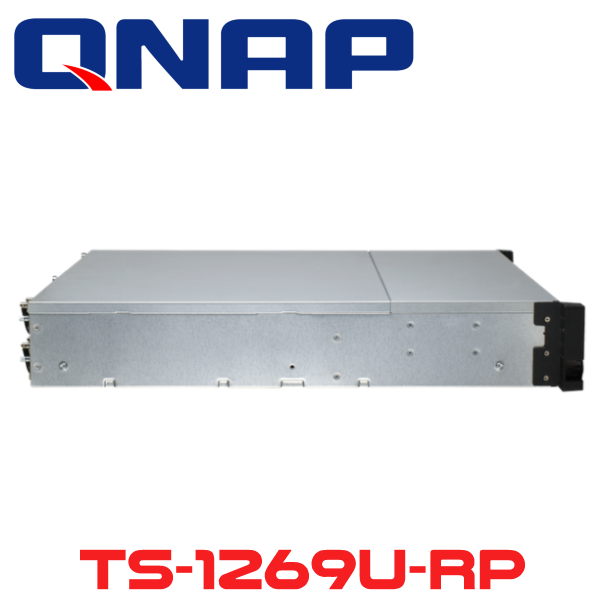

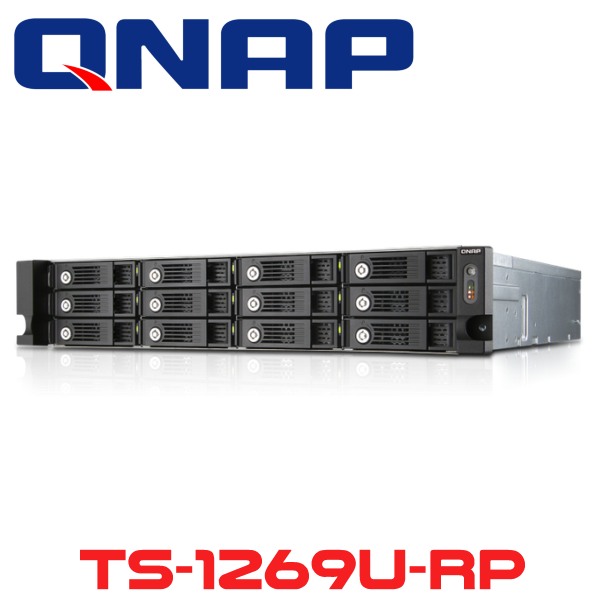

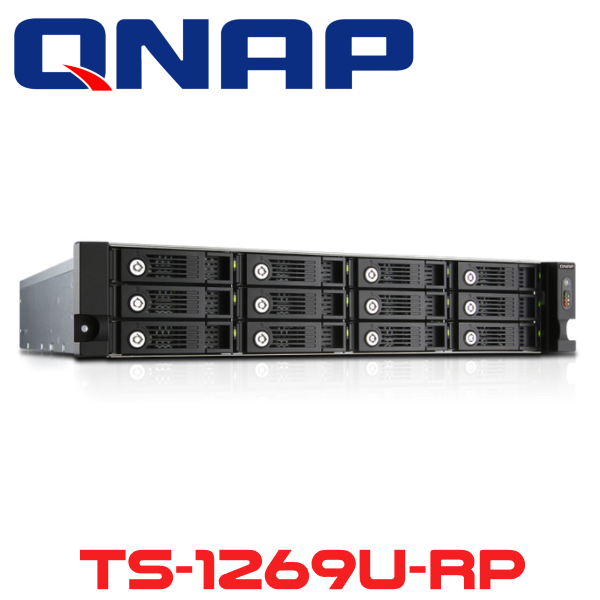

Qnap TS-1269U-RP Dubai
The Qnap TS-1269U-RP Dubai is a 12-bay, all-in-one NAS server designed for SMBs to delivers exceptional performance to meet the storage requirements of modern SMB IT environments. Features include, secure-platform file sharing for Windows, Mac and Linux/Unix users, an iSCSI/IP-SAN storage combo solution and a number of versatile, value-added business applications. With a well-rounded set of backup solutions integrated in the 12-Bay NAS Server, critical business information can be safely protected against unexpected data loss. The 12-Bay NAS Server is also an ideal shared storage solution for virtualized and clustered environments with VMware Ready and Citrix Ready certifications, and has proven compatibility with Microsoft Hyper-V environments.
Features
You can allow, deny or auto-block specified IP addresses or network domains, which attempt to connect to the Turbo NAS, via SSH, Telnet, HTTP(S), FTP, Samba or AFP.Remote Login
The Qnap TS-1269U-RP Dubai supports remote login via an SSH (secure shell) or Telnet connection.SSL Security (HTTPS)
The Qnap TS-1269U-RP Dubai supports HTTPS connection. You can upload a secure certificate and RSA private key in X.509PEM format issued by a trusted provider to allow access to the Turbo NAS via a secure SSL login.
Secure FTP
The Qnap TS-1269U-RP Dubai offers secure data transfer with SSL/TLS (explicit) encryption. It also supports passive FTP port range setup.
Encrypted Remote Replication by Rsync
The data on the Qnap TS-1269U-RP Dubai can be backed up to or from another Turbo NAS or Rsync server over the network securely.
Shared Folder Management
You can choose to hide or show selected shared folders of the Qnap TS-1269U-RP Dubai on the Windows network.
User Authority Management
Create multiple users and specify their password, quota and user groups by simply uploading the batch files in TXT or Excel CSV format to the NAS. Export and import of users list are also supported.
Well-Rounded Backup Solutions
Disaster Recovery Solution
Real-time Remote Replication
iSCSI LUN Snapshot/Backup
Cloud Storage Backup
QNAP TS-1269U-RPÂ Specs
| Hardware Specification | |
| CPU | Intel Atom 2.13 GHz Dual-Core Processor |
| DRAM | 2 GB RAM (Expandable RAM, up to 3 GB) |
| Flash Memory | 512 MB DOM |
| Hard Disk Drive | 12 x 3.5″ or 2.5″ SATA 6 Gbps, SATA 3 Gbps hard drive or SSD |
| Hard Disk Tray | 12 x Hot-Swappable and Lockable Tray |
| LAN Port | 2 x Gigabit RJ-45 Ethernet Ports |
| LED INDICATORS | Status, LAN, USB, HDD 1-12 |
| USB | 2 x USB 3.0 ports (rear) 4 x USB 2.0 ports (rear) (Support for USB printer, pen drive, USB hub, and USB UPS etc.) |
| eSATA | 2 x eSATA Ports (rear) |
| Buttons | Power, Reset |
| Alarm Buzzer | System Warning |
| Secure Design | Kensington lock security slot for theft prevention |
| VGA | Reserved for maintenance |
| HDMI | Reserved for maintenance |
| Fan | 2 x Quiet Cooling Fans (7 cm, 12 V DC) |
| Power Consumption | Sleep Mode: 66.8 W In Operation: 81.2 W Power-off (in WOL mode): 1 W (with 4 x 1 TB HDD installed) |
| Power Supply | Input: 100-240 V AC, 50/60 Hz Output: Redundant 380 W |
| Software Specification | |
| Operating System | Embedded Linux |
| Supported Clients | Windows XP, Vista, Windows 7 (32/64-bit), Windows 8 (32/64-bit), Windows Server 2003/2008 R2/2012 Apple Mac OS X Linux & UNIX |
| Supported Web Browsers | Microsoft Internet Explorer 8, 9 & 10 Mozilla Firefox 8+ Apple Safari 4+ Google Chrome |
| Multilingual Support | Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish |
| File System | Internal Hard Drive: EXT3, EXT4 External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+ |
| Networking | TCP/IP (IPv4 & IPv6: Dual Stack) Dual Gigabit – Failover – Multi-IP Settings – Port Trunking/NIC Teaming (Modes: Balance-RR, Active Backup, Balance XOR, Broadcast, IEEE 802.3ad/Link Aggregation, Balance-tlb and Balance-alb) Service Binding based on Network Interfaces Virtual LAN (VLAN) DHCP Client, DHCP Server Protocols: CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP and SMSC TFTP Server with PXE Booting UPnP & Bonjour Discovery USB Wi-Fi Adapter Support |
| Backup Solutions | Real-time Remote Replication (RTRR) Works as Both RTRR Server & Client with Bandwidth Control Real-time & Scheduled Backup Encryption, Compression, File Filter and Transfer Rate Limitation Block-level Remote Replication Works as Both Rsync Server & Client with Bandwidth Control Encrypted Replication between QNAP NAS Servers Desktop Backup by QNAP NetBak Replicator for Windows Apple Time Machine Support with Backup Management Data Backup to Multiple External Storage Devices Data Backup to Cloud Storage (Amazon S3, ElephantDrive, Symform and Google Drive) |
| Security | IP Filter and Policy-based Automatic IP Blocking Network Access Protection with Auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP Encrypted Access: HTTPS, FTP with SSL/TLS (Explicit), SSH/SFTP (admin only), Encrypted Remote Replication between QNAP NAS Servers (Rsync over SSH) |
