Description

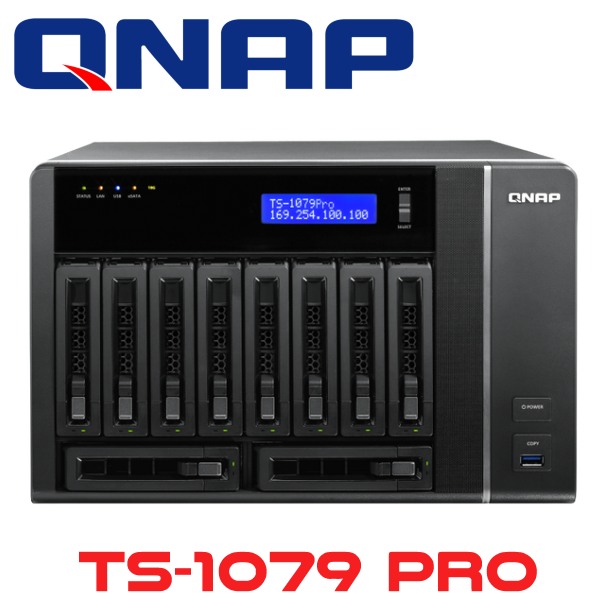

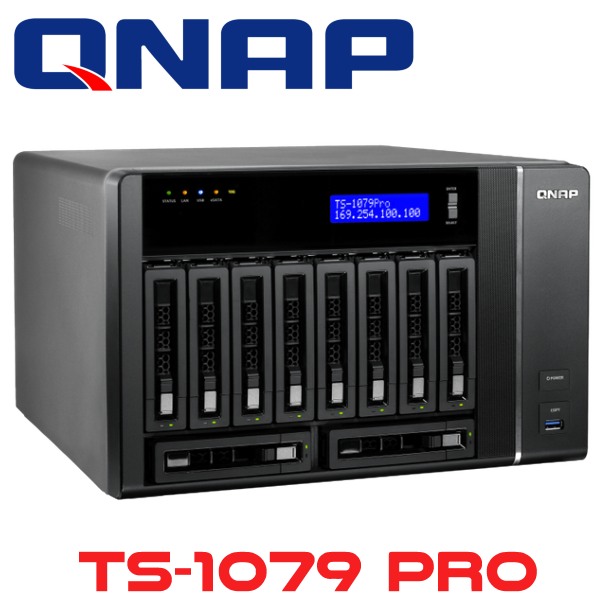

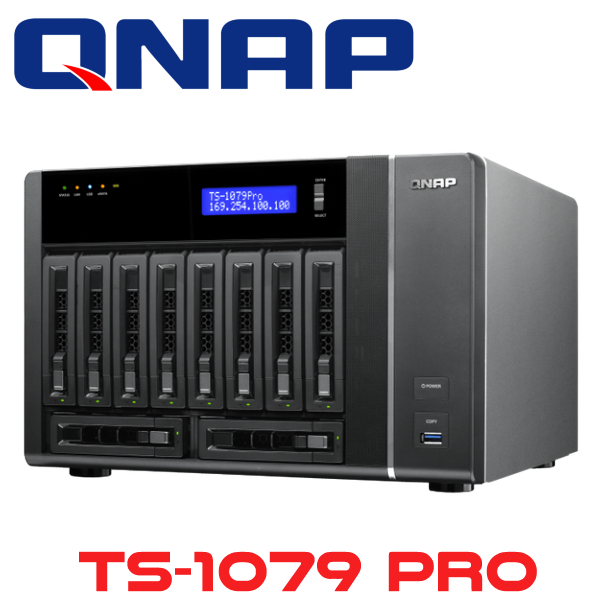

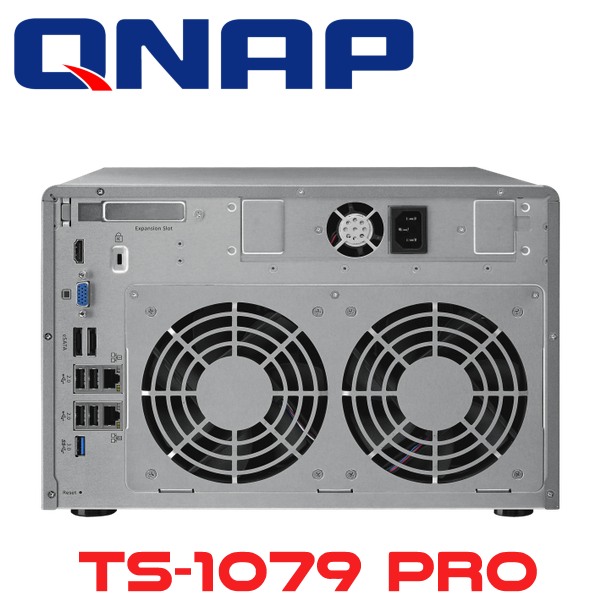

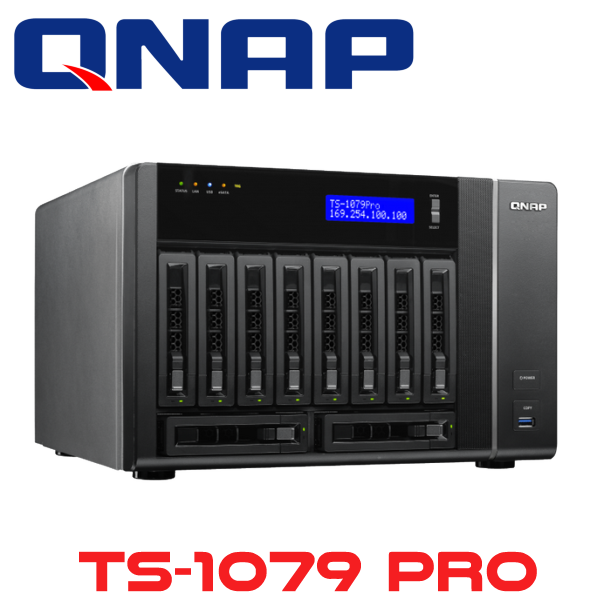

Qnap TS-1079 Pro Dubai
The Qnap TS-1079 Pro Dubai is designed to provide IP SAN/NAS unified storage for large-scale business organizations that demand uncompromising high performance. Featuring a powerful Intel® Core™ i3-2120 dual Core Processor, 2GB DDR3 RAM (expandable to 2GB), and the capacity to hold up to 10 hard drives, the TS-1079 Pro greatly enhances efficiency of CPU-consuming tasks, powering large amount of concurrent tasks, and meeting the stringent requirements of data-hungry applications.
The Qnap TS-1079 Pro Dubai NAS Server with 10GbE Network Ready Bundle is a server that functions as both IP-SAN (iSCSI) and NAS. It is easily employable in various business and enterprise applications, as a backup center and for disaster recovery, file sharing, virtualization and video editing storage.
The Qnap TS-1079 Pro Dubai offers a variety of security options to prevent unauthorized access to your data, even in the event that the hard drive or device is stolen. Sophisticated RAID configurations and hot-swap capabilities are present that offer high performance, protection and minimized rebuilding time. The dual OS embedded on the DOM architecture offers extra assurance that the system will boot up.
You can set up local or remote access with the server easily as it does not require IT skills. Simple management tools like instant SMS or Email alert, the hard drive S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) feature and system resource monitor are integrated to keep you up-to-date on your NAS at all times.
The system features an Intel Core i3 Processor, 2 GB DDR3 memory, 10 Gigabit network capability and a 6 GBps SATA interface for high performance and fast data transfer rates. It also provides fast data backup via USB 3.0.
The server supports SMB / CIFS, NFS and AFP protocols for file sharing across Windows, Mac and Linux or UNIX networks. There is a Real-Time Remote Replication (RTRR) between the system and a remote QNAP NAS, FTP server or external drive. It supports Amazon S3, ElephantDrive and Symform cloud storage backup. The built-in iSCSI feature offers an affordable IP-SAN (Storage Area Network) alternative for businesses.
The system provides AES 256-bit encryption. It functions as an all-in-one server, boasting file, FTP, backup, web, RADIUS, Syslog and print servers, as well as a surveillance station. It also features Multiple LAN deployment.
Features:
Flexible 10GbE network expansion
The 10GbE-ready TS-1079 Pro includes 2 in-built Gigabit Ethernet ports, which can be expanded with additional 2 Gigabit Ethernet ports, or 2 10Gigabit Ethernet ports and delivers excellence performance with 1,000 MB/s throughput and 100,000 IOPS, improving the efficiency of virtualization applications via both NFS and iSCSI protocols. Coupled with the support for large storage capacity, the TS-1079 Pro is a perfect choice for applications demanding high storage space and transmission speed such as data centers storing big data and for studios editing 4K/HD videos on-the-fly without transferring the videos between the TS-1079 Pro and desktop computers
Comprehensive virtualization support
The Qnap TS-1079 Pro Dubai is VMware® Ready™, Citrix® Ready™, compatible with Microsoft® Hyper-V™ certification and Windows Server 2012, and supports advanced functions including SPC-3, MPIO and MC/S, enabling flexible deployment and management for virtualization needs. The TS-1079 Pro supports VMware VAAI and Microsoft ODX to increase performance by offloading ESXi server loading, and supports QNAP vSphere Client plug-in and QNAP SMI-S provider to provide enhanced operational efficiency in managing virtualization applications.
High Efficiency with Multiple LAN support
The Qnap TS-1079 Pro Dubai supports multiple port-trunking modes, enabling IT administrators to set up link aggregation to increase total data transmission capability. Failover is also supported to ensure continuous system operations. The supported port-trunking modes include: Balance-rr (Round-Robin), Active Backup, Balance XOR, Broadcast, IEEE 802.3ad, Balance-tlb (Adaptive Transmit Load Balancing) and Balance-alb (Adaptive Load Balancing).
High stability. Built to last.
The Qnap TS-1079 Pro Dubaiserves as a business-ready system, providing 24/7 continuous operation and services. The dual OS embedded on the DOM architecture in the TS-1079 Pro ensures that the system boots up and operates stably. The expertly-designed smart fan delivers great system heat dissipation with minimum vibration, and is easily replaceable without system interruption. The TS-1079 Pro also features a redundant power supply to ensure maximum system uptime.
High reliability
The TS-1079 Pro supports comprehensive RAID configuration and hot-swapping to allow hard drive replacement without system interruption. QNAP’s advanced RAID recovery technology also helps if any healthy drives are removed from a degraded RAID volume by mistake. The system can be recovered to degraded mode by reinserting the wrongly removed hard drives so the data can still be accessible. The Global Hot Spare function also enables the global hot-spare drive to automatically replace a failed drive in a RAID volume, preventing data from being lost.
Large capacity for cross-platform sharing
The Qnap TS-1079 Pro Dubai supports large storage capacities; fulfilling business needs to store large amounts of data. It also supports comprehensive RAID management, online RAID capacity expansion, and flexible RAID migration to safely store important data therefore reducing the risks of data loss. With reliable data protection, the TS-1079 Pro is perfect for cross-platform data sharing. The support of Windows AD and LDAP Directory Service saves a great amount of time for account management and authentication. Users can use their Windows AD or LDAP server accounts and passwords to log into the Turbo NAS. The TS-1079 Pro can also serve as an LDAP server.
QNAP TS-1079 Pro Specs
Hardware | |
CPU | Dual Core Intel Core i3-2120 Processor 3.3 GHz |
DRAM | 2 GB DDR3 RAM |
Flash Memory | 512 MB DOM |
Hard Drive | 10x 3.5″ (88.89 mm) SATA 6 GBps, SATA 3 GBps hard drive or 2.5″ (63.49 mm) SATA, SSD hard drive* Hard Drive Trays: 10x hot-swappable and lockable |
LAN Port | 2x Gigabit RJ-45 Ethernet ports Optional dual-port 10 Gb and 1Gb network cards are supported |
USB | 2x USB 3.0 ports (front: 1 ; rear: 1) 4x USB 2.0 ports (rear) Supports USB printer, pen drive, USB hub, USB UPS and more |
eSATA | 2 (rear) |
LED Indicators | Status, LAN, USB, eSATA, 10GbE, hard drives |
Buttons | System: Power button, USB one touch backup button and reset button |
LCD Panel | Mono-LCD display with backlight Enter and select buttons for configuration |
Expansion Slot | 1 (for network or storage expansion) |
VGA | Reserved for system maintenance |
Fan | 2x 4.72″ (12 cm) 12 V DC smart cooling fan |
Supply Type | System warning |
Sound Level | With 10x 1 TB hard drives installed: Standby: 28.87 dB In operation: 30.4 dB |
Power Consumption | With 10x 1 TB hard drives installed: Sleep mode: 40 W In Operation: 121 W |
Power Supply | Input: 100 – 240 V AC, 50 – 60 Hz Output: 350 W |
Form Factor | Tower |
Software | |
Operating System | Embedded Linux |
Supported Operating System | Windows XP, Vista, Windows 7 (32/64-bit), Windows Server 2003/2008 R2 Apple Mac OS X Linux and UNIX |
Supported Web Browsers | Microsoft Internet Explorer 8, 9 Mozilla Firefox 8, 9, 10 Apple Safari 4, 5 Google Chrome |
Language Support | Chinese (Traditional and Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish |
File System | Internal Hard Drive: EXT3, EXT4 External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+ |
Networking | TCP/IP (IPv4 and IPv6: Dual stack) Multiple Gigabit NICs with jumbo frame -Failover -Multi-IP settings -Port trunking/NIC teaming (Modes: Balance-rr, Active Backup, Balance XOR, Broadcast, IEEE 802.3ad/Link Aggregation, Balance-tlb and Balance-alb) Service binding based on network interfaces Virtual LAN (VLAN) DHCP client, DHCP server Protocols: CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP and SMSC UPnP and bonjour discovery USB Wi-Fi adapter support |
Backup Solution | Real-Time Remote Replication (RTRR) -Works as both RTRR server and client with bandwidth control -Real-time and scheduled backup -Encryption, compression, file filter and transfer rate limitation Block-Level Remote Replication -Works as both Rsync Server and client with bandwidth control -Encrypted replication between QNAP NAS servers USB one touch backup (import or export) Desktop backup by QNAP NetBak replicator for Windows Apple Time Machine support with backup management Data backup to multiple external storage devices Data backup to Cloud Storage (Amazon S3, ElephantDrive and Symform) |
Security | IP Filter and policy-based automatic IP blocking Network access protection with auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP Encrypted Access: HTTPS, FTP with SSL/TLS (Explicit), SSH/SFTP (admin only), encrypted remote replication between QNAP NAS servers (Rsync over SSH) CIFS host access control for shared folders Antivirus protection FIPS 140-2 validated AES 256-bit volume-based data encryption* AES 256-bit external drive encryption* Importable SSL certificate Instant alert via email, SMS, instant messaging (Windows Live Messenger) and buzzer |
Disk Management | Single Disk, JBOD, RAID 0, 1, 5, 5+Hot-Spare, 6, 6+Hot-Spare, 10, 10+Hot-Spare Online RAID capacity expansion and online raid level migration Bad block scan and hard drive S.M.A.R.T. Global hot-spare drive RAID recovery Bitmap support |
iSCSI (IP SAN) | iSCSI target -Multi-LUNs per target -Up to 256 targets/LUNs combined -Supports LUN mapping and masking -Online LUN capacity expansion -Supports SPC-3 persistent reservation -Supports MPIO and MC/S iSCSI LUN backup, one-time snapshot and restore iSCSI connection and management by QNAP finder (Windows) Virtual disk drive (via iSCSI initiator) -Stack chaining master -Max. no. of virtual disk drives: 8 |
Server Virtualization and Clustering | Supports VMware vSphere Supports Citrix XenServer Supports Windows Server 2008 R2 Hyper-V and failover clustering |
Power Management | Wake on LAN Internal hard drive standby mode Scheduled power on/off (max. 15 Settings) Automatic power on after power recovery USB and network UPS support with SNMP management |
Access Rights Management | Max. No. of Users: 4,096 Max. No. of User Groups: 512 Max. No. of Network Shares: 512 Batch users creation Import/export users User quota management Subfolder permissions support for CIFS/SMB, AFP, FTP and web file manager |
Domain Authentication Integration | Microsoft Active Directory (AD) LDAP server LDAP client Domain users login via CIFS/SMB, AFP, FTP and web file manager |
MyCloudNAS Service | Private Cloud Storage and sharing Free host name registration (DDNS) Auto router configuration (via UPnP) MyCloudNAS connect for easy connection (Windows utility) |
Storage Plug & Play | Windows Software: QNAP finder Create and map shared folders Create and connect to iSCSI target/LUN |
Web Administration | AJAX-based user interface Smart fan control Dynamic DNS (DDNS) SNMP (v2 and v3) Resource monitor Network recycle bin for file deletion via CIFS/SMB and AFP Comprehensive logs (Events and connection) Syslog client Firmware live update System settings backup and restore Restore to factory default |
Powerful All-in-one server | |
File Server | File sharing across Windows, Mac and Linux or UNIX Shared folder aggregation (CIFS/SMB) Web file manager -Supports ISO mounting -Direct file viewing via Google doc -Create and send download links for public file sharing with expiration time and password protection |
FTP Server | FTP over SSL/TLS (explicit) Max. No. of Concurrent Connections: 256 FXP supported Passive FTP port range control FTP bandwidth and connection control Unicode support |
Backup Server | Remote Replication server (over Rsync) Real-Time Remote Replication to another QNAP NAS or FTP server Apple Time Machine support Windows Client Backup Application: QNAP NetBak replicator Third Party Backup Software Support: Acronis True Image, CA BrightStor, ARCserve, Backup, EMC Retrospect, Symantec Backup Exec, LaCie SilverKeeper and more |
Web Server | HTTP/HTTPS connections Supports WebDAV connection Support virtual host (Max.: 32) Importable SSL certificate |
Database Server | Built-in MySQL server (v5.1.36) Web-based management via phpMyAdmin (QPKG) |
Print Server | Max. Number of Printers: 3 Supports Internet printing protocol -Print job display and management -IP- and domain name based privilege control Supports Apple bonjour printing |
Syslog Server | Centralized log monitoring and archiving Immediate email alerts Supports log filtering |
RADIUS Server | Centralized account management and authentication for network access Supports 802.1x security authentication TFTP server with PXE booting (read-only) |
VPN Server | Secure Remote Access: PPTP and OpenVPN services Remote access to other resources on local network Max. No. of Clients: 30 |
iTunes Server | Audio and video sharing (AIF, M4A, M4B, M4V, MOV, MP1, MP2, MP3, MP4, MPEG, MPG, WAV) Smart playlist for iTunes client (Windows and Mac OS) |
UPnP Media Server | Built-in TwonkyMedia server Real-time and background photo transcoding Supports UPnP media player such as PlayStation 3 and Xbox 360 Supported format (The actual playback capabilities may vary depending on the UPnP client.) -Audio: MP3, MP4, M4A, M4A (ALAC), M4B, 3GP, APL, AC3, M1V, M4V, MOV, AAC, AMR, AWB, WAV, PCM, LPCM, MP1, MP2, AIF, AIFF, AIFC, SND, WMA, OGG, FLAC -Photo: JPG, JPE, JPEG, TIFF, TIF, GIF, PNG, BMP -Video: WMV, ASF, VDR, AVI, XVID, DIVX, FLV, MPG, MPE, MTS, M2TS, M2T, MPEG, SPTS, M2P, M2V, MP2T, MP2P, MPG2, DVR-MS, VOB -Playlist: M3U, M3U8, WPL, PLS |
Multimedia Station | Supports photo, audio and video Image slideshow and rotation Automatic and scheduled thumbnail generation for easy browsing Display Photo Details from EXIF: Date, exposure time, aperture and more Display Audio Details from ID3 Tag: Album cover, title, artist, album and more Access authority management Multimedia (video and audio) streaming Supports cooliris Supports web publishing (Facebook, MySpace, MSN Live, Twitter, Plurk and Blogger) Share photos by email Supported Formats: Photo – JPG/JPEG, GIF, PNG Audio – MP3 Video -Playback: FLV, MPEG-4 Video (H.264 + AAC) -Transcode: AVI, M4V, MPG/MPEG, RM/RMVB, WMV QNAP Exclusive iPhone and Android App: QMobile |
Photo Station | Supported File Formats: -Photo: JPG/JPEG, GIF, PNG, BMP -Video: FLV, MPEG-4 Video (H.264 + AAC) Image slideshow with background music Photo publishing to social websites (Facebook, MySpace, Twitter, Plurk and Blogger) Photo sharing by email |
Music Station | Supported Audio Formats: -MP3, MP4, OGG, WAV, AIFF, AU, FLAC, M4A, APE, AAC Local playback with USB speaker or sound card Browse other UPnP media servers on local network Internet radio (MP3) Music alarm (up to 8 Alarms) Playback control by QNAP Mobile App: QMobile music remote |
Download Station | PC-less BT, FTP, HTTP download (up to 500 tasks) BT Download -Supports TCP/UDP tracker protocol -Scheduled download -Configurable port range -Bandwidth control -UPnP NAT port forwarding -RSS subscription and download (broadcatching) -Selectable download files HTTP/ FTP Download -Configurable saving directory -Bulk download with wildcard settings -RapidShare download support QNAP Download Management Software: QGet -For both Windows and Mac OS -Manage the download tasks of multiple QNAP NAS remotely over LAN or WAN |
Surveillance Station | Supports 4 IP cameras (sold separately) for network surveillance Supports 1 Webcam via QPKG Add-on: QUSB Cam |
Antivirus | Protection against the latest known viruses, trojans and other threats Free virus databases update on manual or scheduled basis Multiple scan tasks (max: 64, concurrent: 5) with custom folder selection and scheduled Scanning Email notification upon task completion or virus detection Quarantines or deletes infected files |
QPKG Center | Expands application services by easy online installation A wide variety of official and community QPKG* add-ons Business -eyeOS -GLPI -Squid proxy server -Vtiger CRM CMS -Gallery -Joomla -WordPress -Xoops Communications -Asterisk -XMail -Xeams Download -MLDonkey -NZBGet -pyLoad -SABnzbdplus -Transmission Entertainment -Ice Station -Plex media server -PS3 media server -Squeezebox server Utilities -AjaXplorer -iStat -Optware IPKG -phpMyAdmin -Piwik Miscellaneous -Java runtime environment -Mono -Python -QUSB Cam -Tomcat and more |
General | |
Temperature | 32 to 104°F (0 to 40°C) |
Relative Humidity | 0 to 90% |
Dimensions | 8.56 x 12.8 x 12.65″ (217.42 x 325.11 x 321.3 mm) |
Weight | 21.67 lb (9.82 kg) |
