Description

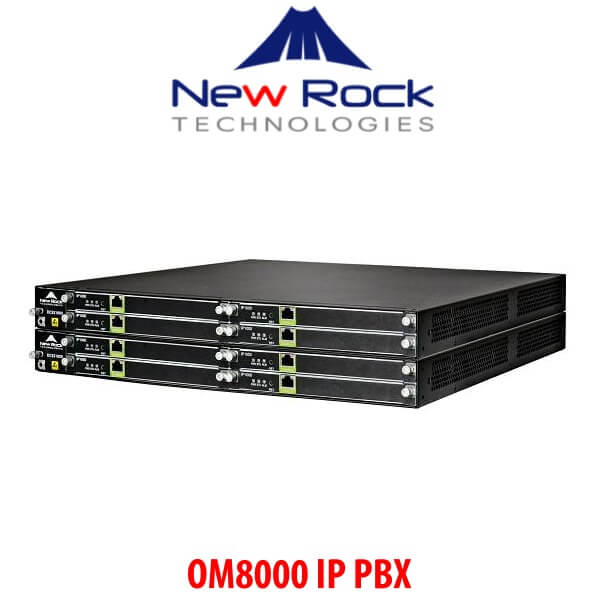

NEWROCK OM8000 IP-PBX Dubai

Being the most currently available IP PBX, Newrock OM8000 IP PBX Dubai offers an integrated solution package of telecommunication which includes audio calls, video calls, high-speed fax, telephone conferencing, call recording, and mobile extensions. It is specifically designed to meet the communication needs of a distributed network of over 10,000 extensions throughout government agencies and business groups, which both require a minimum of  1,000 extensions per site. Newrock OM8000 IP-PBX has been built to give users a simple deployment at single site of large- and medium-size enterprises, as well as a multi-site telephone network of large corporations and government agencies via internet/VPN. This is enabled by the gadget’s direct connection with carriers via SIP trunk (including IMS), or connection with the carriers or other audio private networks via digital trunk or analog trunk②, as well as connection to analog telephones, fax machines, POS , IP phones, videophones, softphones on PCs/cell phones/PADs.

NEWROCK OM8000 IP-PBX FEATURES

HIGH PERFORMANCE & STABILITY

The technologically advanced Newrock OM8000 IP – PBX comes with a distributed architecture that configures an integrated media resource card. It also not only features a highly responsive concurrent call processing, but also a smart auto load balancing function which results in excellence performance, thus giving you a maximum communication experience.

FLEXIBLE DEPLOYMENT, EASY OPERATION & SIMPLE MAINTENANCE

The Newrock OM8000 IP PBX system comes with a centralized single – site deployment and multi – site distributed network. Its centralized equipment management ensures a highly efficient operation and maintenance.  The highly efficient Newrock OM8000 IP PBX system uses a graphical configuration interface to accord you with an easy user experience even without any technical expertise.

AUTOMATED – PROVISIONING – TFTP/HTTP/HTTPS

The technologically advanced Newrock OM8000 IP PBX Dubai has the ability to deploy information technology or telecommunications service by using embedded pre-defined procedures that are carried out electronically without requiring any human intervention, thus making it very reliable and convenient.

RICH QoS CAPABILITIES

Quality of Service (QoS) is a feature of routers and switches which prioritizes traffic so that more important traffic can pass first, resulting in an overall performance improvement for critical network traffic. This feature is very useful in the Newrock OM8000 IP PBX Dubai whenever there are high volumes of traffic, therefore eliminating any delays while working.

EXCELLENT AUDIO QUALITY

The  high performing Newrock OM8000 IP PBX Dubai offers users distraction-free communication courtesy of the inbuilt industry-leading Acoustic Echo Canceling Technology,  Adaptive Jitter Buffer, Voice Activity Detection, and Comfort Noise Generation that deliver superior High Definition sound quality devoid of extraneous noises. This makes it possible to enjoy fluent phone conversations without any distractions.

SIP – BASED CONNECTION

You can easily connect your Newrock OM8000 IP PBX Dubai to your IP PBX System or direct to a VoIP service provider in order to enjoy seamless conference calls. The Newrock OM8000 IP PBX Dubai is based on SIP v2 (RFC 3261) and works perfectly with most of the SIP platforms such as  Cisco CallManager/CUCM, Broadsoft, Microsoft Skype for Business (Lync), –  Huawei IMS, and Asterisk/Elastix that currently exist in the market.

TECHNICAL REPORT) TR – 069

This is a technical specification of the Broadband Forum that defines an application layer protocol for remote management of customer-premises equipment (CPE) connected to an Internet Protocol (IP) network. The TR-069 embedded in the Newrock OM8000 IP PBX Dubai uses the CPE WAN Management Protocol (CWMP) to provide support for functions such as auto-configuration, software or firmware image management, software module management, status and performance managements, and diagnostics. The CPE WAN Management Protocol is a bidirectional SOAP – and HTTP-based protocol, and provides the communication between a CPE and auto configuration servers (ACS). The protocol addresses the growing number of different Internet access devices such as modems, routers , gateways, as well as end-user devices which connect to the Internet, such as set-top boxes , and VoIP devices such as the Newrock OM8000 IP PBX Dubai.

FIRMWARE UPGRADEABLE

You can easily update the operating system on your Newrock OM8000 IP PBX Dubai so as to improve its functionality and enhance user experience. Upgrading firmware also fixes any existing bugs and protects you from any kind of software malfunctions and  vulnerabilities. To update your gagdet’s firmware, type your gateway’s IP address into your web browser and enter your login information. Then locate the Firmware or Update section and download the latest firmware update on your Newrock OM8000 IP PBX Dubai system’s manufacturer’s website. Finally, upload the update and reboot the telephony system.

CLOUD MANAGEMENT

New Rock provides a reliable and secure cloud service to deliver connectivity to its users at cheaper maintenance costs while enhancing operation and maintenance efficiency. The cloud service on the internet enables customers to gain direct access to Newrock devices available in private networks such as IP-PBXs, audio gateways, and IP phones, therefore allowing simple remote maintenance and management of New Rock devices. This kind of cloud service is specifically designed to meet the needs of large-scale installation, configuration, and maintenance and operation. Auto-provisioning and configuration backup, online update, real-time monitoring, and alert enable users to achieve efficient operation and maintenance, thus maximizing productivity in organizations.

HIGHLY EFFICIENT

The Newrock OM8000 IP PBX Dubai pushes versatility to a new high, thanks to its ability to complement already existing fixtures for enhanced web and audio conferencing, as well as other communication needs. This makes it easy to integrate seamlessly into any office setup without disorienting earlier structures and work ethic. Furthermore, the device is easy to redeploy as the business grows and needs to transform.

THE NEWROCK OM8000 IP PBX DUBAI CALL FEATURES

CONFERENCE GUIDE

This advanced feature of the Newrock OM8000 IP PBX system helps the user to easily set up group calls with a single click of a button. The hi – tech device allows for 3 – way group calls, thus enabling the user to easily join or create meetings.

CALL TRANSFER

This advanced feature of the Newrock OM8000 IP PBX Dubai system allows the user to relocate an inbound call to another phone or messaging system by using a dedicated call transfer button, or software that has been configured for use on the Gateway.

CALL WAITING

You can hear another incoming call when you are already on an active phone call (beep). With the Newrock OM8000 IP PBX Dubai  you can also turn off call waiting so that incoming calls are directly sent to voicemail during moments you are active on another phone call.

CALL HOLDING

You can easily place an active phone call on hold in order to make or pick another incoming call using the premium Newrock OM8000 IP PBX Dubai.

CALL RECORDING

A recording agent which simply runs on Windows OS  collects and manages data through Web GUI then records files generated by your Newrock OM8000 IP PBX Dubai.

THE MESSAGE WAITING INDICATOR

This feature comes in the form of a notification to alert you of a new voicemail message. The audible Message Waiting Indicator hinges on a ‘stutter dial tone’ to notify the user when a message is waiting to be retrieved, whereas a visual Message Waiting Indicator triggers a light or notice on the phone display, ensuring that you never miss out on important phone calls.

NEWROCK OM8000 IP-PBX SPECIFICATIONS

• PROTOCOLS
  • Call Control : SIP/UDP and SIP/TCP(RFC3261), IMS(3GPP)
  • Network : SSH, HTTP, HTTPS, DHCP client, DNS(A/SRV record), STUN
• MEDIA PROCESSING
  • Codec : G711.a/u, G.729a/b, G.722,G.722.2
  • DTMF : in – band audio, RFC2833, SIP – INFO
  • Fax over IP : T.38, G.711 pass – through T.38 compliant Group 3 Fax Relay Maximum fax rate of 33,600bps(pass-through)
  • Voice – quality enhancement : Jitter Buffer, QoS
• VOICE
  • Smart auto attendant /Receptionist : Business/non business hours/holiday, call queueing, attendant group, multilingual/multi – level IVR, auto attendant profiles, VIP service, DID
  • Dialing : Call barring(5  levels), outgoing route selection, speed dial, emergency call, black/white list for outbound calling, hotline (immediately /delay) , least cost routing, automatic route selection
  • Call Settings : call holding, call parking, call waiting, 3 – way conference, call forking, DND, call barge, silent monitoring, secretary, call transfer, call forward,sharing extension, hunt group, etc.
  • DISA : Authorization with calling party number, authorization triggered by feature access code
  • Call recording : Through Call Recording Management System
  • SIP trunk : IMS, multiple SIP servers, Skype Connect
• SECURITY
  • User – defined ports : SIP port, RTP Port, HTTP/HTTPS port to access the Web GUI
  • Access list : IP addresses allowed to access HTTP/HTTPS/SSH service, IP address filtering of SIP
  • Encryption : Encryption on SIP signaling or/and media streams, importing and exporting encrypted configuration file, password/PIN
  • IP phone protection : prohibition on outgoing dialing by IP extensions on public network, user – agent authentication, registration password cracking protection
  • Login to Web GUI : prohibition on login from IP address on public network, login password cracking protection
  • Security level : Three levels of security settings
  • Call restrict : Restrict total call duration, single call duration, concurrent calls, call frequency for long distant calls
  • Intrusion prevention : ACL – based traffic filtering
• HIGH AVAILABILITY
  • Dual system hot backup : Switching time is less than 5 seconds
  • Component redundancy : Main control board/Power supply/ Network port : 1 + 1 redundancy Media source board : N + 1 redundancy
• PROVISIONING, ADMINISTRATION & MAINTENANCE
  • Device Management :  New Rock Unified Management System, TR – 069 management(TR – 069, TR – 104, and TR – 106),SNMP
  • Application Interface : OMAPI(XMLHTTP)
  • Log : 8 – level log management, FTP backup
  • Data capture : Network packet capture by port mirroring
  • Configuration file : import/export/backup
  • Status and alarm : Status/performance monitoring, Detailed alert report via telephone/email/Wechat
  • Version : upgrade,rollback
• SUPPORTED ADD – ON SOFTWARE
  • Call recording management system :  comprehensive call recording search, score rating, labelling, statement generation, and other managerial operation, authorization management, and file encryption
  • Telephone conferencing system :  10 conferences with 128 participants
  • Attendant console system : Fast and convenient help desk platform that features queue calls, call transfer, and extension status reporting
  • Billing system : Call monitoring and billing management
  • DockPMS middleware* : Connectivity to Fidelio, OPERA, and other hotel PMSs, providing check – in/check – out, wakeup call, and other features
  • WeWei softphone app : Available for iOS and Android, which enables corporate mobile extensions through the phones of individual employees via WiFi or 4G network.
• HARDWARE SPECIFICATIONS.
  • Single – unit frame : 1 main control card, 1 fan module, ½ power supply module and 4 idle slots
  • Media resource card : a single card supports up to 1,000 IP extensions, 125 concurrent calls, and is hot swappable. A single – unit hosts a maximum of 4 media resource cards
  • Network port : RJ45, 2 × 10/100/1000 Base – T , auto – negotiation
  • CON port : RJ45
  • Internal storage : 64GB
  • Dimensions (H*W*D) : individual unit : (44*442*420)mm (1U) Dual unit stack : (88*442*420)mm(2U)
  • Weight (Net) : 7.5kg(a fully equipped single unit)
  • AC Power : 100 to 240VAC, 50/60Hz,3A maximum
