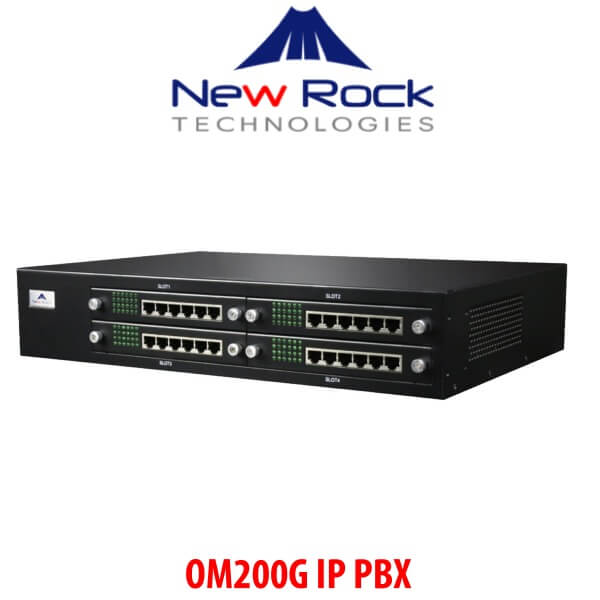

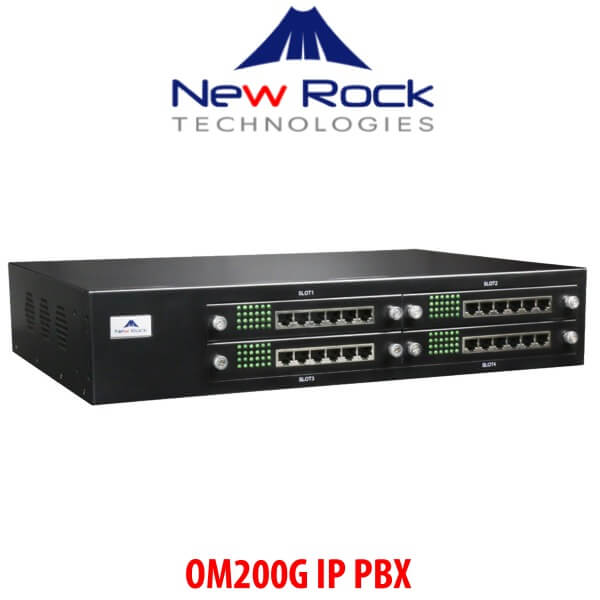

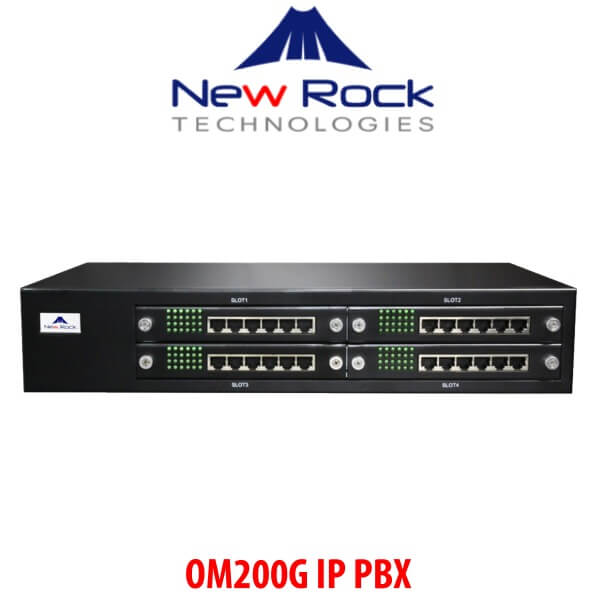

NEWROCK OM200G IP-PBX Dubai

The Newrock OM200G IP PBX Dubai can connect IMS of operator, therefore providing multiple models with different combinations of FXO and FXS ports, thus proving to be a highly efficient device. Furthermore, the premium device boasts of many technologically advanced features such as primary-standby, dual-redundant Gigabit-Ethernet port and dual AC/DC power supplies. This makes the Newrock OM200G IP PBX Dubai very effective and reliable as it can be used in many different settings.  Even better, the premium device supports a maximum of up to 120 concurrent calls.

NEWROCK OM200G IP-PBX FEATURES

MULTI – SITE NETWORKING, UNIFIED MANAGEMENT

You can easily access your Newrock OM200G IP PBX Dubai using a remote OM IP-PBX, MX gateways, IP phones, mobile extensions, thus allowing smooth peer – to – peer communications which ensure that extensions of headquarters and branches call each other for free and all trunks can be shared. A user can also easily achieve unified management of call recordings and call histories.

ALWAYS STAY IN TOUCH WITH YOUR CUSTOMERS

The Newrock OM200G IP PBX Dubai is equipped with advanced features such as remote extension, call forking to your mobile phone and call-back, ensuring that you never miss out on important business calls whether you are traveling abroad, working from home or in your office.

REMOTE MANAGEMENT & MAINTAINABILITY

Newrock OM200G IP PBX comes with an embedded New Rock Cloud agent which makes it easy to secure and access the Newrock OM200G IP PBX located behind an enterprise NAT or firewall across the internet. Even better, the device is firmware upgradeable thus allowing the user to easily update software of functions such as real-time monitoring, alarm notification, and remote packet capture, thanks to its New Rock or third-party Equipment Management System with TR-069.

EXCELLENT AUDIO QUALITY

The high performing Newrock OM200G IP PBX Dubai offers users distraction-free communication courtesy of the inbuilt industry-leading Acoustic Echo Canceling Technology, Adaptive Jitter Buffer, Voice Activity Detection, and Comfort Noise Generation that deliver superior High Definition sound quality devoid of extraneous noises. This makes it possible to enjoy fluent phone conversations without any distractions.

TECHNICAL REPORT) TR – 069

This is a technical specification of the Broadband Forum that defines an application layer protocol for remote management of customer-premises equipment (CPE) connected to an Internet Protocol (IP) network. The TR-069 embedded in the Newrock OM200G IP PBX Dubai uses the CPE WAN Management Protocol (CWMP) to provide support for functions such as auto-configuration, software or firmware image management, software module management, status and performance managements, and diagnostics. The CPE WAN Management Protocol is a bidirectional SOAP – and HTTP-based protocol, and provides the communication between a CPE and auto configuration servers (ACS). The protocol addresses the growing number of different Internet access devices such as modems, routers , gateways, as well as end-user devices which connect to the Internet, such as set-top boxes , and VoIP devices such as the Newrock OM200G IP PBX Dubai.

FIRMWARE UPGRADEABLE

You can easily update the operating system on your Newrock OM200G IP PBX Dubai so as to improve its functionality and enhance user experience. Upgrading firmware also fixes any existing bugs and protects you from any kind of software malfunctions and  vulnerabilities. To update your gagdet’s firmware, type your gateway’s IP address into your web browser and enter your login information. Then locate the Firmware or Update section and download the latest firmware update on your Newrock OM200G IP PBX Dubai system’s manufacturer’s website. Finally, upload the update and reboot the gateway system.

HIGHLY EFFICIENT

The Newrock OM200G IP PBX Dubai pushes versatility to a new high, thanks to its ability to complement already existing fixtures for enhanced web and audio conferencing, as well as other communication needs. This makes it easy to integrate seamlessly into any office setup without disorienting earlier structures and work ethic. Furthermore, the device is easy to redeploy as the business grows and needs to transform.

WORLD CLASS SECURITY LEVELS

The Newrock OM200G IP PBX Dubai has been configured to support SSH and HTTPS security protocols so as to enable easy remote access as well as provide functions such as signaling and media-stream encryption, automatic password strength test, brute-force password cracking prevention, cipher-text data storage, access whitelist, and system-log backup. This feature ensures that your files and data is not accessed by any unauthorized users, devices and applications, thus eliminating the risks of suffering any form of malicious cyber attacks.

KEY FEATURES

• Connected to IMS Networks via ONU
• Peer-to-peer communication between OM IP-PBX and SIP terminals across NAT without the need for static IP addresses, DDNS or port mapping on the access router
• Headquarters and branch-office communications through SIP-based tie trunks
• Mobile extensions keep you connected anywhere, at any time on any network
• Plug-and-play for New Rock IP phones
• XML/HTTP-based RESTful API for third-party applications
• Remote access via the New Rock Cloud
• Management with New Rock Unified Management System or third-party Equipment Management Systems (TR-069, SNMP)
• Dual-redundant Gigabit-Ethernet ports
• Dual AC/DC power supplies (optional)
• Class I lightning protection

NEWROCK OM200G IP-PBX SPECIFICATIONS

• HARDWARE SPECIFICATIONS
  • Voice DSP Module : 200MHz,3 – 12 modules
  • RAM : 256MB, DDR
  • Flash : 32MB
  • Internal USB flash drive : 16GB
  • Max. Concurrent calls : 120
  • Max. Analog extensions : 96
  • Maximum IP extensions : 400
  • Maximum analog trunks : 496
  • Maximum IP trunks : 96
  • Dimensions(H*W*D)(2U): 85 × 440× 300(mm)
  • Net weight : 6.32kg(max)
  • Single/Dual AC Power Supplies : 100 to 240 VAC, 50/60Hz 2A maximum
  • Single/Dual DC Power Supplies : -36 to -72 VDC 4A
  • Power Consumption : 110W
  • Operating conditions : temperature : 0 – 40°C, Humidity : 10 – 90% (non – condensing)
  • Storage conditions : Temperature : -40°C to 70°C, Humidity : 5 – 90% (non – condensing)
  • Mounting : rack

OTHER FEATURES

• Log Management :  8 – level logs, Syslog, internal USB flash drive (16GB)
• Data capture :   port capture, packet capture
• Status and statistic : call status and history, Device status monitoring and ISDN status monitoring
• Configuration : Bulk Import/export. Resettling to the factory default.
• Encryption : encrypted password/PIN
• ISDN maintenance : BERT, Near and loop back, ISDN – D & ISDN – B channel
• Upgrade : Firmware upgrade via Web GUI or Auto provisioning

PROTOCOLS

• Call Control : SIP/UDP and SIP/TCP(RFC3261),IMS(3GPP), MGCP(RFC3435)
• Network : SSH, HTTP, HTTPS, DHCP/PPPoE client, Radius, DNS( A/SRV record), STUN

VOICE

• Smart auto attendant /Receptionist : Business/non business hours/holiday, call queueing, attendant group, multilingual/multi – level IVR, auto attendant profiles, VIP service, DID
• Dialing : Call barring(5  levels), outgoing route selection, speed dial, emergency call, black/white list for outbound calling, hotline(immediately/delay), least cost routing, automatic route selection
• Call Settings : call holding, call parking, call waiting,multilingual user interface, call forking, DND, call barge, silent monitoring, secretary, call transfer, call forward,sharing extension, hunt group, etc.
• Call recording : Through Call Recording Management System
• SIP trunk : IMS, multiple SIP servers, Skype Connect

MEDIA PROCESSING

• Caller ID : Bellcore/Telcordia, ETSI, BT, DTMF, G.711(a/u), G.729a, G.722, G.722.2* Roadmap feature
• DTMF : in – band audio, RFC2833, SIP – INFO
• Hook – flash : Local Processing, RFC2833, SIP – INFO
• Fax over IP :
  • T.38, G.711 pass through
  • T.38 compliant Group 3 Fax
  • Relay
  • Maximum frame rate of 33,600bps(T.38)
• Disconnect modes : Polarity reversals, Busy tone Detection, Loop current
• QoS : DiffServ, TOS, 802.1P/Q VLAN tagging
• Voice – quality Enhancement : Echo cancellation (G.168 – 2004), Jitter Buffer, Silence suppression(VAD, CNG), PLC

SECURITY

• User – defined ports : SIP port, RTP Port, HTTP/HTTPS port to access the Web GUI
• Access list : IP addresses allowed to access HTTP/HTTPS/SSH service, IP address filtering of SIP
• Encryption : Encryption on SIP signaling or/and media streams, importing and exporting encrypted configuration file, password/PIN
• IP phone protection : prohibition on outgoing dialing by IP extensions on public network, user – agent authentication, registration password cracking protection
• Login to Web GUI : prohibition on login from IP address on public network, login password cracking protection
• Security level : Three levels of security settings
• Call restrict : Restrict total call duration, single call duration, concurrent calls, call frequency for long distance calls
• Intrusion prevention : ACL – based traffic filtering
