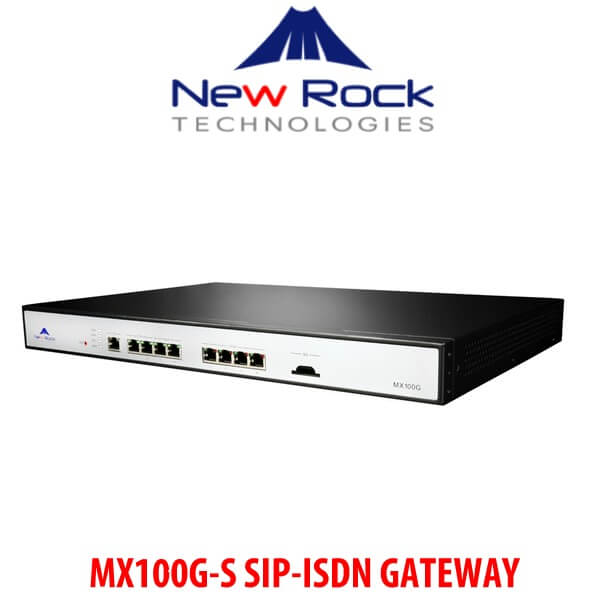

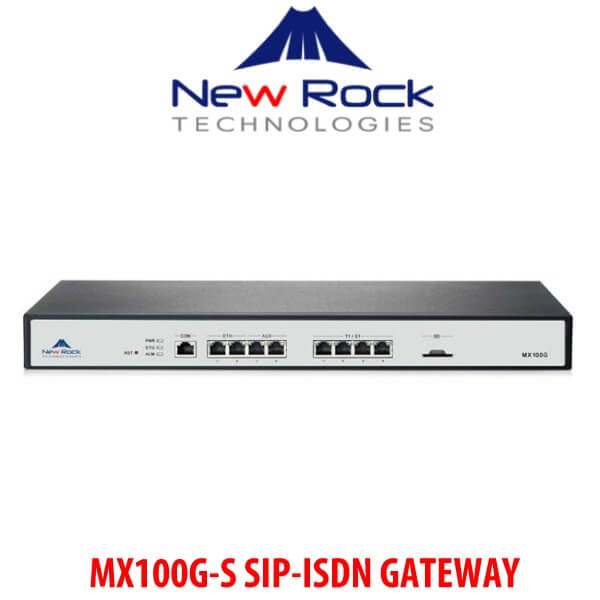

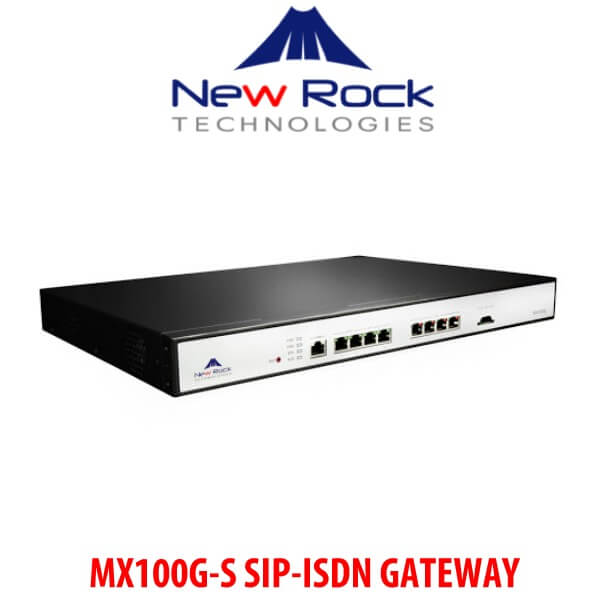

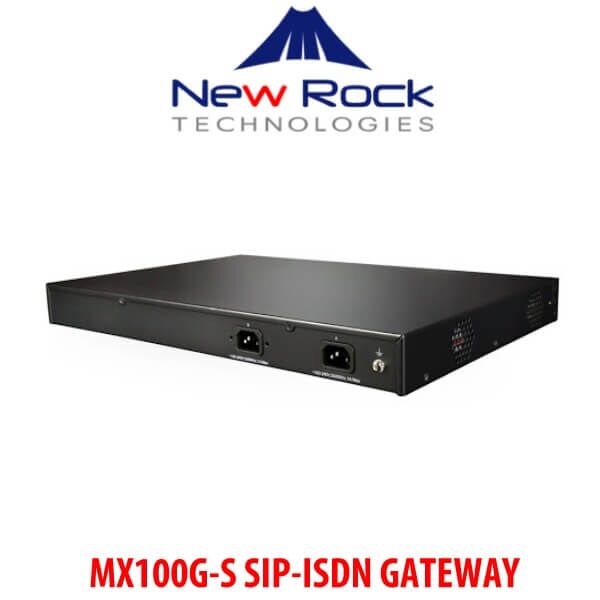

NEWROCK MX100G-S E1/T1 Gateway Dubai

Revel in robust signaling  and media conversion between VoIP and ISDN networks with the new MX100G-S SIP-ISDN trunking gateway (MX100G-S) which supports supports 1/2/4 T1/E1 ports and up to 512 SIP trunks, making it the perfect solution for VoIP services in large and medium-sized enterprises.

NEWROCK MX100G-S E1/T1 GATEWAY FEATURES

HIGH PERFORMANCE

The premium MX100G-S is equipped with TI ‘C5509 DSPs which deliver powerful voice processing abilities. The Newrock MX100G-S E1/T1 VoIP Gateway Dubai provides voice signal processing (G.711, G.729A, and G.723.1 codecs), acoustic echo cancelation, and T.38 fax relay under full-load conditions, allowing up to 120 concurrent calls, thanks its DSP daughter card’s 6000-MIPS processing capacity.

UNRIVALLED SECURITY LEVELS

The Newrock MX100G-S E1/T1 VoIP Gateway Dubai has been configured to support SSH and HTTPS security protocols so as to enable easy remote access as well as provide functions such as signaling and media-stream encryption, automatic password strength test, brute-force password cracking prevention, cipher-text data storage, access whitelist, and system-log backup. This feature ensures that your files and data is not accessed by any unauthorized users, devices and applications, thus eliminating the risks of suffering any form of malicious cyber attacks.

HIGHLY RELIABLE

Onboarding advanced features such as 1+1 redundancy of Ethernet ports and AC/DC power supplies (optional), and SIP-registration failover, the Newrock MX100G-S E1/T1 VoIP Gateway Dubai enables the user to enjoy many functions, thus making the device highly efficient. This boosts maximum productivity at work as it enhances communication.

REMOTE MANAGEMENT & MAINTAINABILITY

MX100G-S comes with an embedded New Rock Cloud agent which makes it easy to secure  and access the Newrock MX100G-S E1/T1 VoIP Gateway Dubai located behind an enterprise NAT or firewall across the internet. Even better, the device is firmware upgradeable thus allowing the user to easily update softwares of functions such as real-time monitoring, alarm notification, and remote packet capture, thanks to its New Rock or third-party Equipment Management System with TR-069.

COMPREHENSIVE FEATURE SET

The smart Newrock MX100G-S E1/T1 VoIP Gateway Dubai runs on Linux operating system, thus supporting advanced features such as number transformation for calling/called party, automatic routing, RADIUS billing interface, 2nd-stage dial- and ring-back tone, auto dialing, DTMF detection, call-progress analysis, and RTP proxy for NAT/firewall traversal.

EXCELLENT AUDIO QUALITY

The  high performing Newrock MX100G-S E1/T1 VoIP Gateway Dubai offers users distraction-free communication courtesy of the inbuilt industry-leading Acoustic Echo Canceling Technology,  Adaptive Jitter Buffer, Voice Activity Detection, and Comfort Noise Generation that deliver superior High Definition sound quality devoid of extraneous noises. This makes it possible to enjoy fluent phone conversations without any distractions.

ECHO CANCELLATION

The premium Newrock MX100G-S E1/T1  VoIP Gateway Dubai uses the smart Echo Cancellation technique to filter out any background and surrounding noises that may act as distractions whenever the Gateway user is making any phone call  communications.

AUTOMATED – PROVISIONING – TFTP/HTTP/HTTPS

The technologically advanced Newrock MX100G-S E1/T1 VoIP Gateway Dubai has the ability to deploy information technology or telecommunications service by using embedded pre-defined procedures that are carried out electronically without requiring any human intervention, thus making it very reliable and convenient.

TECHNICAL REPORT) TR – 069

This is a technical specification of the Broadband Forum that defines an application layer protocol for remote management of customer-premises equipment (CPE) connected to an Internet Protocol (IP) network. The TR-069 embedded in the Newrock Newrock E1/T1 MX100G-S VoIP Gateway Dubai uses the CPE WAN Management Protocol (CWMP) to provide support for functions such as auto-configuration, software or firmware image management, software module management, status and performance management, and diagnostics. The CPE WAN Management Protocol is a bidirectional SOAP – and HTTP-based protocol, and provides the communication between a CPE and auto configuration servers (ACS). The protocol addresses the growing number of different Internet access devices such as modems, routers , gateways, as well as end-user devices which connect to the Internet, such as set-top boxes , and VoIP devices such as the Newrock MX100G-S E1/T1 VoIP Gateway Dubai.

FIRMWARE UPGRADEABLE

You can easily update the operating system on your Newrock MX100G-S E1/T1 VoIP Gateway Dubai so as to improve its functionality and enhance user experience. Upgrading firmware also fixes any existing bugs and protects you from any kind of software malfunctions and  vulnerabilities. To update your Gateway’s firmware, type your gateway’s IP address into your web browser and enter your login information. Then locate the Firmware or Update section and download the latest firmware update on your Gateway manufacturer’s website. Finally, upload the update and reboot the Gateway.

CLOUD MANAGEMENT

New Rock provides a reliable and secure cloud service to deliver connectivity to its users at cheaper maintenance costs while enhancing operation and maintenance efficiency. The cloud service on the internet enables customers to gain direct access to Newrock devices available in private networks such as IP-PBXs, audio gateways, and IP phones, therefore allowing simple  remote maintenance and management of New Rock devices. This kind of cloud service is specifically designed to meet the needs of large-scale installation, configuration, and maintenance and operation. Auto provisioning and configuration backup, online update, real-time monitoring and alert enable users to achieve efficient operation and maintenance, thus maximizing productivity in organizations.

RICH QoS CAPABILITIES

Quality of Service (QoS) is a feature of routers and switches which prioritizes traffic so that more important traffic can pass first, resulting in an overall performance improvement for critical network traffic. This feature is very useful in the Newrock MX100G-S E1/T1 VoIP Gateway Dubai whenever there are high volumes of traffic, therefore eliminating any delays while working.

SIP – BASED CONNECTION

You can easily connect your Newrock MX100G-S E1/T1 VoIP Gateway Dubai to your IP PBX System or direct to a VoIP service provider in order to enjoy seamless conference calls. The Newrock MX100G-S E1/T1 VoIP Gateway Dubai is based on SIP v1(RFC2543) and SIP v2 (RFC 3261) and works perfectly with most of the SIP platforms such as  Cisco CallManager/CUCM, Broadsoft, Microsoft Skype for Business (Lync), –  Huawei IMS, and Asterisk/Elastix that currently exist in the market.

INTEROPERABILITY

The Newrock MX100G-S E1/T1 VoIP Gateway Dubai works perfectly with popular SIP servers, such as Cisco CallManager/CUCM, Broadsoft, Microsoft Skype for Business (Lync), –  Huawei IMS, and Asterisk/Elastix, thus allowing you to enjoy its maximum efficiency and convenience.

Why the MX100G-S E1/T1 VoIP Gateway Dubai  ?

• Easy remote access with New Rock via NewRock Cloud
• Dual – redundant Ethernet ports
• Dual AC/DC power supplies
• Voice VLAN
• TLS/SRTP
• Class 1 lightning protection
• Interoperability with popular SIP servers, such as Cisco Unified CallManager (CUCM), Broadsoft, Microsoft Skype for Business (Lync), Huawei IMS, and Asterisk/Elastix
• Up to 512 SIP trunks
• Up to 500 routing and call-number transformation rules
• Management with New Rock or third-party Element Management Systems (TR-069)
• Supports SIP and IMS protocols

NEWROCK MX100G-S E1/T1 GATEWAY SPECIFICATIONS

• HARDWARE SPECIFICATIONS
  • Ethernet ports : RJ – 45, 4 × 10/100/1000 Base – T, self – adaptive
  • T1/E1  ports: 1,2, or 4 ISDN trunks, supporting up to 120 simultaneous VoIP calls
  • SD card interface :  1
  • CON interface : 1, RJ45
  • RAM : 256MB
  • Flash : 32MB
  • CPU :  T1 AM3352
  • DSP : T1 C5509
  • Size(H*W*D) : 44*440*300mm(1U)
  • Net Weight : 3kg maximum
  • Single /Dual AC power supplies : 100 – 240 VAC, 50/60Hz, 1A maximum
  • Single/Dual DC power supplies : -36 to -72VDC, 2.5A
  • Power consumption : 18W
  • Mounting : rack
  • Operating  conditions : temperature : 0 – 40°C,Humidity : 10 – 90% (non – condensing)
  • Storage conditions  :  Temperature : -40°C to 70°C,Humidity : 5 – 90% (non – condensing)
• PROTOCOLS
  • Call Control : SIP/UDP and SIP/TCP(RFC3261),
  • IMS(3GPP), MGCP(RFC3435)
  • Network : SSH, HTTP, HTTPS, DHCP/PPPoE client, Radius, DNS( A/SRV record), STUN
• MEDIA PROCESSING
  • Caller ID : Bellcore/Telcordia, ETSI, BT, DTMF, G.711(a/u), G.729a, G.722, G.722.2* Roadmap feature
  • DTMF : in – band audio, RFC2833, SIP – INFO
  • Hook – flash : Local Processing, RFC2833, SIP – INFO
  • Fax over IP :
    • T.38, G.711 pass through
    • T.38 compliant Group 3 Fax
    • Relay
    • Maximum frame rate of 33,600bps(T.38)
  • Disconnect modes : Polarity reversals, Busy tone Detection, Loop current
  • QoS : DiffServ, TOS, 802.1P/Q VLAN tagging
  • Voice – quality Enhancement : Echo cancellation (G.168 – 2004), Jitter Buffer, Silence suppression(VAD, CNG), PLC
