NEWROCK HX440G 4 PORT FXO Gateway Dubai

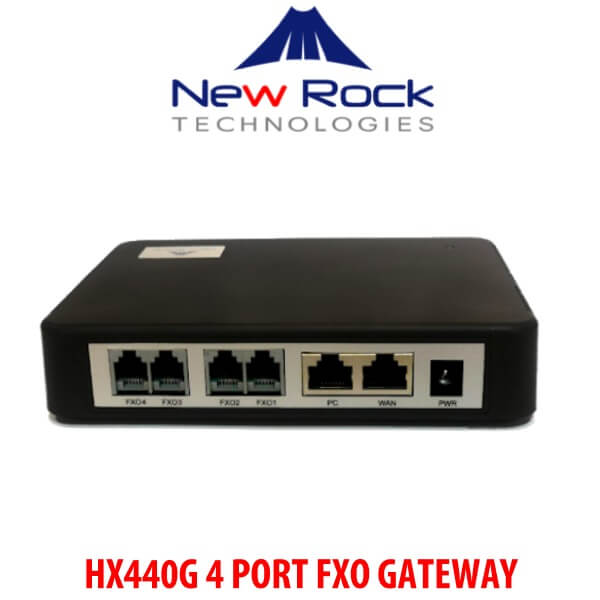

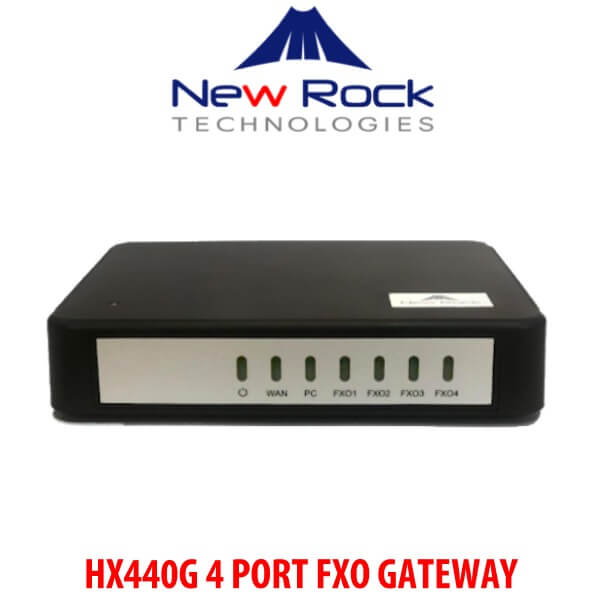

The Newrock HX440G 4 Port FXO Gateway is compactly designed and equipped with 4 FXO ports, 1 WAN port and 1 PC port (both of which are 10/100 /1000Mbps Ethernet ports) , making it highly efficient as it is an all – in – one device which connects analog phone, fax and POS machine, IP telephony and PSTN. It delivers dynamic sound quality courtesy of the award winning Acoustic Echo Cancellation (AEC) audio technology.Make all your conversations secure by using the Newrock HX440G 4 Port FXO Dubay Gateway which uses security algorithms such as configuration files which utilize SRTP and TLS call encryption to secure your important files.

NEWROCK HX440G  4 PORT FXO GATEWAY FEATURES

DUAL – STACK IPv6  & IPv4 ACCESS

The advanced next – generation IPv6 Internet protocol solves the problem of IP address shortage. Basically, every server or terminal has a public address to be accessed directly without translating intranet addresses by NAT or NAT traversal using technologies like STUN in an IPv6 Network, therefore making VoIP applications simpler. Being one of the early pioneers of IPv6, the Newrock HX440G 4 Port FXO Dubay Gateway fully supports IPv6 protocols with respect to operator IMS access, SIP basic call, TLS encryption, and TR069 remote management. A user therefore has the freedom of choosing between IPv4 and IPv6 connection depending on their network environment. If the operator’s IP/IMS server is IPv4, the gateway allows direct access to the SIP network without any configuration, and if the server is IPv6, the gateway need only set the SIP audio transmission mode as IPv6. During these transmissions, all investments in the existing equipment are secured, existing audio services are not affected, and existing network structure and users’ habits remain the same.

EXCELLENT AUDIO QUALITY

The  high performing Newrock HX440G 4  Port FXO Dubay Gateway offers users distraction-free communication courtesy of the inbuilt industry-leading Acoustic Echo Canceling Technology,  Adaptive Jitter Buffer, Voice Activity Detection, and Comfort Noise Generation that deliver superior High Definition sound quality devoid of extraneous noises. This makes it possible to enjoy fluent phone conversations without any distractions.

G168 ECHO CANCELLATION

The magnificent Newrock HX440G 4 Port FXO Dubay Gateway uses G168 Echo Cancellation to filter out any background and surrounding noises that may act as distractions whenever the Gateway user is making any communications.

AUTOMATED – PROVISIONING – TFTP/HTTP/HTTPS

The technologically advanced Newrock HX440G 4 Port FXO Dubay Gateway has the ability to deploy information technology or telecommunications service by using embedded pre-defined procedures that are carried out electronically without requiring any human intervention, thus making it very reliable and convenient.

TECHNICAL REPORT) TR – 069

This is a technical specification of the Broadband Forum that defines an application layer protocol for remote management of customer-premises equipment (CPE) connected to an Internet Protocol (IP) network. The TR-069 embedded in the Newrock HX440G 4 Port FXO Dubay Gateway uses the CPE WAN Management Protocol (CWMP) to provide support for functions such as auto-configuration, software or firmware image management, software module management, status and performance managements, and diagnostics. The CPE WAN Management Protocol is a bidirectional SOAP – and HTTP-based protocol, and provides the communication between a CPE and auto configuration servers (ACS). The protocol addresses the growing number of different Internet access devices such as modems, routers , gateways, as well as end-user devices which connect to the Internet, such as set-top boxes , and VoIP devices such as the Newrock HX440G 4 Port FXO Dubay Gateway.

FIRMWARE UPGRADEABLE

You can easily update the operating system on your Newrock HX440G 4 Port FXO  Dubai Gateway so as to improve its functionality and enhance user experience. Upgrading firmware also fixes any existing bugs and protects you from any kind of software malfunctions and  vulnerabilities. To update your Gateway’s firmware, type your gateway’s IP address into your web browser and enter your login information. Then locate the Firmware or Update section and download the latest firmware update on your Gateway manufacturer’s website. Finally, upload the update and reboot the Gateway.

CLOUD MANAGEMENT

New Rock provides a reliable and secure cloud service to deliver connectivity to its users at cheaper maintenance costs while enhancing operation and maintenance efficiency. The cloud service on the internet enables customers to gain direct access to Newrock devices available in private networks such as IP-PBXs, audio gateways, and IP phones, therefore allowing simple  remote maintenance and management of New Rock devices. This kind of cloud service is specifically designed to meet the needs of large-scale installation, configuration, and maintenance and operation. Auto provisioning and configuration backup, online update, real-time monitoring and alert enable users to achieve efficient operation and maintenance, thus maximizing productivity in organizations.

RICH QoS CAPABILITIES

Quality of Service (QoS) is a feature of routers and switches which prioritizes traffic so that more important traffic can pass first, resulting in an overall performance improvement for critical network traffic. This feature is very useful in the Newrock HX440G 4 Port FXO Dubay Gateway whenever there are high volumes of traffic, therefore eliminating any delays while working.

SIP – BASED CONNECTION

You can easily connect your Newrock HX440G 4 Port FXO Dubay Gateway to your IP PBX System or direct to a VoIP service provider in order to enjoy seamless conference calls. The Newrock HX440G 4 Port FXO Dubay Gateway is based on SIP v1(RFC2543) and SIP v2 (RFC 3261) and works perfectly with most of the SIP platforms such as  Cisco CallManager/CUCM, Broadsoft, Microsoft Skype for Business (Lync), –  Huawei IMS, and Asterisk/Elastix that currently exist in the market.

INTEROPERABILITY

The Newrock HX440G 4 Port FXO Dubay Gateway works perfectly with popular SIP servers, such as Cisco CallManager/CUCM, Broadsoft, Microsoft Skype for Business (Lync), –  Huawei IMS, and Asterisk/Elastix, thus allowing you to enjoy its maximum efficiency and convenience.

FLEXIBILITY

The Newrock HX440G 4 Port FXO Dubay Gateway pushes versatility to a new high, thanks to its ability to complement already existing fixtures for enhanced web and audio conferencing, as well as other communication needs. This makes it easy to integrate seamlessly into any office setup without disorienting earlier structures and work ethic. Furthermore, the device is easy to redeploy as the business grows and needs to transform.

NEWROCK HX440G 4 PORT FXO GATEWAY CALL FEATURES

CONFERENCE GUIDE

This advanced feature of the Newrock HX440G 4 Port FXO Dubay Gateway helps the user to easily set up group calls with a single click of a button. The hi – tech device allows for 3 – way group calls, thus enabling the user to easily join or create meetings.

CALL TRANSFER

This advanced feature of the Newrock HX440G 4 Port FXO Dubay Gateway allows the user to relocate an inbound call to another phone or messaging system by using a dedicated call transfer button, or software that has been configured for use on the Gateway.

CALL WAITING

You can hear another incoming call when you are already on an active phone call (beep). With the Newrock HX440G 4 Port FXO Dubay Gateway, you can also turn off call waiting so that incoming calls are directly sent to voicemail during moments you are active on another phone call.

CALL HOLDING

You can easily place an active phone call on hold in order to make or pick another incoming call using the premium Newrock HX440G 4 Port FXO  Dubay Gateway.

CALL RECORDING

A recording agent which simply runs on Windows OS  collects and manages data through Web GUI then records files generated by your Newrock HX440G 4 Port FXO Dubay Gateway.

THE MESSAGE WAITING INDICATOR

This feature comes in the form of a notification to alert you of a new voicemail message. The audible Message Waiting Indicator hinges on a ‘stutter dial tone’ to notify the user when a message is waiting to be retrieved, whereas a visual Message Waiting Indicator triggers a light or notice on the phone display, ensuring that you never miss out on important phone calls.

NEWROCK HX440G 4 PORT FXO GATEWAY SPECIFICATIONS

• HARDWARE

  • FXO Ports : 4
  • CPU : Dual core, 880MHz
  • RAM :  256MB
  • Flash : 16MB
  • Power Consumption : 6W
  • Power : 12VDC/1.5A
  • Mounting : Desktop

• PROTOCOLS

  • Call Control : SIP/UDP and SIP/TCP(RFC3261),IMS(3GPP), MGCP(RFC3435)
  • Network : SSH, HTTP, HTTPS, DHCP/PPPoE client, Radius, DNS( A/SRV record), STUN

• MEDIA PROCESSING

  • Caller ID : Bellcore/Telcordia, ETSI, BT, DTMF, G.711(a/u), G.729a, G.722, G.722.2* Roadmap feature
  • DTMF : in – band audio, RFC2833, SIP – INFO
  • Hook – flash : Local Processing, RFC2833, SIP – INFO
  • Fax over IP :
    • T.38, G.711 pass through
    • T.38 compliant Group 3 Fax
    • Relay
    • Maximum frame rate of 33,600bps(T.38)
  • Disconnect modes : Polarity reversals, Busy tone Detection, Loop current
  • QoS : DiffServ, TOS, 802.1P/Q VLAN tagging
  • Voice – quality Enhancement : Echo cancellation (G.168 – 2004), Jitter Buffer, Silence suppression(VAD, CNG), PLC

• VOICE

  • Call transfer :  Blind transfer, Consultative transfer
  • Call forward : call forward all, call forward no answer, call forward busy
  • Call recording storage : remote recording server for storage
  • Call settings : routing based on the caller or the callee number , Digit  map, 3-way calling, Speed dialling, Do not disturb, call forking, color ring back tones, Hunt group, Ring cadence, Message Waiting Indicator(MWI)

• SECURITY

  • Protocol : HTTPS, TLS, SSH, SRTP
  • Encryption : Encrypted password/PIN
  • Intrusion Prevention : Brute force login protection, Access list, Firewall, SIP – allowed IP addresses, Alarm and notification
  • VLAN : Auto discovery via DHCP, manual configuration
  • VPN client : L2TP, OpenVPN

• HIGH AVAILABILITY

  • Redundancy : primary – standby, Active – Standby, Load Balancing
  • PSTN failover : Power failure, Network failure

• PROVISIONING, ADMINISTRATION & MAINTENANCE

  • Device Management : New Rock Unified Management System, (TR – 069, TR – 104 and TR – 106), SNMP
  • Remote Access over TCP : New Rock Cloud
  • Auto Provisioning : Download configuration  file via TFTP/FTP/HTTP/HTTPS, Obtaining ACS address via DHCP option 66 or redirection
  • Log management : 8 – level logs, Syslog
  • Data Capture : Port capture , Packet capture
  • Status and Statistic : Call status and history, Device status monitoring and statistics collection
  • Upgrade : Firmware upgrade via Web GUI or Auto provisioning

• ADD – ON SOFTWARE

  • Finder : obtains IP addresses of devices in LAN  environment
  • Telegreeting : Formats pre – prepared IVR audio files or uploads them into a device
  • Recording agent : receives recording streams in PCM and converts them into MP3 format. Includes management functions such as search, play, delete and backup.

• DIMENSIONS & WEIGHT

  • H*W*D : 30 * 150 * 109(mm)
  • Net Weight : 0.3kg
