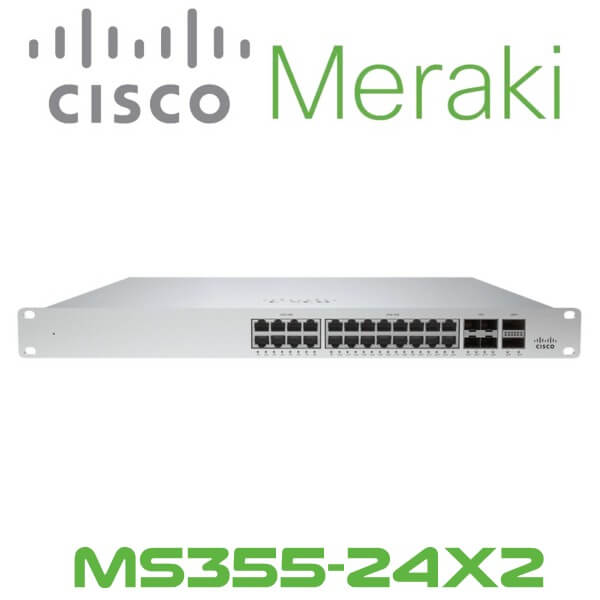

Meraki MS355-24X2 Dubai

The Meraki MS355-24X2 Dubai supports 40G or 10G uplinks, physical stacking, up to 60W of port power with UPoE, and field replaceable power supplies/fans.

Add to quote

Ask for Quote & Get Low Price

Description

Meraki MS355-24X2 Network Switch Dubai

The Meraki MS355-24X2 Dubai series provides full 10G multi-gigabit (mGig) access switching for demanding enterprise and campus environments.
The Meraki MS355-24X2 Dubai series features a high mGig port density for 802.11ax wireless access points, servers, and workstations. The Meraki MS355-24X2 Dubai supports 40G or 10G uplinks, physical stacking, up to 60W of port power with UPoE, and field replaceable power supplies/fans.
Meraki Network Switch Dubai has a centralized management platform which gives administrators granular visibility into their network. The dashboard helps you keep track of every configuration change in your network with detailed event and change logs.
The Meraki MS355-24X2 Dubai features 24 x mGig ports.

Features:

INDUSTRY LEADING CLOUD MANAGEMENT

Cloud management has many benefits that make it easier to build networks large and small:

Automatic email alerts from power loss, downtime, excessive Layer 1 errors, or configuration changes
Powerful remote diagnostic tools such as packet capture to help isolate and troubleshoot network issues
Role-based administration
Firmware upgrades and enhancements from the Meraki cloud
Virtual Stacking enables switch port configuration changes on the dashboard interface without the need to physically stack switches
Incredible network transparency with application, operating system, client, and hostname visibility
Zero-touch provisioning for rapid deployment across sites
Available models with up to 24 full 10G mGig ports for 802.11ax access points, servers, and workstations
Multi-gigabit (mGig) ports support 100M/1/2.5/5/10G of bandwidth over copper cabling
Access switching with up to 48 ports and 740W of UPoE support
40G or 10G uplink interfaces on all models
Dual stacking interfaces with 400 Gbps of bandwidth
Support for field replaceable, redundant power supplies
Up to 688 Gbps of switching capacity
6 configurable QoS queues for converged voice, video, and data applications
Integrated mounting brackets for rack mounting
Lifetime hardware warranty and advanced replacement at no additional cost

MS355-24X2 – Technical Specs:

Rack Mounting Kit	Included
MTBF	341,154 hours
Compliant Standards	CSA, C-Tick, IC, RoHS

Dimensions & Weight

Width	19.1 in
Depth	20.3 in
Height	1.7 in
Weight	13.01 lbs

Manufacturer Warranty

Service & Support

Limited warranty – replacement – lifetime – response time: next day

Environmental Parameters

Min Operating Temperature	32 °F
Max Operating Temperature	113 °F
Humidity Range Operating	5 – 95% (non-condensing)

General

Device Type	Switch – 24 ports – L3 – managed – stackable
Enclosure Type	Desktop, rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	24 x 1/2.5/5/10GBase-T + 4 x 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+
Power Over Ethernet (PoE)	UPOE
Performance	Switching capacity : 640 Gbps Forwarding rate : 476 Mpps
Capacity	Tagged VLANs : 4096
MAC Address Table Size	32K entries
Jumbo Frame Support	9600 bytes
Max Units In A Stack	8
Routing Protocol	IGMP VRRP OSPFv2 Static IP routing
Remote Management Protocol	SNMP
Authentication Method	RADIUS
Features	Flow control Auto-negotiation ARP support VLAN support Syslog support Port mirroring E-mail alert Broadcast Storm Control Spanning Tree Protocol (STP) support Rapid Spanning Tree Protocol (RSTP) support DHCP server SMS alert Dynamic ARP Inspection (DAI) Uni-Directional Link Detection (UDLD) LLDP support DHCP relay static routing crossover detection Bridge protocol data unit (BPDU) Role-Based Access Control (RBAC) Push notification Root Guard Loop Guard
Compliant Standards	IEEE 802.1D IEEE 802.1Q IEEE 802.1p IEEE 802.3af IEEE 802.3ad (LACP) IEEE 802.1w IEEE 802.1x IEEE 802.1ab (LLDP) IEEE 802.3at
