Meraki MS350-48LP Dubai

Cisco Meraki switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.

Add to quote

Ask for Quote & Get Low Price

Description

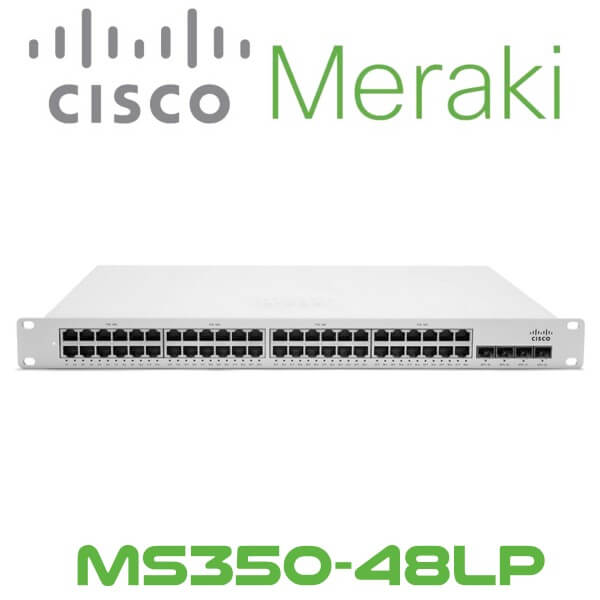

Meraki MS350-48LP Network Switch Dubai

The Meraki MS350-48LP Dubai is a switch that can provide reliable and high bandwidth access switching ideal for deploying in campus networks. With high-speed stacking capabilities and 10G SFP+ uplinks built in on every model, redundancy and performance are guaranteed. This Meraki MS350-48LP Dubai also supports options for multigigabit, UPoE, redundant, field-replaceable power supplies for mission-critical networks. Cisco Meraki switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.

MS350-48LP Key Features:

Gigabit access switching with 24- and 48- port models and optional PoE+ support up to 740W
Multigigabit access switch model with 24-ports and UPoE for 802.11ac Wave 2 access points and other high bandwidth applications
4 x 10G SFP+ uplink interfaces on all models
Dual stacking interfaces with up to 160G of bandwidth
Support for field replaceable, redundant power supplies
Non-blocking switch backplane with up to 272 Gbps of switching capacity
6 configurable QoS queues for converged voice, video, and data applications
Low power consumption, quiet acoustic design, and shallow rack depth options, enabling flexible deployment in wiring closets as well as offices and classrooms
Integrated mounting brackets for rack mounting
Lifetime hardware warranty and advanced replacement at no additional cost

Technical Specifications

Dimensions and Interfaces

Physical Dimensions : 1.74” x 19.08” x 20.4” (4.44cm x 48.46cm x 51.81cm
Weight : 13.82 lb (6.27 kg)
Interface : 48 x 10/100/1000BASE-T Ethernet RJ45 with with auto negotiation and auto-MDIX3, 4 x SFP+ 10G uplink 2 x stacking ports
Switching Capacity : 176 Gbps
Stacking Bandwidth : 160G (dual interface)

Power Options and Specifications

Idle / Full Load Power : 63 / 478 W
Available PoE+ Power : 370 W
Power Supply Configuration : Hot-swappable
Supported Power Supply : 2 x 640W PSU

Management

Managed via the Web with the Meraki cloud management platform
Integrated with Meraki Wireless and complete portfolio of IT products and solutions
Zero-touch remote provisioning (no staging needed)
Detailed historical per-port and per-client usage statistics
DHCP, client, and hostname fingerprinting
SNMPd and SYSLOG support for integration with other network management solutions
Automatic firmware upgrades with scheduling control

Remote Diagnostics

Email, SMS and Mobile push notification alerts
Cable testing and link failure detection with alerting
Live remote packet capture
Dynamic and interactive network discovery and topology
Combined event and configuration change logs with instant search

Stacking

Physical stacking of up to 8 switches with 80 Gbps stack bandwidth on all models
Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration

Ethernet Switching Capabilities

802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
802.1Q VLAN and trunking support for up to 4,094 VLANs
802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
Broadcast storm control
802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches
Port mirroring
IGMP snooping for multicast filtering
MAC forwarding entries: 96K, 512K on MS350-24X
