Description

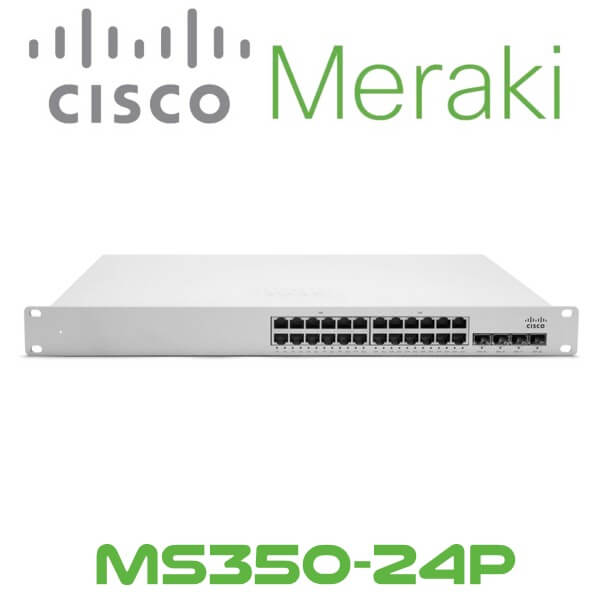

Meraki MS350-24P Network Switch Dubai
The Meraki MS350-24P Dubai is a switch that can provide reliable and high bandwidth access switching ideal for deploying in campus networks. With high-speed stacking capabilities and 10G SFP+ uplinks built in on every model, redundancy and performance are guaranteed. This Meraki MS350-24P Dubai also supports options for multigigabit, UPoE, redundant, field-replaceable power supplies for mission-critical networks. Cisco Meraki MS350-24P Dubai is built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.
The Meraki MS350-24P Dubai is a 24-port GbE 370W PoE/PoE+ cloud-managed stackable L3 enterprise-class access switch with four SFP+ uplinks and support for redundant power supplies for mission critical environments. The MS350 family includes integrated client and layer 7 application visibility, remote troubleshooting tools like live packet capture and cable test. The Meraki MS350-24P Dubai is 100% cloud-managed via the intuitive, browser-based Meraki dashboard, and includes a rich, out-of-the-box feature set without additional cost and complexity.
MS350-24P Key Features
- Gigabit access switching with 24- and 48- port models and optional PoE+ support
- Multigigabit access switch model with 24-ports and UPoE for 802.11ac Wave 2 access points and other high bandwidth applications
- 4 x 10G SFP+ uplink interfaces on all models
- Dual stacking interfaces with up to 160G of bandwidth
- Support for field replaceable, redundant power supplies
- Non-blocking switch backplane with up t0 272 Gbps of switching capacity
- 6 configurable QoS queues for converged voice, video, and data applications
- Low power consumption, quiet acoustic design, and shallow rack depth options, enabling flexible deployment in wiring closets as well as offices and classrooms
- Integrated mounting brackets for rack mounting
- Lifetime hardware warranty and advanced replacement at no additional cost
Technical Specifications
Dimensions and Interfaces
- Physical Dimensions (H x W x D) : 1.74” x 19.08” x 20.4” (4.44cm x 48.46cm x 51.81cm)
- Weight :13.14 lb (5.96 kg)
- Interface : 24 x 10/100/1000BASE-T Ethernet RJ45 with auto negotiation and autoMDIX, 4 x SFP+ 10G uplink, 2 x stacking ports
- Switching Capacity :128 Gbps
- Stacking Bandwidth : 160G (dual interface)
Power Options and Specifications
- Idle / Full Load Power : 57 / 466 W
- Available PoE+ Power
- Power Supply Configuration : Hot-swappable
- Supported Power Supply : 2 x 640W PSU
Management
- Managed via the Web with the Meraki cloud management platform
- Integrated with Meraki Wireless and complete portfolio of IT products and solutions
- Zero-touch remote provisioning (no staging needed)
- Detailed historical per-port and per-client usage statistics
- DHCP, client, and hostname fingerprinting
- SNMPd and SYSLOG support for integration with other network management solutions
- Automatic firmware upgrades with scheduling control
Remote Diagnostics
- Email, SMS and Mobile push notification alerts
- Cable testing and link failure detection with alerting
- Live remote packet capture
- Dynamic and interactive network discovery and topology
- Combined event and configuration change logs with instant search
Stacking
- Physical stacking of up to 8 switches with 80 Gbps stack bandwidth on all models
- Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Ethernet Switching Capabilities
- 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
- 802.1Q VLAN and trunking support for up to 4,094 VLANs
- 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
- Broadcast storm control
- 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
- 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches
- Port mirroring
- IGMP snooping for multicast filtering
- MAC forwarding entries : 96K, 512K on MS350-24X
Security
- Integrated two-factor authentication for Dashboard management
- Role-based access control (RBAC) with granular device and configuration control
- Corporate wide password policy enforcement
- IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing
- Multi-Domain/Multi-Host/Multi Authentication
- Port security : Sticky MAC, MAC whitelisting
- DHCP snooping, detection and blocking, Dynamic ARP Inspection
- STP Enhancements : BPDU guard, Root guard, Loop guard
- IPv4 and IPv6 ACLs
Performance
- Switching capacity : 128Gbps on 24-port models, 176Gbps on 48-port models
- Forwarding rate : 95.24mpps on 24-port models, 127.98mpps on 48-port models
- Jumbo frame support (9600 byte Ethernet frame)
- Flow control support
Layer 3
- Static routing, OSFPv2
- Multicast routing
- Warm Spare (VRRP)2
- DHCP Relay, DHCP Serve
Power
- Power input : 100 – 240 VAC, 47-63 Hz
- Power consumption : 56 – 888W
Environment
- Operating temperature : -5°C to 50°C
- Humidity : 5 to 95% non-condensing
- Variable speed fans
Mounting
- 1U rack-mountable with included rack mount hardware
- 2-post front mounting options available
Regulatory
- CE (Europe)
Warranty
- Full lifetime hardware warranty with next-day advanced replacement included
