Meraki MS210-24 Dubai

The Meraki MS210-24 Dubai is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there’s no need for complicated configuration files or even direct physical access to the switch.

Ask for Quote & Get Low Price

Description

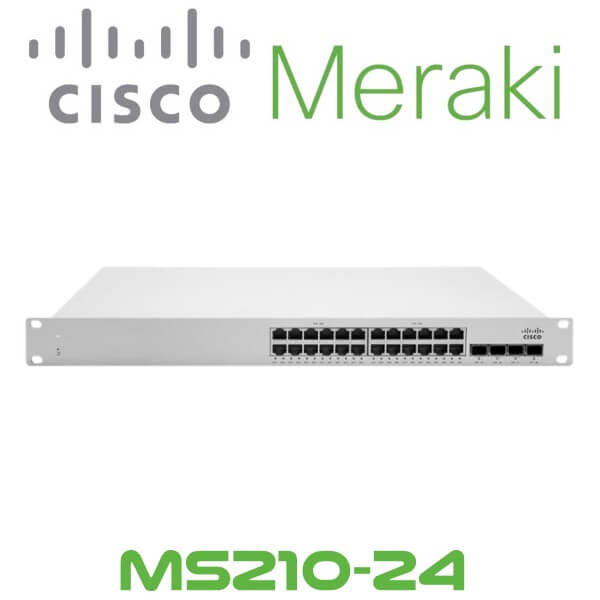

Meraki MS210-24 Network Switch Dubai

The Meraki MS210-24 Dubai includes 4 x 1G SFP uplinks and physically stacks with the MS225 to gain access to its 10G uplink. This family also supports an optional, rack-mountable PSU (Cisco RPS-2300) for power redundancy requirements.

Cisco Meraki switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.

The Meraki MS210-24 Dubai is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there’s no need for complicated configuration files or even direct physical access to the switch.

Meraki’s centralized management gives administrators deep visibility into the network and how it’s used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.

Features:

Centrally managed from the cloud

The Cisco Meraki Cloud Networking architecture enables Plug and Play branch deployments and provides centralized visibility and control across any number of distributed locations. The Meraki MS210-24 Dubai is the industry’s cloud managed switch, combining the benefits of cloud-based centralized management with a powerful, reliable access platform. With cloud management, thousands of switch ports can be configured and monitored instantly, over the web. Provision remote sites without on-site IT, deploy network-wide configuration changes, and easily manage campus and distributed networks without training or dedicated staff.

Layer 7 application and client visibility

Meraki MS210-24 Dubai is the industry’s only switches featuring integrated Layer 7 application and client fingerprinting and analysis. Hundreds of applications are automatically identified and reported, from business apps to BitTorrent and YouTube, so administrators can see where resources are spent.

QoS for voice and video

Deploy latency-sensitive applications such as voice and video by guaranteeing network performance. Voice and QoS features such as per-VLAN and protocol-based prioritization, as well as flexible QoS assignments, give intuitive, granular control.

Enterprise security

Extending security down to the port level has never been easier. Meraki MS210-24 Dubai integrates seamlessly with enterprise-grade security systems using 802.1x. Define access policies, segregate guest devices, and quarantine entire environments right from the dashboard.

Product Specifications

General
Device Type Switch – 24 ports – managed – stackable
Enclosure Type Desktop, rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 + 4 x Gigabit SFP (uplink)
Performance Stacking bandwidth: 80 Gbps | Switching capacity: 128 Gbps | Forwarding rate: 41.67 Mpps
MAC Address Table Size 16K entries
Jumbo Frame Support 9578 bytes
Remote Management Protocol SNMP
Authentication Method RADIUS
Features
  • Flow control
  • Auto-negotiation
  • ALERT notification
  • Auto-uplink (auto MDI/MDI-X)
  • Syslog support
  • Broadcast Storm Control
  • Spanning Tree Protocol (STP) support
  • Rapid Spanning Tree Protocol (RSTP) support
  • DHCP snooping
  • Access Control List (ACL) support
  • Fanless
  • LLDP support
  • DHCP relay
  • Link Aggregation Control Protocol (LACP)
  • Port Security
  • DHCP client
  • Static routing
  • 802.1x authentication
  • Crossover detection
  • Bridge protocol data unit (BPDU)
  • Role-Based Access Control (RBAC)
  • Root Guard
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP)
Expansion / Connectivity
Interfaces 24 x 1000Base-T RJ-45 | 4 x 1000Base-X SFP uplink | 2 x network stack device
Power
Power Device Internal power supply
Voltage Required AC 120/230 V (50 – 60 Hz)
Miscellaneous
Included Accessories Feet set
Rack Mounting Kit Included
MTBF 590,165 hours
Compliant Standards CSA, IC, FCC, RoHS, RCM
Dimensions & Weight
Width 19.1 in
Depth 9.8 in
Height 1.7 in
Weight 6.02 lbs
Manufacturer Warranty
Service & Support Limited warranty – advance parts replacement – lifetime – response time: next business day
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 – 95% (non-condensing)
