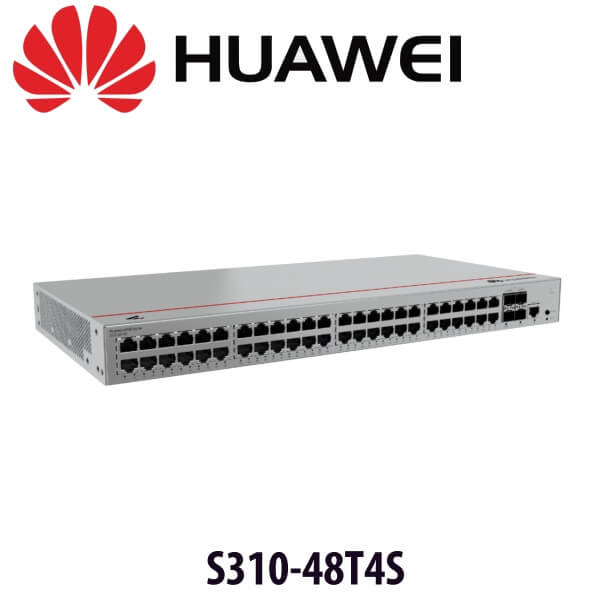

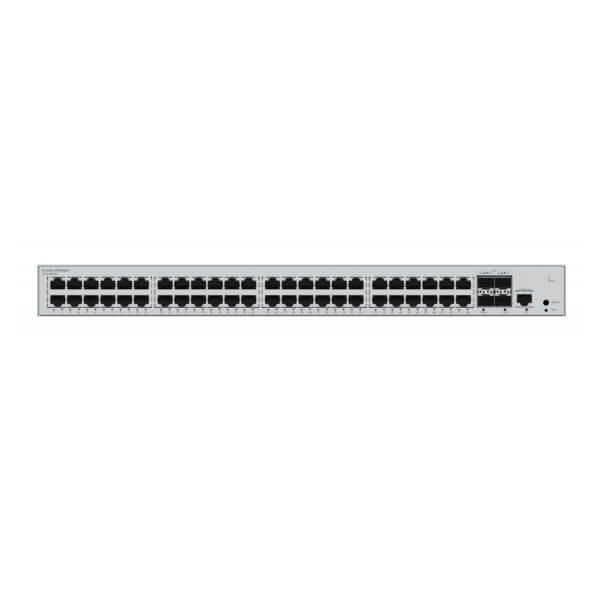

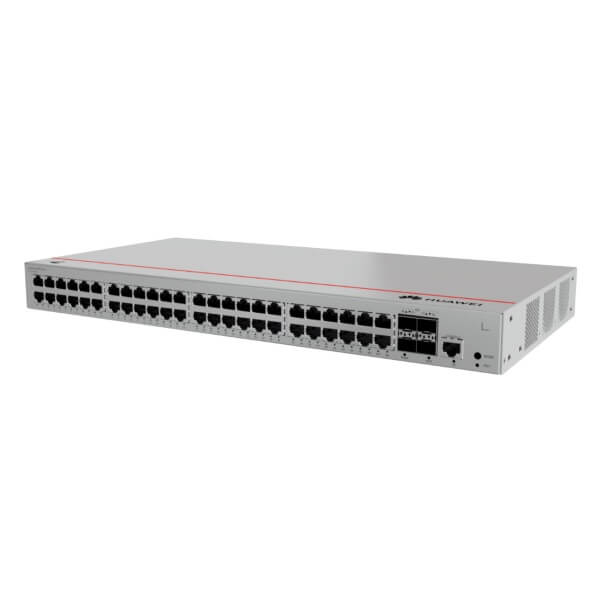

Huawei S310-48T4S Network Switch Dubai
The Huawei S310-48T4S Dubai fixed Ethernet switches are meticulously designed to integrate access and transmission functionalities, ensuring reliable access, aggregation, and superior service transmission for enterprise networks. Built on a robust, unified hardware platform, these switches incorporate essential components such as the chassis, power module, fan module, and Switch Control Unit (SCU). Specifically crafted as unmanaged switches, the Huawei S310-48T4S Dubai models do not support web-based management interfaces or SNMP-based management, emphasizing simplicity, ease of use, and straightforward deployment for users who prioritize minimal configuration and maintenance.
These switches provide a hassle-free experience for network administrators, making them an excellent choice for environments where ease of use and reliability are paramount. Designed to support dependable service transmission, access, and aggregation, the Huawei S310-48T4S Dubai switches enable enterprises to maintain efficient network operations without complex management tools. This makes them ideal for businesses demanding simplicity, reliability, and efficiency in their network infrastructure.
The unified hardware platform and high-quality components contribute to the durability and longevity of these switches, reducing the need for frequent replacements or upgrades. The ease of deployment and minimal maintenance requirements save time and resources for IT departments, allowing them to focus on other critical tasks. Consequently, the Huawei S310-48T4S Dubai switches are ideal for businesses that need a straightforward, reliable, and efficient network solution.
Technical Specifications
| Description | S310-48T4S (48*10/100/1000BASE-T ports, 4*GE SFP ports, AC power) |
| Part Number | 98012203 |
| Model | S310-48T4S |
| First supported version | V600R022C10 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 2.71 kg (5.97 lb) |
| Weight with packaging [kg(lb)] | 3.59 kg (7.91 lb) |
| Typical power consumption [W] | 44.9 W |
| Typical heat dissipation [BTU/hour] | 153.2 BTU/hour |
| Maximum power consumption [W] | 52.05 W |
| Maximum heat dissipation [BTU/hour] | 177.6 BTU/hour |
| Static power consumption [W] | 27.55 W |
| MTBF [years] | 40.61 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 46.6 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 34.6 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 1 |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Packet forwarding rate | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Uplink ports | 4 x GE SFP ports |
| Downlink ports | 48 x 10/100/1000BASE-T ports |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Devices cannot start when the temperature is lower than 0°C (32°F). The operating temperature ranges from –5°C (23°F) to +45°C (113°F) when optical modules with transmission distances greater than or equal to 60 km are used. The device does not support dying gasp when the ambient temperature is higher than 40°C (104°F). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100–240 V AC; 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz |
| Maximum input current [A] | 1.6 A |
| Memory | 2 GB |
| Flash memory | Physical space: 1 GB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±7 kV |
| Power supply surge protection [kV] | Differential mode: ±6 kV; common mode: ±6 kV |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | Built-in |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and air exhaust from right |
| PoE | Not supported |
| Certification |
|
