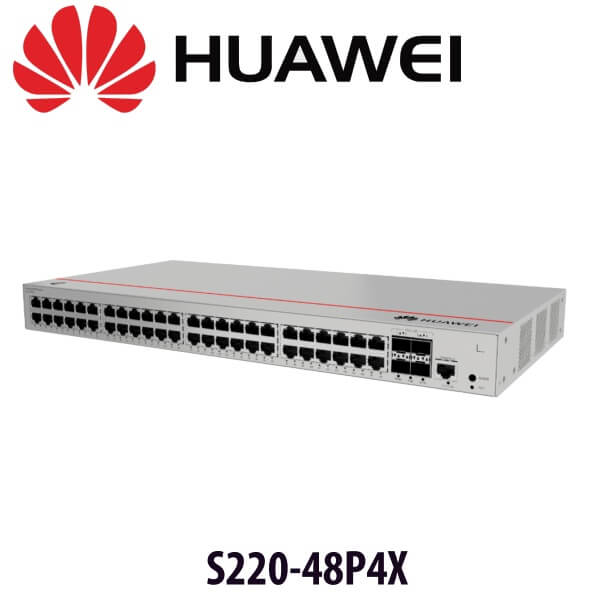

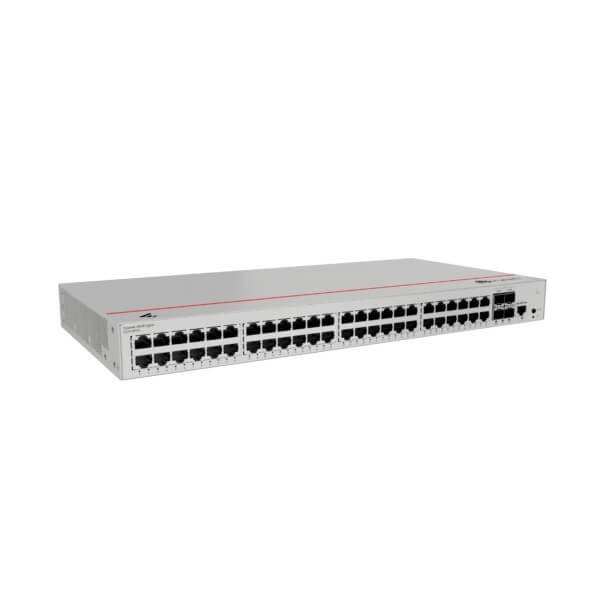

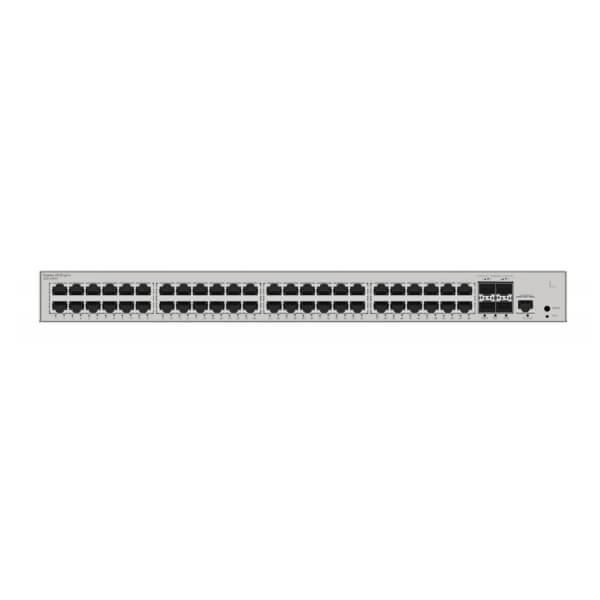

Huawei S220-48P4X Network Switch Dubai
The Huawei S220-48P4X Dubai fixed Ethernet switches are designed to seamlessly integrate access and transmission functions within enterprise networks. Known for their reliable access and high-quality transmission, these switches are ideal for businesses seeking efficient and robust network solutions. They feature a unified hardware platform, including a chassis, power module, fan module, and Switch Control Unit (SCU), ensuring dependable performance.
As unmanaged switches, the Huawei S220-48P4X Dubai models lack web-based management and SNMP capabilities, emphasizing simplicity and ease of use. This makes them perfect for straightforward network setups that do not require complex management. They provide a practical, efficient, and reliable solution for enterprises prioritizing easy installation and operation.
Overall, the Huawei S220-48P4X Dubai switches offer a reliable and effective networking option for modern businesses, ensuring seamless integration and high performance.
Technical Specifications
| Description | S220-48P4X (48*10/100/1000BASE-T ports(380W PoE+), 4*10GE SFP+ ports, built-in AC power) |
| Part Number | 98012378 |
| Model | S220-48P4X |
| First supported version | V600R023C00 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 3.24 kg (7.14 lb) |
| Weight with packaging [kg(lb)] | 4.29 kg (9.46 lb) |
| Typical power consumption [W] | 49.44 W |
| Typical heat dissipation [BTU/hour] | 168.69 BTU/hour |
| Maximum power consumption [W] |
|
| Maximum heat dissipation [BTU/hour] |
|
| Static power consumption [W] | 34.04 W |
| MTBF [years] | 48.14 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 49.3 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 37.3 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 2 |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Packet forwarding rate | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Uplink ports | 4 x 10GE SFP+ ports |
| Downlink ports | 48 x 10/100/1000BASE-T ports (380 W, PoE+) |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Devices cannot start when the temperature is lower than 0°C (32°F). The operating temperature ranges from –5°C (23°F) to +45°C (113°F) when optical modules with transmission distances greater than or equal to 60 km are used. |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] |
|
| Input voltage range [V] |
|
| Maximum input current [A] | 6 A |
| Memory | 2 GB |
| Flash memory | Physical space: 1 GB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±7 kV |
| Power supply surge protection [kV] | Differential mode: ±6 kV; common mode: ±6 kV |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | Built-in |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and air exhaust from right |
| PoE | Supported |
| Certification |
|
