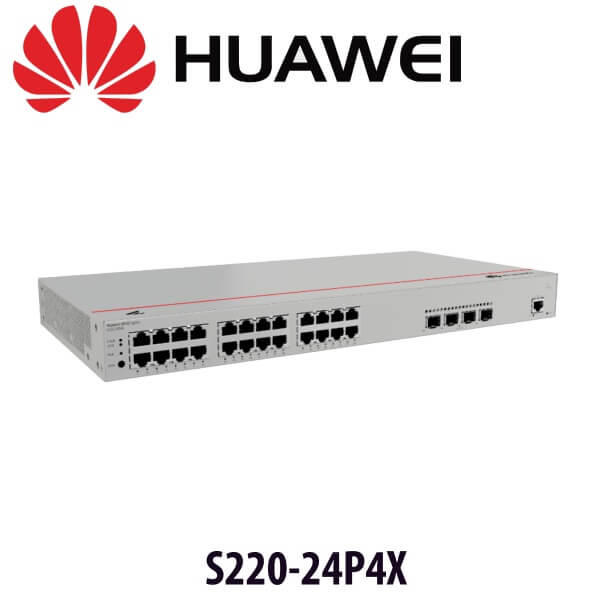

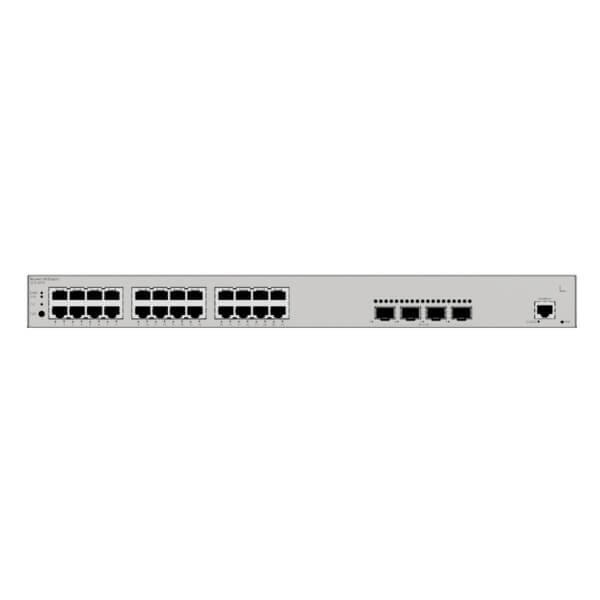

Huawei S220-24P4X Network Switch Dubai
The Huawei S220-24P4X Dubai fixed Ethernet switches are meticulously engineered to integrate access and transmission functions within enterprise networks seamlessly. These switches are celebrated for their reliable access and superior transmission quality, making them an ideal choice for businesses in search of efficient and robust network solutions. Built on a unified hardware platform, they feature a comprehensive system that includes the chassis, power module, fan module, and Switch Control Unit (SCU), ensuring cohesive and dependable performance.
As unmanaged switches, the Huawei S220-24P4X Dubai switches are designed without web-based management interfaces or Simple Network Management Protocol (SNMP) capabilities for remote administration. This intentional design choice emphasizes simplicity and ease of use, making these switches perfect for straightforward network setups that do not require complex management. They provide a practical, efficient, and reliable solution for enterprises prioritizing easy installation and operation. Users seeking a hassle-free experience will find these switches particularly beneficial, as they offer a dependable and straightforward network solution without the need for advanced management capabilities. The Huawei S220-24P4X Dubai switches deliver a reliable and effective networking option tailored for modern businesses, ensuring seamless integration and high performance in enterprise environments.
Technical Specifications
| Description | S220-24P4X (24*10/100/1000BASE-T ports(400W PoE+), 4*10GE SFP+ ports, built-in AC power) |
| Part Number | 98012376 |
| Model | S220-24P4X |
| First supported version | V600R023C00 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 2.92 kg (6.44 lb) |
| Weight with packaging [kg(lb)] | 3.79 kg (8.36 lb) |
| Typical power consumption [W] | 37.12 W |
| Typical heat dissipation [BTU/hour] | 126.65 BTU/hour |
| Maximum power consumption [W] |
|
| Maximum heat dissipation [BTU/hour] |
|
| Static power consumption [W] | 27.07 W |
| MTBF [years] | 60.18 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 49.3 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 37.3 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 2 |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Packet forwarding rate | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Uplink ports | 4 x 10GE SFP+ ports |
| Downlink ports | 24 x 10/100/1000BASE-T ports (400 W, PoE+) |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Devices cannot start when the temperature is lower than 0°C (32°F). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] |
|
| Input voltage range [V] |
|
| Maximum input current [A] | 6 A |
| Memory | 2 GB |
| Flash memory | Physical space: 1 GB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±7 kV |
| Power supply surge protection [kV] | Differential mode: ±6 kV; common mode: ±6 kV |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | Built-in |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Supported |
| Certification |
|
