Description

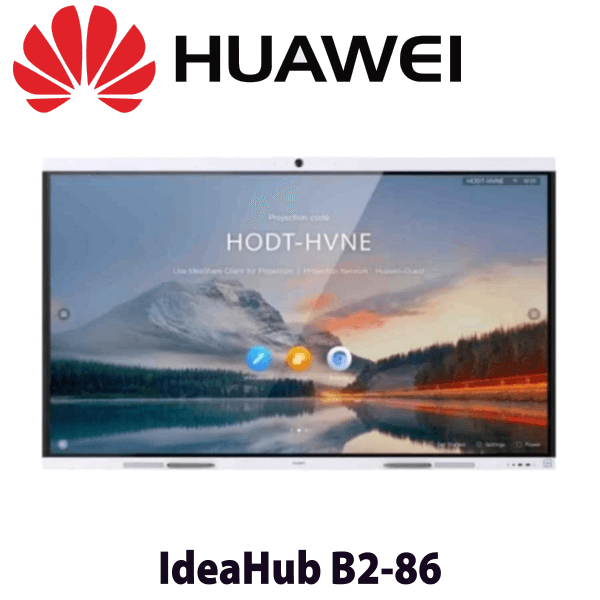

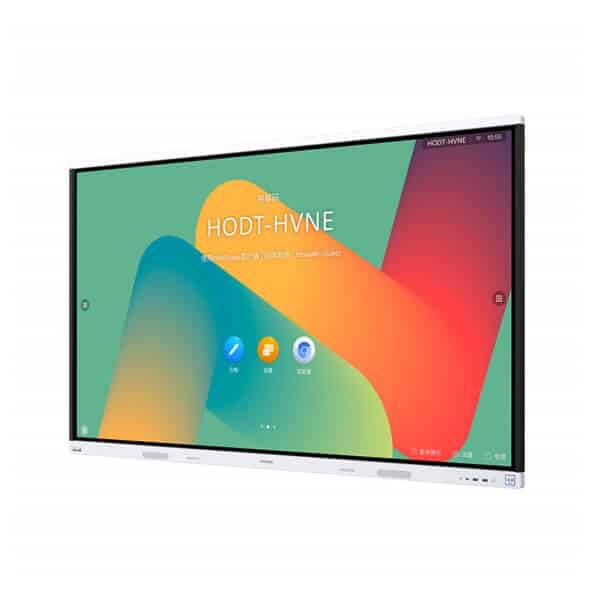

Huawei IdeaHub B286 Intelligent Meeting Panel Dubai

The Huawei IdeaHub B286 Dubai is a state-of-the-art meeting panel designed with a completely revamped hardware architecture, ushering in a new era of high-definition cloud conferencing. This next-generation device boasts a cutting-edge 4K soft light display, delivering an enhanced viewing experience that reduces glare and improves clarity. The IdeaHub B286 doesn’t stop at visuals; it also features advanced projection capabilities and a significantly upgraded writing interface, making it the perfect tool for seamless collaboration.

Whether you’re conducting business presentations, hosting detailed project workshops, or running routine meetings, this device is crafted to support a wide range of professional scenarios. Its intuitive design caters specifically to the needs of a modern, lightweight digital office environment, ensuring that users can easily connect, collaborate, and communicate with efficiency. Ideal for any team looking to streamline their workflows, the Huawei IdeaHub B286 Dubai provides the tools necessary to elevate everyday business operations to a new level of productivity.

Features

Multi-Platform Cloud Conferencing

The HD cloud-based video conferencing offers out-of-the-box service without OPS configuration. The professional 4K camera adopts a 1.5 μm industrial-grade image sensor, providing low-noise natural image with TV distortion less than 2%. Its circulating heat dissipation design reassures consistent resolution even after long meetings. The 6-microphone array easily picks up sound in a radius of 10 meters using the beamforming technology. A 3D stereo speaker is equipped with a 550 cm³ ultra-large sound cavity for premium clarity.

Dual Wi-Fi Projection, Stable and Fast

USB driver-free projection for HD audio and video sharing; dual Wi-Fi modules, ensuring no interference between internet connection and projection; Reverse control for easier page turning and annotation.

Intelligent Whiteboard for Smooth Writing

With Huawei-developed handwriting tracking algorithm, the writing latency is as low as 25 ms. The all-new magnetic stylus pen supports multiple strokes and thickness options. Text and graphics can be accurately identified and handwritten content can be convered into standard text immediately. You can scan the QR code on the whiteboard to save the meeting content to your phone or tablet, providing free access anytime and anywhere.

IdeaManager: Comprehensive O&M Platform

Remote management and control of multiple devices: basic device configuration and remote OTA updates; Optimized organizational management: app usage statistics and fault inspection; IdeaCare for troubleshooting: one-click diagnosis of typical faults as well as remote assistance from professionals

Technical Specifications

• Model: IHB2-86PU
• Product dimensions: 1953.0mm × 91.8mm × 1180.6mm
• Package dimensions: 2090mm × 250mm × 1300mm
• Component
  • Device: 1
  • Stylus pen: 2
  • Cable: Power cable x 1

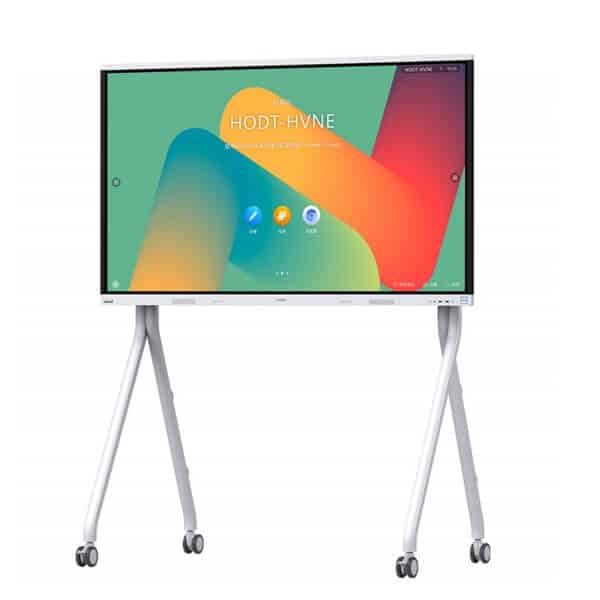

  • Rolling Stand: Optional (65″, 75″, and 86″)
  • Wall-mounted bracket: Optional (65″, 75″, and 86″)
  • IdeaShare Key: Optional
  • OPS: Optional
• Screen
  • Resolution: 4K UHD (3840 x 2160)
  • Backlight type: D-LED
  • Lamination: Zero-gap bonding
  • Viewing angle: 178°
  • Color depth: 10-bit (8-bit + FRC)
  • Color gamut: 85% NTSC (typical value)
  • Refresh rate: 60 Hz
  • Number of touch points: 20
• Camera
  • Zoom: 2x digital zoom
  • Maximum angle of view: Horizontal: 80°/ Vertical: 50°
  • Video output resolution: 4K
  • TV distortion:＜2%
  • Aperture: F/1.8
• Speaker
  • Frequency domain: 100Hz-20kHz
  • Speaker unit: 2 x full frequency speaker + 2 x high-frequency speaker
  • Stereo: √
  • Maximum power: 30W
• Microphone
  • Sound pickup angle: 180°
  • Quantity: 6
  • Frequency domain: 100Hz-20kHz
  • Sound pickup distance: 10m
• Wireless connection
  • Dual-Wi-Fi module: √
  • Frequency: 2.4 GHz/5 GHz
• System
  • CPU: 4-core
  • RAM: 4 GB
  • Flash: 32 GB
  • OS: Android 9.0/Windows 10 (To use Windows 10, an OPS plug-in computer is required.)
• Interface
  • Front-panel ports
    • USB Type-C x 1
    • USB Type-A 3.0 x 2
  • Side-panel ports
    • USB Type-A 3.0 x 1
    • USB Type-B x 1
    • HDMI IN x 2
    • HDMI OUT x 1
    • COM port x 1
    • RJ45 network port x 1
    • 80-pin OPS port x 1
    • 3.5mm Line-in x 1
    • 3.5mm Line-out x 1
  • Meeting
    • Third-party meeting app: √
• Projection
  • Projection mode
    • IdeaShare projection code
    • HDMI and Type-C wired projection
    • IdeaShare Key
    • NFC and projection through the drop-down menu
  • Projection effect
    • Wireless projection: up to 4K 30 fps
    • Wired projection: up to 4K 60 fps
  • Supported OS on clients: Android / Windows / iOS / macOS
  • Annotation during projection: √
  • Reverse control: √
• Writing
  • Writing latency: ≤25ms
  • Precision: ±1mm
  • Touch sensing distance: ≤1.5mm
  • Whiteboard saving mode: QR code scanning/Email/Local storage/USB flash drive
  • Intelligent writing recognition: √
