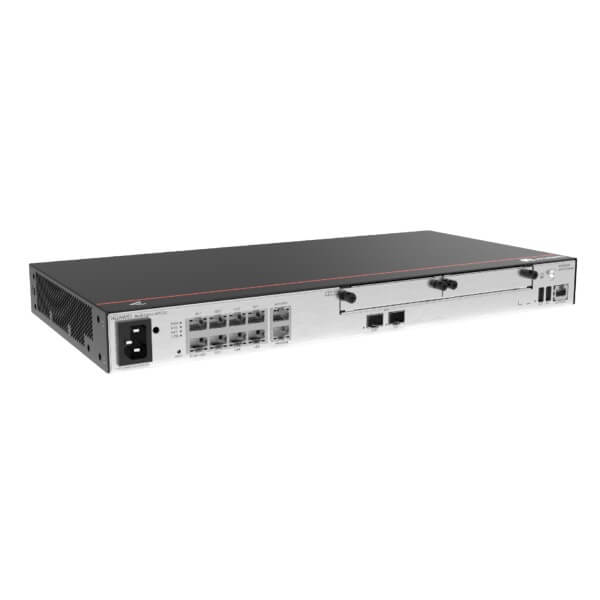

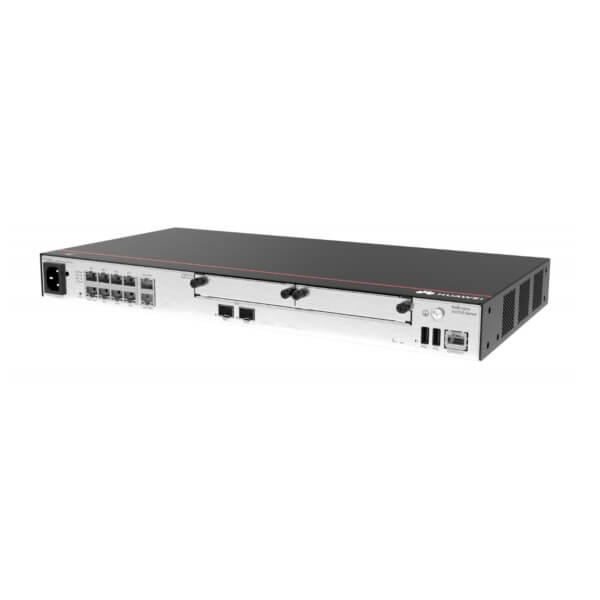

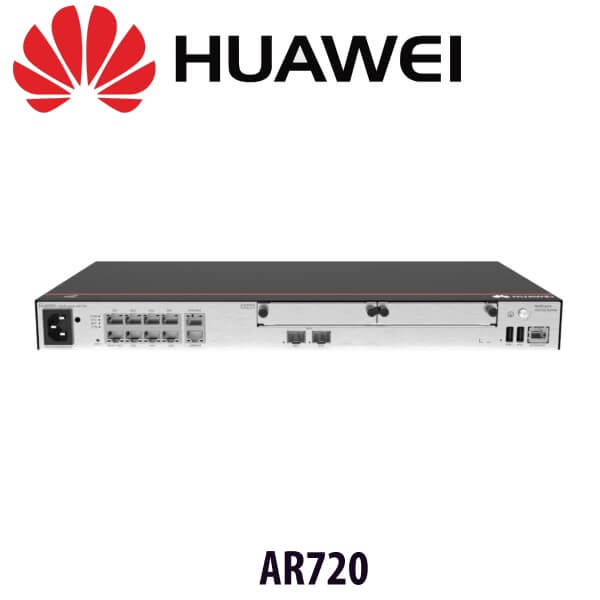

Huawei AR720 Enterprise Router Dubai
The Huawei AR720 Dubai routers represent the next generation of high-performance networking devices. These routers are powered by ARM-based multi-core processors and feature a non-blocking switching architecture, delivering performance that is twice the industry average. Beyond their impressive speed, the AR720 routers come equipped with a wide range of integrated functionalities. These include 5G connectivity, advanced routing capabilities, switching, VPN support, comprehensive security features, and MPLS technology. This extensive feature set makes the Huawei AR720 Dubai routers an ideal solution for enabling a variety of enterprise services in the cloud era, catering to the evolving needs of modern businesses.
Features and Benefits
Architechture | Benefits |
Multi-core processor | High-performance multi-core processor, supporting high-speed WAN connections, providing powerful route computing capabilities, and improving L4–L7 service processing efficiency. |
Non-blocking switching architecture | Maximum bus bandwidth of a single slot: 10 Gbit/s, eliminating service forwarding bottlenecks |
Extensive network ports |
|
Technical Specifications
Description | AR720, 2*GE combo WAN, 8*GE LAN, 2*USB 2.0, 2*SIC |
Part Number | 02354GBG-001 |
Model | AR720 |
First supported version | V300R022C00 |
Dimensions with packaging (H x W x D) [mm(in.)] | 90 mm x 390 mm x 570 mm (3.54 in. x 15.35 in. x 22.44 in.) |
Weight with packaging [kg(lb)] | 4.6 kg (10.12 lb) |
Weight without packaging [kg(lb)] | 3.2 kg (7.04 lb) |
CPU | 1.4 GHz, 4 Cores |
Memory | 4 GB |
NAND Flash | 1 GB |
Console port | RJ45 |
RTC | Supported |
LAN ports | 8 x GE electrical interfaces |
WAN ports | 2 x GE combo |
Number of service board slots | 2 |
MIC slots (default/maximum) | 0/0 |
SIC slots (default/maximum) | 2/2 |
WSIC slots (default/maximum) | 0/1 |
XSIC slots (default/maximum) | 0/0 |
Redundant MPUs | Not supported |
RPS input | Not supported |
PoE | Not supported |
IP rating | IP20 |
MTBF [years] | 30.05 years |
MTTR [hours] | 2 hours |
Availability | 0.9999924012 |
Typical power consumption [W] | 28 W |
Maximum power consumption [W] | 33 W |
Power supply mode | AC built-in |
Number of power modules | 1 |
Rated input voltage [V] | 100 V to 240 V, 50 Hz/60 Hz |
Input voltage range [V] | 90 V to 264 V, 47 Hz to 63 Hz |
Maximum input current [A] | 2 A |
Maximum output power [W] | 70 W |
Redundant power supply | Not supported |
Type of fans | Built-in |
Number of fan modules | 1 |
Heat dissipation mode | Air cooling |
Airflow | Left-to-right airflow |
Noise at normal temperature (acoustic power) [dB(A)] | 52.3 dB(A) |
Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F)
NOTE: When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
Overtemperature alarm | Supported |
Environmental standards compliance |
|
