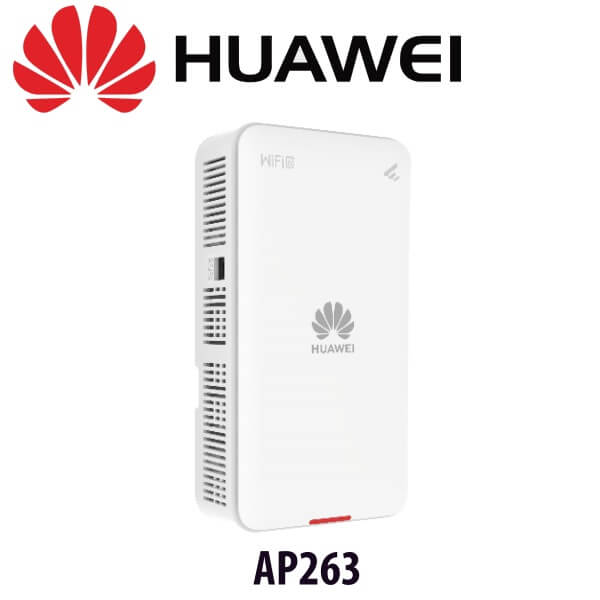

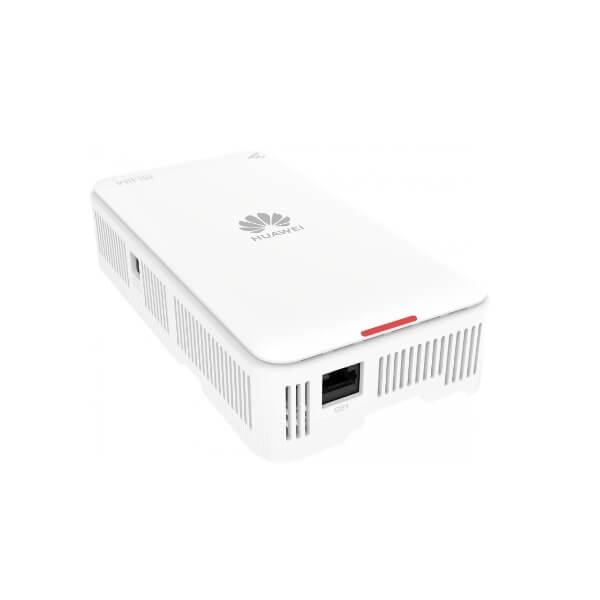

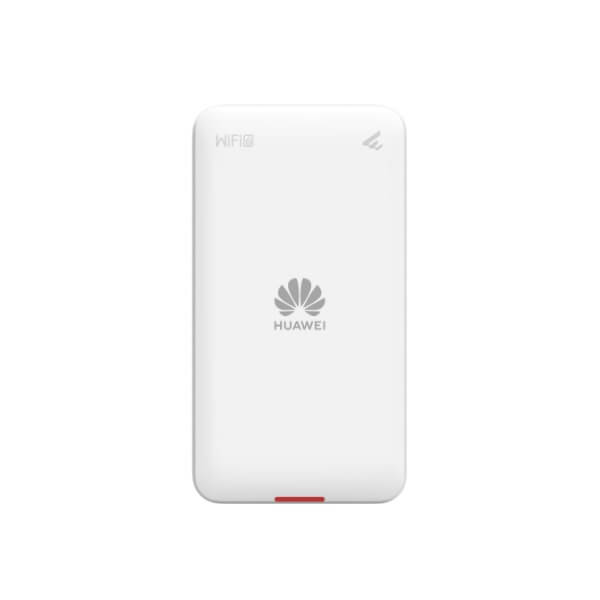

Huawei AP263 Access Point Dubai
Huawei AP263 Dubai is an advanced Wi-Fi 6 (802.11ax) wall plate access point designed by Huawei. This AP stands out due to its exceptional high bandwidth and high concurrency capabilities, making it ideal for supporting a large number of devices simultaneously without compromising performance. Its compact and sleek design ensures flexible and unobtrusive deployment, which not only optimizes space but also contributes to significant cost savings for customers. This access point is particularly advantageous for indoor coverage in small and medium-sized enterprise (SME) markets. Huawei AP263 Dubai is perfectly suited for various environments such as SMB offices, hospitals, and cafes, where reliable and efficient wireless connectivity is essential.
Features
- Working simultaneously on the 2.4 GHz (2×2) + 5 GHz (2×2) frequency bands
- Uplink: 1 x GE electrical port; downlink: 1 x GE electrical port
- Various installation modes for easy deployment, including wall-mounting and plate-mounting
- Built-in smart antennas to provide precise coverage for STAs, reduce interference, and improve signal quality
- USB port for external IoT expansion (supporting protocols such as ZigBee, and RFID)
- Bluetooth serial interface-based O&M through built-in Bluetooth by collaborating with CloudCampus APP
- Working modes: Fit, Fat, and cloud management
Technical Specifications
| Description | AP263(11ax indoor,2+2 dual bands,smart antenna,USB,BLE) |
| Part Number | 50084981 |
| Model | AP263 |
| First supported version | V200R021C01 |
| Installation Type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] | 160 mm x 86 mm x 38 mm (6.30 in. x 3.39 in. x 1.50 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 75 mm x 205 mm x 115 mm (2.95 in. x 8.07 in. x 4.53 in.) |
| Weight without packaging [kg(lb)] | 0.320 kg (0.705 lb) |
| Weight with packaging [kg(lb)] | 0.542 kg (1.195 lb) |
| Storage | NAND Flash 256 MB |
| Console port | BLE console |
| Maximum power consumption [W] | 12 W |
| Maximum heat dissipation [BTU/hour] | 41 BTU/hour |
| Power supply mode |
|
| Rated input voltage [V] | 12 V |
| Input voltage range [V] | 12±10%
PoE: 802.3at/af |
| Service port surge protection | PoE port:
Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B |
| Maximum number of physical ports on the entire device | GE (RJ45) x 2, 10M/100M/1000M auto-sensing |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa – 106kPa ETSI 300 019-2-3 |
| Ground | floating ground |
| USB | USB 2.0 (supporting 5 W power supply) |
| BLE | BLE5.0 |
| Radio number | 2 |
| Operating frequency band |
|
| MIMO spatial streams | Radio 0 (2.4 GHz): 2×2
Radio 1 (5 GHz): 2×2 |
| Wi-Fi standard |
|
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4G:
5G:
|
| Maximum transmit power | 2.4G:
5G:
|
| Singal radio transmit power [dBm] |
|
| MTBF [year] | 69.7 year |
| MTTR [hour] | 0.5 hour |
| Frequency stability [ppm] | +/-20 |
| 802.3at power supply description | No function is limited. |
| 802.3af power supply description | The USB function is unavailable. |
| DC power supply description | No function is limited. |
