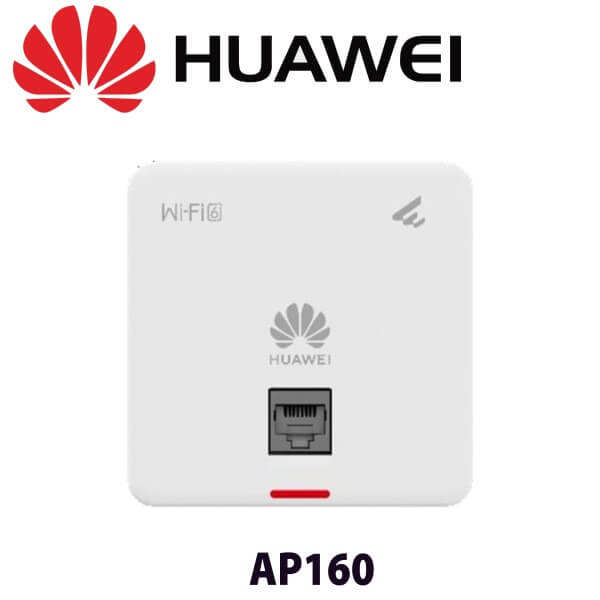

Huawei AP160 Access Point Dubai

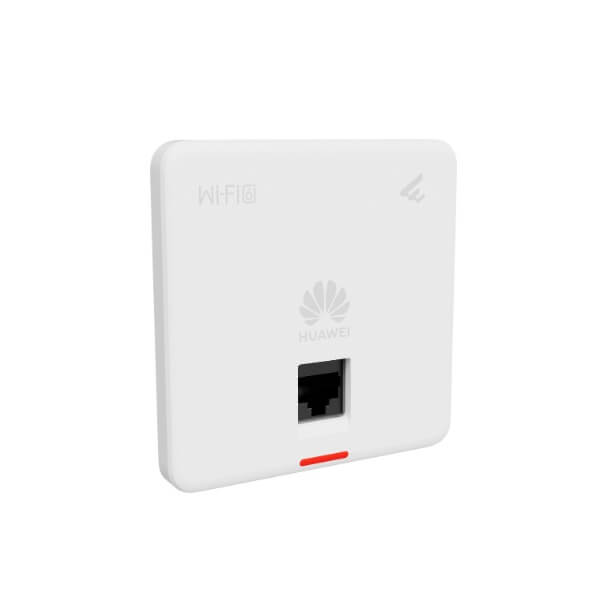

The Huawei AP160 Dubai is a cutting-edge Wi-Fi 6 (802.11ax) wall plate access point designed for high-speed, reliable wireless connectivity. It operates simultaneously on the 2.4 GHz (2×2) and 5 GHz (2×2) frequency bands, ensuring optimal performance for a variety of devices.
The Huawei AP160 Dubai boasts high bandwidth and supports numerous concurrent connections, making it ideal for high-traffic environments such as small- and medium-sized offices, homes, and hotels. Its compact design allows for flexible deployment and reduces customer investment.
In indoor coverage scenarios, the Huawei AP160 Dubai provides robust and consistent Wi-Fi coverage, making it perfect for enhancing wireless networks in business settings or ensuring seamless internet access in residential and hospitality environments.
Features
- Working simultaneously on the 2.4 GHz (2×2) + 5 GHz (2×2) frequency bands
- Uplink: 1 x GE electrical port; downlink: 1 x GE electrical port

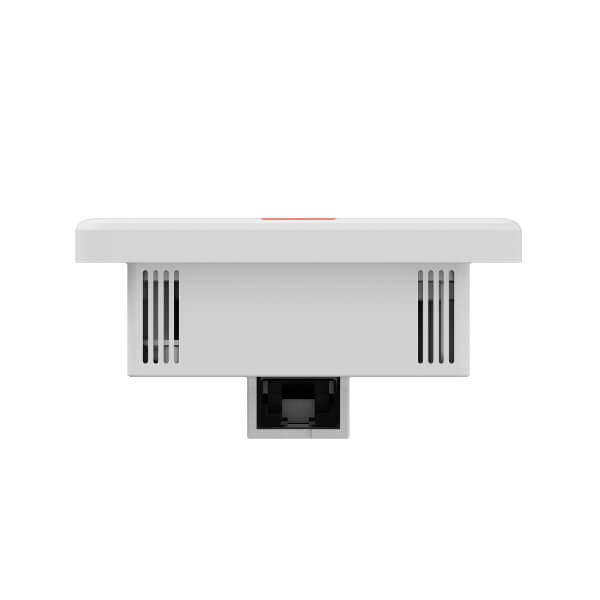

- Standard dimensions of 86 mm x 86 mm, allowing for junction box (86 mm) mounting and facilitating deployment
- Built-in smart antennas to provide precise coverage for STAs, reduce interference, and improve signal quality
- Working modes: Fit, Fat, and cloud management
Technical Specifications
| Description | AP160(11ax indoor,2+2 dual bands,smart antenna) |
| Part Number | 50086816 |
| Model | AP160 |
| First supported version | V200R023C00 |
| Installation Type | Junction Box |
| Dimensions without packaging (H x W x D) [mm(in.)] | 86 mm x 86 mm x 42.5 mm (3.39 in. x 3.39 in. x 1.67 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 98 mm x 117 mm x 73 mm (3.86 in. x 4.61 in. x 2.87 in.) |
| Weight without packaging [kg(lb)] | 0.14 kg (0.31 lb) |
| Weight with packaging [kg(lb)] | 0.24 kg (0.53 lb) |
| Storage | NAND Flash 256 MB |
| Console port | None |
| Maximum power consumption [W] | 9.1 W |
| Maximum heat dissipation [BTU/hour] | 29.5 BTU/hour |
| Power supply mode | PoE |
| Input voltage range [V] | PoE: 802.3af |
| Service port surge protection | PoE port:
|
| Maximum number of physical ports on the entire device | GE (RJ45) x 2, 10M/100M/1000M auto-sensing |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa – 106kPa ETSI 300 019-2-3 |
| Ground | floating ground |
| BLE | Not supported |
| Radio number | 2 |
| Operating frequency band |
|
| MIMO spatial streams | Radio 0 (2.4 GHz): 2×2
Radio 1 (5 GHz): 2×2 |
| Wi-Fi standard |
|
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4 GHz:
5 GHz:
|
| Maximum transmit power | 2.4G:
5G:
|
| Singal radio transmit power [dBm] |
|
| MTBF [year] | 446 year |
| MTTR [hour] | 2 hour |
| Frequency stability [ppm] | +/-20 |
| 802.3bt power supply description | No function is limited. |
| 802.3at power supply description | No function is limited. |
| 802.3af power supply description | No function is limited. |
| DC power supply description | Not supported |
