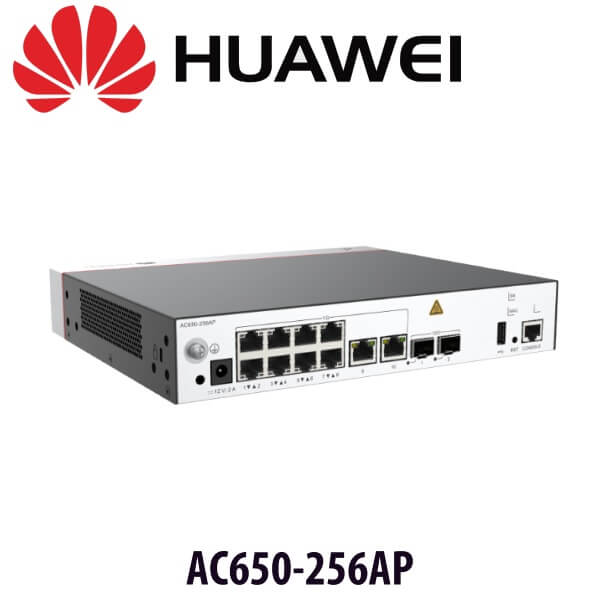

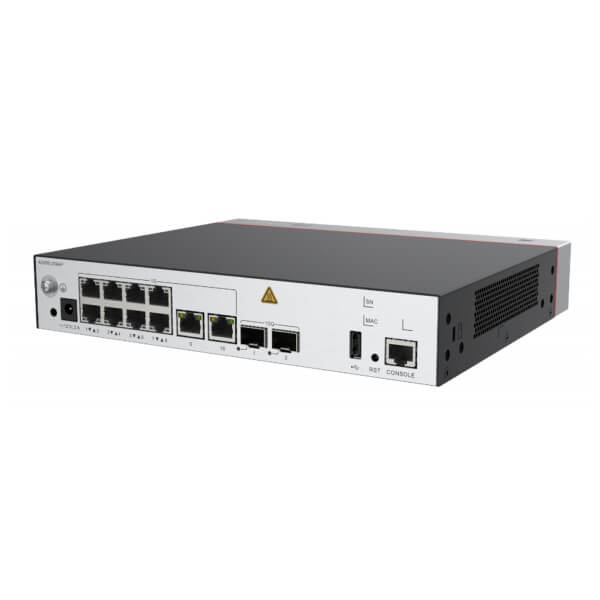

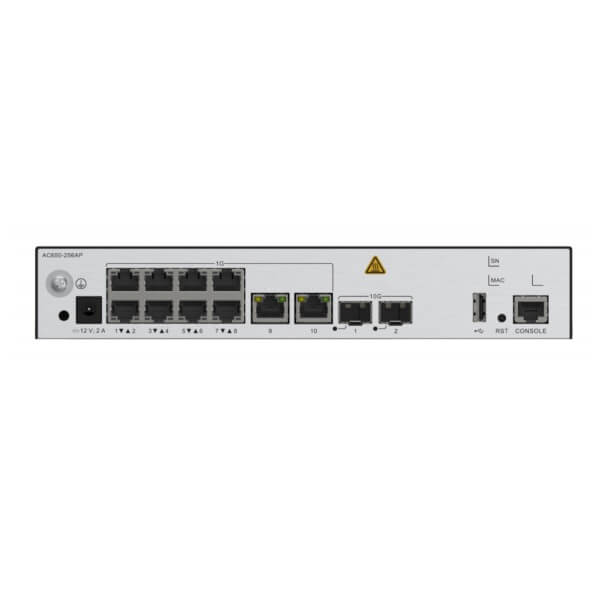

Huawei AC650-256AP Wireless Access Controller Dubai
The Huawei AC650-256AP Dubai is a state-of-the-art wireless access controller (AC) developed by Huawei, specifically designed to meet the needs of small and medium-sized enterprise (SME) network markets. This device seamlessly integrates with Huawei access points (APs) to establish reliable wireless networks, catering to environments such as small campus networks, office networks of smaller enterprises, and areas requiring hotspot coverage. The Huawei AC650-256AP Dubai is capable of managing up to 256 access points, ensuring robust network performance and connectivity. Furthermore, it can support access for up to 2048 simultaneous stations (STAs), providing extensive coverage and reliable connections for numerous devices.
Technical Specifications
| Description | AC650-256AP mainframe (10*GE ports, 2*10GE SFP+ ports, with the AC/DC adapter) |
| Part Number | 02355NCH |
| Model | AC650-256AP |
| First supported version | V200R022C10 |
| Installation Type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic: 43.6 mm x 250 mm x 210 mm (1.72 in. x 9.84 in. x 8.27 in.)
Maximum: 43.6 mm x 250 mm x 215 mm (1.72 in. x 9.84 in. x 8.46 in.) |
| Weight without packaging [kg(lb)] | 1.9kg |
| Storage | Nand FLASH 1GB |
| Console port | RJ45 |
| Maximum power consumption [W] | 23.58 W |
| Maximum heat dissipation [BTU/hour] | 80.45 BTU/hour |
| Power supply mode | DC adapter |
| Service port surge protection | 6 kV in common mode |
| Types of fans | None |
| Maximum number of physical ports on the entire device | 2 x 10GE (SFP+) + 10 x GE (RJ45) |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa – 106kPa ETSI 300 019-2-3 |
| Ground | Ground |
| USB | 1 x USB 2.0 (host type A) port |
| MTBF [year] | 50 year |
| MTTR [hour] | 2 hour |
