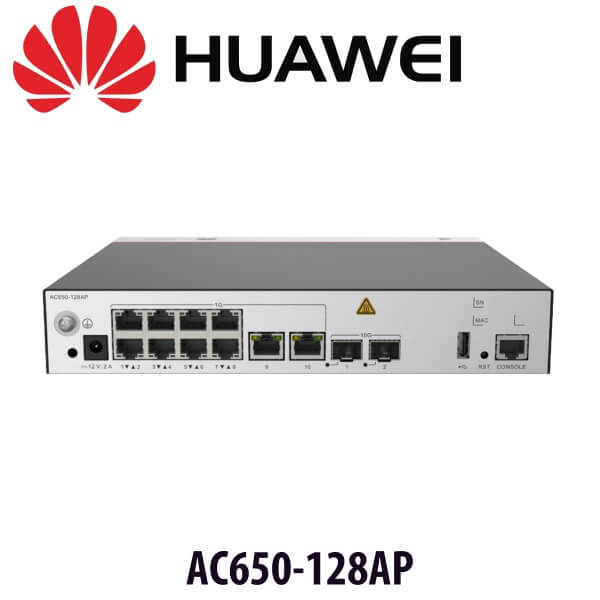

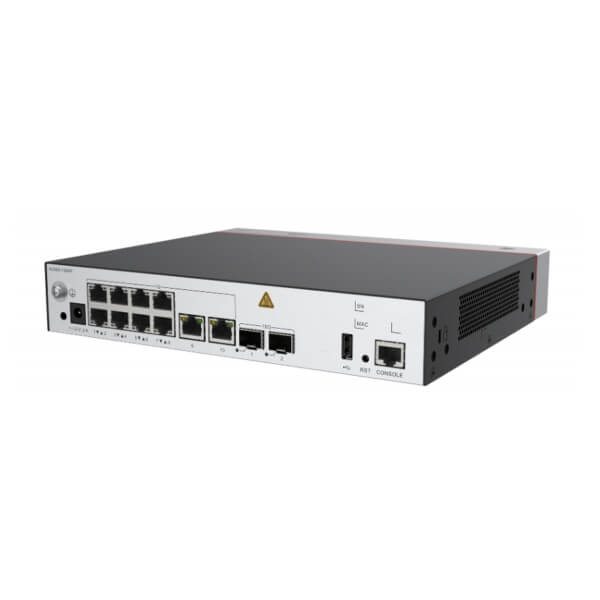

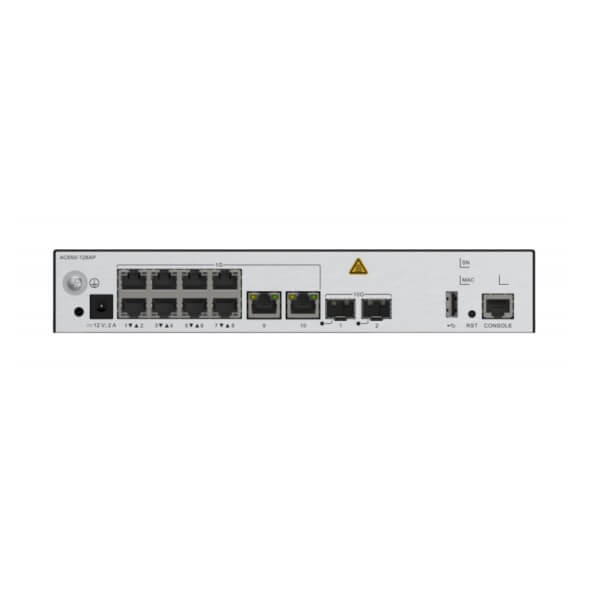

Huawei AC650-128AP Wireless Access Controller Dubai
The Huawei AC650-128AP Dubai is a sophisticated wireless access controller (AC) designed by Huawei specifically for the SME Network markets. This device collaborates seamlessly with Huawei access points (APs) to create robust wireless networks suitable for a variety of environments, including small campus networks, office networks for small enterprises, and extensive hotspot coverage areas. With the capability to manage up to 128 access points, the Huawei AC650-128AP Dubai can support a maximum of 2048 simultaneous STAs (Station Access Points), ensuring reliable and efficient network connectivity for numerous devices. This makes it an ideal solution for small to medium-sized businesses looking to establish or enhance their wireless networking infrastructure.
Technical Specifications
| Description | AC650-128AP mainframe (10*GE ports, 2*10GE SFP+ ports, with the AC/DC adapter) |
| Part Number | 02355NCG |
| Model | AC650-128AP |
| First supported version | V200R022C10 |
| Installation Type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic: 43.6 mm x 250 mm x 210 mm (1.72 in. x 9.84 in. x 8.27 in.)
Maximum: 43.6 mm x 250 mm x 215 mm (1.72 in. x 9.84 in. x 8.46 in.) |
| Weight without packaging [kg(lb)] | 1.9kg |
| Storage | Nand FLASH 1GB |
| Console port | RJ45 |
| Maximum power consumption [W] | 23.58 W |
| Maximum heat dissipation [BTU/hour] | 80.45 BTU/hour |
| Power supply mode | DC adapter |
| Service port surge protection | 6 kV in common mode |
| Types of fans | None |
| Maximum number of physical ports on the entire device | 2 x 10GE (SFP+) + 10 x GE (RJ45) |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa – 106kPa ETSI 300 019-2-3 |
| Ground | Ground |
| USB | 1 x USB 2.0 (host type A) port |
| MTBF [year] | 50 year |
| MTTR [hour] | 2 hour |
