Description

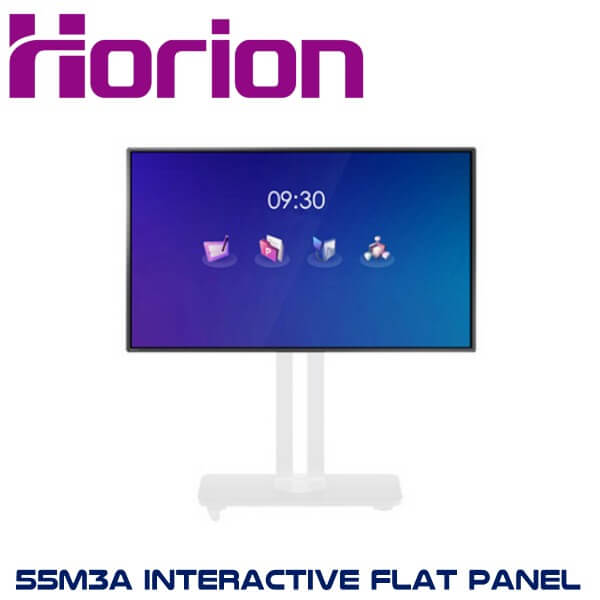

Horion 55M3A 55-inch Super Interactive Flat Panel Dubai
The Horion 55M3A 55-inch Super Interactive interactive flat panel Dubai supports screen mirroring with a computer, mobile phone, and tablet to facilitate better conference display, information sharing, and communication. Horion 55M3A 55-inch Super Interactive interactive flat panel has Split the screen into 4 identical parts to display contents from multiple devices. In this way, multiple users and devices can use an interactive flat panel at the same time.
Horion 55M3A 55-inch Super Interactive Flat Panel Features :
- Equipped with an OPS interface and a scalable dual system Android 8.0 & Windows 10; a dual USB interface with dual system compatibility; a dual network interface for device switching;
- Equipped with Android 8.0 Smart OS and a unique user interface design;
- 3GB internal cache + 32GB internal storage, for faster-operating speeds;
- The exterior features four minimalist arc-shaped edges; the WIFI and Bluetooth antennas adopt a forward, hidden design;
- Front-disassembly, high-precision, infrared touch frame with touch precision of ±1mm and touch the height of 2.0mm, highly sensitive, supports 20 touchpoints;
- High-performance writing software that supports single and multi-point writing with improved writing effects with the pen, so that users can annotate on any interface and any channel;
- Uses AG anti-glare tempered glass, with a Mohs hardness scale of 7, providing a better writing experience;
- Built-in dual 2.4G/5.8G frequency, dual network cards, supports simultaneous use of the wireless network connection and WiFi hotspot;
- Bluetooth function to connect wirelessly with and transfer data to phones, speakers, and other Bluetooth-enabled devices; supports wireless connection with printers for printing documents;
- Wireless screen-casting, supports casting to multiple screens, features reverse mirror control, remote snapshots, file sharing, wireless speaking, wireless control,etc.;
- All-channel output function: real-time, high-definition, stable, and low-latency output to expansion units;
- Featuring an all-new welcome screen, live apps, background music, and wall messaging;
- Customized boot screens; the local media player supports automatic classification to meet the needs of a variety of occasions.
Horion 55M3A 55-inch Super Interactive Flat Panel Specifications
| Model | 55M3A |
| Dimension | 55″ |
| Dispaly | |
| Backlight Type | D-LED |
| Resolution | 3840*2160 (UHD) |
| Brightness | 350cd/m2 |
| Contrast Ratio | 1300:1 |
| Response Time | 6ms |
| Pixel Pitch | 0.420mm*0.315mm |
| Refreshing Frequency | 60Hz |
| Viewing Angle | 178°(H) / 178°(V) |
| Saturation(x% Ntsc) | 65% |
| Visable Area | 1209.6mm*680.4mm |
| Chromaticiy | 1.07B(10 bit) |
| Life Time | 30,000 hrs |
| System Properties | |
| CPU Architecture | ARM A73+A53 |
| CPU Working Frequency | 1.5G Hz |
| CPU Core | Quad Core |
| GPU | Mali-G51 |
| RAM | 3GB |
| ROM | 32GB |
| Power | |
| Voltage | 100 V – 240 V/AC, 50/60 Hz |
| Maximum Power (Without Ops) | 140W |
| Standby Power | <0.5W |
| AC Input | * 1 |
| Interface | |
| HDMI IN | * 2 |
| DP IN (optional) | * 1 |
| VGA IN | * 1 |
| OPS IN | * 1 |
| LAN IN | * 2 |
| Android USB | * 2 |
| Pulic USB | * 2 |
| Touch-USB | * 1 |
| PC-Audio IN | * 1 |
| HDMI OUT | * 1 |
| S/PDIF OUT | * 1 |
| Audio OUT | * 1 |
| Rs232 | * 1 |
| Structure | |
| Net Weight | 31.5Kg+1.5Kg |
| Gross Weight | 42Kg+1.5Kg(Heavy Carton) |
| Product Size (L*W*K) | 1304.0m m*93.5m m*774.8m m |
| Package Size (L*W*H) | 1420mm*245mm*910mm(Heavy Carton) |
| Vesa | 4-M6 Screw Hole 400mm*400mm |
| Housing Material (Front/Back) | Aluminum/Metal Plate |
| Housing Color (Front/Back) | Deep Gun(White)/Black |
| Touch System | |
| Touch Type | Infrare Touch Frame |
| Glass Type | 4mm AG Tempered Glass |
| Respond Time | <10ms |
| Touch Accuracy | +1mm |
| Input Mode | Finger/Writing Pen |
| Operating System | |
| Support Multi-Touch Control | Multi-point: Windows 7/8/10, Android, Linux, Single-point: Windows XP, Mac OS X, Chrome |
