Description

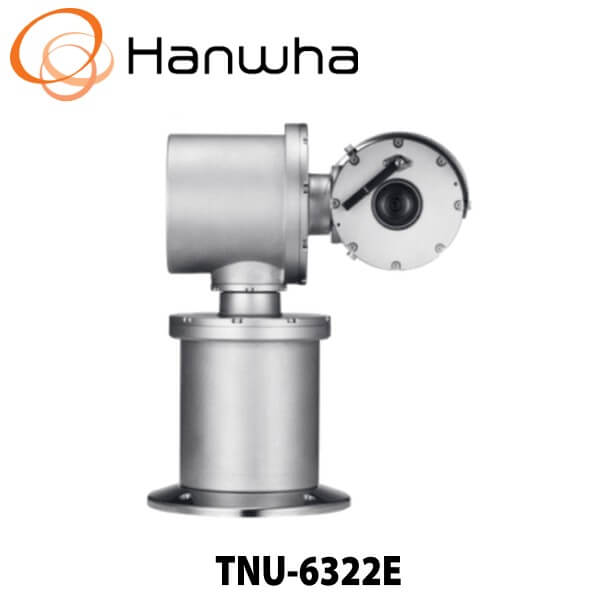

Hanwha TNU6322E Explosion Proof CCTV Camera
Formerly recognized under the Samsung CCTV brand, the Hanwha TNU6322E Explosion-Proof Camera is engineered for maximum safety and high-performance surveillance in hazardous, high-risk environments. Featuring cutting-edge imaging technology, an ultra-durable explosion-proof design, and intelligent analytics, this camera ensures reliable monitoring in industrial and volatile settings.
Crystal-Clear High-Resolution Imaging
Capture every detail with the 2MP (1920×1080) resolution sensor, delivering sharp, high-definition video footage. The motorized varifocal lens allows dynamic adjustments, providing a flexible field of view from wide-area coverage to close-up details, making it ideal for critical infrastructure and industrial surveillance.
Explosion-Proof Security for High-Risk Areas
Designed to operate in potentially explosive environments, the Hanwha TNU6322E is built with a certified explosion-proof housing, ensuring safe and uninterrupted surveillance in locations with volatile gases, flammable dust, or chemical exposure. This rugged enclosure meets strict international safety standards, making it the perfect security solution for oil refineries, chemical plants, and industrial zones.
Superior Low-Light and Night Vision Performance
With advanced night vision technology, this CCTV camera delivers clear, high-quality imaging even in total darkness. Equipped with powerful infrared (IR) illuminators, it provides 24/7 surveillance, ensuring uncompromised security in poorly lit or no-light conditions.
Extreme Weather and Vandal Resistance
- Built to withstand harsh environmental conditions, the TNU6322E boasts an IP66 and IK10 rating, offering:
- Weatherproof protection against rain, dust, and extreme temperatures
- Impact resistance against physical tampering and vandalism
- Reliable performance in the most challenging outdoor settings
Smart Video Analytics for Proactive Security
- Enhance security with intelligent analytics, including:
- Motion detection – Detect and alert unauthorized movement
- Tampering detection – Immediate alerts on camera obstruction or interference
- Virtual line crossing – Monitor and control restricted zones effectively
These AI-driven surveillance features help prevent security breaches, improve threat response times, and ensure proactive monitoring in hazardous locations.
Optimized Video Storage & Bandwidth Efficiency
Featuring H.265 video compression technology, the Hanwha TNU6322E reduces storage and bandwidth consumption without compromising video quality. This ensures:
- Extended recording time
- Lower storage costs
- Smooth video streaming with minimal lag
Effortless Installation & Seamless Integration
Designed for ease of deployment, this explosion-proof CCTV camera supports Power over Ethernet (PoE), eliminating the need for complex power setups. It seamlessly integrates with leading Video Management Systems (VMS), making it a plug-and-play security solution for industrial applications.
Why Choose the Hanwha TNU6322E for Your Surveillance Needs?
- Explosion-proof certified for hazardous locations
- High-resolution imaging with motorized zoom lens
- 24/7 security with advanced night vision
- Durable, weatherproof, and vandal-resistant design
- AI-powered smart analytics for proactive threat detection
- Efficient storage with H.265 compression
- Easy installation and seamless system integration
For industrial-grade surveillance in hazardous environments, the Hanwha TNU6322E stands as a top-tier security solution, ensuring safety, reliability, and unmatched performance.
Enhance your security today with the Hanwha TNU6322E!
Key Specifications:
- 2MP (1920×1080) resolution
- Explosion-proof design for hazardous environments
- Motorized varifocal lens
- Advanced IR night vision
- IP66 weatherproof and IK10 vandal-resistant
- Intelligent analytics (motion, tampering, virtual line crossing)
- H.265/H.264 compression
- PoE support
Specifications:
| Video | |
| Imaging Device | 1/2.8″ CMOS |
| Resolution | 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.05Lux(F1.6, 1/30sec) BW: 0.005Lux(F1.6, 1/30sec) |
| Lens | |
| Focal Length (Zoom Ratio) | 4.44~142.6mm(32x) zoom |
| Max. Aperture Ratio | F1.6(Wide)~F4.4(Tele) |
| Angular Field of View | H: 61.8˚(Wide)~2.19˚(Tele) / V: 36.2˚(Wide)~1.24˚(Tele) |
| Min. Object Distance | Wide 1.5m, Tele 2m |
| Focus Control | Oneshot AF |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan Range | 360˚ Endless |
| Pan Speed | 0.5˚/sec ~80˚/sec |
| Tilt Range | 180˚(-90˚ ~90˚ ) |
| Tilt Speed | 0.1˚/sec ~60˚/sec |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule |
| Preset Accuracy | ±0.25˚ |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Direction Indicator | Support |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1~1/12,000sec) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail NAS recording at event triggers Alarm output PTZ Preset |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| Water Removal | Support (with Wiper) |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) login authentication Digest login authentication IP address filtering User access log 802.1X authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+60°C(-40°F ~ +140°F) / Less than 95% RH |
| Storage Temperature / Humidity | -30°C~+60°C(-22°F ~ +140°F) / Less than 95% RH |
| Certification | IECEx, ATEX, KCs, KC, CE IP67, IK10, PESO certified |
| Input Voltage | 24VAC |
| Power Consumption | 24VAC: Max. 99W |
| Mechanical | |
| Color / Material | Metalic Silver / Stainless 316L |
| Product Dimensions / Weight | 355(W)x427(H)x235(D)mm(13.97×16.81×9.25″), 25kg(55.12lb) |
