Description

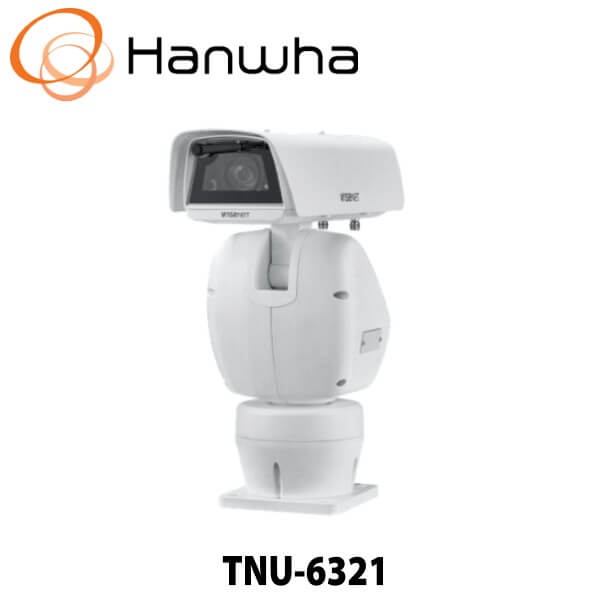

Hanwha TNU6321 Explosion Proof CCTV Camera
The Hanwha TNU6321 Explosion-Proof CCTV Camera, formerly known under the Samsung brand, is engineered for superior surveillance in high-risk industrial zones. Designed to operate in hazardous environments, this high-definition security camera combines cutting-edge imaging technology with a robust explosion-proof enclosure, ensuring uncompromised safety, reliability, and round-the-clock monitoring.
Crystal-Clear 2MP Imaging for Superior Surveillance
Equipped with a 2-megapixel (1920×1080) resolution sensor, the Hanwha TNU6321 captures razor-sharp video footage, providing security personnel with clear and detailed visuals. Whether monitoring manufacturing plants, oil refineries, or chemical processing facilities, this CCTV camera ensures precise imaging for accurate threat detection and incident analysis.
Certified Explosion-Proof Design for Maximum Safety
The explosion-proof casing of the TNU6321 is specially designed to withstand hazardous environments prone to explosive gases, flammable vapors, or combustible dust. Complying with rigorous international safety standards, this surveillance solution offers peace of mind in extreme industrial settings, reducing risks and ensuring regulatory compliance.
Exceptional Night Vision for 24/7 Security Monitoring
Featuring built-in IR illuminators, this camera provides uninterrupted night vision, delivering crisp and detailed footage even in complete darkness. Essential for industries requiring continuous security, such as offshore rigs, mining sites, and chemical plants, the TNU6321 ensures reliable surveillance day and night.
Built to Withstand Extreme Conditions
Designed for harsh outdoor and industrial environments, the Hanwha TNU6321 comes with an IP66-rated weatherproof casing and IK10 vandal-resistant protection. These certifications guarantee exceptional durability against extreme weather, impact, dust, and tampering, making it a long-lasting security investment for challenging locations.
Smart Surveillance with Advanced Video Analytics
Stay ahead of potential security threats with intelligent video analytics, including:
- Motion Detection – Alerts security teams to suspicious activity.
- Tamper Detection – Notifies of any attempts to obstruct or damage the camera.
- Virtual Line Crossing – Detects unauthorized access to restricted areas.
These smart surveillance features enhance real-time threat detection and proactive security management, reducing response time to critical incidents.
Efficient Video Storage with H.265 Compression
By utilizing advanced H.265 video compression, the Hanwha TNU6321 reduces bandwidth consumption and storage requirements, ensuring cost-effective and efficient video management without compromising image quality. This feature is crucial for organizations handling extensive video archives.
Seamless Installation and System Integration
The Power over Ethernet (PoE) support simplifies installation by minimizing cabling requirements, making deployment faster and more efficient. Additionally, the camera is fully compatible with industry-leading video management systems (VMS), enabling smooth integration into existing security infrastructures.
Why Choose the Hanwha TNU6321 Explosion-Proof Camera?
- Industry-Proven Durability – Built to handle the toughest environments.
- Superior Image Quality – Delivers high-resolution surveillance footage.
- Unmatched Safety Compliance – Certified explosion-proof protection.
- Smart Analytics for Proactive Security – Ensures real-time threat detection.
- Optimized Video Storage – Reduces data costs with H.265 compression.
The Hanwha TNU6321 Explosion-Proof CCTV Camera is a premium surveillance solution designed for extreme environments where safety, reliability, and image precision are non-negotiable. Whether you need to safeguard high-risk industrial facilities or enhance situational awareness, this camera delivers best-in-class security and operational efficiency.
Enhance your industrial security today—invest in the Hanwha TNU6321 for uncompromised safety and surveillance.
Key Specifications:
- 2MP (1920×1080) Full HD resolution
- Certified explosion-proof housing
- Integrated IR LEDs for night vision
- IP66 weatherproof, IK10 vandal-resistant
- Advanced analytics (motion, tampering, line crossing)
- H.265 video compression
- Power over Ethernet (PoE)
Specifications:
Video | |
Imaging Device | 1/2.8″ CMOS |
Resolution | 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps |
Min. Illumination | Color: 0.05Lux(F1.6, 1/30sec) B/W: 0.005 Lux(F1.6, 1/30sec) |
Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P), for installation |
Lens | |
Focal Length (Zoom Ratio) | 4.44~142.6mm(32x) zoom |
Optical Zoom | x32 |
Max. Aperture Ratio | F1.6(Wide)~F4.4(Tele) |
Angular Field of View | H: 61.8˚(Wide)~2.19˚(Tele) / V: 36.2˚(Wide)~1.24˚(Tele) |
Min. Object Distance | 1.5m(4.92ft) |
Focus Control | Auto, One shot AF |
Lens Type | DC auto iris |
Pan / Tilt / Rotate | |
Pan Range | 360˚ Endless |
Pan Speed | 0.036°~120°/sec |
Tilt Range | -90˚~40˚ |
Tilt Speed | 0.012°~ 40°/sec |
Sequence | Preset(255ea), Swing, Group(6ea), Tour(1ea), Auto Run, Schedule |
Preset Accuracy | ±0.3˚ |
Operational | |
Camera Title | Displayed up to 85 characters |
Direction Indicator | Support |
Day & Night | Auto(ICR) |
Backlight Compensation | BLC, HLC, WDR, SSDR |
Wide Dynamic Range | 120dB |
Digital Noise Reduction | SSNRⅤ |
Digital Image Stabilization | Support |
Defog | Support |
Motion Detection | 8ea, 8point polygonal zones |
Gain Control | Low, Middle, High |
White Balance | ATW, AWC, Manual, Indoor, Outdoor |
Electronic Shutter Speed | Minimum, Maximum, Anti flicker (1~1/12,000sec) |
Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection |
Alarm I/O | Input 1ea / Output 1ea |
Alarm Triggers | Analytics, Network disconnect, Alarm input |
Alarm Events | File upload via FTP and E-Mail Notification via E-Mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover |
Audio In | Selectable(Mic in/Line in), Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
Audio Out | Line out, Max.output level: 1Vrms |
IR Illuminator (Optional) | Support (Auto/Manual) |
Water Removal | Support (with Wiper) |
Network | |
Ethernet | RJ-45(10/100BASE-T) |
Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
Audio Compression | G.711 u-law, G.726 G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
Smart Codec | Manual(5ea area), WiseStreamⅡ |
Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
Streaming | Unicast(20 users), Multicast Multiple streaming(Up to 10 profiles) |
Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
Security | HTTPS(SSL) login authentication Digest login authentication IP address filtering User access log 802.1X authentication(EAP-TLS, EAP-LEAP) |
Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
General | |
Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
Memory | 1024MB RAM, 256MB Flash |
Environmental & Electrical | |
Operating Temperature / Humidity | -40°C~+55°C(-40°F~+131°F) / Less than 90% RH |
Storage Temperature / Humidity | -40°C~+60°C(-40°F~+140°F) / Less than 90% RH |
Certification | IP66, Safety(UL, KC-SDOC), EMC(FCC, CE, VCCI, RCM, KC), IK10(Except wiper & window) |
Input Voltage | 24VAC |
Power Consumption | Max 100W(Heater On), typical 25W(Heater Off) |
Mechanical | |
Color / Material | White / Aluminum |
RAL Code | RAL9003 |
Product Dimensions / Weight | 219(W)×528.2(H)×460(D)mm (8.62×20.79×18.11″), 14Kg (30.86 lb) |
Compatible Models | |
Wall Mount | SBU-500WM |
DORI (EN62676-4 standard) | |
Detect (25PPM/ 8PPF) | Wide: 64.2m(210.50ft) / Tele: 2,009.0m(6,591.31ft) |
Observe (63PPM/ 19PPF) | Wide: 25.7m(84.20ft) / Tele: 803.6m(2,636.53ft) |
Recognize (125PPM/ 38PPF) | Wide: 12.8m(42.10ft) / Tele: 401.8m(1,318.26t) |
Identify (250PPM/ 76PPF) | Wide: 6.4m(21.05ft) / Tele: 200.9m(659.13ft) |
