Description

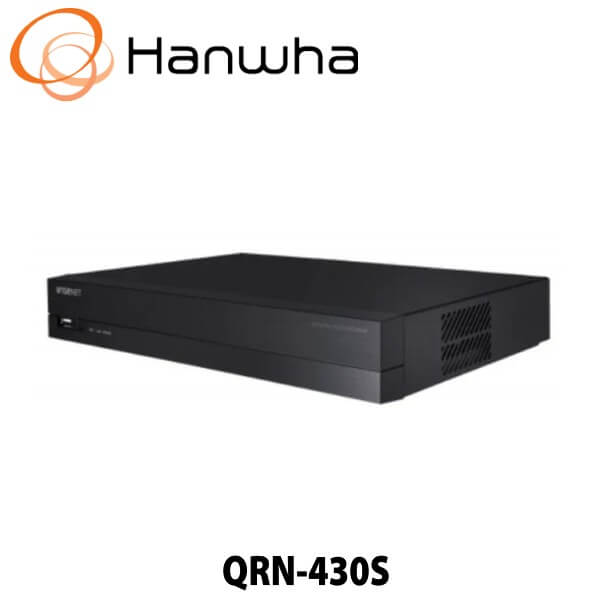

Hanwha QRN430S CCTV Network Video Recorder
The Hanwha QRN430S CCTV Network Video Recorder (NVR)—formerly known as Samsung CCTV—delivers high-definition security monitoring designed for homes, retail stores, and small businesses. Built for reliability, efficiency, and ease of use, this 4-channel NVR provides seamless video recording and intelligent surveillance features to ensure comprehensive protection.
Crystal-Clear 4K Video Recording
Equipped with support for up to 8MP (4K) resolution, the Hanwha QRN430S captures sharp, detailed footage, allowing users to identify faces, license plates, and other crucial details with exceptional clarity. Whether used for live monitoring or reviewing past incidents, this high-resolution NVR ensures reliable, high-quality video output.
Advanced H.265 Compression for Efficient Storage
To maximize recording capacity while maintaining superior video quality, the Hanwha QRN430S utilizes H.265 compression technology. This advanced codec significantly reduces bandwidth usage and storage requirements, enabling longer recording durations without sacrificing image integrity. Businesses with limited storage can optimize their surveillance setup without frequent hard drive upgrades.
Seamless Installation with Built-In PoE
Designed for hassle-free setup, this NVR features built-in Power over Ethernet (PoE) ports, allowing direct connection to compatible IP cameras via a single cable for both power and data transmission. This plug-and-play setup simplifies installation, reduces cable clutter, and makes the system ideal for both tech-savvy users and those with minimal IT knowledge.
Smart Security Features & Instant Alerts
Beyond simple recording, the Hanwha QRN430S integrates intelligent video analytics, including:
- Motion Detection – Instantly alerts users to movement in designated zones.
- Tampering Detection – Notifies operators if the camera is obstructed or tampered with.
These real-time notifications enhance proactive security management, allowing quick responses to potential threats before they escalate.
Flexible Display & Viewing Options
The NVR supports HDMI and VGA outputs, ensuring seamless compatibility with multiple display monitors. Whether viewed on a high-resolution monitor, a standard screen, or even remotely via a connected device, users can monitor their premises with ease.
Secure & Expandable Storage for Reliable Video Retention
With support for a 6TB hard drive, the Hanwha QRN430S provides ample storage for continuous video recording. This ensures that critical footage is secure, accessible, and available for extended periods, meeting the compliance and security needs of small businesses and homeowners alike.
Why Choose the Hanwha QRN430S?
- Reliable and user-friendly security solution
- 4K ultra-HD video clarity
- Smart analytics for enhanced threat detection
- H.265 compression for efficient storage management
- Easy PoE installation for simplified setup
- Versatile display options for flexible viewing
Whether you need a robust security system for your home, store, or office, the Hanwha QRN430S NVR delivers exceptional performance and peace of mind.
Get the Best in Surveillance – Upgrade to the Hanwha QRN430S Today!
Key Specifications:
- 4-channel recording support
- Resolution up to 8MP (4K)
- H.265/H.264 video compression
- Built-in PoE ports
- HDMI/VGA video outputs
- Advanced security analytics
- 1 HDD slot supporting up to 6TB
- Easy-to-use graphical interface
Specifications
| Display | |
| Network camera | |
| Network camera > Inputs | Max. 4CH |
| Network camera > Resolution | 8MP ~ CIF |
| Network camera > Protocols | SUNAPI, ONVIF |
| Decoding | |
| Decoding > Local Display | HDMI |
| Decoding > Multi Screen Display | [Local Monitor] 1/ 2V/ 2H/ 3V/ 4/ Sequence [Web] 1/ 2V/ 2H/ 3V/ 4 |
| Decoding > Resolution | [Local Monitor] 8M(30fps), 1080p(120fps), 720P(120fps), D1(120fps) |
| Performance | |
| Operating System | |
| Operating System > Embedded | Linux |
| Record | |
| Record > Compression | H.265, H.264, MJPEG |
| Record > Recording Bandwidth | Max. 40Mbps |
| Record > Resolution | 8MP ~ CIF |
| Record > Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark |
| Record > Event Trigger | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event |
| Record > Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out |
| Search & Play | |
| Search & Play > Playback Bandwidth | Max. 32Mbps |
| Search & Play > User | Max. 4 Users (Local 1, Remote 3) |
| Search & Play > Simultaneous playback | Max. 16CH(Local 4CH, Remote 4CH per user) |
| Search & Play > Fisheye Dewarping | CMS |
| Search & Play > Mode | Date & Time(Calendar), Event list, Text Search, Smart Search |
| Search & Play > Resolution | CIF ~ 8MP |
| Search & Play > Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down |
| Storage | |
| Storage > Supported HDD | Up to 6TB |
| Storage > HDD Slot | SATA 1ea(Max. 6TB) |
| Backup | |
| Backup > File backup | BU/Exe(GUI), JPG/AVI(Network) |
| Backup > Function | Multi channel(Up to 4CH) Play, Date-Time/Title display |
| Network | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) |
| DDNS | Hanwha DDNS |
| Transmission Bandwidth | Max. 50Mbps |
| Audio | |
| Audio > Input/Output | 4 CH(network) |
| Audio > Compression | G.711, G.726, AAC(16/48KHz) |
| Audio > Audio Communication | 2-Way |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) |
| Security | IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware |
| Web viewer | |
| Web viewer > Supported OS | Windows 10, macOS 10.13 |
| Web viewer > Supported browser | Google Chrome, Microsoft Edge, Mac Safari |
| Viewer Software | WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3’rd party VMS |
| Functions | |
| Camera Setup | |
| Camera Setup > Register | Auto, Manual |
| Camera Setup > Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
| PTZ | |
| PTZ > Control | Via GUI, Webviewer |
| PTZ > Preset | 300 Presets |
| Smart phone | |
| Smart phone > Support Model | iOS, Android |
| Smart phone > Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) |
| Smart phone > Control | Live 4CH(Multi-Profile Support), Playback 4CH |
| Smart phone > Max. Remote Users | Search(3), Live Unicast(10) |
| Redundancy | |
| Redundancy > Failover | N+1 |
| Redundancy > ARB | Support |
| Easy configuration | P2P(QR code) |

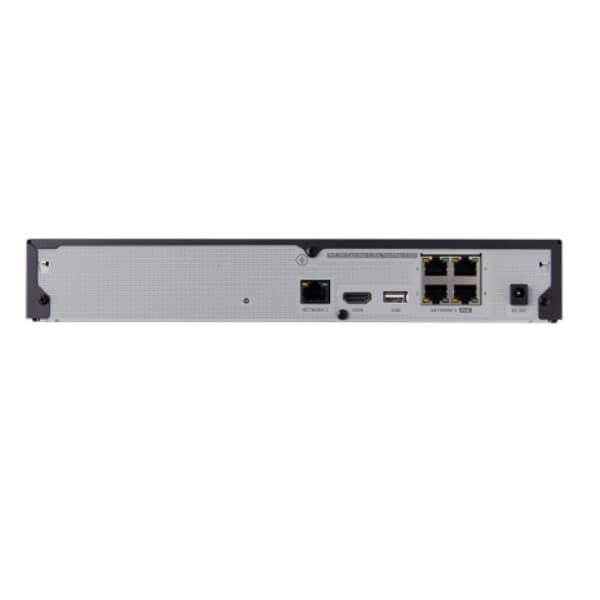

| Interface | |
| Front | |
| Front > Indicator | Power, Record, Network |
| Storage | OK |
| Reset | Support |
| HDMI | 1EA 3840×2160 30Hz |
| Ethernet | PoE RJ-45(LAN, 10/100) 4 ea ,RJ-45 1ea (WAN, 10/100) |
| USB | 2EA(Front 1 x USB 2.0, Rear 1 x USB 2.0) |
| Power inlet | DC Adaptor |
| System | |
| Log | |
| Log > Log List | Max. 100,000 (System Log, Event Log each) |
| System Control | Mouse, Web |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese |
| Environmental | |
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) |
| Operating Humidity | 20% ~ 85% RH |
| Electrical | |
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz |
| Power Consumption | Max 52W(1HDD, PoE On) |
| PoE Budget | 35W |
| Mechanical | |
| Color / Material | Black / Metal |
| Dimension (WxHxD) | 300.0 x 47.1 x 208.4 mm (11.81 x 1.85 x 8.20 inch) |
| Weight | 1.03Kg (2.27lb) |
