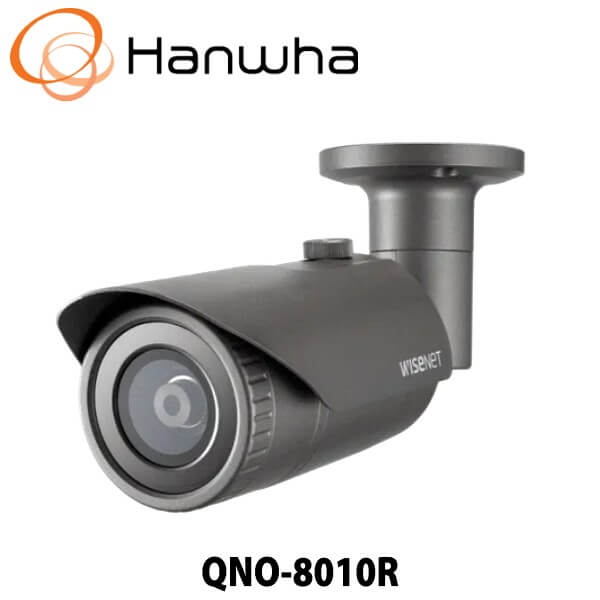

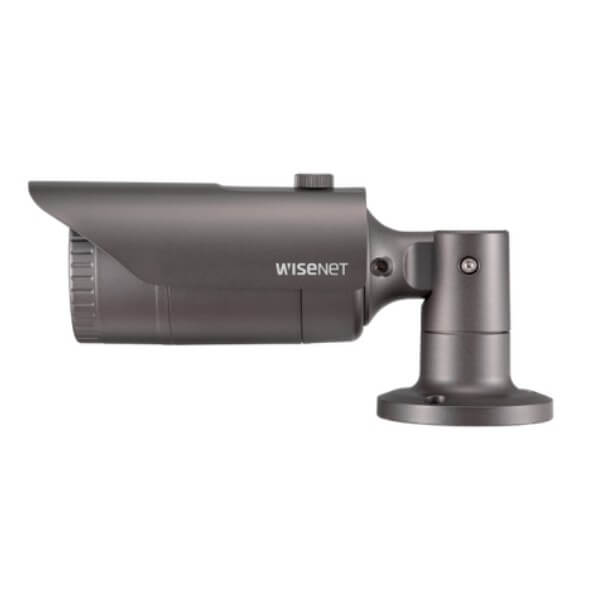

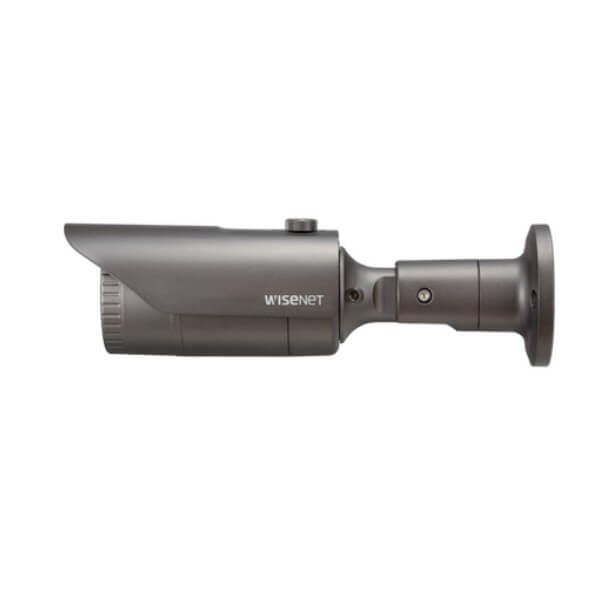

Hanwha QNO8010R IR Bullet Camera

Description

Hanwha QNO8010R IR Bullet Camera

Looking for a reliable and cost-effective security camera with advanced features? The Hanwha QNO8010R Bullet Camera is a top-tier surveillance solution designed to provide superior image quality, intelligent monitoring, and robust durability. Featuring a high-resolution 5MP sensor (2592×1944 pixels), this camera ensures detailed imaging, making it an excellent choice for businesses, homes, and critical security environments.

Key Features & Specifications

Crystal-Clear 5MP Imaging for Precision Monitoring

Equipped with a 5-megapixel CMOS sensor, the Hanwha QNO8010R captures high-definition video with exceptional clarity. This high-resolution capability allows for accurate identification of people, vehicles, and objects, significantly enhancing security operations compared to standard Full HD cameras.

Wide-Angle Coverage with Fixed 2.8mm Lens

With its fixed 2.8mm lens, this camera offers a wide field of view, making it ideal for monitoring large areas with minimal blind spots. Whether used for indoor or outdoor surveillance, the wide-angle lens ensures maximum coverage and efficient security monitoring.

Superior Night Vision with Infrared (IR) Technology

Night-time surveillance is crucial, and the Hanwha QNO8010R delivers outstanding performance with its built-in IR LEDs. It provides clear visibility up to 20 meters in complete darkness, ensuring 24/7 security. The Intelligent IR feature automatically adjusts infrared intensity to prevent overexposure, ensuring sharp and balanced images even in close-range monitoring.

Durable Weatherproof Design (IP66 Rated)

Designed for harsh environments, this bullet camera features an IP66-rated weatherproof housing, protecting it from dust, rain, and humidity. Whether exposed to extreme weather conditions or installed in high-risk outdoor locations, the Hanwha QNO8010R guarantees long-term reliability and uninterrupted security monitoring.

Enhanced Image Processing with 120dB Wide Dynamic Range (WDR)

For surveillance areas with challenging lighting conditions, the 120dB WDR technology ensures well-balanced images. This feature minimizes overexposure in bright areas and enhances visibility in dark areas, making it ideal for environments with high-contrast lighting, such as parking lots, building entrances, and lobbies.

Smart Bandwidth Management with H.265 Video Compression

Efficiency is key in surveillance storage, and the H.265 video compression technology significantly reduces bandwidth consumption and storage requirements while maintaining high image quality. This means longer video retention with lower storage costs, optimizing security operations.

Easy Installation with Power over Ethernet (PoE)

Simplify installation with PoE (Power over Ethernet) support, which allows both power and data to be transmitted through a single cable. This feature reduces installation costs and complexity, making it an excellent choice for quick and hassle-free deployment.

Advanced Video Analytics for Proactive Security

Stay ahead of potential security threats with intelligent video analytics. The Hanwha QNO8010R includes:

Motion Detection – Alerts users to movement in the surveillance area.
Tampering Detection – Notifies when the camera is obstructed or tampered with.
Defocus Detection – Ensures continuous clarity by alerting when the camera loses focus.

Why Choose Hanwha QNO8010R?

The Hanwha QNO8010R Bullet Camera is the perfect blend of affordability, high-performance imaging, and advanced security features. Whether securing a commercial property, residential space, or industrial facility, this camera provides uncompromised reliability, exceptional video quality, and smart analytics to enhance security operations.

Investing in a high-quality surveillance camera is crucial for ensuring safety and peace of mind. With its 5MP resolution, infrared night vision, wide dynamic range, and intelligent analytics, the Hanwha QNO8010R is a smart choice for those seeking top-notch security without breaking the bank. Upgrade your security system today and experience superior monitoring with cutting-edge technology!

SPECIFICATIONS

Show > Ver	1
Show > Imaging Device	1/2.8″ CMOS
Show > Resolution	5MP mode : 2592×1944, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 4MP mode : 2560×1440, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Hide > Max. Resolution	2592×1944
Hide > Max. Resolution(MP)	5MP
Show > Max. Framerate	H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps (@5MP Max. 2fps)
Show > NETD	None
Show > Pixel Size	None
Show > Min. Illumination	Color: 0.15Lux(F2.0, 1/30sec) BW: 0Lux(IR LED on)
Show > Video Out	CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation
Show > Video Transmission Distance	None
Show > Focal Length (Zoom Ratio)	2.8mm fixed focal
Hide > Max. Focal Length	2.8
Hide > Min. Focal Length	2.8
Hide > Zoom Ratio	None
Hide > Focal Type	Fixed
Show > Max. Aperture Ratio	F2.0
Show > Angular Field of View	H: 105°/ V: 77°/ D: 136°
Hide > Max. Horizontal Angle	105
Hide > Min. Horizontal Angle	105
Hide > Max. Vertical Angle	77
Hide > Min. Vertical Angle	77
Show > Min. Object Distance	None
Show > Focus Control	Fixed
Show > Lens Type	None
Show > Mount Type	None
Show > Optional Lens	None
Show > Pan / Tilt / Rotate Range	0°~360° / 0°~100° / 0°~360°
Hide > Max. Tilt Angle	100
Hide	Min. Tilt Angle
Show > Pan Range	None
Show > Pan Speed	None
Show > Tilt Range	None
Show > Tilt Speed	None
Show > Rotate Range	None
Show > Sequence	None
Show > Preset Accuracy	None
Show > Camera Title	Displayed up to 85 characters
Show > Direction Indicator	None
Show > Day & Night	Auto(ICR)
Show > Backlight Compensation	BLC, WDR, SSDR
Show > Wide Dynamic Range	120dB
Show > Digital Noise Reduction	SSNR
Show > Digital Image Stabilization	None
Show > Defog	None
Show > Motion Detection	4ea, polygonal zones
Show > Privacy Masking	6ea, rectangular zones
Show > Gain Control	Low / Middle / High
Show > White Balance	ATW / AWC / Manual / Indoor / Outdoor
Show > LDC	Support
Show > Electronic Shutter Speed	Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Hide > Digital PTZ	None
Show > Video Rotation	Flip, Mirror, Hallway view(90°/270°)
Hide > Hallway view	Support
Show > Analytics	Motion detection, Tampering, Defocus detection , Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction)
Show > Business Intelligence	None
Hide > People Counting	None
Hide > Vehicle Counting	None
Hide > Queue Management	None
Hide > Heat Map	None
Show > Serial Interface	None
Show > Alarm I/O	Input 1ea / Output 1ea
Show > Alarm Triggers	Analytics, Network disconnect, Alarm input
Show > Alarm Events	File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover(PTZ preset)
Show > Audio Streaming	None
Show > Audio In	None
Hide > Built-in MIC	None
Show > Audio Out	None
Hide > Audio Line	None
Show > Light Type	IR LED (850nm)
Show > Light Viewable Length	20m(65.62ft)
Show > IR Viewable Length	None
Show > IR Illuminator (Optional)	None
Show > IR Radiation angle	None
Show > IR LED	None
Show > IR Wavelength	None
Show > IR Operation	None
Show > Water Removal	None
Show > Auto Tracking	None
Show > Coaxial Protocol	None
Show > Color Palettes	None
Show > Temperature Detect Range	None
Show > Temperature Accuracy	None
Show > Temperature Detection	None
Show > Additional	None
Show > Ethernet	RJ-45(10/100BASE-T)
Show > Video Compression	H.265/H.264: Main/High, MJPEG
Show > Audio Compression	None
Show > Smart Codec	WiseStreamⅡ
Hide > AI Codec	None
Hide > Video Quality Adjustment	H.264/H.265: Target bitrate level control MJPEG: Quality level control
Show > Bitrate Control	H.264/H.265: CBR or VBR MJPEG: VBR
Show > Streaming	Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles)
Show > Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
Show > SIP support (VoIP, Peer-to-peer, SIP/PBX integration)	None
Show > Security	None
Show > Application Programming Interface	ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
> Security
Show > OS / Firmware Protect	Firmware encryption
Show > User authentication	Digest Authentication, Prevent brute-force attack
Show > Network authentication	802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Show > Secure Communication	HTTPS, SRTP, WSS(Websocket secure)
Show > Access Control	Access control based on IP address
Show > Data Protect	Authentication information encryption, ZIP compression encryption
Show > Audit	User Access/System/Event log management
Show > Device ID	Device Certificate(Hanwha Private Root CA)
Show > Secure Storage	SDcard partition encrypt
Show > Security Certificate	None
Show > Webpage Language	English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch
Show > Web Viewer	None
Show > Edge Storage	Micro SD/SDHC/SDXC 1slot 128GB
Hide > Storage slot	SD 1slot
Show > Memory	512MB RAM, 256MB Flash
Show > Operating Temperature / Humidity	-30°C~+55°C(-22°F ~ +131°F) / 0~90% RH * Start up should be done at above -20°C
Show > Storage Temperature / Humidity	-30°C~+60°C(-22°F ~ +140°F) / 0~90% RH
Show > Certification	IP66, IK10
Hide > IK Rating	IK10
Show > Input Voltage	PoE(IEEE802.3af, Class3)
Show > Power Consumption	PoE: Max 7.50W, typical 6.10W
Show > Color / Material	Dark grey / Aluminum
Hide > Color	Dark grey
Hide > Material	Aluminum
Show > RAL Code	None
Show > Product Dimensions / Weight	ø70.0×246.0mm(ø4.33×3.39″), 680g(1.50 lb)
Show > Compatible Conduit hole / Gangbox	None
Show > Hanging Mount (Dome)	None
Hide > Skin Cover	None
Hide > Skin Cover (Dome)	None
Hide > Weather Cap (Dome)	None
Hide > Power Module	None
Show > Backbox	SBO-100B1
Show > Network	None
Show > EMC	None
Show > Safety	None
Show > Environment	None
Show > Video	None
Show > Detect (25PPM/ 8PPF)	40.0m(131.20ft)
Show > Observe (63PPM/ 19PPF)	16.0m(52.48ft)
Show > Recognize (125PPM/ 38PPF)	8.0m(26.24ft)
Show > Identify (250PPM/ 76PPF)	4.0m(13.12ft)
Show > Speed Description	None
Show > Speed limit	None
Show > Min. Forward Distance	None
Show > Max. Forward Distance	None
Show > Max. Horizontal Angle	None
Show > Max. Vertical Angle	None
Show > Horizontal Offset	None
Show > Camera Height	None
Show > Lane Coverage	None
Show > Vehicle Recognition	None
Show > Available Countries	None
Show > Solution	None
Show > Speed Description	None
Show > Lane Coverage	None
Show > Speed limit	None
Show > Min. Forward Distance	None
Show > Max. Forward Distance	None
Show > Max. Horizontal Angle	None
Show > Max. Vertical Angle	None
Show > Horizontal Offset	None
Show > Camera Height	None
Show > Vehicle Recognition	None
Show > Available Countries	None
