Description

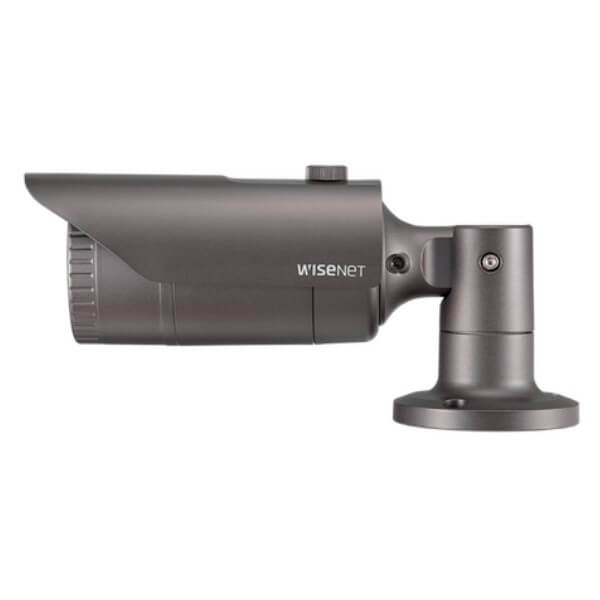

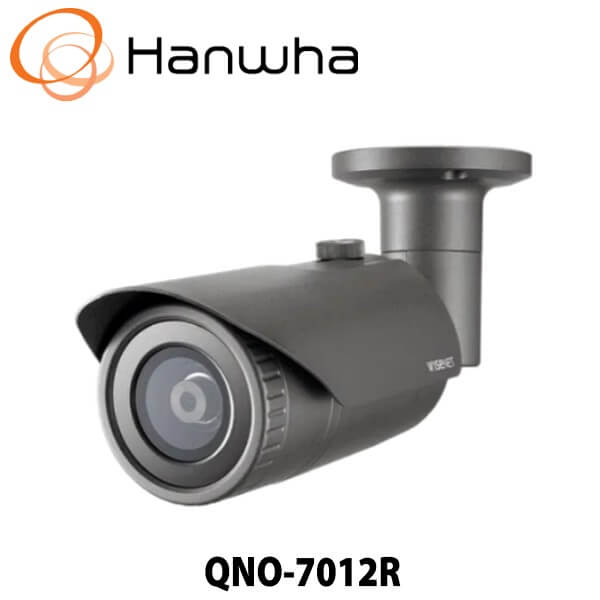

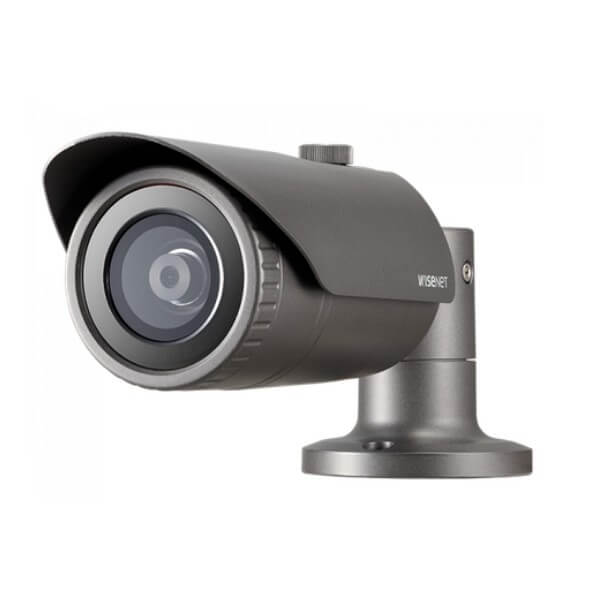

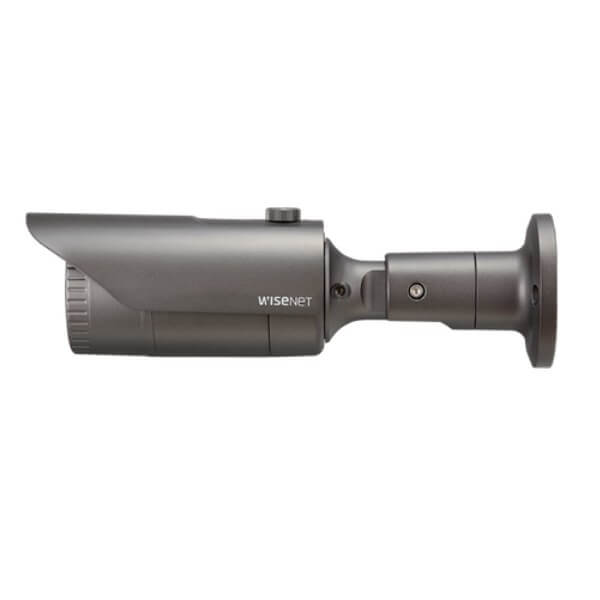

Hanwha QNO7012R
The Hanwha QNO7012R is a top-tier outdoor bullet IP camera designed to meet the demands of professional surveillance applications. Whether for commercial buildings, residential properties, or high-security environments, this camera delivers superior image clarity, robust durability, and intelligent security features to ensure round-the-clock monitoring and protection.
Crystal-Clear 4MP Resolution for Unmatched Clarity
At the heart of the Hanwha QNO7012R is a powerful 4-megapixel CMOS sensor, delivering an impressive 2560×1440 resolution for sharp and highly detailed video footage. This high-definition imaging ensures that critical areas, such as entrances, driveways, and perimeters, are monitored with precision and clarity. Additionally, the camera’s 120dB Wide Dynamic Range (WDR) optimizes exposure in high-contrast lighting conditions, ensuring clear visibility in both bright and dark areas.
Advanced Night Vision: 30M Infrared Performance
Designed for 24/7 surveillance, the Hanwha QNO7012R is equipped with powerful infrared (IR) LEDs that provide clear night vision up to 30 meters (98 feet). This superior IR capability ensures that critical locations remain under surveillance, even in complete darkness. Whether monitoring parking lots, building entrances, or perimeter fences, this camera guarantees high-quality footage, regardless of lighting conditions.
Rugged Build for Extreme Outdoor Conditions
Built to endure harsh environments, the Hanwha QNO7012R features IP66 and IK10 ratings, making it waterproof, dustproof, and impact-resistant. This rugged construction allows the camera to function flawlessly in rain, extreme heat, freezing temperatures, and heavy dust exposure. Designed for long-term durability, it offers uninterrupted security coverage in both urban and remote locations.
Intelligent Security Features for Proactive Threat Detection
Enhancing its surveillance capabilities, the Hanwha QNO7012R integrates intelligent analytics to improve real-time security responses. Key features include:
- Motion Detection – Automatically alerts users to unusual movements.
- Tampering Alerts – Detects and notifies if the camera is obstructed or tampered with.
- Defocus Detection – Ensures the camera remains properly focused at all times.
- Intrusion Detection – Identifies unauthorized access to restricted zones.
These advanced analytics empower security teams to react instantly to potential threats, minimizing risks and ensuring comprehensive protection.
Why Choose the Hanwha QNO7012R?
The Hanwha QNO7012R stands out as a top-tier surveillance solution with superior imaging, rugged durability, and AI-driven security enhancements. Whether safeguarding commercial properties, residential complexes, or industrial sites, this camera provides unmatched reliability and cutting-edge technology to enhance overall security infrastructure.
For businesses and homeowners looking for a high-performance IP camera with premium security features, the Hanwha QNO7012R is an excellent investment for long-term surveillance success.
Key Features:
- Maximum 4MP resolution
- Color : 0.15Lux (F2.0, 1/30sec) B/W : 0Lux (IR LED On)
- 2.8mm fixed focal
- Maximum 30fps@4MP all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Motion detection, Tampering, Defocus detection
- Hallway view (90°/270°), LDC support
- Micro SD/SDHC/SDXC memory slot (128GB)
- IR viewable length 20m (65.62ft)
- IP66, IK10, PoE, 12VDC
SPECIFICATION
Video | |
Imaging Device | 1/3″ CMOS |
Resolution | 2560×1440, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps (@4MP Max. 2fps) |
Min. Illumination | Color : 0.15Lux (F2.0, 1/30sec) B/W : 0Lux (IR LED On) |
Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation |
Lens | |
Focal Length (Zoom Ratio) | 2.8mm fixed focal |
Max. Aperture Ratio | F2.0 |
Angular Field of View | H: 108°, V: 60°, D: 122° |
Focus Control | Fixed |
Pan / Tilt / Rotate | |
Pan / Tilt / Rotate Range | 0°~360° / 0°~100° / 0°~360° |
Operational | |
Camera Title | Displayed up to 85 characters |
Day & Night | Auto(ICR) |
Backlight Compensation | BLC, WDR, SSDR |
Wide Dynamic Range | 120dB |
Digital Noise Reduction | SSNR |
Motion Detection | 4ea, polygonal zones |
Privacy Masking | 6ea, rectangular zones |
Gain Control | Low / Middle / High |
White Balance | ATW / AWC / Manual / Indoor / Outdoor |
LDC | Support |
Electronic Shutter Speed | Minimum/Maximum/Anti flicker (1/5~1/12,000sec) |
Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
Analytics | Motion detection, Tampering, Defocus detection , Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction) |
Alarm I/O | Input 1ea / Output 1ea |
Alarm Triggers | Analytics, Network disconnect, Alarm input |
Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover(PTZ preset) |
Audio In | Selectable(mic in/line in) |
Light Type | IR LED (850nm) |
Light Viewable Length | 20m (65.62ft) |
Network | |
Ethernet | RJ-45 (10/100BASE-T) |
Video Compression | H.265/H.264 : Main/High, MJPEG |
Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps |
Smart Codec | Manual (5ea area), WiseStreamⅡ |
Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
Application Programming Interface | ONVIF Profile S/G/T, SUNAPI (HTTP API) |
Security | |
OS / Firmware Protect | Firmware encryption |
User authentication | Digest Authentication, Prevent brute-force attack |
Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
Secure Communication | HTTPS, SRTP, WSS(Websocket secure) |
Access Control | Access control based on IP address |
Data Protect | Authentication information encryption, ZIP compression encryption |
Audit | User Access/System/Event log management |
Device ID | Device Certificate(Hanwha Private Root CA) |
Secure Storage | SDcard partition encrypt |
General | |
Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
Memory | 512MB RAM, 256MB Flash |
Environmental & Electrical | |
Operating Temperature / Humidity | -40°C~+55°C (-40°F ~ +131°F) / 0~95% RH *Start up should be done at -30°C or above |
Storage Temperature / Humidity | -40°C~+60°C (-40°F~+140°F) / 0~95% RH |
Certification | IP66, IK10 |
Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
Power Consumption | PoE: Max 10.7W, typical 8W 12VDC: Max 9.1W, typical 6.8W |
Mechanical | |
Color / Material | Dark grey / Aluminum |
Product Dimensions / Weight | ø70.0×246.0mm(ø2.76×9.69″), 700g(1.54 lb) |
Compatible Conduit hole / Gangbox | Single, Double, 4″Octagon |
Backbox | SBO-100B1, SBO-147B |
DORI (EN62676-4 standard) | |
Detect (25PPM/ 8PPF) | 37.5m(123.17ft) |
