Description

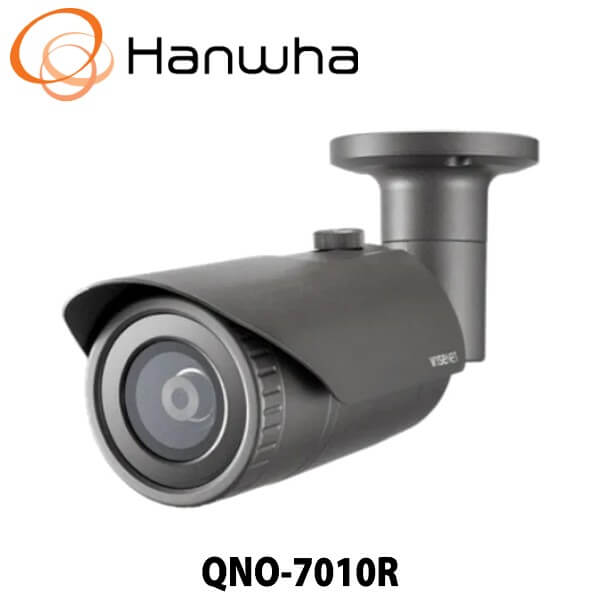

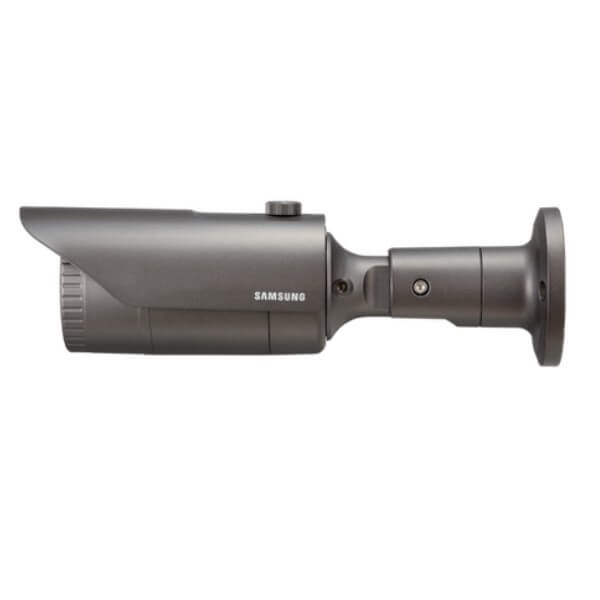

Hanwha QNO7010R
The Hanwha QNO7010R is a professional-grade network bullet CCTV camera designed to provide exceptional security monitoring in outdoor environments. Engineered for commercial buildings, industrial sites, educational institutions, public areas, and residential complexes, this surveillance camera offers high-definition video quality, advanced night vision, and robust durability, making it an ideal choice for modern security systems.
Crystal-Clear 4MP Image Quality
Featuring a 1/3-inch 4MP progressive CMOS sensor, the Hanwha QNO7010R captures ultra-clear images with a 2560 x 1440 resolution. Its advanced image processing technology ensures precise color accuracy and sharpness, enabling security professionals to detect even the smallest details with remarkable clarity.
Enhanced Night Vision with Smart IR Technology
For 24/7 surveillance, the Hanwha QNO7010R is equipped with high-performance infrared (IR) LED illuminators that provide night vision capabilities up to 30 meters. Unlike conventional IR cameras, its intelligent IR technology adjusts the illumination level to prevent overexposure, ensuring clear and balanced images in complete darkness.
Durable & Weatherproof for Outdoor Use
Built with a rugged aluminum housing, the Hanwha QNO7010R is engineered to withstand harsh environmental conditions. With IP66 weatherproof and IK10 vandal-resistant ratings, this camera is dust-tight, water-resistant, and impact-resistant, ensuring long-lasting reliability in demanding outdoor settings.
Wide Dynamic Range (WDR) & Defog for Optimal Clarity
The Hanwha QNO7010R features an impressive 120dB True Wide Dynamic Range (WDR), allowing it to balance high-contrast lighting conditions by reducing overexposed or underexposed areas. Additionally, its Defog technology enhances visibility in foggy or hazy environments, ensuring consistent image quality regardless of weather conditions.
Why Choose the Hanwha QNO7010R for Your Security Needs?
- 4MP high-resolution imaging for crystal-clear surveillance
- Smart IR night vision up to 30m for 24/7 security
- IP66 & IK10-rated for weatherproof and vandal-resistant performance
- 120dB WDR & Defog technology for enhanced image clarity
- Reliable performance in various lighting and environmental conditions
Ideal for businesses, government facilities, warehouses, schools, and residential properties, the Hanwha QNO7010R delivers state-of-the-art surveillance features for maximum security and peace of mind.
SPECIFICATION
| Video | |
| Imaging Device | 1/3″ 4MP CMOS |
| Effective Pixels | 2688(H)x1520(V) |
| NETD | None |
| Pixel Size | None |
| Min. Illumination | Color: 0.5Lux(F2.2, 1/30sec) BW: 0Lux(IR LED on) |
| Video Out | None |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8mm fixed focal |
| Max. Aperture Ratio | F2.2 |
| Angular Field of View | H: 110.0° / V: 63.0° / D: 128.0° |
| Min. Object Distance | None |
| Focus Control | Fixed |
| Lens Type | None |
| Mount Type | None |
| Optional Lens | None |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | None |
| Pan Range | None |
| Pan Speed | None |
| Tilt Range | None |
| Tilt Speed | None |
| Rotate Range | None |
| Sequence | None |
| Preset Accuracy | None |
| Azimuth | None |
| Auto Tracking | None |
| Operational | |
| IR Viewable Length | 20m(65.62ft) |
| Camera Title | Displayed up to 20 characters per line(Max.5 lines) |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Digital Image Stabilization | None |
| Defog | None |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker |
| Digital PTZ | None |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Motion detection, Tampering |
| Business Intelligence | None |
| Serial Interface | None |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output |
| Audio In | Line in Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | None |
| IR Illuminator (Optional) | None |
| Wiper | None |
| Coaxial Protocol | None |
| Video Transmission Distance | None |
| Radiometry | |
| Temperature detect range | None |
| Temperature accuracy | None |
| Temperature detection | None |
| Additional | None |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264, MJPEG |
| Resolution | 2592×1520, 2560×1440, 2304×1296, 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 20fps@4MP, Max. 30fps/25fps(60Hz/50Hz) 2MP, all resolution, MJPEG: Max 15fps/12fps(60Hz/50Hz) |
| Smart Codec | WiseStreamⅠ |
| Video Quality Adjustment | H.264/H.265: Target bitrate level control MJPEG: Quality Level control |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Application Programming Interface | ONVIF Profile S/G SUNAPI(HTTP API) |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explorer11, MS Edge, Mozilla Firefox(Windows 64bit only), Apple Safari(Mac OS X only) |
| Memory | 512MB RAM, 256MB Flash |
| Environmental | |
| Operating Temperature / Humidity | -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C |
| Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Electrical | |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 7.00W 12VDC: Max 6.00W |
| Mechanical | |
| Color / Material | Dark grey / Aluminum |
| RAL Code | None |
| Product dimensions / weight | Ø70.0×246.0mm(Ø2.76×9.69″), 730g(1.61 lb) |
