Description

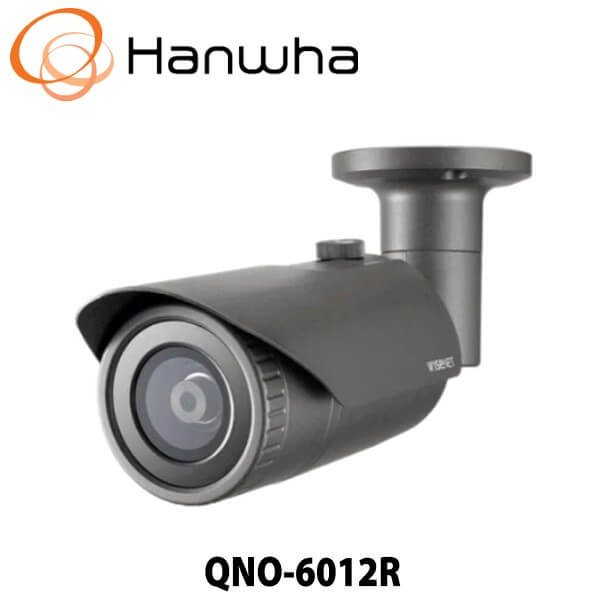

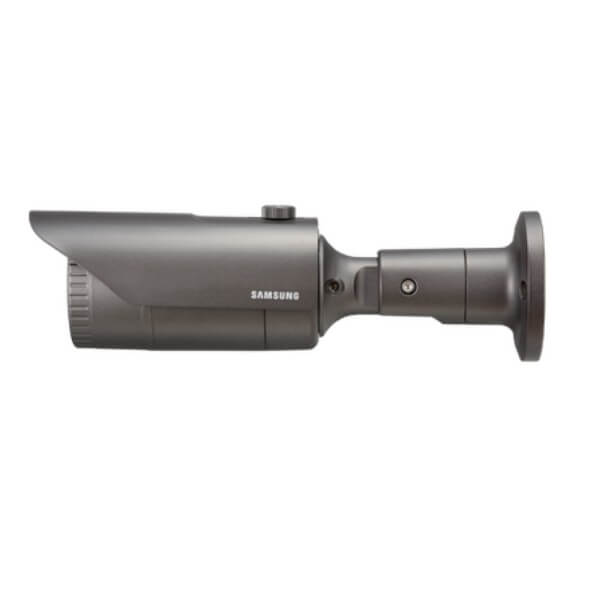

Hanwha QNO6012R
The Hanwha QNO6012R bullet camera is a cutting-edge surveillance solution designed to deliver high-definition video quality and reliable security monitoring across various environments. Built for durability, efficiency, and advanced video analytics, this camera ensures 24/7 protection with crystal-clear imaging, making it an ideal choice for commercial, residential, and institutional applications.
Superior Night Vision and Imaging Technologies
Equipped with integrated infrared (IR) LEDs, the QNO6012R provides exceptional night-time surveillance with a range of up to 20 meters. Whether in low-light or complete darkness, the camera seamlessly switches between day and night modes, ensuring continuous, high-quality surveillance.
Additionally, its 120dB Wide Dynamic Range (WDR) technology enhances image clarity in high-contrast lighting conditions, making it perfect for monitoring areas with intense sunlight, shadows, or artificial lighting variations.
Rugged Durability for Harsh Environments
Designed for outdoor and indoor security applications, the Hanwha QNO6012R is built to withstand challenging conditions with IP66 weatherproof and IK10 vandal-resistant ratings. This means it can endure rain, dust, and physical impacts, ensuring long-term reliability in:
- Retail and corporate buildings
- Educational institutions
- Government and public spaces
- Residential complexes and parking lots
Smart Security with Intelligent Video Analytics
To enhance proactive surveillance, the QNO6012R is equipped with intelligent video analytics, enabling features such as:
- Motion Detection – Alerts security personnel to suspicious movement.
- Tampering Alarms – Detects unauthorized attempts to disable or obstruct the camera.
- Virtual Line Detection – Monitors and triggers alerts when objects cross predefined boundaries.
These smart features help prevent security breaches and ensure real-time monitoring, reducing the risk of unauthorized access or incidents.
Optimized Video Storage and Bandwidth Efficiency
The QNO6012R supports H.265, H.264, and MJPEG compression, significantly reducing storage and bandwidth requirements without compromising video quality. This optimization enhances network efficiency, making it easier to manage large-scale surveillance systems cost-effectively.
Easy Installation and Flexible Mounting Options
With its compact bullet-style design, the Hanwha QNO6012R allows for versatile installation, adapting to different environments and mounting requirements. Whether installed on a wall, ceiling, or pole, the setup is straightforward, reducing deployment time and effort.
Ideal Use Cases: Where the Hanwha QNO6012R Excels
This versatile security camera is perfect for various applications, including:
- Commercial Offices & Retail Stores – Protect entrances, checkout areas, and high-traffic zones.
- Schools & Universities – Enhance student and faculty safety across campuses.
- Public & Government Facilities – Monitor sensitive locations and secure perimeters.
- Residential & Apartment Complexes – Provide clear surveillance for parking areas, hallways, and common spaces.
The Hanwha QNO6012R bullet camera is a high-performance security solution that combines superior imaging, robust durability, and intelligent analytics to safeguard any environment. Whether for businesses, public institutions, or residential properties, this camera delivers unparalleled surveillance capabilities, ensuring reliable, real-time security monitoring.
Looking to upgrade your security system? Invest in the Hanwha QNO6012R today for advanced, worry-free protection.
SPECIFICATION
Video | |
Imaging Device | 1/2.8″ 2MP CMOS |
Resolution | 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 |
Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz) |
Min. Illumination | Color: 0.03Lux(F2.0, 1/30sec) BW: 0Lux(IR LED on) |
Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation |
Lens | |
Focal Length (Zoom Ratio) | 2.8mm fixed focal |
Max. Aperture Ratio | F2.0 |
Angular Field of View | H: 113.7 / V: 61.5° / D: 134.5° |
Focus Control | Fixed |
Operational | |
Camera Title | Displayed up to 85 characters |
Day & Night | Auto(ICR) |
Backlight Compensation | BLC, WDR, SSDR |
Wide Dynamic Range | 120dB |
Digital Noise Reduction | SSNR |
Motion Detection | 4ea, polygonal zones |
Privacy Masking | 6ea, rectangular zones |
Gain Control | Low / Middle / High |
White Balance | ATW / AWC / Manual / Indoor / Outdoor |
LDC | Support |
Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
Analytics | Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line |
Alarm I/O | Input 1ea / Output 1ea |
Alarm Triggers | Analytics, Network disconnect, Alarm input |
Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output |
Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
IR Viewable Length | 20m(65.62ft) |
Network | |
Ethernet | RJ-45(10/100BASE-T) |
Video Compression | H.265/H.264: Main/High, MJPEG |
Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps |
Smart Codec | WiseStreamⅡ |
Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
General | |
Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch |
Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
Memory | 512MB RAM, 256MB Flash |
Environmental & Electrical | |
Operating Temperature / Humidity | -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C |
Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH |
Certification | IP66, IK10 |
Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
Power Consumption | PoE: Max 7.00W, typical 5.20W 12VDC: Max 6.10W, typical 4.50W |
Mechanical | |
Color / Material | Dark grey / Aluminum |
Product Dimensions / Weight | Ø70.0×246.0mm(Ø2.76×9.69″), 700g(1.54 Ib) |
DORI (EN62676-4 standard) | |
Detect (25PPM/ 8PPF) | 25.1m(82.21ft) |
Observe (63PPM/ 19PPF) | 10.0m(32.89ft) |
Recognize (125PPM/ 38PPF) | 5.0m(16.44ft) |
Identify (250PPM/ 76PPF) | 2.5m(8.22ft) |
