Description

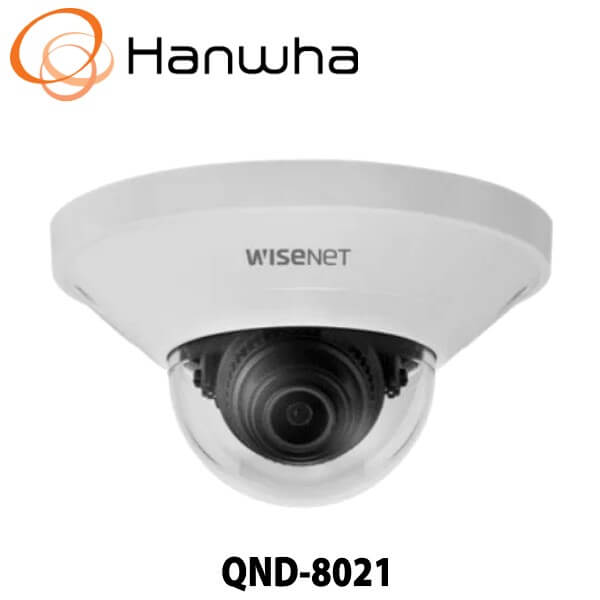

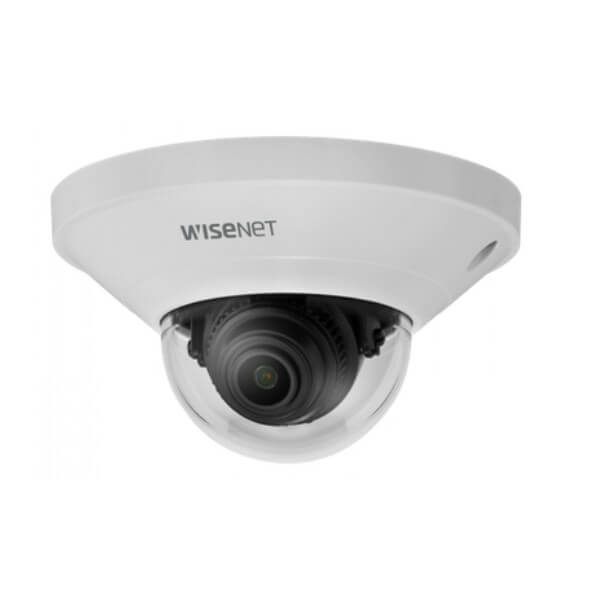

Hanwha QND8021 Dome Camera
When it comes to high-performance indoor surveillance, the Hanwha QND8021 Dome Camera stands as an industry leader, delivering unmatched security and reliability. Designed as part of Hanwha’s renowned Q series, this cutting-edge security camera blends advanced imaging capabilities, versatility, and robust durability—making it an ideal choice for businesses, institutions, and commercial applications.
Crystal-Clear High-Resolution Imaging
Equipped with a powerful 5 Megapixel CMOS sensor, the Hanwha QND8021 ensures superior image quality with resolutions up to 2560 x 1920 pixels. This high-resolution output provides unparalleled clarity, allowing for accurate facial recognition, object identification, and forensic-level detail crucial for security monitoring and incident investigations.
Adjustable Varifocal Lens for Optimal Coverage
The QND8021 comes with a 3.1mm to 6.13mm varifocal lens, giving users the flexibility to fine-tune their surveillance coverage. Whether monitoring a wide area or focusing on specific details, this camera adapts effortlessly to diverse security needs. The dynamic zoom function ensures that every inch of the surveillance zone is captured with precision, minimizing blind spots and enhancing situational awareness.
Advanced Wide Dynamic Range (WDR) Technology
Lighting inconsistencies can often compromise video clarity, but with 120dB Wide Dynamic Range (WDR), the Hanwha QND8021 ensures well-balanced images even in extreme lighting conditions. From bright sunlight streaming through windows to dimly lit indoor environments, this technology effectively reduces glare and shadows, optimizing image quality for seamless monitoring.
Exceptional Low-Light Performance with Digital Noise Reduction
Security threats don’t disappear at night, and neither does the QND8021’s performance. Featuring advanced Digital Noise Reduction (DNR), this camera significantly enhances low-light footage by minimizing noise and improving visibility. With day/night functionality and an infrared-cut filter, the camera automatically adjusts to varying lighting conditions, ensuring 24/7 surveillance with consistent image quality.
Rugged and Vandal-Resistant Design
Security cameras are often exposed to physical threats, and the Hanwha QND8021 is built to withstand them. With an IK08-rated housing, this dome camera is resistant to vandalism, making it ideal for high-traffic areas such as retail stores, office buildings, schools, hospitals, and parking structures. Its durable construction ensures long-term operational reliability in even the most demanding environments.
Discreet, Aesthetic, and Compact Design
Surveillance should be effective yet unobtrusive. The sleek and compact design of the QND8021 allows for discreet installation, blending seamlessly into modern indoor settings without drawing attention. Whether deployed in luxury hotels, corporate offices, high-end boutiques, or healthcare facilities, this camera maintains aesthetics while providing uncompromising security.
Seamless Integration with Hanwha’s Security Ecosystem
For organizations requiring comprehensive surveillance solutions, the QND8021 pairs effortlessly with other Hanwha network cameras, such as:
- QNO-8080R – Outdoor bullet camera for perimeter security
- QNV-8080R – Outdoor dome camera with rugged durability
- QNP-6320H – High-performance PTZ camera for large-scale monitoring
By integrating these solutions, businesses can create a unified, scalable, and intelligent surveillance network, ensuring optimal coverage across expansive facilities such as shopping malls, universities, corporate campuses, and public buildings.
Why Choose the Hanwha QND8021 Dome Camera?
The Hanwha QND8021 isn’t just another security camera—it’s a powerful, intelligent, and reliable surveillance tool designed to meet the evolving security needs of modern businesses. With its high-resolution imaging, adaptable lens, advanced WDR, and robust build quality, it provides an unbeatable combination of performance and protection.
For businesses looking to enhance their security infrastructure, the Hanwha QND8021 offers a future-proof investment that ensures round-the-clock safety, superior video clarity, and effortless integration into existing surveillance networks.
Secure your premises with the industry-leading Hanwha QND8021 Dome Camera—where cutting-edge technology meets professional-grade surveillance.
Key Features
- Max. 5Megapixel (2592 x 1944) resolution
- 4mm fixed lens
- 0.15Lux (Color), WDR (120dB)
- Max. 30fps@5MP (H.265 / H.264)
- H.265, H.264, MJPEG codec support, Multiple streaming
- Tampering, Motion detection, Defocus detection
- Micro SD / SDHC / SDXC memory slot (Max. 128GB)
- Hallway view, WiseStream II support
- LDC, PoE
SPECIFICATION
Video | |
Imaging Device | 1/2.8″ CMOS |
Resolution | 5MP mode : 2592×1944, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 4MP mode : 2560×1440, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps(@5MP Max. 2fps) |
Min. Illumination | Color: 0.15Lux(F1.6, 1/30sec, 30IRE) BW: 0.15Lux(F1.6, 1/30sec, 30IRE) |
Video Out | micro HDMI: 1080p@30/25fps(60/50Hz) |
Lens | |
Focal Length (Zoom Ratio) | 4.0mm fixed focal |
Max. Aperture Ratio | F1.6 |
Angular Field of View | H: 81°/ V: 58°/ D: 106° |
Focus Control | Fixed |
Pan / Tilt / Rotate | |
Pan / Tilt / Rotate Range | 0˚~350˚ / 0˚~69˚ / 0˚~355˚ |
Operational | |
Camera Title | Displayed up to 85 characters |
Day & Night | Auto(Electrical) |
Backlight Compensation | BLC, WDR, SSDR |
Wide Dynamic Range | 120dB |
Digital Noise Reduction | SSNR |
Motion Detection | 4ea, polygonal zones |
Privacy Masking | 6ea, rectangular zones |
Gain Control | Low / Middle / High |
White Balance | ATW / AWC / Manual / Indoor / Outdoor |
LDC | Support |
Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
Analytics | Defocus detection, Motion detection, Tampering |
Business Intelligence | People counting |
Alarm Triggers | Analytics, Network disconnect |
Alarm Events | When alarm trigger occurred – File upload(image): e-mail/FTP – Notification: e-mail – Recording: SD/SDHC/SDXC or NAS recording at event triggers – Handover: PTZ preset |
Network | |
Ethernet | RJ-45(10/100BASE-T) |
Video Compression | H.265/H.264: Main/High, MJPEG |
Smart Codec | WiseStreamⅡ |
Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
Security | |
OS / Firmware Protect | Firmware encryption |
User authentication | Digest Authentication, Prevent brute-force attack |
Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
Secure Communication | HTTPS, SRTP, WSS(Websocket secure) |
Access Control | Access control based on IP address |
Data Protect | Authentication information encryption, ZIP compression encryption |
Audit | User Access/System/Event log management |
Device ID | Device Certificate(Hanwha Private Root CA) |
Secure Storage | SDcard partition encrypt |
General | |
Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch |
Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
Memory | 512MB RAM, 256MB Flash |
Environmental & Electrical | |
Operating Temperature / Humidity | -10°C~+40°C(+14°F~+104°F) / 0~90% RH(non-condensing) |
Storage Temperature / Humidity | -30°C~+60°C(-22°F~+140°F) / 0~90% RH |
Certification | IP42, IK08 |
Input Voltage | PoE(IEEE802.3af, Class2) |
Power Consumption | PoE: Max 5.00W, typical 4.00W |
Mechanical | |
Color / Material | White / Plastic |
RAL Code | RAL9003 |
Product Dimensions / Weight | ø99.0×56.0mm(ø3.9×2.2″), 165g(0.36 lb) |
Hanging Mount (Dome) | SBP-099HMW |
DORI (EN62676-4 standard) | |
Detect (25PPM/ 8PPF) | 61.7m(202.31ft) |
Observe (63PPM/ 19PPF) | 24.7m(80.92ft) |
Recognize (125PPM/ 38PPF) | 12.3m(40.46ft) |
Identify (250PPM/ 76PPF) | 6.2m(20.23ft) |
