Description

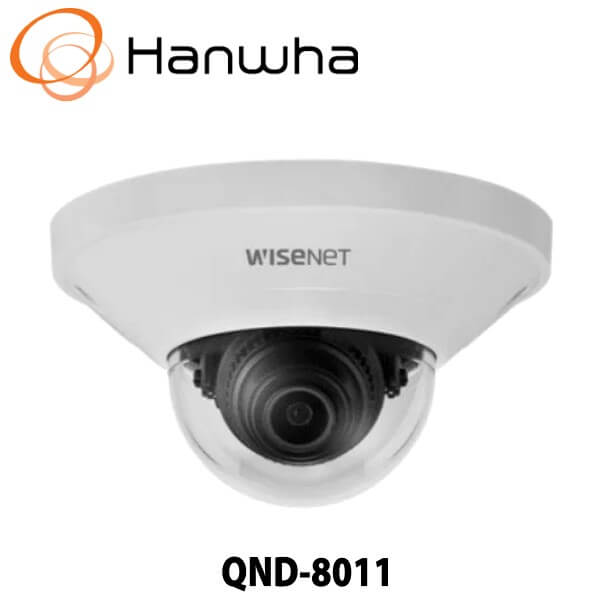

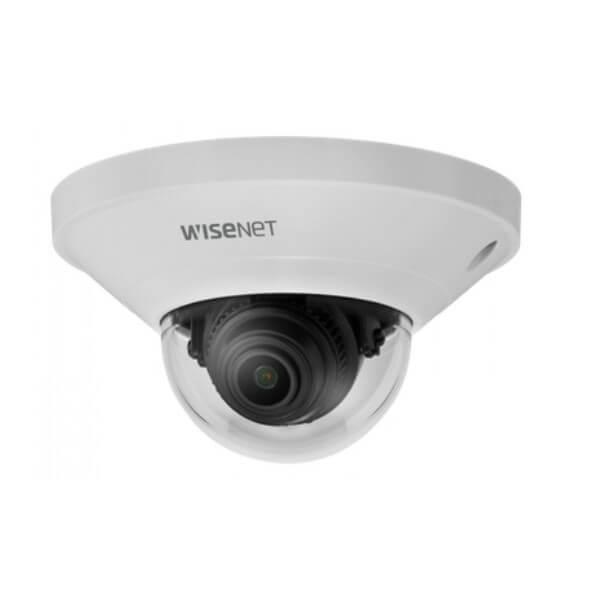

Hanwha QND8011 Dome Camera
The Hanwha QND8011 Dome Camera is a top-tier indoor surveillance solution engineered to deliver superior security monitoring with seamless integration. Designed for high performance and reliability, this security camera is ideal for a wide range of environments, offering a cost-effective yet feature-rich surveillance option.
Unparalleled Image Quality for Enhanced Security
At the heart of the Hanwha QND8011 is a powerful 5-megapixel CMOS sensor, producing ultra-clear, high-resolution video footage with a maximum resolution of 2560 x 1920 pixels. This exceptional level of detail is crucial for accurate facial recognition, incident verification, and forensic analysis. Whether deployed in retail stores, corporate offices, or commercial establishments, this high-resolution capability ensures that every critical moment is captured with clarity.
Fixed Lens with Wide-Area Coverage
Equipped with a precision-engineered fixed lens, the QND8011 provides consistent and expansive coverage without the need for manual adjustments. This makes it an excellent choice for monitoring key areas such as entryways, lobbies, hallways, and reception areas. Its robust optical design guarantees optimal performance, delivering crisp and well-defined images across its field of view.
Advanced Wide Dynamic Range (WDR) for Challenging Lighting
The QND8011 is equipped with cutting-edge Wide Dynamic Range (WDR) technology, allowing it to adapt to high-contrast lighting scenarios. Whether positioned near bright entrances or backlit indoor spaces, this technology ensures well-balanced footage by reducing overexposure and enhancing visibility in shadowed areas. The result is clear and actionable video recordings, even in complex lighting conditions.
Superior Low-Light Performance with Digital Noise Reduction (DNR)
Surveillance doesn’t stop when the lights go out, and neither does the QND8011. Featuring advanced Digital Noise Reduction (DNR), this camera minimizes grainy distortions in low-light conditions, ensuring sharp and clear video even in dimly lit environments. Whether monitoring at night or in dark indoor settings, this feature enhances image clarity for reliable 24/7 security coverage.
Rugged Vandal-Resistant Build for Maximum Durability
Security cameras are often targets of tampering or vandalism, but the QND8011 is built to withstand potential threats. Its IK08-rated housing provides exceptional resistance to physical impact, making it an excellent choice for high-risk areas where durability is essential. This vandal-resistant design ensures continuous and uninterrupted surveillance, safeguarding your security infrastructure.
Intelligent Video Analytics for Proactive Security
Beyond just recording footage, the Hanwha QND8011 enhances security with intelligent video analytics. Its integrated motion detection system alerts users to unauthorized activity in real time, enabling quick responses to security incidents. Additionally, tampering detection features notify administrators immediately if the camera’s view is obstructed, ensuring consistent and reliable monitoring at all times.
Efficient Network Usage with Advanced Video Compression
The QND8011 is optimized for efficient data management, supporting the latest H.265 and H.264 video compression standards. These technologies significantly reduce bandwidth consumption and storage requirements while maintaining superior video quality. This makes it an ideal solution for businesses looking to optimize their surveillance infrastructure without incurring excessive data costs.
Versatile Applications for Diverse Industries
Thanks to its advanced features and versatile design, the Hanwha QND8011 is well-suited for a wide array of applications:
- Retail Stores: Enhances theft prevention and improves customer safety with discreet yet powerful monitoring.
- Corporate Environments: Provides high-resolution surveillance in hallways, conference rooms, and common areas.
- Educational Institutions: Ensures compliance with safety protocols while monitoring classrooms, libraries, and administrative offices.
- Public Buildings: Offers reliable security surveillance with a robust and tamper-resistant design.
The Hanwha QND8011 Dome Camera is a premium indoor surveillance solution that combines high-definition imaging, advanced analytics, and rugged durability in one compact device. Whether deployed in a business, retail, or institutional setting, its superior performance and intelligent features make it an indispensable asset for modern security systems.
Secure your space with the Hanwha QND8011 and experience the next level of surveillance technology.
Key Features
- Max. 5Megapixel (2592 x 1944) resolution
- 2.8mm fixed lens
- 0.15Lux (Color), WDR (120dB)
- Max. 30fps@5MP (H.265 / H.264)
- H.265, H.264, MJPEG codec support, Multiple streaming
- Tampering, Motion detection, Defocus detection
- Micro SD / SDHC / SDXC memory slot (Max. 128GB)
- Hallway view, WiseStream II support
- LDC, PoE
SPECIFICATION
Video | |
Imaging Device | 1/2.8″ 5MP CMOS |
Resolution | 5MP mode : 2592×1944, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 4MP mode : 2560×1440, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz) |
NETD | None |
Pixel Size | None |
Min. Illumination | Color: 0.15Lux(F2.0, 1/30sec) |
Video Out | micro HDMI: 1080p@30/25fps(60/50Hz) |
Video Transmission Distance | None |
Lens | |
Focal Length (Zoom Ratio) | 2.8mm fixed focal |
Max. Aperture Ratio | F2.0 |
Angular Field of View | H: 104.4°/ V: 76.7°/ D: 136.1° |
Min. Object Distance | None |
Focus Control | Fixed |
Lens Type | None |
Mount Type | None |
Optional Lens | None |
Pan / Tilt / Rotate | |
Pan / Tilt / Rotate Range | 0˚~350˚ / 0˚~69˚ / 0˚~355˚ |
Pan Range | None |
Pan Speed | None |
Tilt Range | None |
Tilt Speed | None |
Rotate Range | None |
Sequence | None |
Preset Accuracy | None |
Operational | |
Camera Title | Displayed up to 85 characters |
Direction Indicator | None |
Day & Night | Auto(Electrical) |
Backlight Compensation | BLC, WDR, SSDR |
Wide Dynamic Range | 120dB |
Digital Noise Reduction | SSNR |
Digital Image Stabilization | None |
Defog | None |
Motion Detection | 4ea, polygonal zones |
Privacy Masking | 6ea, rectangular zones |
Gain Control | Low / Middle / High |
White Balance | ATW / AWC / Manual / Indoor / Outdoor |
LDC | Support |
Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
Digital PTZ | None |
Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
Analytics | Defocus detection, Motion detection, Tampering |
Business Intelligence | People counting |
Serial Interface | None |
Alarm I/O | None |
Alarm Triggers | Analytics, Network disconnect |
Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers |
Audio In | None |
Audio Out | None |
IR Viewable Length | None |
IR Illuminator (Optional) | None |
Water Removal | None |
Auto Tracking | None |
Coaxial Protocol | None |
Color Palettes | None |
Radiometry | |
Temperature detect range | None |
Temperature accuracy | None |
Temperature detection | None |
Additional | None |
Network | |
Ethernet | RJ-45(10/100BASE-T) |
Video Compression | H.265/H.264: Main/High, MJPEG |
Audio Compression | None |
Smart Codec | WiseStreamⅡ |
Video Quality Adjustment | H.264/H.265: Target bitrate level control MJPEG: Quality Level control |
Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
General | |
Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch |
Web Viewer | None |
Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
Memory | 512MB RAM, 256MB Flash |
Environmental & Electrical | |
Operating Temperature / Humidity | -10°C ~ +40°C(-14°F ~ +104°F) / Less than 90% RH |
Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH |
Certification | IP42, IK08 |
Input Voltage | PoE(IEEE802.3af, Class2) |
Power Consumption | PoE: Max 5.00W, typical 4.00W |
Mechanical | |
Color / Material | White / Plastic |
RAL Code | RAL9003 |
Product dimensions / weight | Ø99.0×56.0mm(Ø3.9×2.2″), 165g(0.36 lb) |
Conduit hole | None |
Hanging mount(Dome) | SBP-099HMW |
Skin cover(Dome) | None |
Weather cap(Dome) | None |
Power module | None |
Backbox | None |
DORI (EN62676-4 standard) | |
Detect (25PPM/ 8PPF) | 40.2m(12.26ft) |
Observe (63PPM/ 19PPF) | 16.1m(4.90ft) |
Recognize (125PPM/ 38PPF) | 8.0m(2.45ft) |
Identify (250PPM/ 76PPF) | 4.0m(1.23ft) |
