Description

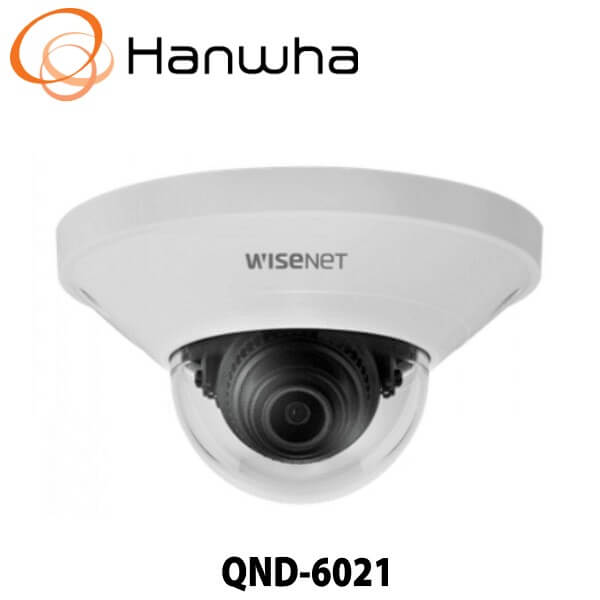

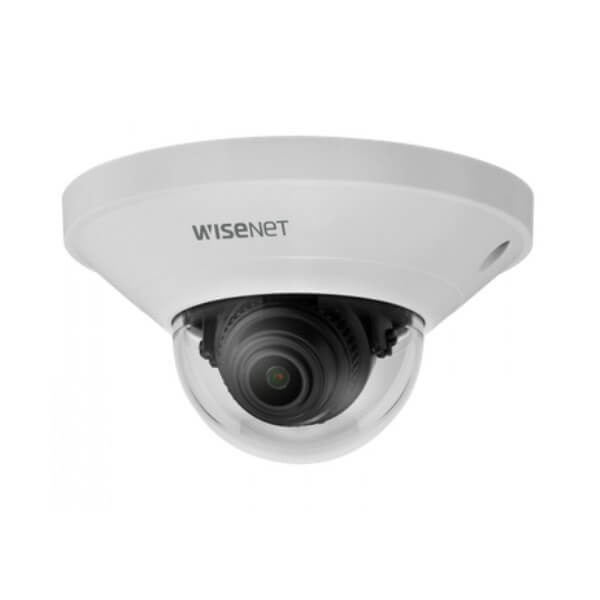

Hanwha QND6021 Indoor Dome Camera
The Hanwha QND6021 mini indoor dome camera is a cutting-edge security solution designed for businesses and organizations that require discreet, high-quality surveillance. With its full HD imaging, intelligent analytics, and seamless integration capabilities, this compact camera is perfect for retail stores, offices, hotels, and other indoor environments looking to enhance security and operational efficiency.
Crystal-Clear Full HD Imaging
Equipped with a 2-megapixel CMOS sensor, the QND6021 delivers sharp, high-definition video at 1920×1080 resolution, ensuring precise image capture. Whether monitoring entry points, high-traffic areas, or sensitive locations, this camera provides the clarity needed to identify faces, objects, and crucial details with ease.
Advanced People Counting for Business Insights
Beyond security, the Hanwha QND6021 offers built-in people counting technology, making it an ideal choice for retail stores, corporate offices, and hospitality venues. By analyzing visitor traffic, businesses can:
- Optimize staffing levels based on foot traffic patterns.
- Enhance customer service by identifying peak hours.
- Improve operational strategies with real-time occupancy insights.
Superior Wide Dynamic Range (WDR) Performance
Challenging lighting conditions? No problem. With 120dB Wide Dynamic Range (WDR), the QND6021 captures balanced, detailed footage even in areas with bright sunlight, deep shadows, or extreme contrast. This makes it ideal for entranceways, lobbies, and storefronts, ensuring clear images regardless of lighting challenges.
Reliable Edge Storage for Uninterrupted Recording
The integrated microSD/SDHC/SDXC card slot allows local video storage, providing an added layer of redundancy. In case of a network failure, the camera continues to record, ensuring critical footage is never lost.
Seamless Integration with Security Systems
Designed for effortless deployment, the Hanwha QND6021 supports:
ONVIF compatibility, allowing smooth integration with various VMS (Video Management Systems) and NVRs (Network Video Recorders).
Easy installation, making it a cost-effective upgrade for both new and existing security setups.
Compact & Discreet Installation
The QND6021’s sleek, low-profile dome design blends seamlessly into indoor spaces without compromising aesthetics. Its quick setup process and intuitive interface ensure fast deployment with minimal maintenance, making it an excellent choice for businesses prioritizing both security and design.
AI-Driven Intelligent Security Features
The Hanwha QND6021 is equipped with advanced analytics to enhance security:
- Motion Detection – Instantly alerts when movement is detected within the camera’s field of view.
- Tampering Detection – Triggers alerts if the camera is obstructed or physically interfered with.
- Defocus Detection – Ensures uninterrupted surveillance by alerting users if the camera lens loses focus.
Why Choose the Hanwha QND6021?
- High-Definition Imaging – Captures clear, full-HD video for precise monitoring.
- Business Intelligence Analytics – People counting helps optimize operations.
- Superior Low-Light & WDR Performance – Provides visibility in challenging lighting.
- Reliable Storage & System Integration – Works with NVRs, VMS platforms, and local storage.
- Easy Installation & Maintenance – Compact, user-friendly, and hassle-free setup.
Upgrade Your Indoor Surveillance with Hanwha QND6021
Whether you need a powerful security camera to safeguard your business or a data-driven analytics tool to improve operations, the Hanwha QND6021 is the perfect solution. With its high-quality imaging, AI-driven insights, and seamless integration, this compact dome camera delivers unparalleled performance for modern security needs.
Key Features
- Max. 2Megapixel (1920 x 1080) resolution
- 4mm fixed lens
- 0.03Lux (Color), WDR (120dB)
- Max. 30fps@2MP (H.265 / H.264)
- H.265, H.264, MJPEG codec support, Multiple streaming
- Tampering, Motion detection, Defocus detection
- Micro SD / SDHC / SDXC memory slot (Max. 128GB)
- Hallway view, WiseStream II support
- LDC, PoE
SPECIFICATION
| Video | |
| Imaging Device | 1/2.8″ 2MP CMOS |
| Effective Pixels | 1920(H)x1080(V) |
| NETD | None |
| Pixel Size | None |
| Min. Illumination | Color: 0.03Lux(F1.6, 1/30sec) |
| Video Out | None |
| Lens | |
| Focal Length (Zoom Ratio) | 4.0mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 87.6 / V: 46.4° / D: 104.5° |
| Min. Object Distance | None |
| Focus Control | Fixed |
| Lens Type | None |
| Mount Type | None |
| Optional Lens | None |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0˚~350˚ / 0˚~69˚ / 0˚~355˚ |
| Pan Range | None |
| Pan Speed | None |
| Tilt Range | None |
| Tilt Speed | None |
| Rotate Range | None |
| Sequence | None |
| Preset Accuracy | None |
| Azimuth | None |
| Auto Tracking | None |
| Operational | |
| IR Viewable Length | None |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(Electrical) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Digital Image Stabilization | None |
| Defog | None |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Digital PTZ | None |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Motion detection, Tampering |
| Business Intelligence | People counting |
| Serial Interface | None |
| Alarm I/O | None |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers |
| Audio In | None |
| Audio Out | None |
| IR Illuminator (Optional) | None |
| Wiper | None |
| Coaxial Protocol | None |
| Video Transmission Distance | None |
| Radiometry | |
| Temperature detect range | None |
| Temperature accuracy | None |
| Temperature detection | None |
| Additional | None |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Resolution | 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz) |
| Smart Codec | WiseStreamⅡ |
| Video Quality Adjustment | H.264/H.265: Target bitrate level control MJPEG: Quality Level control |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Audio Compression | None |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OSx10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OSxonly) |
| Memory | 512MB RAM, 256MB Flash |
| Environmental | |
| Operating Temperature / Humidity | -10°C ~ +55°C(-14°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH |
| Certification | IP42, IK08 |
| Electrical | |
| Input Voltage | PoE(IEEE802.3af, Class2) |
| Power Consumption | PoE: Max 4.80W, typical 2.80W |
| Mechanical | |
| Color / Material | White / Plastic |
| RAL Code | RAL9003 |
| Product dimensions / weight | Ø99.0×56.0mm(Ø3.9×2.2″), 145g(0.32 lb) |
| Conduit hole | None |
| Hanging mount(Dome) | None |
| Skin cover(Dome) | None |
| Weather cap(Dome) | None |
| Power module | None |
| Backbox | None |
| DORI | |
| Detect (25PPM/ 8PPF) | 40.0m(131.36ft) |
| Observe (63PPM/ 19PPF) | 16.0m(52.54ft) |
| Recognize (125PPM/ 38PPF) | 8.0m(26.27ft) |
| Identify (250PPM/ 76PPF) | 4.0m(13.14ft) |
