Description

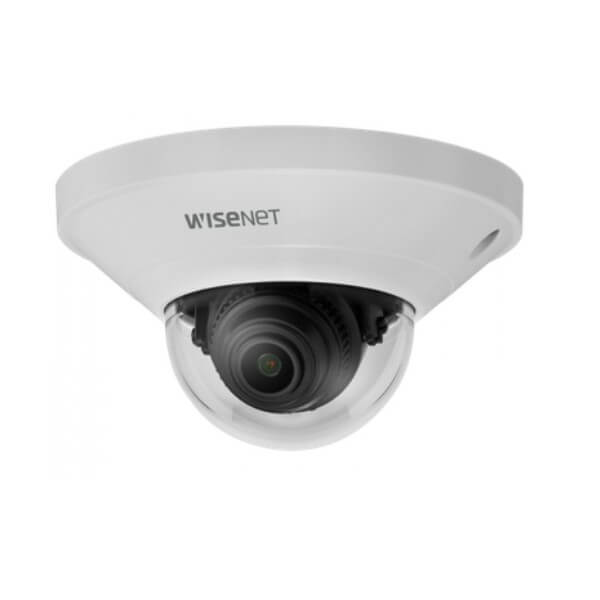

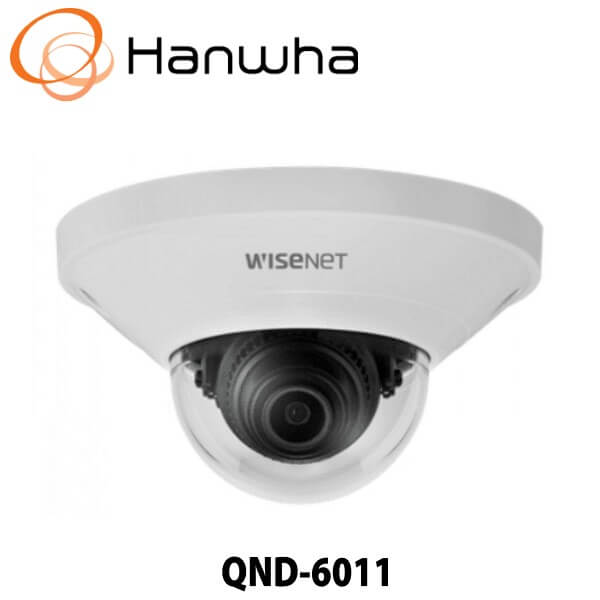

Hanwha QND6011 Indoor Dome Camera
The Hanwha QND6011 mini indoor dome camera is a cutting-edge surveillance solution designed to deliver high-performance security monitoring in indoor environments. With its compact design, wide-angle lens, intelligent analytics, and superior image quality, this camera is ideal for businesses, offices, retail stores, and other indoor spaces requiring reliable surveillance.
Highlights
Wide-Angle Lens for Maximum Coverage
Equipped with a fixed 2.8mm lens, the QND6011 offers a broad viewing angle, ensuring comprehensive monitoring of crucial indoor areas such as entrances, lobbies, hallways, and retail floors. The wide-angle perspective minimizes blind spots, delivering clear, undistorted images essential for effective security management.
Advanced 120dB WDR for Clear Imaging in Any Lighting Condition
Lighting inconsistencies can pose significant challenges for surveillance cameras. The Hanwha QND6011 integrates Wide Dynamic Range (WDR) technology at 120dB, enabling the camera to balance exposure between bright and dark areas in the same frame. This feature is particularly useful in environments where sunlight streams through windows or entryways, ensuring clear and detailed footage without overexposure or shadowed areas.
Edge Storage for Uninterrupted Recording
The QND6011 is designed with a built-in micro SD/SDHC/SDXC card slot, allowing local storage of video footage. This ensures continuous recording even in the event of network disruptions, providing an added layer of reliability for security operations.
Seamless Integration with VMS and NVR Systems
To enhance operational flexibility, the QND6011 is compatible with leading Video Management Systems (VMS) and Network Video Recorders (NVRs). This simplifies the process of integrating the camera into existing security infrastructures. Additionally, ONVIF compliance guarantees smooth interoperability across multiple surveillance platforms.
Compact & Discreet Installation for Versatile Placement
With its sleek and compact dome design, the QND6011 is ideal for discreet installation, blending effortlessly into modern interiors. This makes it an excellent choice for locations that require subtle yet effective security measures. The camera’s user-friendly setup ensures quick installation and easy maintenance, reducing downtime and operational costs.
Intelligent Analytics for Proactive Security Monitoring
The Hanwha QND6011 goes beyond standard surveillance by integrating intelligent video analytics, enabling real-time threat detection and enhanced situational awareness.
- Motion Detection – Automatically identifies movement within the frame, triggering alerts for security personnel.
- Tampering Detection – Detects if the camera is being obstructed, repositioned, or tampered with, ensuring consistent surveillance.
- Defocus Detection – Alerts operators if the camera loses focus, preventing blurry or unclear footage.
Why Choose the Hanwha QND6011 for Your Indoor Security Needs?
The Hanwha QND6011 mini dome camera is a powerful and intelligent surveillance tool that ensures high-definition monitoring, real-time analytics, and seamless integration with modern security systems. Whether for retail stores, corporate offices, healthcare facilities, or educational institutions, this compact yet feature-rich camera provides unmatched reliability and security.
Optimize Your Indoor Surveillance with Hanwha QND6011
Invest in a smarter security solution with the Hanwha QND6011 indoor dome camera. Experience crystal-clear imaging, proactive threat detection, and seamless system compatibility—all packed in a compact and discreet design.
Key Features
- 2 Megapixel resolution
- Built-in 2.8mm fixed lens
- Ultra-compact design
- 30fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Defocus detection, Motion detection, Tampering detection
- People counting for retail business intelligence
- micro SD (128GB) memory slot, PoE / 12V DC
- Hallway view support
- IP42, IK08 rated
- LDC support (Lens Distortion Correction)
- Genetec Stratocast compatible
SPECIFICATIONS
Imaging Device | 1/2.8″ 2MP CMOS |
Effective Pixels | 1920(H)x1080(V) |
NETD | None |
Pixel Size | None |
Min. Illumination | Color: 0.03Lux(F2.0, 1/30sec) |
Video Out | None |
Lens | |
Focal Length (Zoom Ratio) | 2.8mm fixed focal |
Max. Aperture Ratio | F2.0 |
Angular Field of View | H: 113.7 / V: 61.5° / D: 134.5° |
Min. Object Distance | None |
Focus Control | Fixed |
Lens Type | None |
Mount Type | None |
Optional Lens | None |
Pan / Tilt / Rotate | |
Pan / Tilt / Rotate Range | 0˚~350˚ / 0˚~69˚ / 0˚~355˚ |
Pan Range | None |
Pan Speed | None |
Tilt Range | None |
Tilt Speed | None |
Rotate Range | None |
Sequence | None |
Preset Accuracy | None |
Azimuth | None |
Auto Tracking | None |
Operational | |
IR Viewable Length | None |
Camera Title | Displayed up to 85 characters |
Day & Night | Auto(Electrical) |
Backlight Compensation | BLC, WDR, SSDR |
Wide Dynamic Range | 120dB |
Digital Noise Reduction | SSNR |
Digital Image Stabilization | None |
Defog | None |
Motion Detection | 4ea, polygonal zones |
Privacy Masking | 6ea, rectangular zones |
Gain Control | Low / Middle / High |
White Balance | ATW / AWC / Manual / Indoor / Outdoor |
LDC | Support |
Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
Digital PTZ | None |
Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
Analytics | Defocus detection, Motion detection, Tampering |
Business Intelligence | People counting |
Serial Interface | None |
Alarm I/O | None |
Alarm Triggers | Analytics, Network disconnect |
Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers |
Audio In | None |
Audio Out | None |
IR Illuminator (Optional) | None |
Wiper | None |
Coaxial Protocol | None |
Video Transmission Distance | None |
Radiometry | |
Temperature detect range | None |
Temperature accuracy | None |
Temperature detection | None |
Additional | None |
Network | |
Ethernet | RJ-45(10/100BASE-T) |
Video Compression | H.265/H.264: Main/High, MJPEG |
Resolution | 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 |
Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz) |
Smart Codec | WiseStreamⅡ |
Video Quality Adjustment | H.264/H.265: Target bitrate level control MJPEG: Quality Level control |
Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
Audio Compression | None |
Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch |
Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OSx10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OSxonly) |
Memory | 512MB RAM, 256MB Flash |
Environmental | |
Operating Temperature / Humidity | -10°C ~ +55°C(-14°F ~ +131°F) / Less than 90% RH |
Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH |
Certification | IP42, IK08 |
Electrical | |
Input Voltage | PoE(IEEE802.3af, Class2) |
Power Consumption | PoE: Max 4.80W, typical 2.80W |
Mechanical | |
Color / Material | White / Plastic |
RAL Code | RAL9003 |
Product dimensions / weight | Ø99.0×56.0mm(Ø3.9×2.2″), 145g(0.32 lb) |
Conduit hole | None |
Hanging mount(Dome) | None |
Skin cover(Dome) | None |
Weather cap(Dome) | None |
Power module | None |
Backbox | None |
DORI | |
Detect (25PPM/ 8PPF) | 25.1m(82.21ft) |
Observe (63PPM/ 19PPF) | 10.0m(32.89ft) |
Recognize (125PPM/ 38PPF) | 5.0m(16.44ft) |
Identify (250PPM/ 76PPF) | 2.5m(8.22ft) |
