Description

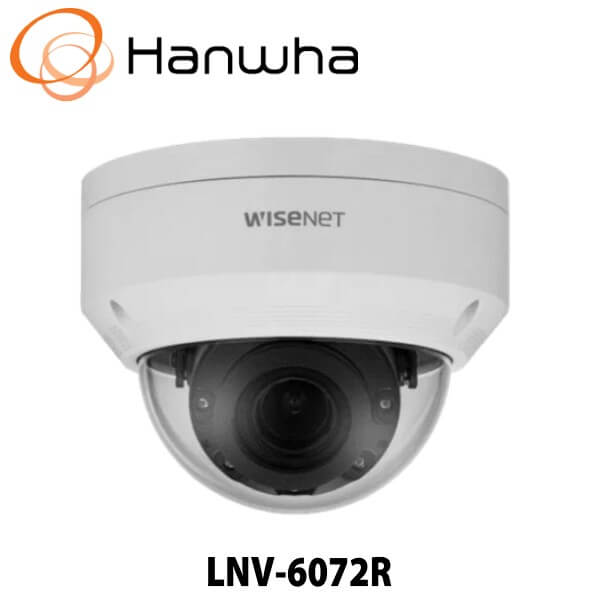

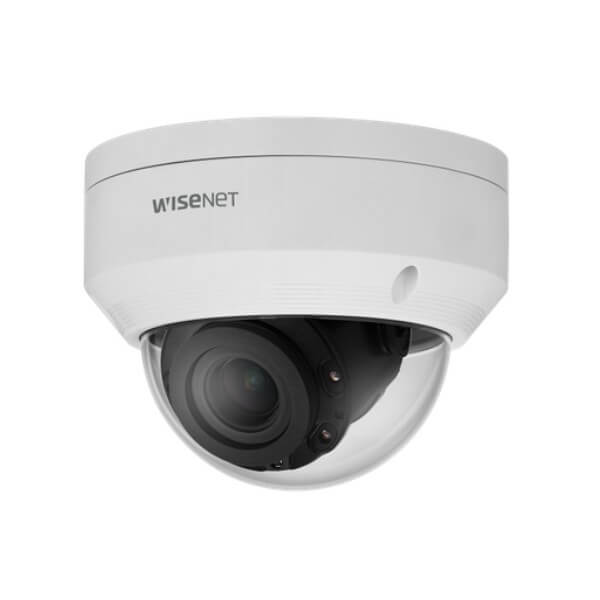

Hanwha LNV6072R Vandal Dome Camera
The Hanwha LNV6072R vandal-resistant dome camera is a powerful security solution designed to deliver exceptional image clarity, intelligent analytics, and robust durability in demanding environments. Engineered for versatile surveillance applications, this camera ensures reliable performance day and night, making it an ideal choice for businesses, public spaces, and critical infrastructure.
Flexible Varifocal Lens for Precision Monitoring
Equipped with a 3.2-10mm varifocal lens, the LNV6072R provides the ability to adjust the field of view, allowing security professionals to switch between wide-area surveillance and targeted close-up monitoring. This adaptability is particularly beneficial for securing entry points, hallways, parking lots, and other high-risk locations that require clear identification of individuals and activities.
Superior Night Vision with Smart Infrared Technology
Security threats don’t stop when the sun goes down, and neither does the Hanwha LNV6072R. Featuring powerful infrared (IR) LEDs, this camera delivers crystal-clear night vision up to 30 meters, ensuring detailed imagery even in complete darkness. Its intelligent IR technology prevents overexposure and automatically adjusts brightness levels based on the distance of objects, providing well-balanced, high-quality video at all times.
Advanced 120dB Wide Dynamic Range (WDR) for Clarity in All Lighting Conditions
Lighting inconsistencies can compromise surveillance footage, but the LNV6072R solves this issue with its 120dB Wide Dynamic Range (WDR). This advanced feature enhances image clarity in high-contrast environments, such as entryways, outdoor spaces, and areas exposed to bright sunlight and deep shadows. The result is sharp, well-defined footage with minimal distortion, ensuring clear identification of people and objects even in challenging lighting conditions.
Reliable Edge Storage for Continuous Surveillance
A robust surveillance system needs backup solutions in case of network failures, and the LNV6072R delivers with its built-in micro SD/SDHC/SDXC card slot. This edge storage capability allows the camera to record and store video locally, providing seamless security coverage even during network disruptions. This feature enhances reliability and redundancy, ensuring that critical footage is always available when needed.
Why Choose the Hanwha LNV6072R?
- Rugged vandal-resistant design for durability in harsh conditions
- High-resolution imaging with superior clarity and detail
- Smart IR night vision for uninterrupted monitoring
- WDR technology for balanced exposure in complex lighting
- Edge storage for redundancy, preventing data loss
Ideal for businesses, government facilities, transportation hubs, and industrial sites, the Hanwha LNV6072R is a top-tier surveillance camera that combines cutting-edge technology with durable construction to keep your property safe and secure around the clock.
Upgrade your security system with the Hanwha LNV6072R—the ultimate solution for high-performance video surveillance.
Key Features
- Maximum 2MP resolution
- Color: 0.03Lux(F1.6, 1/30sec) BW : 0Lux (IR LED on)
- 3.2~10mm(3.1x) manual varifocal
- Maximum 30fps@2MP all resolutions (H.264)
- H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Tampering, Motion detection
- Micro SD/SDHC memory slot (32GB), PoE
- Hallway view (90°/270°), WiseStreamII support
- IR viewable length 30m(98.43ft)
- IP66, IK10 support
SPECIFICATION
Video | |
Imaging Device | 1/2.8″ CMOS |
Resolution | 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 |
Max. Framerate | H.264: Max. 30fps/25fps(60Hz/50Hz)(WDR off) H.264: Max. 15fps/12fps(60Hz/50Hz)(WDR on) MJPEG: Max. 10fps(@2MP Max. 2fps) |
Min. Illumination | Color: 0.03Lux(F1.6, 1/30sec) BW : 0Lux (IR LED on) |
Lens | |
Focal Length (Zoom Ratio) | 3.2~10mm(3.1x) manual varifocal |
Max. Aperture Ratio | F1.6(Wide)~F2.9(Tele) |
Angular Field of View | H: 109°(Wide)~33°(Tele) V: 58°(Wide)~18°(Tele) D: 132°(Wide)~38°(Tele) |
Min. Object Distance | 0.5m(1.64ft) |
Focus Control | Manual |
Lens Type | DC auto iris |
Pan / Tilt / Rotate | |
Pan / Tilt / Rotate Range | 0°~350° / 0°~67° / 0°~355° |
Operational | |
Camera Title | Displayed up to 15 characters |
Day & Night | Auto(ICR) |
Backlight Compensation | BLC, WDR, SSDR |
Wide Dynamic Range | 120dB |
Digital Noise Reduction | SSNR |
Motion Detection | 4ea, rectangler zones |
Privacy Masking | 6ea, rectangular zones |
Gain Control | Low / Middle / High |
White Balance | ATW / AWC / Manual / Indoor / Outdoor |
LDC | Support |
Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
Analytics | Motion detection, Tampering |
Alarm Triggers | Analytics |
Alarm Events | When alarm trigger occurred – File upload(image) : e-mail/FTP – Notification : e-mail – Recording : SD/SDHC/SDXC or NAS recording at event triggers |
Light Type | IR LED (850nm) |
Light Viewable Length | 30m(98.43ft) |
Network | |
Ethernet | RJ-45(10/100BASE-T) |
Video Compression | H.264: Main/Baseline/High, MJPEG |
Smart Codec | WiseStreamⅡ |
Bitrate Control | H.264: CBR or VBR MJPEG: VBR |
Streaming | Unicast(6 users) / Multicast Multiple streaming (Up to 3 profiles) |
Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour |
Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) |
Security | |
OS / Firmware Protect | Firmware encryption |
User authentication | Digest Authentication, Prevent brute-force attack |
Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
Secure Communication | HTTPS, SRTP, WSS(Websocket secure) |
Access Control | Access control based on IP address |
Data Protect | Authentication information encryption, ZIP compression encryption |
Audit | User Access/System/Event log management |
Device ID | Device Certificate(Hanwha Private Root CA) |
Secure Storage | SDcard partition encrypt |
General | |
Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch |
Edge Storage | Micro SD/SDHC 1slot 32GB |
Memory | 512MB RAM, 256MB Flash |
Environmental & Electrical | |
Operating Temperature / Humidity | -30°C~+55°C(-22°F~+131°F) / 0~90% RH * Start up should be done at above -20°C(-4°F) |
Storage Temperature / Humidity | -30°C +55°C(-22°F ~ +131°F) / 0~90% RH |
Certification | IP66, IK10 |
Input Voltage | PoE(IEEE802.3af, Class3) |
Power Consumption | Max 6.4W, Typical 5.0W |
Mechanical | |
Color / Material | White / Plastic, Aluminum |
RAL Code | RAL9003 |
Product Dimensions / Weight | ø137.8×106.1mm(ø5.43×4.18″), 525g |
Hanging Mount (Dome) | SBP-301HMW2 |
Backbox | SBV-136BW |
DORI (EN62676-4 standard) | |
Detect (25PPM/ 8PPF) | Wide: 27.4m(89.85ft) / Tele: 128.8m(422.56ft) |
Observe (63PPM/ 19PPF) | Wide: 11.0m(35.94ft) / Tele: 51.5m(169.02ft) |
Recognize (125PPM/ 38PPF) | Wide: 5.5m(17.97ft) / Tele: 25.8m(84.51ft) |
Identify (250PPM/ 76PPF) | Wide: 2.7m(8.99ft) / Tele: 12.9m(42.26ft) |
