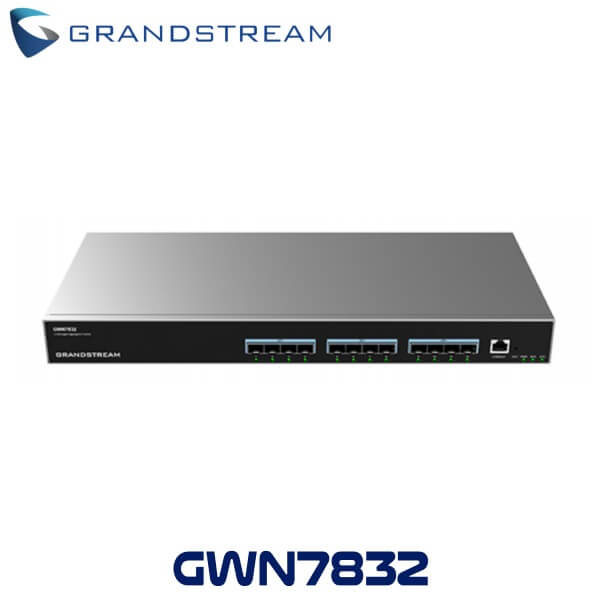

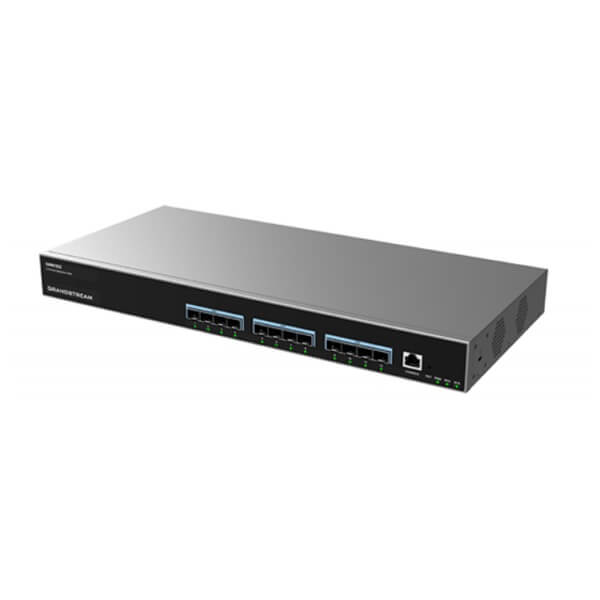

Grandstream GWN7832 Layer-3 Managed Network Switch Dubai

The Grandstream GWN7832 Dubai are Layer 3 aggregation managed switches that allow enterprises to build scalable, secure, high performance and smart business networks that are fully manageable and support maximum capacity. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The Grandstream GWN7832 Dubai can be managed in several ways, including the local Web user interface of the switch, and CLI, the command line interface. This series is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform. With complete end-to-end quality of service, flexible security settings, and support for maximum network capacity, the Grandstream GWN7832 Dubai provides enterprise-grade Layer 3 aggregation switches ideal for medium-to-large deployments.

Grandstream GWN7832 Core Features

• 12 x SFP+
• Supports deployment in IPv6 and IPv4 networks.
• ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
• Embedded controller to manage switch; GWN. Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform
• Built-in QoS allows for prioritization of network traffic

Additional Information

Technical Specifications

GENERAL INFO :

• Model :  GWN7832
• Box Contents :
  • 1x GWN7832 Switch
  • 1x 1.2m(10A) AC Cable
  • 1x 25cm Ground Cable
  • 4x Rubber Footpads
  • 1x Power Cord Anti-Trip
  • 2x Rack-Mounting Kits
  • 8x Screws(KM 3*6)
  • 1x Quick Installation Guide

NETWORK PROTOCOL :

• IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE
  802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x
• Gigabit SFP+ Ports :  12
  • Note :  Support DAC Cable and must be ≤ 5m
• Maximum no. of Supported Modules :
  • SM-10G :  12
  • MM-10G :  12
  • RJ45-10G :  6
  • Note :  RJ45-1G, RJ45-10G modules must be interval inserted
• Console :  1
• Integrated Power Supply :  60W
• External Redundant Power Supply( RPS) :  12V/60W
• Auxiliary Ports :  1x Reset Pinhole
• Forwarding Mode :  Store-and-forward
• Total non-blocking throughput :  120Gbps
• Switching Capability :  240Gbps
• Forwarding Rate :  80.352Mpps
• Packet Buffer :  16Mb
• Network Latency : <4µs
