Description

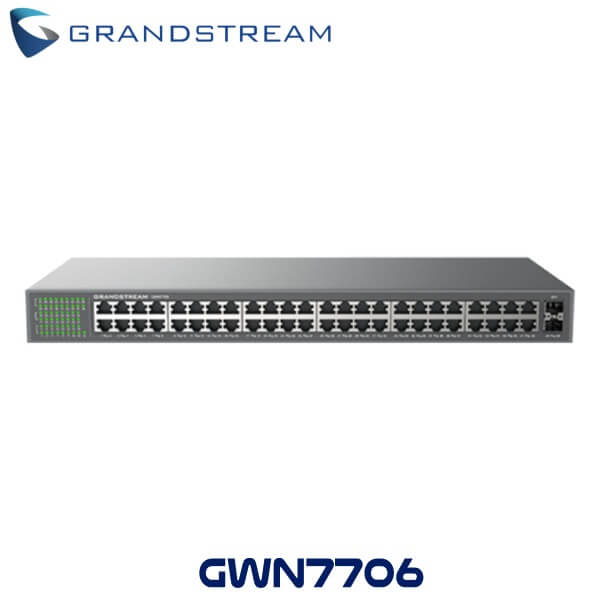

Grandstream GWN7706 Network Switch Dubai

The Grandstream GWN7706 Dubai is an unmanaged network switch that provides a fast and affordable solution for adding high-speed gigabit connectivity to your home office or small business. These switches require no configuration or installation and can be desk or wall mounted. It also features auto MDI/MDIX functionality, eliminating the need for crossover cables. Each port of Grandstream GWN7706 Dubai supports auto-negotiation, allowing the switch to detect the link speed of 10/100/1000Mbps network devices and adjust accordingly to ensure compatibility and optimal performance. For your convenience, the PoE (Power-over-Ethernet) model is equipped with an IEEE 802.3af/compliant intelligent dynamic PoE output port. With this feature, you can power IP phones, IP cameras, WiFi access points and other PoE endpoints. Finally, the plug-and-play Grandstream GWN7706 Dubai is perfect for the home office or his SMB who needs an unmanaged network switch.

Technical Specifications

• Gigabit Ports : 48
• Enclosure : Metal
• Mounting : Desktop/ Rack-Mount
• Standards and Protocols : IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
• Port Features :
  • 48× 10/100/1000 Mbps RJ-45 Ports
  • 2× SFP Fiber Ports
  • AUTO Negotiation, AUTO MDI/MDIX
• Network Media : 1000Base-X, 1000Base-T/100Base-TX/10Base-Te, Half/Full-Duplex
• LED Indicators :
  • Per port : Link/Activity Green
  • Per device : Power Green
• Mac Address Table : 16K
• Switching Capacity : 100Gbps
• Jumbo Frame : 9KB
• Advanced Features :
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE 802.3x Flow Control
  • 802.1p/DSCP QoS
• Power Adapter : Internal 100-240V AC,50/60Hz,40W
• Max Power Consumption by Base System : 30W@220V/50Hz
• Environmental :
  • Operating Temperature : 0 to 40 °C (32 to 104 °F)
  • Storage Temperature : -20 to 60 °C (-4 to 140 °F)
  • Operating Humidity : 10% to 90% Non-condensing
  • Storage Humidity : 10% to 90% Non-condensing
• Dimensions (L x W x H) Unit : 440 x 200 x 44mm
• Package : 500*335*89mm
• Weight
  • Unit : 2.80Kg
  • Entire Package : 3.60Kg
• Package :
  • 1x Switch
  • 1x 1.2m AC Cable
  • Rack-mounting Standard Brackets
  • 4x Rubber Fee
  • 1x GND Cable
  • 1x QIG
• Compliance : FCC, CE, RCM, IC, UKCA
