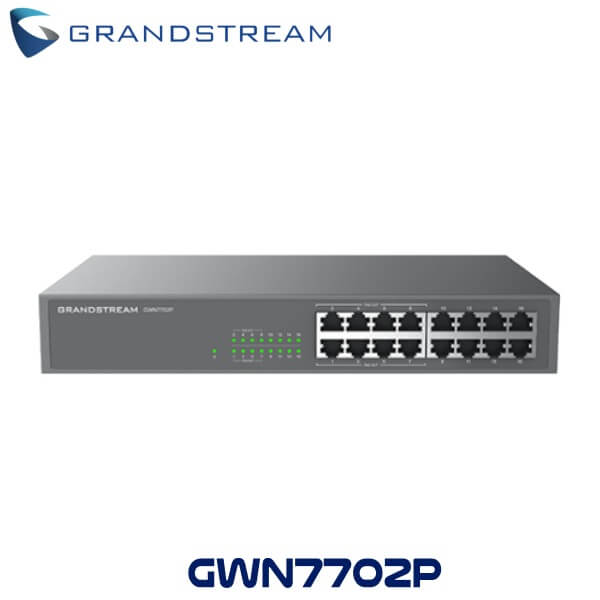

Grandstream GWN7702P Network Switch Dubai

The Grandstream GWN7702P Dubai is a series of unmanaged network switches that provide a fast and cost-effective solution for adding high-speed Gigabit connections to home offices and SMBs. These switches require no configuration or installation and can be desktop or wall mounted. They also have automatic MDI/MDIX, eliminating the need for crossover cables. Each port on the Grandstream GWN7702P Dubai supports auto-negotiation, in which the switch detects the connection speed of any 10/100/1000 Mbps network device and adjusts it accordingly for compatibility and optimal performance. For added convenience, PoE (Power-over-Ethernet) models have ports with IEEE 802.3af/compliant intelligent dynamic PoE output. This feature allows you to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. Finally, the plug-and-play Grandstream GWN7702P Dubai is the perfect choice for home offices and SMBs that need an unmanaged network switch.

Technical Specifications

• Gigabit Ports :  16
• PoE Ports :  8
• Enclosure :  Metal
• Mounting :  Desktop/Rack-Mount
• Standards and Protocols :  IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
• Port Features :
  • 16 * 10/100/1000Mbps RJ45 Ports
  • AUTO Negotiation
  • AUTO MDI/MDIX
• Network Media :  1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex
• PoE Configuration :
  • 1~8 Ports 802.3 af/at compliant
  • Up to 30 W on Each Port, Total 138W Power Budget;
  • Overload to cut off the lowest- s priority port.
  • Priority : Port 1 to Port 8
• LED Indicators :
  • Per port : Link/Activity – Green
  • Per port : PoE output – Yellow
  • Per device : Power Green
• Mac Address Table :  8K
• Switching Capacity :  32Gbps
• Jumbo Frame :  10KB
• Advanced Features :
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE 802.3x Flow Control
  • Half duplex backpressure
• Power Adapter : Internal 100-240V AC, 50/60Hz,150W
• Max Power Consumption by Base System :   10.1W@220V/50Hz (excluding PoE output power)
• Environmental :
  • Operating Temperature :  0 to 40 °C (32 to 104 °F)
  • Storage Temperature :  -20 to 60 °C (-4 to 140 °F)
  • Operating Humidity :  10% to 90% Non-condensing
  • Storage Humidity :  10% to 90% Non-condensing
• Dimensions (L x W x H) :
  • Unit :  280 x 180 x 44mm;
  • Package :  366 x 211 x 53mm
• Weight :
  • Unit : 1.58KG
    Entire Package : 2.18KG
• Package :
  • 1x Switch
  • 1x 1.2m AC Cable
  • Rack-mounting Standard Brackets
  • 4x Rubber Feet
  • 1x QIG
• Compliance :   FCC, CE, RCM, IC, UKCA
