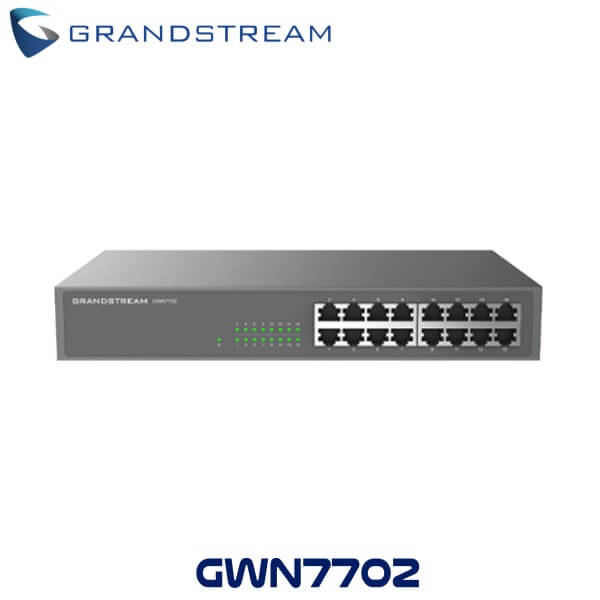

The Grandstream GWN7702 Dubai is a line of unmanaged network switches that offer a fast and cost-effective solution for adding high-speed Gigabit connectivity to home offices and small/medium businesses. These switches require no configuration or installation, and they come in a design that can be placed on a desktop or mounted on a wall. They also feature auto MDI/MDIX, which eliminates the need for crossover cables. Each port of the Grandstream GWN7702 Dubai supports auto-negotiation, allowing the switch to recognize the link speed of any 10/100/1000Mbps network device and adjust accordingly for compatibility and optimal performance. For added convenience, the PoE (Power-over-Ethernet) models provide ports with IEEE 802.3af/at compliant, smart dynamic PoE output. This feature enables the switch to power IP phones, IP cameras, Wi-Fi access points, and other PoE endpoints. In conclusion, the plug-and-play Grandstream GWN7702 Dubai is the perfect choice for home offices and small-to-medium businesses in need of an unmanaged network switch.

Technical Specifications

• Gigabit Ports : 16
• PoE Ports : N/A
• Enclosure :  Metal
• Mounting :  Desktop/Rack-Mount
• Standards and Protocols : IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
• Port Features :
  • 16 * 10/100/1000Mbps RJ45 Ports
  • AUTO Negotiation
  • AUTO MDI/MDIX
• Network Media :  1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex
• LED Indicators :
  • Per port : Link/Activity Green
  • Per device : Power Green
• Mac Address Table : 8K
• Switching Capacity :  32Gbps
• Jumbo Frame : 10KB
• Advanced Features :
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE 802.3x Flow Control
  • Half duplex backpressure
• Power Adapter : Internal 100-240V AC, 50/60Hz,18W
• Max Power Consumption by Base System :   8W@220V/50Hz
• Environmental :
  • Operating Temperature : 0 to 40 °C (32 to 104 °F)
  • Storage Temperature : -20 to 60 °C (-4 to 140 °F)
  • Operating Humidity : 10% to 90% Non-condensing
  • Storage Humidity : 10% to 90% Non-condensing
• Dimensions (L x W x H) :
  • Unit : 280 x 180 x 44mm;
  • Package : 366 x 211 x 53mm
• Weight :
  • Unit : 1.23KG
  • Entire Package : 1.83KG
• Package :
  • 1x Switch
  • 1x 1.2m AC Cable
  • Rack-mounting Standard Brackets
  • 4x Rubber Feet
  • 1x QIG
• Compliance :   FCC, CE, RCM, IC, UKCA
