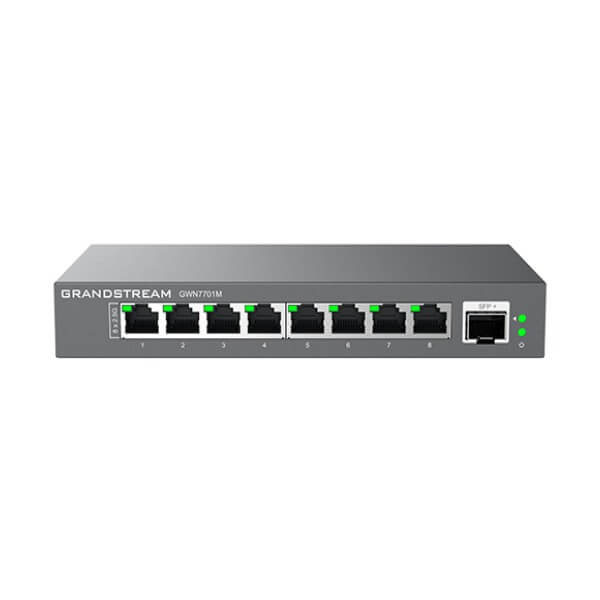

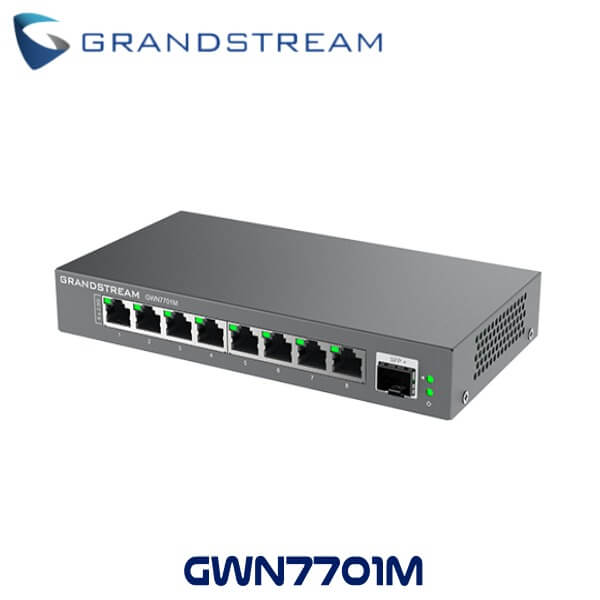

The Grandstream GWN7701M Dubai is an unmanaged multi-gigabit network switch that provides high-speed network connections of up to 2.5 Gbps for home offices and small and medium businesses. These 6- and 9-port multigigabit switches support Fast Ethernet, 1GbE, and 2.5GbE speeds and include a 1GbE SFP fiber port to provide high-speed 1Gb or 10Gb uplink connectivity. The GWN7700M and GWN77001M require no configuration or installation, can be mounted on a desktop or wall, and provide MDI/MDIX automatically without connecting cables. Grandstream GWN7701M Dubai supports auto-negotiation on each port to recognize the speed of the 100/1000/2500 Mbps network device and adjust it intelligently for the best compatibility and performance. The GWN7700M and GWN7701M Plug and Play are unmanaged network switches ideal for home offices and small and medium businesses that require high-speed multi-gigabit connectivity.

Grandstream GWN7701M Features

GENERAL INFO :

• Model : GWN7701M
• Box Contents :
  • 1x GWN7701M Switch
  • 1x Power Adapter
  • 1x QIG
• Enclosure : Metal
• Mounting : Desktop/ Wall-Mount
• Power Adapter : External 12V/1A
• Max Power Consumption by Base System : 9. 7W
• LED Indicators :
  • Per port : Link/Activity Green
  • Per device : Power Green
• Compliance : FCC, CE, RCM, IC, UKCA

PORTS :

• Gigabit Ports : 8
• Port Features :
  • 8× 100/1000/2500Mbps RJ45 Ports
  • 1× SFP+ Fiber Port
  • AUTO Negotiation
  • AUTO MDI/MDIX

NETWORK :

• Network Media :
  • 2.5GBase-T / 1000Base-T / 100Base-TX/10Base-Te (Half-Duplex only supported in 10/100M mode on port 4-8)
• Mac Address Table : 4K
• Switching Capacity : 60Gbps
• Jumbo Frame : 9KB
• Advanced Features :
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE 802.3x Flow Control
  • IEEE 802.3az (Energy Efficient Ethernet)
  • 802.1p/DSCP QoS
  • IGMP :
    • IGMP Fast-Leave
    • IGMP Snoop
    • Route Port Autolearn
    • Query Refresh Member Port
