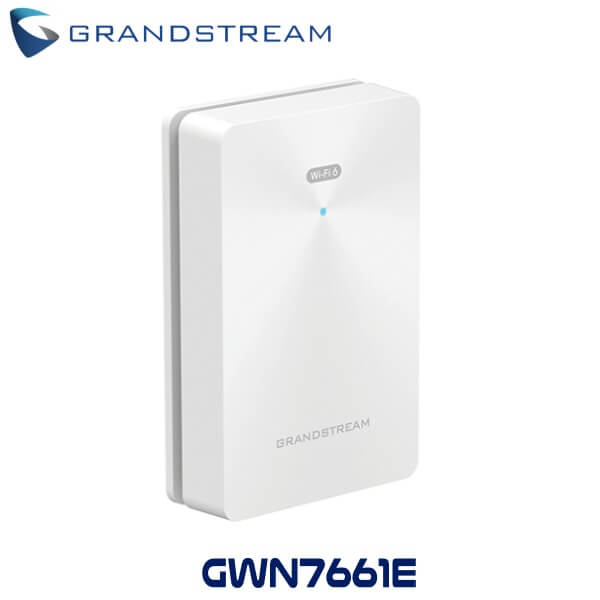

Grandstream GWN7661E Access Point Dubai
The Grandstream GWN7661E Dubai is a versatile in-wall AX3000 Wi-Fi 6 access point tailored for a variety of settings, including offices, hotels, apartments, and homes. Optimized for seamless voice-over-Wi-Fi deployments, it pairs effortlessly with Grandstream’s Wi-Fi-enabled IP phones. Offering a remarkable 3 Gbps wireless throughput alongside 4 Gigabit wireline ports, Grandstream GWN7661E Dubai integrates advanced MU-MIMO (2×2:2 for 2.4 GHz and 3×3:2 for 5 GHz) and OFDMA technology to ensure high-performance connectivity. Supporting up to 256 concurrent Wi-Fi client devices, it features self-power adaptation for PoE or PoE+ and advanced QoS for real-time, low-latency applications. Enhanced security measures include anti-hacking secure boot, critical data protection with digital signatures, and unique security credentials for each device. The Grandstream GWN7661E Dubai embedded controller manages up to 50 local GWN APs, while the GDMS Networking and GWN Manager platforms enable scalable cloud-based or on-premise AP management solutions.
Features
- 3 Gbps wireless throughput and 4x Gigabit wireline ports
- 2×2:2 (2.4G) and 3×3:2 (5G) MU-MIMO and OFDMA technology
- Supports up to 256 concurrent Wi-Fi client devices
- Self-power adaptation upon auto-detection of PoE or PoE+
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management
Specifications
Client Devices | Up to 256 |
2.4G Throughput | 573.5Mbps (2×2:2 MU-MIMO) |
5G Throughput | 2.4Gbps (3×3:2 MU-MIMO) |
6G THROUGHPUT | N/A |
Range | Up to 100 Meters |

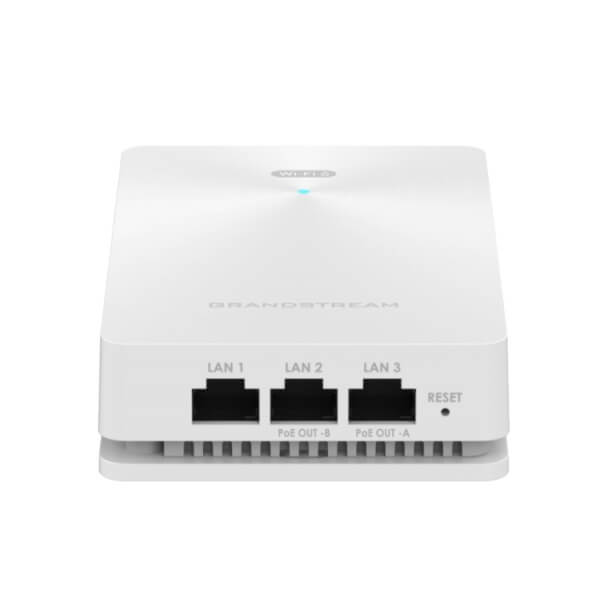

Network Interfaces | 1x 10/100/1000M uplink Ethernet port with PoE/PoE+ 2x 10/100/1000M Ethernet port with PSE 1x 10/100/1000M Ethernet port |
PoE/PoE+ | Support 802.3az PoE 802.3af/ 802.3at; The maximum output of all PSE ports is 12W; Maximum Power Consumption: 25W |
Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax |
SSIDs | 32 SSIDs total, 16 per radio (2.4GHz & 5GHz) |
Antennas | 2x dual-band internal antennas,1x 5G internal antenna |
Wi-Fi and Security Systems | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device |
Dimensions | 135mm(L) x 86mm(W) x 38.5mm(H) |

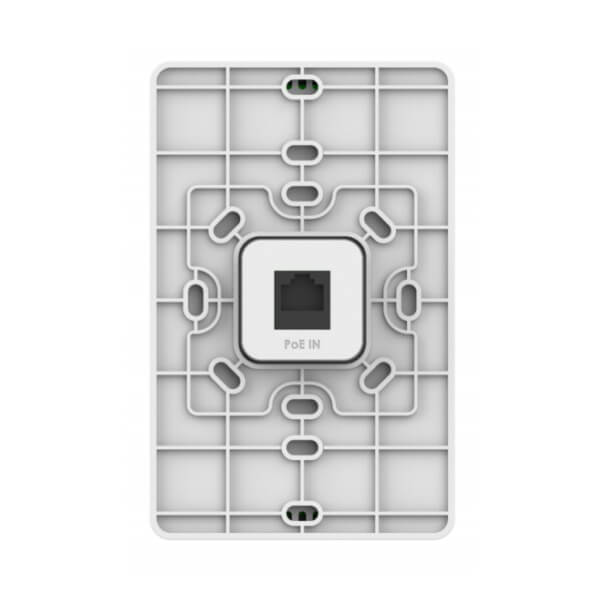

Mounting | In-Wall Mountable |
