Description

Grandstream GWN7661 Access Point Dubai

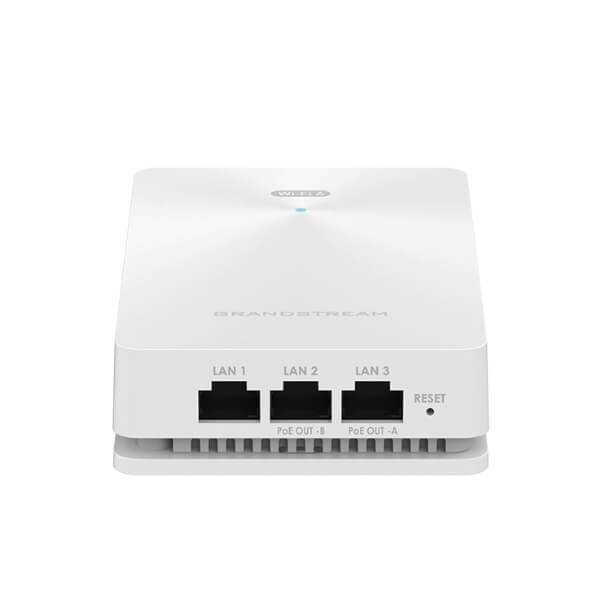

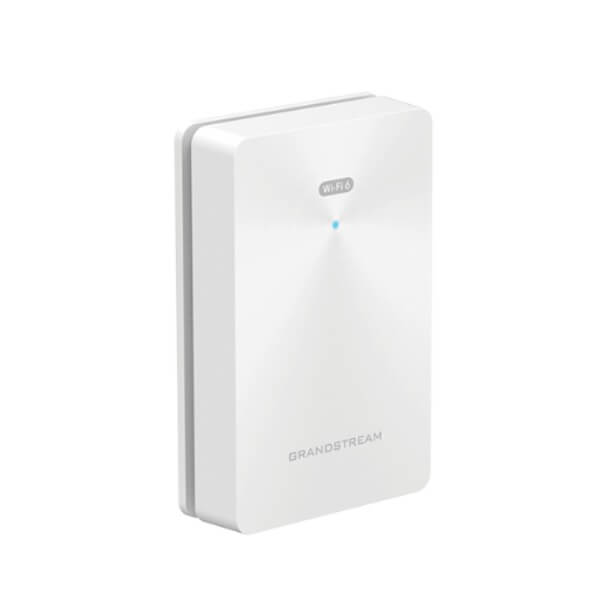

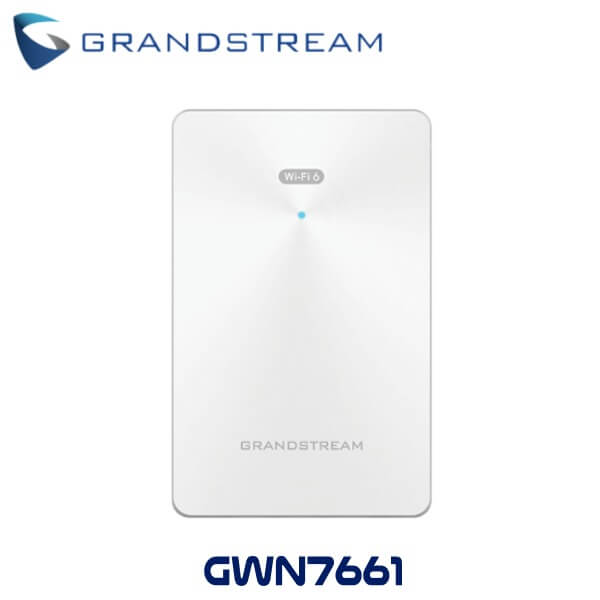

Grandstream GWN7661 Dubai is an 802.11ax in-wall Wi-Fi 6 access point designed for small and medium businesses, offices, residential, commercial, hotels and more. It offers dual-band 2×2 : 2 MU-MIMO technology and an advanced antenna design for maximum network performance and extended Wi-Fi coverage. Wi-Fi 6 supports dense modern environments where many users and many devices require high-speed, consistent and reliable Wi-Fi connections. The Grandstream GWN7661 Dubai has three Gigabit network ports to power IP phones, IPTV, computers and similar devices via Ethernet, while providing and interconnecting Gigabit network ports with PoE/PoE. It supports wired terminal access and meets wireless coverage requirements at the same time. As a wall access point, it offers a clean and professional installation that blends in with its surroundings. To ensure easy installation and management, the GWN7661 features a controller-less distributed network design where the controller is integrated into the product’s web-based user interface. The Grandstream GWN7661 Dubai is also compatible with GWN.Cloud and GWN Manager, Grandstream’s free cloud local Wi-Fi management platform. It is an ideal Wi-Fi access point for voice over Wi-Fi deployments and provides seamless connectivity to Grandstream’s Wi-Fi enabled IP. phone With support for advanced quality of service (QoS), low-latency real-time applications, mesh networks, captive gateways, and 500 concurrent clients per access point, the Grandstream GWN7661 Dubai is an ideal Wi-Fi access point for medium-sized wireless network installations. with a moderate density of users.

Features

• 77 Gbps wireless throughput and 4x Gigabit wireline ports
• Dual-band 2×2 : 2 MU-MIMO with DL/UL OFDMA technology
• Supports up to 500+ concurrent Wi-Fi client devices
• Self power adaptation upon auto detection of PoE or PoE+
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management

Additional Information on Grandstream GWN7661 :

Technical Specifications

GENERAL INFO :

• Model : GWN7661
• Box Contents :
  • GWN7661 Wi-Fi 6 In-Wall Wireless AP
  • Mounting Kits
  • Quick Installation Guide

WI-FI :

• Wi-Fi Standards :
  • IEEE 802.11 a/b/g/n/ac/ax
• Antennas :
  • 4 single band internal antennas
  • 2.4GHz x2, gain 3dBi;
  • 5GHz x2, gain 4.0dBi, gain 4.5dBi
• Wi-Fi Data Rates :
  • 5G :
    • IEEE 802.11ax : 7.3 Mbps to 1201 Mbps
    • IEEE 802.11ac : 6.5 Mbps to 867 Mbps
    • IEEE 802.11n : 6.5Mbps to 300Mbps
    • IEEE 802.11a : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 2.4G :
    • IEEE 802.11ax : 7.3 Mbps to 573.5 Mbps
    • IEEE 802.11n : 6.5Mbps to 300Mbps IEEE 802.11b : 1, 2, 5.5, 11 Mbps
      IEEE 802.11g : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• Frequency Bands :
  • 2.4GHz Radio : 2412 – 2484 MHz
  • 5GHz Radio : 5180 – 5825 MHz
• Channel Bandwidth :
  • 2.4G : 20 and 40 MHz
  • 5G : 20, 40 and 80 MHz
• Wi-Fi and System Security :
  • WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
• MIMO :
  • 2×2 : 2 2.4GHz
  • 2×2 : 2 5GHz
• Coverage Range :
  • Up to 100 meters
