Grandstream GSC3570 Dubai

The Grandstream GSC3570 HD Intercom Dubai offers flexible network connectivity through a 100Mbps network port with PoE or integrated dual-band Wi-Fi support.

Add to quote

Ask for Quote & Get Low Price

Description

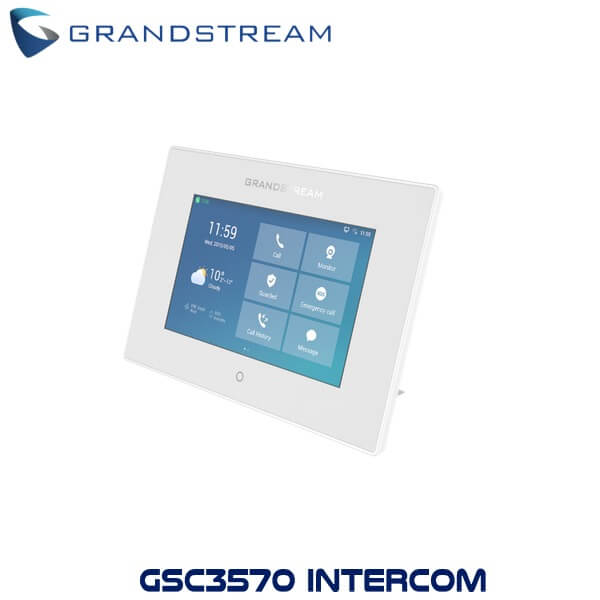

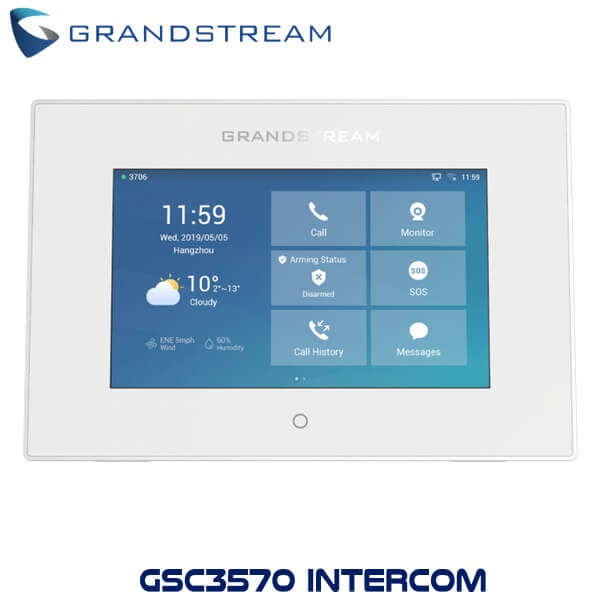

Grandstream GSC3570 HD Intercom & Facility Control Station Dubai

The Grandstream GSC3570 Dubai HD Intercom is a high-performance facility control station that has been designed to offer businesses an easy management solution, and enhance facility communications. It also not only offers easy door access but also enhances physical security on-premises. The Grandstream GSC3570 HD Intercom Dubai is a wall-mountable device that can also be placed on a desktop to deliver an easy door control solution, intercom and paging communication, security camera management, and facility-wide UC integration. The Grandstream GSC3570 HD Intercom Dubai is equipped with a 7” 1024 x 600 capacitive touch screen which offers an enhanced visual clarity to its user even when used in poor lighting conditions. It also comes with a dual-band Wi-Fi radio that supports fast connection speeds of 2.4GHz and 5GHz. For easy and customized deployments, the Grandstream GSC3570 Intercom Dubai uses its 4 alarm input ports and 1 alarm output port. A built-in 2-way full-duplex speakerphone uses Advanced Echo Cancellation (AEC) to deliver crystal clear audio. It supports 4 SIP accounts and two different languages including English and Chinese.

Key Features:

7 inch 1024×600 capacitive touch screen
Dual-band 802.11 ac Wi-Fi
4x alarm input ports and 1x alarm output port for customized deployments
Full-duplex 2-way HD audio with advanced echo cancellation
Secure Boot & Data, TLS and SRTP security encryption technology to protect calls and accounts
Supports PoE to provide a network connection to the device

Enhanced Visual Clarity
- The Grandstream GSC3570 HD Intercom Dubai is equipped with a 7” 1024 x 600 capacitive touch screen which delivers an enhanced visual clarity to its user even when used under poor lighting conditions.
Dual-Band Wi-Fi
- The Grandstream GSC3570 HD Intercom Dubai is equipped with a dual-band Wi-Fi radio which delivers fast connection speeds of 2.4GHz and 5GHz, allowing for the making of quick internet calls.
Full-Duplex 2-Way Audio
- The Grandstream GSC3570 HD Intercom Dubai is equipped with a full-duplex 2-way HD audio which uses a variety of voice codecs including 711μ/a, G.722 (wide-band), G.726-32, iLBC, Opus, G.729A/B, DTMF (In audio, RFC2833 to deliver crystal clear sounds during calls. It also uses other noise suppression technologies such as Advanced Echo Cancellation (AEC) and Adaptive Jitter Buffer(AJB) to deliver audible sounds.
Supports Power over Ethernet (PoE)
- The Grandstream GSC3570 HD Intercom Dubai is equipped with dual-switched 10/100Mbps ports which are integrated with Power over Ethernet for an easy network connection to the device.
Firmware Upgradeable
- The Grandstream GSC3570 HD Intercom Dubai allows for firmware upgrading so as to access newer updates, fix existing bugs that may cause malfunctioning of the Intercom, and eliminate safety risks that result from malware and malicious cyber hackers. This ensures the security of your system.
Interoperability
- The Grandstream GSC3570 HD Intercom Dubai is compliant with SIP RFC3261 and is therefore widely compatible with various 3^rd party door system products.
Rich Functionality
- The Grandstream GSC3570 HD Intercom Dubai is packed with standard telephony features including 4 SIP accounts, Hold, Call Waiting, Call Log, Auto Answer, etc. It is an easy-to-use device that requires no technical expertise from its user.
Easy Deployment
- Grandstream GSC3570 HD Intercom Dubai is equipped with a Micro SD card slot, 4 alarm input ports, and one alarm output port to offer the easiest possible deployment process. It is an easy-to-install device that requires no technical expertise. An included quick start guide, shows you step by step how to set up your facility control station.

Technical Specifications

Protocol/Standards

SIP RFC3261
TCP/IP/UDP
RTP/RTCP
HTTP/HTTPS
ARP
ICMP
DNS (A record, SRV,NAPTR)
DHCP
PPPoE
SSH
TFTP
NTP
STUN
SIMPLE
LDAP
802.1x
TLS
SRTP
IPv6

Network Interface

Dual switched 10/100Mbps ports

Graphic Display

7’’ 1024×600 capacitive touch screen TFT LCD with Home key

Wi-Fi

Yes, dual-band 802.11 a/b/g/n/ac (2.4GHz & 5GHz)

Auxiliary Ports

4 x Alarm Input
1 x Alarm Output
Micro SD card slot

Voice Codecs and Capabilities

711μ/a, G.722 (wide-band), G.726-32, iLBC, Opus, G.729A/B, DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS

Video Decoders and Capabilities

264 BP/MP/HP, video resolution up to 720p, frame rate up to 30 fps, bit rate up to 2Mbps

Telephony Features

4 SIP Accounts, Hold, Call Waiting, Call Log, Auto Answer, etc

Sample Applications

Local apps : Contacts, Call History, Settings, Voicemail, Clock
API/SDK available to allow integration with 3rd party door system products

Operating System

Linux

HD Audio

Yes, Dual speakers with support for wideband audio and media play in stereo, acoustic echo cancellation

QoS

Layer 2 (802.1Q, 802.1p), 802.11e and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

Secure Boot & Data, Double images for high reliability, random administrator password, user and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES based secure configuration file, SRTP, TLS, 802.1x media access control

Multi-language
