Description

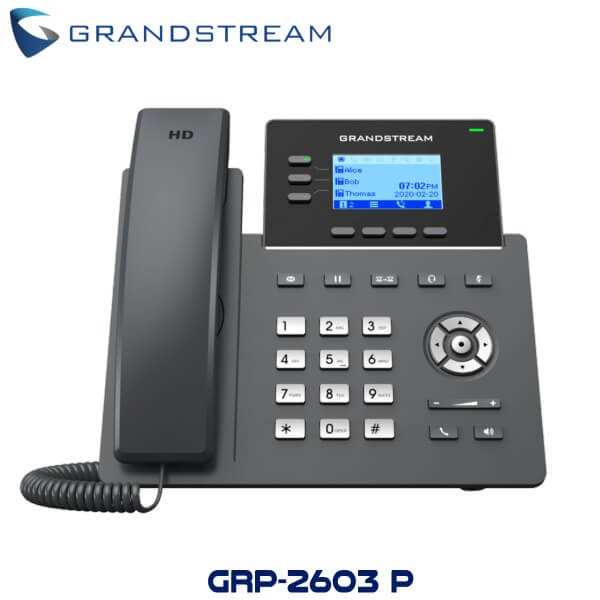

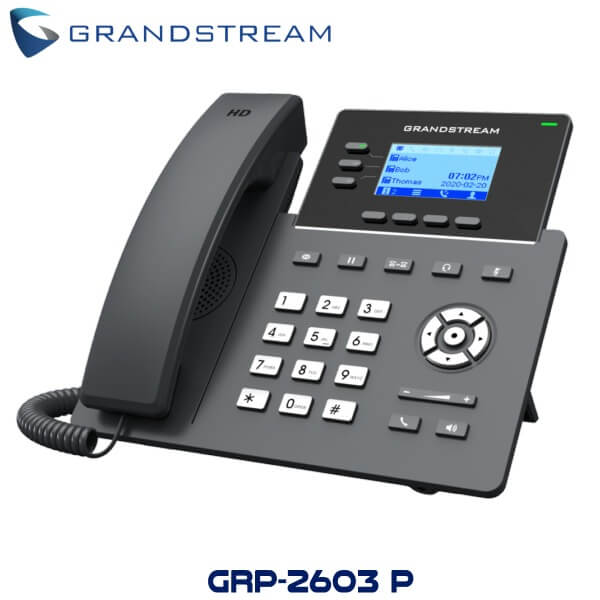

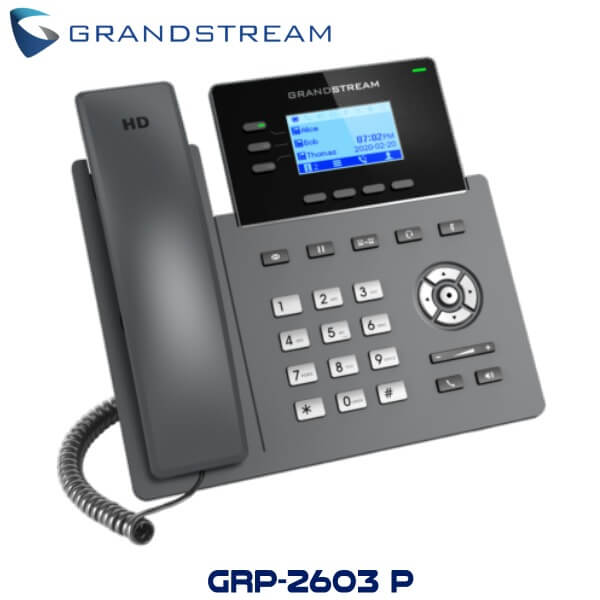

Grandstream GRP2603 P IP Phone Dubai

The Grandstream GRP2603P IP Phone Dubai is an essential 3-line model designed with zerotouch provisioning also features a sleek design and a suite of nextgeneration features including: 5-way voice conferencing to maximize productivity, integrated PoE (GRP2603P), full HD audio on both the speaker and handset to allow users to communicate with the utmost clarity, EHS support for Plantronics, Jabra, and Sennheiser headsets and multi-language support. The Grandstream GRP2603P IP Phone Dubai offers an easy-to-use and easy-to-deploy voice endpoint, built for the needs of on-site or remote desktop workers and designed for easy deployment by enterprises, service providers and other high volume markets.  For cloud provisioning and centralized management, the GRP2603P IP Phone Dubai is supported by Grandstream’s Device Management System (GDMS), which provides a centralized interface to configure, provision, manage and monitor deployments of Grandstream endpoints. The GRP series includes carrier-grade security features to provide enterprise-level security, including secure boot, dual firmware images and encrypted data storage.

GRANDSTREAM GRP2603 P FEATURES

• 3 lines, 6 SIP accounts, up to 3 call appearances
• Dual switched autosensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE (GRP2603P only)
• Equipped with noise shield technology to minimize background noise
• Supported by GDMS which provides a centralized interface to configure, provision, manage and monitor Grandstream devices
• Supports 5-way audio conferencing for easy conference calls
• Electronic Hook Switch (EHS) support for Plantronics, Jabra, and Sennheiser headsets
• Full-duplex speakerphone with HD audio to maximize audio quality and clarity
• Enterprise-level protection including secure boot, dual firmware images, and encrypted data storage
• Swappable faceplate to allow for easy logo customization

GRANDSTREAM GRP2603 P SPECIFICATIONS

• Protocols/Standards :
  • SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR069, SNMP, 802.1x, TLS, SRTP, IPv6
• Network Interfaces :
  • Dual switched auto-sensing 10/100/1000 Mbps Ethernet ports, integrated PoE (GRP2603P only)
• Graphic Display :
  • 132 x 64 (2.48’’) backlit graphical LCD display
• Feature Keys :
  • 3 line keys with dual-color LED and support for 6 SIP accounts, 4 XML programmable context sensitive soft keys, 5 (navigation, menu) keys. 9 dedicated function keys for MESSAGE(with LED indicator), TRANSFER, HOLD, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL
• Auxiliary Port :
  • RJ9 headset jack (allowing EHS with Plantronics & Jabra &Sennheiser headsets)
• Voice Codecs and Capabilities :
  • Support for G.729A/B, G.711µ/a-law, G.726, G.722(wide-band), G.723,iLBC, OPUS, in- band and out-of-band DTMF(in audio, RFC2833, SIP INFO), VAD, AEC, CNG, PLC, AGC
• Telephony Features :
  • Hold, transfer, forward, 5-way conference, call park, call pickup, shared-callappearance(SCA)/bridged-line-appearance(BLA), downloadable phonebook(XML, LDAP, up to 2000 items), call waiting, call log(up to 800 records), off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot-desking, personalized music ringtones and music on hold, server redundancy and fail-over
• HD Audio :
  •  HD handset and speakerphone with support for wideband audio
• Base Stand :

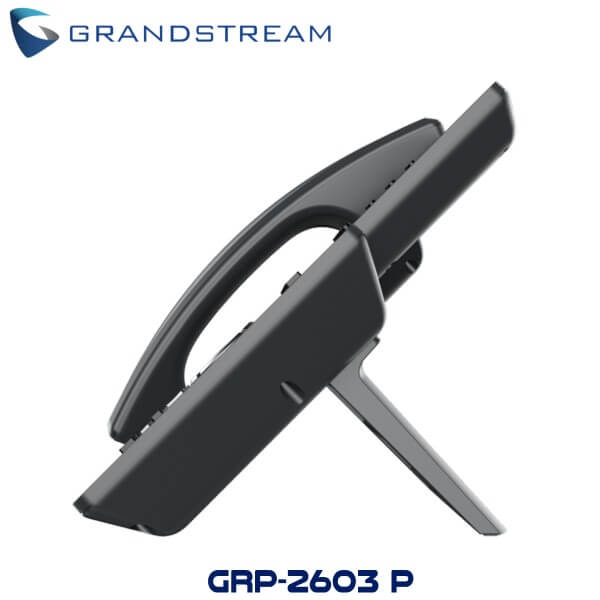

  •  2 angle positions available (39° & 45°), Wall Mountable (*wall mount sold separately)
•  QoS :
  • Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS
• Security :
  • User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control, secure boot
• Multi-language :
  • English, Chinese, Korean, Japanese, German, Italian, French, Spanish, Portuguese, Russian, Croatian, and more
• Upgrade/Provisioning Firmware :
  • upgrade via FTP/TFTP / HTTP / HTTPS, mass provisioning using GDMS/TR069 or AES encrypted XML configuration file
• Power & Green Energy Efficiency :
  • Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA;PoE: IEEE802.3af Class 1, 3.84W; IEEE802.3az (EEE) (GRP2603P Only)
• Temperature and Humidity :
  • Operation : 0°C to 40°C Storage: -10°C to 60°C
  • Humidity: 10% to 90% Non-condensing
• Physical Dimension:
  • 214mm (L) x 206mm (W) x 68mm (H) (with handset)
  • Unit weight: 780g;
  • Package weight: 1090g for GRP2603P &1140g for GRP2603
