Description

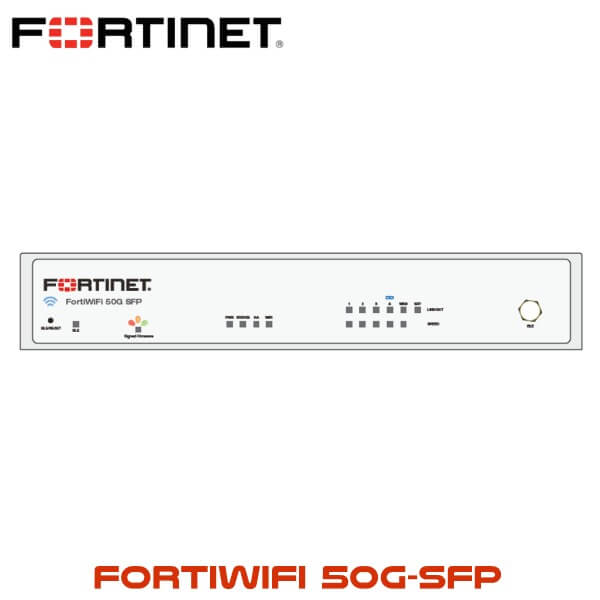

FortiWiFi50G SFP Firewall Dubai
The FortiWiFi50G SFP Dubai is an ideal solution for establishing security-driven networks at distributed enterprise locations while revolutionizing WAN architecture at any scale. Equipped with advanced AI/ML-based FortiGuard security services and seamlessly integrated with Fortinet’s Security Fabric platform, the FortiWiFi50G SFP provides coordinated, automated, and end-to-end threat protection across diverse use cases. This device is the industry’s first to feature integrated SD-WAN and Zero Trust Network Access (ZTNA) enforcement within a next-generation firewall (NGFW) solution, all powered by a unified operating system. The FortiWiFi50G SFP ensures secure, verified, and efficient user access to applications, delivering a consistent, seamless, and optimized user experience.
In addition, the FortiWiFi50G SFP includes a built-in Next-Generation Firewall (NGFW) that offers comprehensive protection against cyber threats such as malware, viruses, spyware, and botnets. Supporting the latest Wi-Fi 6 standards, it guarantees high-speed wireless connectivity for enhanced performance and reliability. With dual-band functionality operating on both the 2.4 GHz and 5 GHz frequency bands, the device optimizes both speed and coverage. Beamforming technology further enhances wireless performance by directing signals to specific devices, while MU-MIMO technology allows for simultaneous high-speed connections across multiple devices. The FortiWiFi50G SFP can be centrally managed via Fortinet’s FortiCloud platform, enabling efficient cloud-based oversight. Its intuitive, web-based interface also simplifies configuration and ongoing management.
Specifications:
| Hardware Accelerated GE WAN Port | 1 |
| Hardware Accelerated GE RJ45 Ports | 3 |
| Hardware Accelerated GE RJ45 POE/+ Ports | — |
| Hardware Accelerated GE SFP Slots | 1 |
| Hardware Accelerated GE RJ45 FortiLink Port (Default) | 1 |
| USB Ports | 1 |
| Console Port (RJ45) | 1 |
| Trusted Platform Module (TPM) | Â Yes |
| Antenna Ports (SMA) | 3 |
| Wireless Interface | Dual Radio (2.4 GHz/ 5 GHz), 802.11 a/b/g/n/ac/ax |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput | 2.25 Gbps |
| NGFW Throughput | 1.25 Gbps |
| Threat Protection Throughput | 1.1 Gbps |
| System Performance | |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 5 / 5 / 4 Gbps |
| Firewall Latency (64 byte UDP packets) | 2.42 μs |
| Firewall Throughput (Packets Per Second) | 6 Mpps |
| Concurrent Sessions (TCP) | 720 000 |
| New Sessions/Second (TCP) | 85 000 |
| Firewall Policies | 2000 |
| IPsec VPN Throughput (512 byte) | 4.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 250 |
| SSL-VPN Throughput | — |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | — |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 1.3 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 699 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 74,000 |
| Application Control Throughput (HTTP 64K) | 2.8 Gbps |
| CAPWAP Throughput (HTTP 64K) | 3.8 Gbps |
| Virtual Domains (Default / Maximum) | 5/5 |
| Maximum Number of FortiSwitches Supported | 8 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 16 / 8 |
| Maximum Number of FortiTokens | 500 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Dimensions | |
| Height x Width x Length (inches) | 1.6 x 8.5 x 6.3 |
| Height x Width x Length (mm) | 40.5 x 216 x 160 |
| Weight | 2.2 lbs (1.0 kg) |
| Form Factor (supports EIA/non-EIA standards) | Desktop |
| Operating Environment and Certifications | |
| Power Rating | 12VDC, 3A |
| Power Required | Powered by External DC Power Adapter, 100–240V AC, 50/60 Hz |
| Maximum Current | |
| Power Consumption (Average / Maximum) | 12.5 W / 13.9 W |
| Heat Dissipation | 47.4 BTU/h |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non-condensing |
| Noise Level | Fanless 0 dBA |
| Operating Altitude | Up to 10 000 ft (3048 m) |
| Compliance | FCC, ISED, CE, UL/cUL, CB |
| Certifications | USGv6/IPv6 |
| Radio Specifications | |
| Multiple User (MU) MIMO | 2 x 2 |
| Maximum Wi-Fi Speeds | 1201 Mbps @ 5 GHz, 574 Mbps @ 2.4 GHz |
| Maximum Tx Power | 21.0 dBm per chain @ 2.4GHz, 19.5 dBm per chain @ 5GHz |
