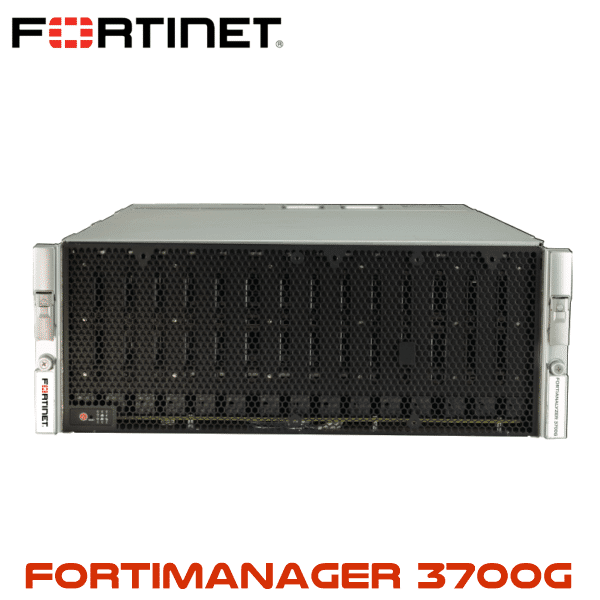

FortiManager3700G Network Monitoring Platform Dubai
The Fortinet FortiManager3700G Dubai is a high-performance, centralized management platform designed to streamline and enhance the administration of extensive Fortinet security deployments. Offering a unified, “single pane of glass” interface, it provides complete visibility and centralized control over the entire network infrastructure. By consolidating management tasks, the platform simplifies provisioning and leverages advanced automation tools to reduce manual efforts, enabling efficient and scalable network administration for large-scale operations.
One of the FortiManager3700G Dubai’s key strengths is its scalability, allowing seamless management of numerous Fortinet devices and Virtual Domains (VDOMs). It also features comprehensive reporting capabilities, generating detailed insights into network security, performance, and compliance. Additionally, the platform integrates seamlessly with other Fortinet solutions—such as FortiAnalyzer and FortiGate—to create a cohesive, unified security management ecosystem. With these advanced capabilities, the FortiManager3700G Dubai ensures that security policies are consistently enforced and quickly adapted to evolving network requirements, enhancing both operational efficiency and security posture.
Specifications:
Capacity and Performance | |
Devices/VDOMs (Default) | 10 000 |
Devices/VDOMs (Maximum) | 100 000 |
Sustained Log Rates | 150 |
GB/ day | 10 |
Hardware Specifications | |
Storage Capacity | 240TB (60x 4TB) HDD + 19.2TB (6x 3.2TB) NVMe SSD |
Usable Storage (after RAID) | 224 TB |
RAID Levels Supported | RAID 0/1,1s/5,5s/6,6s/10/50/60 |
Default RAID Level | 50 |
Hardware Form Factor | 4 RU Rackmount |
Total Interfaces | 2x 25GE SFP28, 2x 10GE RJ‑45 |
Console Port | DB‑9 |
Removable Hard Drives | ✓ |
Redundant Hot Swap Power Supplies | ✓ |
Trusted Platform Module (TPM) | ✓ |
Dimensions | |
Height x Width x Length (inches) | 7.0 x 17.2 x 30.2 |
Height x Width x Length (cm) | 17.8 x 43.7 x 76.7 |
Weight | 120 lbs (54.6 kg) |
Environment | |
AC Power Supply | 2000W AC 4 |
Power Consumption (Average / Maximum) | 850 W / 1423.4 W |
Heat Dissipation | 4858 BTU/h |
Operating Temperature | 50°F to 95°F (10°C to 35°C) |
Storage Temperature | ‑40°F to 158°F (‑40°C to 70°C) |
Humidity | 5% to 95% non-condensing |
Forced Airflow | Front to Back |
Operating Altitude | Up to 7400 ft (2250 m) |
Compliance | |
Safety Certifications | FCC Part 15 Class A, RCM, VCCI, CE, BSMI, KC, UL/cUL, CB, GOST |
