Description

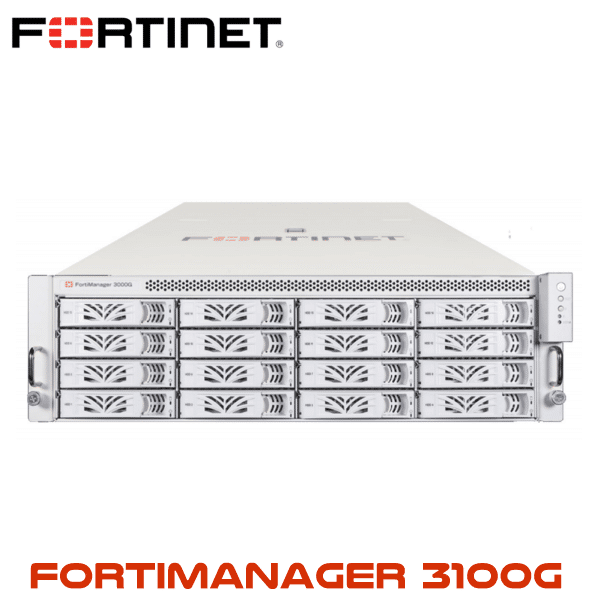

FortiManager3100G Network Management Platform Dubai
The Fortinet FortiManager3100G Dubai is a robust centralized management platform designed to simplify and enhance the oversight of large-scale Fortinet security deployments. Engineered for high-performance environments, it empowers network administrators to efficiently manage complex infrastructures. With its unified management console—commonly referred to as a “single pane of glass”—the platform provides comprehensive visibility and centralized control across the entire network ecosystem.
FortiManager3100G Dubai streamlines device and policy provisioning while leveraging advanced automation tools to minimize manual intervention, improving operational efficiency. This enables organizations to build secure, agile, and scalable network infrastructures capable of adapting to evolving business needs.
A key feature of the platform is its scalability, which facilitates the seamless management of numerous Fortinet devices and virtual domains (VDOMs). It also offers advanced reporting capabilities, generating detailed insights into network security, performance, and compliance. Additionally, FortiManager3100G Dubai integrates seamlessly with other Fortinet solutions, such as FortiAnalyzer and FortiGate, delivering a unified, end-to-end security management approach across all connected systems.
Specifications:
| Capacity and Performance | |
| Devices/VDOMs (Default)Â | 4000 |
| Devices/VDOMs (Maximum)Â | 8000 |
| Sustained Log Rates | 150 |
| GB/ day | 10 |
| Hardware Specifications | |
| Storage Capacity | 64 TB (16 x 4TB) |
| Usable Storage (after RAID) | 56 TB |
| RAID Levels Supported | RAID 0/1,1s/5,5s/6,6s/10/50/60 |
| Default RAID Level | 50 |
| Hardware Form Factor | 3 RU Rackmount |
| Total Interfaces | 2 x GbE RJ45 ports, 2x 25GbE SFP28 ports |
| Console Port | DB‑9 |
| Removable Hard Drives | ✓ |
| Redundant Hot Swap Power Supplies | ✓ |
| Trusted Platform Module (TPM) | ✓ |
| Dimensions | |
| Height x Width x Length (inches) | 5.2 x 17.2 x 25.5 |
| Height x Width x Length (cm) | 13.0 x 44.0 x 65.0 |
| Weight | 69.6 lbs (31.57 kg) |
| Environment | |
| AC Power Supply | 100‑127V~/10A, 200‑240V~/5A Hz |
| Power Consumption (Average / Maximum) | 395 W / 510 W |
| Heat Dissipation | 1740.19 BTU/h |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | ‑40°F to 158°F (‑20°C to 70°C) |
| Humidity | 5% to 95% non-condensing |
| Forced Airflow | Front to Back |
| Operating Altitude | Up to 13 123 ft (4000 m) |
| Compliance | |
| Safety Certifications | FCC Part 15 Class A, RCM, VCCI, CE, BSMI, KC, UL/cUL, CB, GOST |
