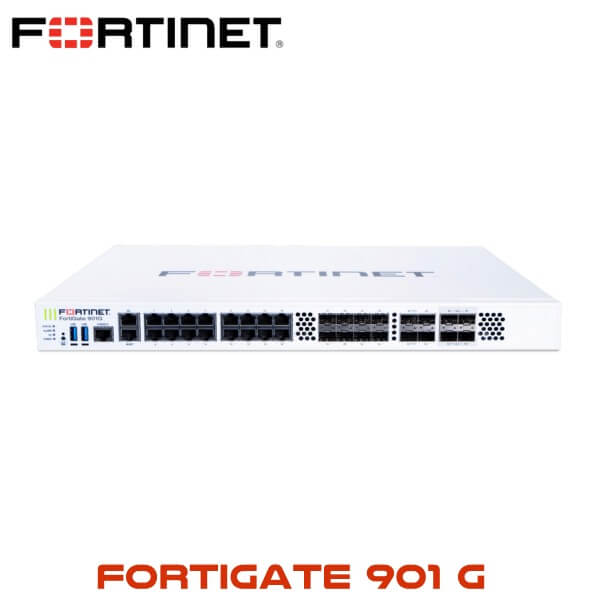

Fortigate901G Next-Generation Firewall Dubai
The Fortigate901G Dubai Next-Generation Firewall (NGFW) leverages advanced AI-driven security and machine learning technologies to deliver robust Threat Protection at any scale. It provides comprehensive visibility into your network environment, allowing you to monitor applications, users, and devices proactively, identifying potential risks before they evolve into serious threats.
This firewall is equipped with an extensive array of AI/ML-powered security features that seamlessly integrate into Fortinet’s security fabric platform. The Fortigate901G delivers secure, automated networking solutions that are both broad and deep, providing a holistic approach to network security. It ensures end-to-end protection, encompassing everything from advanced edge defenses to web filtering, content inspection, and device security. By utilizing intelligent network segmentation and secure SD-WAN capabilities, it simplifies management and reduces risks in hybrid IT infrastructures, offering a layered security model to minimize attack surfaces.
Additionally, Universal Zero Trust Network Access (ZTNA) enforces rigorous controls to verify and authenticate users before granting access to applications. This reduces the possibility of lateral movement attacks by ensuring only authorized users gain access to specific resources. The Fortigate901G also delivers high-speed Threat Protection and SSL decryption, maintaining security at the network’s edge while preserving high performance, making it an ideal solution for businesses requiring fast and reliable security without compromising network speed.
Hardware Features
Trusted Platform Module (TPM)
The Fortigate901G Dubai features a dedicated module that hardens physical networking appliances by generating, storing,and authenticating cryptographic keys. Hardware-based security mechanisms protect against malicious software and phishing attacks.
Access Layer Security
FortiLink protocol enables you to converge security and the network access by integrating the FortiSwitch into the FortiGate as a logical extension of the NGFW. These FortiLink enabled ports can be reconfigured as regular ports as needed.
Specifications
Interfaces and Modules | |
Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Ultra Low Latency Slots | 4 |
Hardware Accelerated 10 GE SFP+ / GE SFP Slots | 4 |
Hardware Accelerated GE SFP Slots | 8 |
Hardware Accelerated GE RJ45 Slots | 16 |
2.5 GE / GE HA Port | 1 |
GE Management Port | 1 |
USB Ports (Client / Server) | 2/2 |
Console Port | 1 |
Onboard Storage | 2x 480 GB |
Trusted Platform Module (TPM) | Yes |
Included Transceivers | 2x SFP SX |
System Performance — Enterprise Traffic Mix | |
IPS Throughput | 26 Gbps |
NGFW Throughput | 22 Gbps |
Threat Protection Throughput | 20 Gbps |
System Performance and Capacity | |
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 164 / 163 / 153 Gbps |
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP | 164 / 163 / 153 Gbps |
Firewall Latency (64 byte, UDP) | 3.78 / 2.5 μs |
Firewall Throughput (Packet per Second) | 229.5 Mpps |
Concurrent Sessions (TCP) | 16 Million |
New Sessions/Second (TCP) | 720 000 |
Firewall Policies | 10 000 |
IPsec VPN Throughput (512 byte) | 55 Gbps |
Gateway-to-Gateway IPsec VPN Tunnels | 2000 |
Client-to-Gateway IPsec VPN Tunnels | 50 000 |
SSL-VPN Throughput | 10 Gbps |
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 10 000 |
SSL Inspection Throughput (IPS, avg HTTPS) | 16.7 Gbps |
SSL Inspection CPS (IPS, avg. HTTPS) | 18 000 |
SSL Inspection Concurrent Session (IPS, avg HTTPS) | 1.6 Million |
Application Control Throughput (HTTP 64K) | 74.8 Gbps |
Virtual Domains (Default / Maximum) | 10 / 10 |
Maximum Number of FortiSwitches Supported | 96 |
Maximum Number of FortiAPs (Total / Tunnel) | 1024 / 512 |
Maximum Number of FortiTokens | 5000 |
High Availability Configurations | Active-Active, Active-Passive, Clustering |
Dimensions and Power | |
Height x Width x Length (inches) | 1.5 x 17.0 x 15.0 |
Height x Width x Length (mm) | 44.45 x 432 x 380 |
Weight (maximum) | 16.53 lbs (7.5 kg) |
Form Factor (supports EIA/non-EIA standards) | Rack Mount, 1RU |
AC Power Supply | 100–240VAC, 50/60 Hz |
AC Current (Maximum) | 6A@100VAC |
DC Power Supply | 48-60VDC |
DC Current (Maximum) | 7A@48V |
Power Consumption (Average / Maximum) | 144 W / 264 W |
Heat Dissipation | 902 BTU/h |
Power Supply Efficiency Rating | 80Plus Compliant |
Redundant Power Supplies (Hot Swappable) | Yes (comes with 2PSU default) |
Operating Environment and Certifications | |
Operating Temperature | 32°F to 113°F (0°C to 45°C) |
Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
Humidity | 10%–90% non-condensing |
Noise Level | 58 dBA |
Forced Airflow | Side and Front to Back |
Operating Altitude | Up to 10 000 ft (3048 m) |
Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
Certifications | USGv6/IPv6 |
