Description

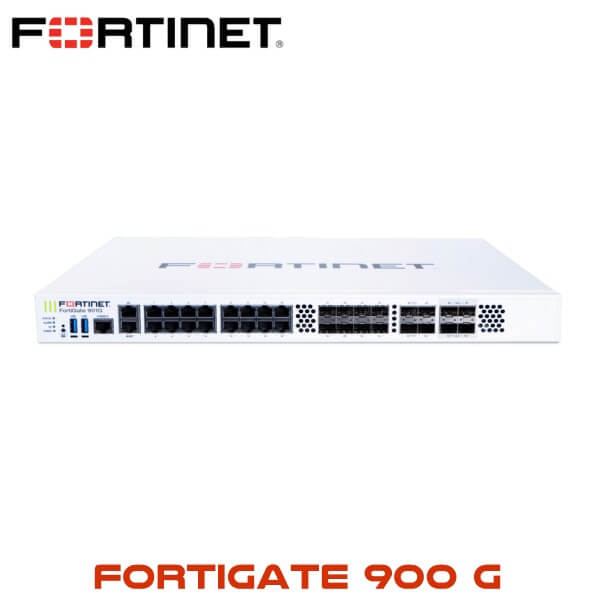

Fortigate900G Next Generation Firewall Dubai
The Fortigate900G Dubai Next-Generation Firewall (NGFW) represents the cutting-edge of cybersecurity, leveraging advanced artificial intelligence (AI) and machine learning (ML) technologies to provide robust threat protection across networks of any size. It offers unparalleled visibility into your network infrastructure, allowing you to monitor and understand applications, users, and devices before they can evolve into security risks.
Fortified by a comprehensive suite of AI and ML-driven security features, the Fortigate900G Dubai seamlessly integrates into an extensive security fabric platform. This platform is designed to deliver a highly secure networking environment that is not only extensive but also deeply embedded into your organization’s infrastructure. The solution is equipped with automated security processes that enhance efficiency and minimize human intervention, ensuring that your network is protected from edge to core.
The Fortigate900G provides end-to-end security, offering advanced protection at the network’s edge through features such as web filtering, content protection, and device security controls. Furthermore, its integrated network segmentation and secure SD-WAN capabilities streamline your hybrid IT environment, reducing both complexity and operational risks. These features ensure that your organization remains secure while maintaining optimal network performance.
One of the standout features of the Fortinet 900G is its Universal Zero Trust Network Access (ZTNA) functionality. This capability automatically manages and verifies user access to applications, significantly mitigating lateral movement threats by ensuring that only authenticated and authorized users can gain access to sensitive resources. Additionally, the solution’s ultra-fast threat protection and SSL inspection features provide robust security measures at the network’s edge, all without compromising speed or performance. This ensures that you can maintain visibility into encrypted traffic while safeguarding your network from emerging threats in real-time.
Hardware Features
Trusted Platform Module (TPM)
The Fortinet 900G Dubai features a dedicated module that hardens physical networking appliances by generating, storing,and authenticating cryptographic keys. Hardware-based security mechanisms protect against malicious software and phishing attacks.
Access Layer Security
FortiLink protocol enables you to converge security and the network access by integrating the FortiSwitch into the FortiGate as a logical extension of the NGFW. These FortiLink enabled ports can be reconfigured as regular ports as needed.
Specifications
Interfaces and Modules | |
Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Ultra Low Latency Slots | 4 |
Hardware Accelerated 10 GE SFP+ / GE SFP Slots | 4 |
Hardware Accelerated GE SFP Slots | 8 |
Hardware Accelerated GE RJ45 Slots | 16 |
2.5 GE / GE HA Port | 1 |
GE Management Port | 1 |
USB Ports (Client / Server) | 2/2 |
Console Port | 1 |
Onboard Storage | No |
Trusted Platform Module (TPM) | Yes |
Included Transceivers | 2x SFP SX |
System Performance — Enterprise Traffic Mix | |
IPS Throughput | 26 Gbps |
NGFW Throughput | 22 Gbps |
Threat Protection Throughput | 20 Gbps |
System Performance and Capacity | |
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 164 / 163 / 153 Gbps |
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP | 164 / 163 / 153 Gbps |
Firewall Latency (64 byte, UDP) | 3.78 / 2.5 μs |
Firewall Throughput (Packet per Second) | 229.5 Mpps |
Concurrent Sessions (TCP) | 16 Million |
New Sessions/Second (TCP) | 720 000 |
Firewall Policies | 10 000 |
IPsec VPN Throughput (512 byte) | 55 Gbps |
Gateway-to-Gateway IPsec VPN Tunnels | 2000 |
Client-to-Gateway IPsec VPN Tunnels | 50 000 |
SSL-VPN Throughput | 10 Gbps |
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 10 000 |
SSL Inspection Throughput (IPS, avg HTTPS) | 16.7 Gbps |
SSL Inspection CPS (IPS, avg. HTTPS) | 18 000 |
SSL Inspection Concurrent Session (IPS, avg HTTPS) | 1.6 Million |
Application Control Throughput (HTTP 64K) | 74.8 Gbps |
Virtual Domains (Default / Maximum) | 10 / 10 |
Maximum Number of FortiSwitches Supported | 96 |
Maximum Number of FortiAPs (Total / Tunnel) | 1024 / 512 |
Maximum Number of FortiTokens | 5000 |
High Availability Configurations | Active-Active, Active-Passive, Clustering |
Dimensions and Power | |
Height x Width x Length (inches) | 1.5 x 17.0 x 15.0 |
Height x Width x Length (mm) | 44.45 x 432 x 380 |
Weight (maximum) | 15.98 lbs (7.25 kg) |
Form Factor (supports EIA/non-EIA standards) | Rack Mount, 1RU |
AC Power Supply | 100–240VAC, 50/60 Hz |
AC Current (Maximum) | 6A@100VAC |
DC Power Supply | 48-60VDC |
DC Current (Maximum) | 7A@48V |
Power Consumption (Average / Maximum) | 134 W / 252 W |
Heat Dissipation | 861 BTU/h |
Power Supply Efficiency Rating | 80Plus Compliant |
Redundant Power Supplies (Hot Swappable) | Yes (comes with 2PSU default) |
Operating Environment and Certifications | |
Operating Temperature | 32°F to 113°F (0°C to 45°C) |
Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
Humidity | 10%–90% non-condensing |
Noise Level | 58 dBA |
Forced Airflow | Side and Front to Back |
Operating Altitude | Up to 10 000 ft (3048 m) |
Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
Certifications | USGv6/IPv6 |
