Description

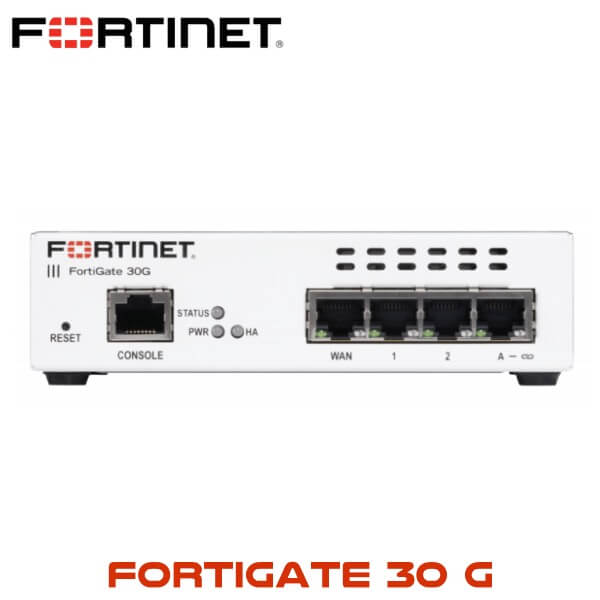

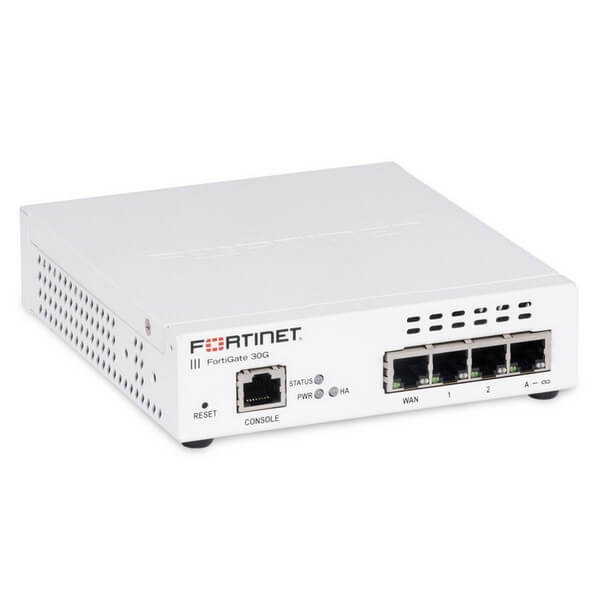

Fortigate30G Next-Generatiion Firewall Dubai
The Fortigate30G Dubai seamlessly integrates firewall capabilities, SD-WAN functionality, and robust security measures into a single appliance, making it an ideal solution for establishing security-driven networks across distributed enterprise locations and transforming WAN architecture at any scale. Powered by the FortiOS operating system, the Fortigate30G represents the industry’s first convergence of networking and security, enabling businesses to effectively secure their dynamic digital infrastructures.
As a fundamental component of the FortiGate Security Fabric platform, the FortiGate Next Generation Firewall (NGFW) operates in concert with FortiGuard’s AI-driven Security Services, providing coordinated, automated, end-to-end threat protection across various use cases in real time. The Fortigate30G is built on patented SD-WAN-based ASIC technology, offering unparalleled performance compared to traditional CPU solutions while reducing both costs and power consumption. This application-specific design, combined with an embedded multi-core processor, further enhances the integration of networking and security functions, optimizing secure connectivity and user experience at branch locations.
The Fortigate30G Dubai is equipped with a comprehensive suite of features designed to bolster network security and performance. Its Next Generation Firewall (NGFW) delivers extensive protection against a wide array of cyber threats, including malware, viruses, spyware, and botnets. The device supports SD-WAN technology, facilitating flexible and efficient WAN connectivity that enables businesses to optimize network performance while minimizing costs. Leveraging FortiGate’s patented Security Fabric architecture, the Fortinet FG-30G ensures high-performance security without sacrificing efficiency.
Furthermore, the device employs AI-driven security mechanisms to detect and neutralize advanced threats in real time. Its intuitive, web-based interface simplifies configuration and management, enhancing user-friendliness. The Fortigate30G is also designed for scalability, allowing it to adapt to evolving network demands. Additionally, it offers cloud-based management capabilities, enabling centralized monitoring and control of distributed networks.
Specifications:
| Hardware Specifications | |
| Hardware Accelerated GE WAN Port | 1 |
| Hardware Accelerated GE RJ45 Ports | 2 |
| Hardware Accelerated GE RJ45 FortiLink Port (Default) | 1 |
| USB Ports | — |
| Console Port (RJ45) | 1 |
| Trusted Platform Module (TPM) | |
| Bluetooth Low Energy (BLE) | — |
| Wireless Interface | — |
| System Performance* — Enterprise Traffic Mix | |
| IPS Throughput | 800 Mbps |
| NGFW Throughput | 570 Mbps |
| Threat Protection Throughput | 500 Mbps |
| System Performance | |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) |
4/ 4/ 3.9 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) |
4/ 4/ 3.9 Gbps |
| Firewall Latency (64 byte UDP packets) |
2.87 μs |
| Firewall Throughput (Packets Per Second) |
5.85 Mpps |
| Concurrent Sessions (TCP) | 600,000 |
| New Sessions/Second (TCP) | 30,000 |
| Firewall Policies | 2000 |
| IPsec VPN Throughput (512 byte) | 3.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 250 |
| SSL-VPN Throughput | — |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
— |
| SSL Inspection Throughput (IPS, avg. HTTPS) |
400 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 260 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 55,000 |
| Application Control Throughput (HTTP 64K) | 830 Mbps |
| CAPWAP Throughput (HTTP 64K) | TBA Gbps |
| Virtual Domains (Default / Maximum) | Not Supported |
| Maximum Number of FortiSwitches Supported | 8 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 16/8 |
| Maximum Number of FortiTokens | 500 |
| High Availability Configurations | Active-Passive, Active-Active |
| Dimensions | |
| Height x Width x Length (inches) | 1.6 x 5.6 x 6.3 |
| Height x Width x Length (mm) | 40.5 x 142 x 160 |
| Weight | 1.3 lbs (0.6 kg) |
| Rack Mount Type | NA |
| Wall Mountable | Optional |
| Form Factor (supports EIA/non‑EIA standards) | Desktop |
| Operating Environment and Certifications | |
| Power Rating | 12VDC, 2A |
| Power Source Powered by external DC power adapter | 100-240V AC, 50/60 Hz |
| Maximum Current | 100V/0.11A, 240V/0.055A |
| Power Consumption (Average / Maximum) | 6.8 W / 8.2 W |
| Heat Dissipation | 28 BTU/hr |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Storage Temperature | -31° to 158°F (-35° to 70°C) |
| Humidity | 20% to 90% non-condensing |
| Noise Level | N/A |
| Operating Altitude | 10 000 ft (3048 m) |
| Compliance | FCC, IC, CE, UL/cUL, CB, VCCI, BSMI, RCM, UKCA |
| Certifications | USGv6/IPv6 |
